Lenovo Global Technology ThinkSystem SR650 (Intel Xeon Platinum 8280 CPU 2.70 GHz) SPECpower_ssj2008 = 11,631 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Jun-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.4% 2,626,299 177 14,850
90% 90.0% 2,401,698 164 14,654
80% 80.0% 2,136,159 150 14,234
70% 69.9% 1,864,512 136 13,675
60% 60.0% 1,600,859 124 12,915
50% 50.1% 1,335,979 112 11,888
40% 40.1% 1,069,153 101 10,540
30% 29.9% 797,725 91.1 8,761
20% 20.0% 533,114 81.0 6,583
10% 10.0% 265,897 71.1 3,742
Active Idle 0 50.0 0
∑ssj_ops / ∑power = 11,631

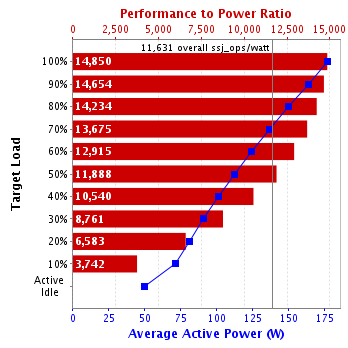

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR650 (Intel Xeon Platinum 8280 CPU 2.70 GHz)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280 CPU 2.70 GHz
CPU Characteristics: 28 core, 2.70GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 28 cores, 1 chip, 28 cores/chip
Hardware Threads: 56 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-MH1, Slots 1, 3, 5, 8, 10 and 12 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00884
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 28 }
JVM Instances: 28
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE135S (2019/03/08)
Management Firmware Version: CDI333V (2019/03/07)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Lenovo Power Plan V1.0 for SuSE Linux Enterprise Server 12 SP4
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Lenovo System x3550 M5
CPU Description: 2 x Intel Xeon E5-2699 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (Version 6.3.9600, Build 9600)
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 18-07-BAC-578-02
Date of Calibration: 30-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 56 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 177 24.4
90% 164 24.7
80% 150 24.8
70% 136 24.5
60% 124 24.4
50% 112 24.2
40% 101 24.0
30% 91.1 23.6
20% 81.0 23.4
10% 71.1 23.1
Active Idle 50.0 22.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.7 63
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,662,158
Calibration 2     2,675,491
Calibration 3     2,661,957
ssj_ops@calibrated=2,668,724
100% 98.4% 2,668,724 2,626,299
90% 90.0% 2,401,852 2,401,698
80% 80.0% 2,134,979 2,136,159
70% 69.9% 1,868,107 1,864,512
60% 60.0% 1,601,234 1,600,859
50% 50.1% 1,334,362 1,335,979
40% 40.1% 1,067,490 1,069,153
30% 29.9% 800,617 797,725
20% 20.0% 533,745 533,114
10% 10.0% 266,872 265,897
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
