Huawei Technologies Co., Ltd Fusion Server 5288 V5 ssj_ops@100% = 5,865,062
ssj_ops@100% per JVM = 104,733
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 11, 2019
Hardware Availability: Apr-2019 Software Availability: Jul-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,934,022
Calibration 2     5,871,713
Calibration 3     5,864,954
ssj_ops@calibrated=5,868,334
100% 99.9% 5,868,334 5,865,062
90% 90.1% 5,281,500 5,286,057
80% 79.8% 4,694,667 4,685,448
70% 69.8% 4,107,834 4,096,627
60% 60.0% 3,521,000 3,520,779
50% 50.0% 2,934,167 2,933,687
40% 40.0% 2,347,333 2,350,121
30% 30.0% 1,760,500 1,760,448
20% 20.0% 1,173,667 1,175,692
10% 10.0% 586,833 586,448
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server 5288 V5
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8280
CPU Characteristics: 28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM040, DIMM050, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, and DIMM150 populated
Power Supply Quantity and Rating (W): 1 x 900
Power Supply Details: Huawei P/N 02311TLF
Disk Drive: 1 x 960GB SSD 2.5" SATA Huawei P/N 02312DXT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Ondemand cpupower mode enabled in OS
Operating System (OS): Red Hat Enterprise Linux Server 7.6 (Maipo)
OS Version: Kernel 3.10.0-957.el7.x86_64
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=1 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseCompressedStrings -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 56
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 3.63
Management Firmware Version: 3.29
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.localdomain.001 104,423
localhost.localdomain.002 104,694
localhost.localdomain.003 104,488
localhost.localdomain.004 105,555
localhost.localdomain.005 104,369
localhost.localdomain.006 105,316
localhost.localdomain.007 105,035
localhost.localdomain.008 104,896
localhost.localdomain.009 105,585
localhost.localdomain.010 103,659
localhost.localdomain.011 105,723
localhost.localdomain.012 104,008
localhost.localdomain.013 105,978
localhost.localdomain.014 105,427
localhost.localdomain.015 105,839
localhost.localdomain.016 106,279
localhost.localdomain.017 102,165
localhost.localdomain.018 104,845
localhost.localdomain.019 104,393
localhost.localdomain.020 106,000
localhost.localdomain.021 106,215
localhost.localdomain.022 104,284
localhost.localdomain.023 104,053
localhost.localdomain.024 105,714
localhost.localdomain.025 103,881
localhost.localdomain.026 105,044
localhost.localdomain.027 103,507
localhost.localdomain.028 104,389
localhost.localdomain.029 103,864
localhost.localdomain.030 105,071
localhost.localdomain.031 103,332
localhost.localdomain.032 104,314
localhost.localdomain.033 106,707
localhost.localdomain.034 104,585
localhost.localdomain.035 103,510
localhost.localdomain.036 104,060
localhost.localdomain.037 106,289
localhost.localdomain.038 104,059
localhost.localdomain.039 103,479
localhost.localdomain.040 104,332
localhost.localdomain.041 104,021
localhost.localdomain.042 104,387
localhost.localdomain.043 105,535
localhost.localdomain.044 105,356
localhost.localdomain.045 104,541
localhost.localdomain.046 105,225
localhost.localdomain.047 104,056
localhost.localdomain.048 105,078
localhost.localdomain.049 106,315
localhost.localdomain.050 104,348
localhost.localdomain.051 105,394
localhost.localdomain.052 105,523
localhost.localdomain.053 105,669
localhost.localdomain.054 103,169
localhost.localdomain.055 104,381
localhost.localdomain.056 102,701
ssj_ops@100% 5,865,062
ssj_ops@100% per JVM 104,733

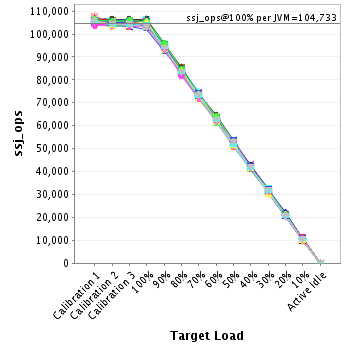

Graph of per-instance results

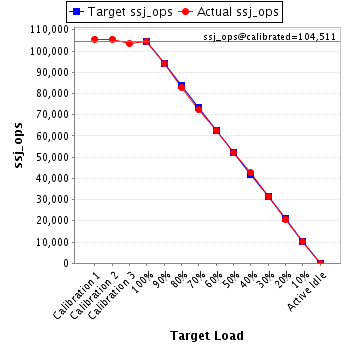

JVM 'localhost.localdomain.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,580
Calibration 2     105,550
Calibration 3     103,473
ssj_ops@calibrated=104,511
100% 99.9% 104,511 104,423
90% 90.0% 94,060 94,040
80% 79.3% 83,609 82,849
70% 69.4% 73,158 72,569
60% 59.8% 62,707 62,446
50% 49.8% 52,256 52,017
40% 40.8% 41,805 42,644
30% 30.1% 31,353 31,427
20% 19.8% 20,902 20,696
10% 9.8% 10,451 10,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,267
Calibration 2     105,491
Calibration 3     104,142
ssj_ops@calibrated=104,817
100% 99.9% 104,817 104,694
90% 89.7% 94,335 94,004
80% 80.4% 83,853 84,320
70% 70.0% 73,372 73,384
60% 60.1% 62,890 62,969
50% 50.1% 52,408 52,503
40% 40.1% 41,927 41,989
30% 29.8% 31,445 31,236
20% 20.1% 20,963 21,066
10% 9.9% 10,482 10,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

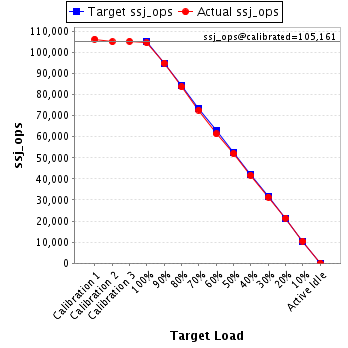

JVM 'localhost.localdomain.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,262
Calibration 2     105,038
Calibration 3     105,284
ssj_ops@calibrated=105,161
100% 99.4% 105,161 104,488
90% 90.2% 94,645 94,903
80% 79.6% 84,129 83,664
70% 69.0% 73,613 72,598
60% 58.3% 63,097 61,359
50% 49.5% 52,581 52,011
40% 39.5% 42,064 41,588
30% 29.9% 31,548 31,400
20% 20.4% 21,032 21,452
10% 10.0% 10,516 10,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,823
Calibration 2     105,727
Calibration 3     105,064
ssj_ops@calibrated=105,395
100% 100.2% 105,395 105,555
90% 90.3% 94,856 95,123
80% 79.5% 84,316 83,842
70% 69.9% 73,777 73,677
60% 60.6% 63,237 63,822
50% 50.3% 52,698 53,008
40% 40.6% 42,158 42,825
30% 30.0% 31,619 31,617
20% 20.3% 21,079 21,392
10% 10.0% 10,540 10,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,547
Calibration 2     104,990
Calibration 3     104,921
ssj_ops@calibrated=104,955
100% 99.4% 104,955 104,369
90% 91.0% 94,460 95,529
80% 80.4% 83,964 84,398
70% 70.4% 73,469 73,921
60% 59.8% 62,973 62,814
50% 49.5% 52,478 51,925
40% 39.7% 41,982 41,646
30% 30.1% 31,487 31,571
20% 19.8% 20,991 20,812
10% 9.8% 10,496 10,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,466
Calibration 2     105,138
Calibration 3     104,418
ssj_ops@calibrated=104,778
100% 100.5% 104,778 105,316
90% 90.4% 94,300 94,762
80% 79.2% 83,822 82,999
70% 69.9% 73,344 73,238
60% 59.7% 62,867 62,587
50% 50.0% 52,389 52,368
40% 40.0% 41,911 41,916
30% 30.1% 31,433 31,520
20% 20.1% 20,956 21,046
10% 10.0% 10,478 10,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,497
Calibration 2     104,680
Calibration 3     104,560
ssj_ops@calibrated=104,620
100% 100.4% 104,620 105,035
90% 90.8% 94,158 95,022
80% 79.8% 83,696 83,492
70% 70.0% 73,234 73,195
60% 60.8% 62,772 63,593
50% 50.5% 52,310 52,862
40% 40.2% 41,848 42,029
30% 29.9% 31,386 31,317
20% 20.1% 20,924 21,062
10% 9.4% 10,462 9,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,946
Calibration 2     105,546
Calibration 3     104,126
ssj_ops@calibrated=104,836
100% 100.1% 104,836 104,896
90% 88.9% 94,352 93,242
80% 79.6% 83,869 83,453
70% 69.7% 73,385 73,051
60% 59.8% 62,902 62,704
50% 50.4% 52,418 52,842
40% 39.9% 41,934 41,816
30% 29.2% 31,451 30,642
20% 19.9% 20,967 20,910
10% 9.8% 10,484 10,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,267
Calibration 2     104,663
Calibration 3     104,812
ssj_ops@calibrated=104,737
100% 100.8% 104,737 105,585
90% 90.4% 94,264 94,720
80% 79.3% 83,790 83,042
70% 69.8% 73,316 73,098
60% 59.5% 62,842 62,300
50% 49.9% 52,369 52,261
40% 39.8% 41,895 41,729
30% 29.8% 31,421 31,162
20% 20.1% 20,947 21,037
10% 9.6% 10,474 10,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,202
Calibration 2     104,879
Calibration 3     103,282
ssj_ops@calibrated=104,081
100% 99.6% 104,081 103,659
90% 90.2% 93,673 93,914
80% 79.6% 83,265 82,848
70% 69.8% 72,857 72,630
60% 61.2% 62,448 63,653
50% 49.7% 52,040 51,762
40% 40.5% 41,632 42,112
30% 29.7% 31,224 30,937
20% 20.4% 20,816 21,183
10% 10.5% 10,408 10,892
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,752
Calibration 2     104,266
Calibration 3     104,297
ssj_ops@calibrated=104,281
100% 101.4% 104,281 105,723
90% 89.8% 93,853 93,678
80% 80.2% 83,425 83,668
70% 70.6% 72,997 73,614
60% 60.1% 62,569 62,639
50% 49.6% 52,141 51,672
40% 40.2% 41,712 41,916
30% 30.7% 31,284 32,003
20% 20.0% 20,856 20,891
10% 10.1% 10,428 10,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,102
Calibration 2     104,388
Calibration 3     104,408
ssj_ops@calibrated=104,398
100% 99.6% 104,398 104,008
90% 89.7% 93,958 93,680
80% 79.7% 83,518 83,153
70% 69.0% 73,078 72,079
60% 60.0% 62,639 62,672
50% 50.0% 52,199 52,237
40% 40.6% 41,759 42,380
30% 30.6% 31,319 31,910
20% 20.2% 20,880 21,130
10% 9.9% 10,440 10,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,395
Calibration 2     105,913
Calibration 3     105,211
ssj_ops@calibrated=105,562
100% 100.4% 105,562 105,978
90% 89.7% 95,006 94,680
80% 81.1% 84,450 85,607
70% 69.9% 73,894 73,759
60% 61.2% 63,337 64,641
50% 49.6% 52,781 52,392
40% 39.8% 42,225 42,050
30% 30.3% 31,669 31,987
20% 20.2% 21,112 21,346
10% 10.0% 10,556 10,518
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,357
Calibration 2     105,837
Calibration 3     106,013
ssj_ops@calibrated=105,925
100% 99.5% 105,925 105,427
90% 90.0% 95,333 95,384
80% 80.0% 84,740 84,712
70% 69.9% 74,148 74,030
60% 60.3% 63,555 63,853
50% 49.7% 52,963 52,604
40% 39.9% 42,370 42,314
30% 30.3% 31,778 32,087
20% 19.9% 21,185 21,085
10% 9.7% 10,593 10,327
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,031
Calibration 2     105,428
Calibration 3     105,701
ssj_ops@calibrated=105,565
100% 100.3% 105,565 105,839
90% 90.2% 95,008 95,260
80% 79.7% 84,452 84,134
70% 69.9% 73,895 73,794
60% 60.7% 63,339 64,048
50% 49.1% 52,782 51,805
40% 40.5% 42,226 42,762
30% 29.5% 31,669 31,187
20% 20.3% 21,113 21,415
10% 9.9% 10,556 10,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,145
Calibration 2     105,634
Calibration 3     104,862
ssj_ops@calibrated=105,248
100% 101.0% 105,248 106,279
90% 89.5% 94,723 94,204
80% 79.8% 84,199 83,943
70% 70.8% 73,674 74,478
60% 59.6% 63,149 62,694
50% 49.3% 52,624 51,874
40% 39.7% 42,099 41,747
30% 29.6% 31,574 31,162
20% 19.5% 21,050 20,546
10% 10.5% 10,525 11,063
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

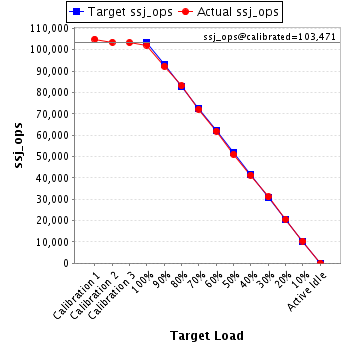

JVM 'localhost.localdomain.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,985
Calibration 2     103,557
Calibration 3     103,385
ssj_ops@calibrated=103,471
100% 98.7% 103,471 102,165
90% 89.2% 93,124 92,275
80% 80.3% 82,777 83,102
70% 69.8% 72,430 72,186
60% 59.8% 62,083 61,879
50% 49.3% 51,735 51,053
40% 39.9% 41,388 41,275
30% 30.0% 31,041 31,083
20% 19.9% 20,694 20,597
10% 10.1% 10,347 10,421
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,680
Calibration 2     103,995
Calibration 3     104,395
ssj_ops@calibrated=104,195
100% 100.6% 104,195 104,845
90% 89.1% 93,775 92,794
80% 79.6% 83,356 82,907
70% 70.3% 72,936 73,283
60% 59.8% 62,517 62,345
50% 50.4% 52,097 52,546
40% 39.9% 41,678 41,531
30% 30.0% 31,258 31,248
20% 20.6% 20,839 21,475
10% 9.8% 10,419 10,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,561
Calibration 2     104,643
Calibration 3     104,157
ssj_ops@calibrated=104,400
100% 100.0% 104,400 104,393
90% 90.4% 93,960 94,350
80% 80.4% 83,520 83,901
70% 69.0% 73,080 72,042
60% 59.2% 62,640 61,846
50% 49.9% 52,200 52,111
40% 39.8% 41,760 41,551
30% 29.4% 31,320 30,655
20% 20.2% 20,880 21,125
10% 9.8% 10,440 10,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,417
Calibration 2     105,822
Calibration 3     105,274
ssj_ops@calibrated=105,548
100% 100.4% 105,548 106,000
90% 88.8% 94,993 93,692
80% 78.9% 84,438 83,257
70% 70.1% 73,884 73,957
60% 59.3% 63,329 62,552
50% 50.0% 52,774 52,801
40% 40.7% 42,219 42,924
30% 29.5% 31,664 31,094
20% 20.0% 21,110 21,150
10% 9.9% 10,555 10,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,131
Calibration 2     105,739
Calibration 3     105,229
ssj_ops@calibrated=105,484
100% 100.7% 105,484 106,215
90% 90.0% 94,936 94,916
80% 80.7% 84,387 85,174
70% 69.4% 73,839 73,162
60% 59.3% 63,290 62,558
50% 49.4% 52,742 52,087
40% 39.8% 42,194 41,996
30% 30.9% 31,645 32,547
20% 20.2% 21,097 21,338
10% 10.0% 10,548 10,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,156
Calibration 2     104,749
Calibration 3     104,651
ssj_ops@calibrated=104,700
100% 99.6% 104,700 104,284
90% 90.1% 94,230 94,337
80% 79.2% 83,760 82,878
70% 69.0% 73,290 72,276
60% 59.5% 62,820 62,258
50% 50.8% 52,350 53,175
40% 39.7% 41,880 41,517
30% 29.6% 31,410 30,942
20% 20.1% 20,940 21,062
10% 10.0% 10,470 10,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,569
Calibration 2     104,800
Calibration 3     104,639
ssj_ops@calibrated=104,719
100% 99.4% 104,719 104,053
90% 90.6% 94,247 94,871
80% 79.7% 83,776 83,474
70% 69.5% 73,304 72,818
60% 60.8% 62,832 63,637
50% 50.1% 52,360 52,461
40% 39.9% 41,888 41,731
30% 29.9% 31,416 31,349
20% 20.0% 20,944 20,925
10% 9.6% 10,472 10,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,778
Calibration 2     106,475
Calibration 3     105,772
ssj_ops@calibrated=106,124
100% 99.6% 106,124 105,714
90% 89.4% 95,511 94,885
80% 79.3% 84,899 84,142
70% 70.0% 74,287 74,245
60% 59.9% 63,674 63,554
50% 49.1% 53,062 52,103
40% 40.2% 42,449 42,642
30% 29.9% 31,837 31,726
20% 20.1% 21,225 21,354
10% 10.0% 10,612 10,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,823
Calibration 2     104,678
Calibration 3     103,754
ssj_ops@calibrated=104,216
100% 99.7% 104,216 103,881
90% 90.1% 93,794 93,867
80% 79.4% 83,373 82,798
70% 69.9% 72,951 72,811
60% 59.9% 62,530 62,417
50% 50.2% 52,108 52,338
40% 39.4% 41,686 41,046
30% 29.7% 31,265 31,002
20% 19.8% 20,843 20,596
10% 10.1% 10,422 10,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,097
Calibration 2     106,045
Calibration 3     105,082
ssj_ops@calibrated=105,563
100% 99.5% 105,563 105,044
90% 90.1% 95,007 95,164
80% 81.1% 84,451 85,584
70% 69.8% 73,894 73,668
60% 59.6% 63,338 62,958
50% 49.6% 52,782 52,400
40% 40.0% 42,225 42,200
30% 29.8% 31,669 31,456
20% 19.7% 21,113 20,792
10% 10.1% 10,556 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,429
Calibration 2     104,472
Calibration 3     104,661
ssj_ops@calibrated=104,567
100% 99.0% 104,567 103,507
90% 89.1% 94,110 93,146
80% 79.6% 83,653 83,216
70% 69.7% 73,197 72,905
60% 60.5% 62,740 63,234
50% 50.0% 52,283 52,233
40% 40.2% 41,827 42,004
30% 29.7% 31,370 31,090
20% 19.9% 20,913 20,761
10% 10.2% 10,457 10,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,113
Calibration 2     104,642
Calibration 3     103,994
ssj_ops@calibrated=104,318
100% 100.1% 104,318 104,389
90% 90.4% 93,886 94,270
80% 79.9% 83,454 83,375
70% 69.3% 73,023 72,256
60% 60.7% 62,591 63,295
50% 49.7% 52,159 51,833
40% 40.7% 41,727 42,450
30% 29.8% 31,295 31,077
20% 19.9% 20,864 20,775
10% 10.4% 10,432 10,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,309
Calibration 2     103,251
Calibration 3     103,949
ssj_ops@calibrated=103,600
100% 100.3% 103,600 103,864
90% 89.9% 93,240 93,172
80% 78.9% 82,880 81,771
70% 69.8% 72,520 72,325
60% 59.9% 62,160 62,014
50% 49.4% 51,800 51,130
40% 40.3% 41,440 41,712
30% 30.1% 31,080 31,221
20% 20.2% 20,720 20,883
10% 9.9% 10,360 10,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,558
Calibration 2     104,867
Calibration 3     105,429
ssj_ops@calibrated=105,148
100% 99.9% 105,148 105,071
90% 89.6% 94,633 94,236
80% 79.4% 84,118 83,521
70% 69.5% 73,604 73,034
60% 59.3% 63,089 62,382
50% 50.1% 52,574 52,715
40% 39.4% 42,059 41,429
30% 30.1% 31,544 31,621
20% 19.8% 21,030 20,837
10% 10.1% 10,515 10,592
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,909
Calibration 2     103,495
Calibration 3     103,900
ssj_ops@calibrated=103,698
100% 99.6% 103,698 103,332
90% 90.9% 93,328 94,305
80% 79.9% 82,958 82,905
70% 69.9% 72,588 72,434
60% 59.6% 62,219 61,854
50% 51.0% 51,849 52,842
40% 40.1% 41,479 41,562
30% 30.2% 31,109 31,272
20% 20.4% 20,740 21,119
10% 10.2% 10,370 10,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,730
Calibration 2     103,407
Calibration 3     104,653
ssj_ops@calibrated=104,030
100% 100.3% 104,030 104,314
90% 89.8% 93,627 93,397
80% 79.6% 83,224 82,826
70% 68.8% 72,821 71,610
60% 60.5% 62,418 62,891
50% 50.0% 52,015 51,971
40% 40.1% 41,612 41,667
30% 29.9% 31,209 31,121
20% 19.8% 20,806 20,621
10% 9.7% 10,403 10,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,865
Calibration 2     105,264
Calibration 3     105,578
ssj_ops@calibrated=105,421
100% 101.2% 105,421 106,707
90% 90.6% 94,879 95,504
80% 79.6% 84,337 83,941
70% 71.1% 73,795 74,954
60% 60.6% 63,253 63,842
50% 50.0% 52,710 52,670
40% 39.9% 42,168 42,083
30% 29.5% 31,626 31,150
20% 20.3% 21,084 21,446
10% 10.2% 10,542 10,773
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,574
Calibration 2     105,898
Calibration 3     105,248
ssj_ops@calibrated=105,573
100% 99.1% 105,573 104,585
90% 90.0% 95,016 94,992
80% 80.4% 84,458 84,881
70% 71.1% 73,901 75,088
60% 60.2% 63,344 63,607
50% 50.3% 52,786 53,104
40% 40.2% 42,229 42,401
30% 29.8% 31,672 31,502
20% 19.8% 21,115 20,888
10% 9.9% 10,557 10,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,255
Calibration 2     104,310
Calibration 3     103,276
ssj_ops@calibrated=103,793
100% 99.7% 103,793 103,510
90% 90.2% 93,414 93,664
80% 79.2% 83,035 82,245
70% 69.9% 72,655 72,598
60% 59.8% 62,276 62,112
50% 50.2% 51,897 52,146
40% 41.1% 41,517 42,643
30% 30.2% 31,138 31,386
20% 19.6% 20,759 20,371
10% 9.9% 10,379 10,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,947
Calibration 2     104,057
Calibration 3     104,709
ssj_ops@calibrated=104,383
100% 99.7% 104,383 104,060
90% 90.7% 93,944 94,683
80% 81.1% 83,506 84,677
70% 69.7% 73,068 72,722
60% 60.8% 62,630 63,437
50% 49.9% 52,191 52,127
40% 40.2% 41,753 41,967
30% 29.3% 31,315 30,617
20% 19.7% 20,877 20,583
10% 9.7% 10,438 10,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

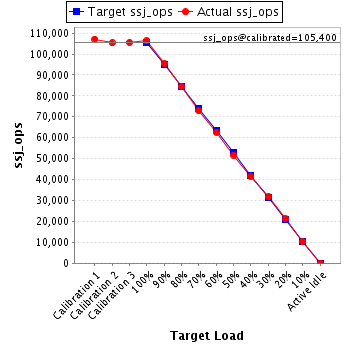

JVM 'localhost.localdomain.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,092
Calibration 2     105,278
Calibration 3     105,523
ssj_ops@calibrated=105,400
100% 100.8% 105,400 106,289
90% 90.4% 94,860 95,242
80% 80.0% 84,320 84,310
70% 69.1% 73,780 72,848
60% 59.4% 63,240 62,596
50% 49.1% 52,700 51,725
40% 39.5% 42,160 41,626
30% 30.1% 31,620 31,708
20% 20.1% 21,080 21,237
10% 9.9% 10,540 10,427
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

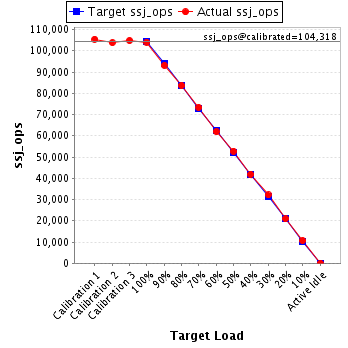

JVM 'localhost.localdomain.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,479
Calibration 2     103,820
Calibration 3     104,815
ssj_ops@calibrated=104,318
100% 99.8% 104,318 104,059
90% 89.3% 93,886 93,163
80% 80.2% 83,454 83,677
70% 70.3% 73,022 73,385
60% 59.3% 62,591 61,899
50% 50.6% 52,159 52,767
40% 40.2% 41,727 41,909
30% 30.8% 31,295 32,133
20% 20.0% 20,864 20,912
10% 10.2% 10,432 10,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,697
Calibration 2     103,813
Calibration 3     103,910
ssj_ops@calibrated=103,862
100% 99.6% 103,862 103,479
90% 90.9% 93,475 94,379
80% 78.7% 83,089 81,767
70% 69.1% 72,703 71,783
60% 60.1% 62,317 62,455
50% 49.9% 51,931 51,860
40% 39.7% 41,545 41,220
30% 29.8% 31,158 30,969
20% 19.9% 20,772 20,712
10% 9.7% 10,386 10,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

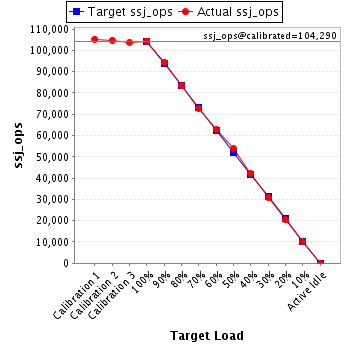

JVM 'localhost.localdomain.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,267
Calibration 2     104,689
Calibration 3     103,890
ssj_ops@calibrated=104,290
100% 100.0% 104,290 104,332
90% 90.5% 93,861 94,407
80% 80.0% 83,432 83,415
70% 69.8% 73,003 72,746
60% 60.1% 62,574 62,699
50% 51.6% 52,145 53,846
40% 40.4% 41,716 42,104
30% 29.6% 31,287 30,912
20% 19.5% 20,858 20,330
10% 9.9% 10,429 10,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,706
Calibration 2     105,313
Calibration 3     106,006
ssj_ops@calibrated=105,659
100% 98.4% 105,659 104,021
90% 89.6% 95,093 94,705
80% 79.6% 84,528 84,123
70% 69.3% 73,962 73,203
60% 60.4% 63,396 63,811
50% 49.8% 52,830 52,646
40% 40.0% 42,264 42,246
30% 29.9% 31,698 31,615
20% 20.0% 21,132 21,113
10% 10.1% 10,566 10,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,366
Calibration 2     104,812
Calibration 3     104,797
ssj_ops@calibrated=104,805
100% 99.6% 104,805 104,387
90% 90.1% 94,324 94,444
80% 80.2% 83,844 84,102
70% 69.7% 73,363 73,065
60% 60.5% 62,883 63,410
50% 49.8% 52,402 52,192
40% 39.4% 41,922 41,334
30% 29.8% 31,441 31,259
20% 20.0% 20,961 20,951
10% 10.2% 10,480 10,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,915
Calibration 2     105,927
Calibration 3     106,191
ssj_ops@calibrated=106,059
100% 99.5% 106,059 105,535
90% 89.7% 95,453 95,112
80% 80.3% 84,847 85,214
70% 68.9% 74,241 73,096
60% 59.9% 63,636 63,569
50% 49.9% 53,030 52,922
40% 39.7% 42,424 42,096
30% 29.8% 31,818 31,579
20% 19.9% 21,212 21,083
10% 10.3% 10,606 10,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,357
Calibration 2     105,423
Calibration 3     105,999
ssj_ops@calibrated=105,711
100% 99.7% 105,711 105,356
90% 89.2% 95,140 94,346
80% 79.7% 84,569 84,293
70% 69.4% 73,998 73,398
60% 59.3% 63,426 62,657
50% 49.9% 52,855 52,766
40% 40.3% 42,284 42,654
30% 29.9% 31,713 31,583
20% 21.0% 21,142 22,250
10% 10.3% 10,571 10,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,254
Calibration 2     103,299
Calibration 3     104,194
ssj_ops@calibrated=103,747
100% 100.8% 103,747 104,541
90% 91.5% 93,372 94,881
80% 80.0% 82,997 82,970
70% 69.8% 72,623 72,398
60% 59.8% 62,248 62,072
50% 50.3% 51,873 52,181
40% 39.9% 41,499 41,386
30% 30.1% 31,124 31,266
20% 20.8% 20,749 21,554
10% 10.1% 10,375 10,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

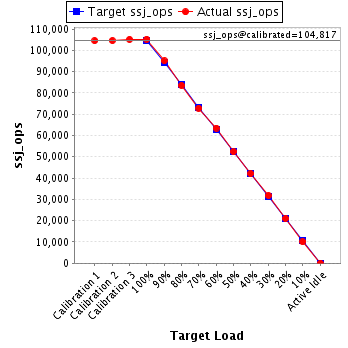

JVM 'localhost.localdomain.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,494
Calibration 2     104,516
Calibration 3     105,118
ssj_ops@calibrated=104,817
100% 100.4% 104,817 105,225
90% 90.7% 94,335 95,020
80% 79.6% 83,854 83,441
70% 69.5% 73,372 72,857
60% 60.6% 62,890 63,508
50% 49.9% 52,408 52,345
40% 40.2% 41,927 42,090
30% 30.4% 31,445 31,839
20% 20.1% 20,963 21,052
10% 9.7% 10,482 10,118
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,467
Calibration 2     104,257
Calibration 3     104,043
ssj_ops@calibrated=104,150
100% 99.9% 104,150 104,056
90% 90.3% 93,735 93,996
80% 80.2% 83,320 83,580
70% 70.1% 72,905 73,039
60% 59.9% 62,490 62,335
50% 50.2% 52,075 52,257
40% 39.7% 41,660 41,390
30% 30.9% 31,245 32,215
20% 19.7% 20,830 20,491
10% 10.2% 10,415 10,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,990
Calibration 2     106,096
Calibration 3     105,322
ssj_ops@calibrated=105,709
100% 99.4% 105,709 105,078
90% 90.4% 95,138 95,545
80% 80.5% 84,567 85,070
70% 70.6% 73,996 74,625
60% 59.3% 63,425 62,689
50% 49.1% 52,854 51,888
40% 40.5% 42,284 42,793
30% 30.6% 31,713 32,318
20% 20.0% 21,142 21,133
10% 9.8% 10,571 10,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,489
Calibration 2     106,302
Calibration 3     106,198
ssj_ops@calibrated=106,250
100% 100.1% 106,250 106,315
90% 90.2% 95,625 95,816
80% 79.8% 85,000 84,786
70% 69.4% 74,375 73,740
60% 60.5% 63,750 64,292
50% 50.4% 53,125 53,548
40% 40.1% 42,500 42,599
30% 30.3% 31,875 32,246
20% 19.9% 21,250 21,196
10% 10.1% 10,625 10,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,488
Calibration 2     104,187
Calibration 3     105,600
ssj_ops@calibrated=104,894
100% 99.5% 104,894 104,348
90% 89.8% 94,404 94,217
80% 79.7% 83,915 83,612
70% 69.6% 73,426 72,961
60% 60.6% 62,936 63,551
50% 50.6% 52,447 53,072
40% 40.1% 41,957 42,098
30% 29.9% 31,468 31,364
20% 19.9% 20,979 20,833
10% 10.2% 10,489 10,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,014
Calibration 2     104,710
Calibration 3     105,539
ssj_ops@calibrated=105,125
100% 100.3% 105,125 105,394
90% 90.7% 94,612 95,341
80% 79.4% 84,100 83,477
70% 70.5% 73,587 74,115
60% 60.2% 63,075 63,262
50% 50.8% 52,562 53,383
40% 40.0% 42,050 42,097
30% 30.6% 31,537 32,171
20% 19.8% 21,025 20,833
10% 10.2% 10,512 10,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,124
Calibration 2     105,446
Calibration 3     105,733
ssj_ops@calibrated=105,590
100% 99.9% 105,590 105,523
90% 90.6% 95,031 95,692
80% 79.9% 84,472 84,372
70% 69.8% 73,913 73,672
60% 60.6% 63,354 63,942
50% 50.3% 52,795 53,121
40% 39.4% 42,236 41,645
30% 30.1% 31,677 31,824
20% 20.1% 21,118 21,204
10% 9.9% 10,559 10,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,914
Calibration 2     104,181
Calibration 3     104,134
ssj_ops@calibrated=104,157
100% 101.5% 104,157 105,669
90% 90.1% 93,742 93,832
80% 80.3% 83,326 83,647
70% 70.6% 72,910 73,547
60% 59.6% 62,494 62,090
50% 49.6% 52,079 51,636
40% 40.1% 41,663 41,814
30% 29.3% 31,247 30,505
20% 20.4% 20,831 21,258
10% 10.1% 10,416 10,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,528
Calibration 2     104,427
Calibration 3     103,602
ssj_ops@calibrated=104,015
100% 99.2% 104,015 103,169
90% 89.8% 93,613 93,371
80% 79.2% 83,212 82,347
70% 69.8% 72,810 72,645
60% 59.6% 62,409 61,992
50% 51.2% 52,007 53,235
40% 40.3% 41,606 41,933
30% 30.3% 31,204 31,491
20% 19.8% 20,803 20,618
10% 10.2% 10,401 10,600
Active Idle   0 0

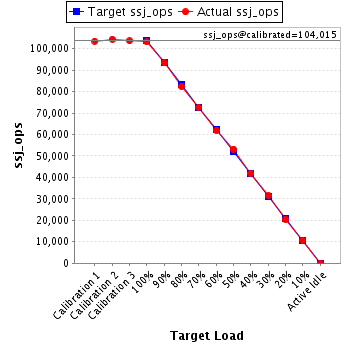

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,193
Calibration 2     103,948
Calibration 3     103,839
ssj_ops@calibrated=103,893
100% 100.5% 103,893 104,381
90% 90.6% 93,504 94,131
80% 80.2% 83,115 83,324
70% 70.0% 72,725 72,749
60% 60.0% 62,336 62,384
50% 49.6% 51,947 51,571
40% 40.0% 41,557 41,514
30% 30.3% 31,168 31,445
20% 19.9% 20,779 20,704
10% 10.1% 10,389 10,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.localdomain.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,665
Calibration 2     103,934
Calibration 3     104,194
ssj_ops@calibrated=104,064
100% 98.7% 104,064 102,701
90% 90.1% 93,658 93,751
80% 80.0% 83,251 83,221
70% 70.4% 72,845 73,266
60% 59.7% 62,438 62,097
50% 50.7% 52,032 52,737
40% 40.1% 41,626 41,779
30% 30.4% 31,219 31,679
20% 19.7% 20,813 20,458
10% 9.9% 10,406 10,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
