Lenovo Global Technology ThinkSystem SR950 ssj_ops@100% = 88,196
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,110
Calibration 2     88,416
Calibration 3     89,153
ssj_ops@calibrated=88,784
100% 99.3% 88,784 88,196
90% 90.3% 79,906 80,140
80% 79.6% 71,028 70,680
70% 69.7% 62,149 61,879
60% 60.0% 53,271 53,290
50% 50.2% 44,392 44,566
40% 39.6% 35,514 35,171
30% 29.4% 26,635 26,060
20% 20.4% 17,757 18,133
10% 9.8% 8,878 8,739
Active Idle   0 0

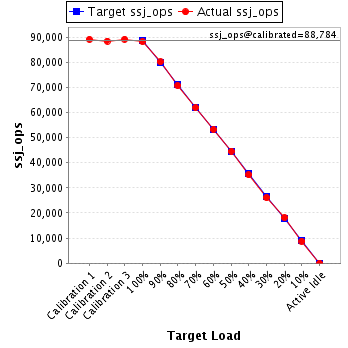

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR950
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,6,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 48 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-DC1; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W): 2 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 224 }
JVM Instances: 224
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: PSE121I
Management Firmware Version: PSI321C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,480,736 1,545
Payment 6,480,738
Order Status 648,074
Delivery 648,074
Stock Level 648,073
Customer Report 6,480,736
Calibration 2 New Order 6,430,233 1,545
Payment 6,430,234
Order Status 643,023
Delivery 643,024
Stock Level 643,022
Customer Report 6,430,234
Calibration 3 New Order 6,483,889 1,545
Payment 6,483,883
Order Status 648,388
Delivery 648,388
Stock Level 648,388
Customer Report 6,483,886
100% 99.3% New Order 6,414,272 1,545
Payment 6,414,274
Order Status 641,426
Delivery 641,426
Stock Level 641,427
Customer Report 6,414,274
90% 90.3% New Order 5,828,335 1,545
Payment 5,828,341
Order Status 582,834
Delivery 582,833
Stock Level 582,834
Customer Report 5,828,340
80% 79.6% New Order 5,140,363 1,545
Payment 5,140,369
Order Status 514,038
Delivery 514,038
Stock Level 514,037
Customer Report 5,140,367
70% 69.7% New Order 4,500,598 1,545
Payment 4,500,598
Order Status 450,060
Delivery 450,061
Stock Level 450,060
Customer Report 4,500,601
60% 60.0% New Order 3,875,632 1,545
Payment 3,875,632
Order Status 387,563
Delivery 387,563
Stock Level 387,562
Customer Report 3,875,630
50% 50.2% New Order 3,241,157 1,545
Payment 3,241,159
Order Status 324,116
Delivery 324,114
Stock Level 324,117
Customer Report 3,241,160
40% 39.6% New Order 2,557,933 1,545
Payment 2,557,936
Order Status 255,794
Delivery 255,795
Stock Level 255,794
Customer Report 2,557,937
30% 29.4% New Order 1,895,275 1,545
Payment 1,895,273
Order Status 189,527
Delivery 189,528
Stock Level 189,528
Customer Report 1,895,274
20% 20.4% New Order 1,318,787 1,545
Payment 1,318,790
Order Status 131,878
Delivery 131,879
Stock Level 131,880
Customer Report 1,318,786
10% 9.8% New Order 635,536 1,545
Payment 635,532
Order Status 63,554
Delivery 63,553
Stock Level 63,554
Customer Report 635,535
Active Idle New Order 0 1,545
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
