Lenovo Global Technology ThinkSystem SR950 ssj_ops@100% = 88,947
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,896
Calibration 2     89,113
Calibration 3     89,354
ssj_ops@calibrated=89,233
100% 99.7% 89,233 88,947
90% 90.1% 80,310 80,426
80% 80.5% 71,387 71,801
70% 70.6% 62,463 62,988
60% 59.3% 53,540 52,876
50% 51.0% 44,617 45,490
40% 39.9% 35,693 35,621
30% 29.5% 26,770 26,300
20% 20.6% 17,847 18,421
10% 10.1% 8,923 9,042
Active Idle   0 0

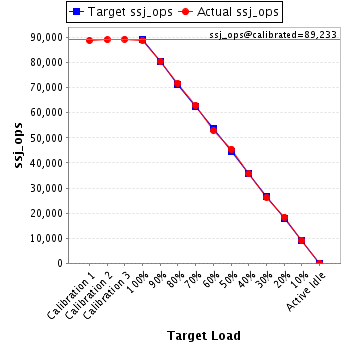

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR950
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,6,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 48 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-DC1; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W): 2 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 224 }
JVM Instances: 224
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: PSE121I
Management Firmware Version: PSI321C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,465,195 1,545
Payment 6,465,197
Order Status 646,520
Delivery 646,520
Stock Level 646,519
Customer Report 6,465,194
Calibration 2 New Order 6,480,940 1,545
Payment 6,480,935
Order Status 648,094
Delivery 648,093
Stock Level 648,094
Customer Report 6,480,937
Calibration 3 New Order 6,498,466 1,545
Payment 6,498,464
Order Status 649,846
Delivery 649,848
Stock Level 649,848
Customer Report 6,498,467
100% 99.7% New Order 6,468,855 1,545
Payment 6,468,853
Order Status 646,887
Delivery 646,886
Stock Level 646,886
Customer Report 6,468,859
90% 90.1% New Order 5,849,183 1,545
Payment 5,849,181
Order Status 584,918
Delivery 584,918
Stock Level 584,918
Customer Report 5,849,183
80% 80.5% New Order 5,221,925 1,545
Payment 5,221,925
Order Status 522,193
Delivery 522,193
Stock Level 522,193
Customer Report 5,221,921
70% 70.6% New Order 4,580,957 1,545
Payment 4,580,957
Order Status 458,096
Delivery 458,096
Stock Level 458,096
Customer Report 4,580,958
60% 59.3% New Order 3,845,529 1,545
Payment 3,845,527
Order Status 384,552
Delivery 384,552
Stock Level 384,553
Customer Report 3,845,526
50% 51.0% New Order 3,308,350 1,545
Payment 3,308,354
Order Status 330,835
Delivery 330,836
Stock Level 330,835
Customer Report 3,308,351
40% 39.9% New Order 2,590,617 1,545
Payment 2,590,620
Order Status 259,062
Delivery 259,062
Stock Level 259,064
Customer Report 2,590,621
30% 29.5% New Order 1,912,727 1,545
Payment 1,912,726
Order Status 191,274
Delivery 191,273
Stock Level 191,273
Customer Report 1,912,727
20% 20.6% New Order 1,339,681 1,545
Payment 1,339,681
Order Status 133,969
Delivery 133,968
Stock Level 133,968
Customer Report 1,339,678
10% 10.1% New Order 657,575 1,545
Payment 657,575
Order Status 65,758
Delivery 65,758
Stock Level 65,757
Customer Report 657,577
Active Idle New Order 0 1,545
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
