Lenovo Global Technology ThinkSystem SR950 ssj_ops@100% = 89,848
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,459
Calibration 2     89,521
Calibration 3     89,826
ssj_ops@calibrated=89,674
100% 100.2% 89,674 89,848
90% 89.7% 80,707 80,446
80% 78.9% 71,739 70,744
70% 69.2% 62,772 62,045
60% 59.6% 53,804 53,402
50% 50.5% 44,837 45,260
40% 39.7% 35,870 35,629
30% 29.9% 26,902 26,811
20% 20.4% 17,935 18,301
10% 9.9% 8,967 8,914
Active Idle   0 0

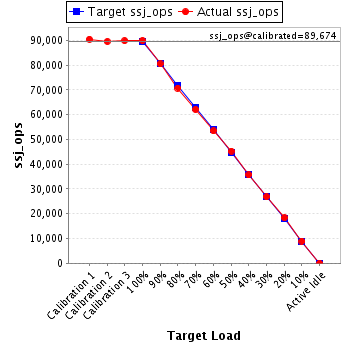

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR950
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,6,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 48 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-DC1; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W): 2 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 224 }
JVM Instances: 224
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: PSE121I
Management Firmware Version: PSI321C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,578,848 1,545
Payment 6,578,847
Order Status 657,885
Delivery 657,886
Stock Level 657,885
Customer Report 6,578,852
Calibration 2 New Order 6,510,654 1,545
Payment 6,510,654
Order Status 651,066
Delivery 651,065
Stock Level 651,066
Customer Report 6,510,656
Calibration 3 New Order 6,532,845 1,545
Payment 6,532,840
Order Status 653,283
Delivery 653,284
Stock Level 653,284
Customer Report 6,532,849
100% 100.2% New Order 6,534,423 1,545
Payment 6,534,424
Order Status 653,443
Delivery 653,442
Stock Level 653,442
Customer Report 6,534,424
90% 89.7% New Order 5,850,599 1,545
Payment 5,850,599
Order Status 585,059
Delivery 585,060
Stock Level 585,060
Customer Report 5,850,596
80% 78.9% New Order 5,144,998 1,545
Payment 5,144,996
Order Status 514,500
Delivery 514,499
Stock Level 514,499
Customer Report 5,144,996
70% 69.2% New Order 4,512,371 1,545
Payment 4,512,367
Order Status 451,236
Delivery 451,236
Stock Level 451,236
Customer Report 4,512,370
60% 59.6% New Order 3,883,759 1,545
Payment 3,883,759
Order Status 388,377
Delivery 388,377
Stock Level 388,377
Customer Report 3,883,760
50% 50.5% New Order 3,291,623 1,545
Payment 3,291,614
Order Status 329,163
Delivery 329,161
Stock Level 329,161
Customer Report 3,291,618
40% 39.7% New Order 2,591,209 1,545
Payment 2,591,211
Order Status 259,121
Delivery 259,122
Stock Level 259,120
Customer Report 2,591,212
30% 29.9% New Order 1,949,886 1,545
Payment 1,949,886
Order Status 194,988
Delivery 194,987
Stock Level 194,989
Customer Report 1,949,886
20% 20.4% New Order 1,330,997 1,545
Payment 1,331,000
Order Status 133,100
Delivery 133,099
Stock Level 133,099
Customer Report 1,330,995
10% 9.9% New Order 648,260 1,545
Payment 648,260
Order Status 64,825
Delivery 64,826
Stock Level 64,825
Customer Report 648,255
Active Idle New Order 0 1,545
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
