Lenovo Global Technology ThinkSystem SR950 ssj_ops@100% = 87,596
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,929
Calibration 2     87,988
Calibration 3     88,061
ssj_ops@calibrated=88,025
100% 99.5% 88,025 87,596
90% 89.8% 79,222 79,027
80% 79.9% 70,420 70,290
70% 70.3% 61,617 61,874
60% 60.6% 52,815 53,372
50% 50.1% 44,012 44,058
40% 40.5% 35,210 35,664
30% 30.1% 26,407 26,496
20% 20.0% 17,605 17,613
10% 10.1% 8,802 8,850
Active Idle   0 0

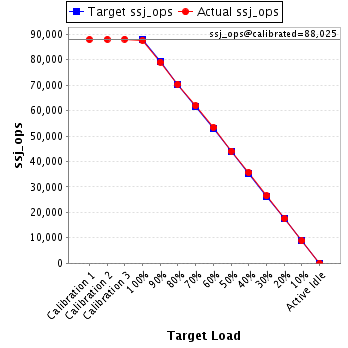

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR950
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,6,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 48 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-DC1; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W): 2 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 224 }
JVM Instances: 224
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: PSE121I
Management Firmware Version: PSI321C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,394,906 1,545
Payment 6,394,905
Order Status 639,493
Delivery 639,491
Stock Level 639,491
Customer Report 6,394,905
Calibration 2 New Order 6,399,166 1,545
Payment 6,399,171
Order Status 639,917
Delivery 639,917
Stock Level 639,917
Customer Report 6,399,173
Calibration 3 New Order 6,404,429 1,545
Payment 6,404,428
Order Status 640,444
Delivery 640,443
Stock Level 640,444
Customer Report 6,404,429
100% 99.5% New Order 6,370,621 1,545
Payment 6,370,620
Order Status 637,061
Delivery 637,063
Stock Level 637,062
Customer Report 6,370,623
90% 89.8% New Order 5,747,407 1,545
Payment 5,747,409
Order Status 574,741
Delivery 574,741
Stock Level 574,741
Customer Report 5,747,409
80% 79.9% New Order 5,111,973 1,545
Payment 5,111,973
Order Status 511,197
Delivery 511,197
Stock Level 511,197
Customer Report 5,111,974
70% 70.3% New Order 4,499,919 1,545
Payment 4,499,920
Order Status 449,993
Delivery 449,991
Stock Level 449,992
Customer Report 4,499,921
60% 60.6% New Order 3,881,627 1,545
Payment 3,881,625
Order Status 388,162
Delivery 388,160
Stock Level 388,161
Customer Report 3,881,626
50% 50.1% New Order 3,204,226 1,545
Payment 3,204,232
Order Status 320,423
Delivery 320,423
Stock Level 320,422
Customer Report 3,204,232
40% 40.5% New Order 2,593,736 1,545
Payment 2,593,742
Order Status 259,373
Delivery 259,375
Stock Level 259,373
Customer Report 2,593,738
30% 30.1% New Order 1,926,999 1,545
Payment 1,927,001
Order Status 192,701
Delivery 192,700
Stock Level 192,700
Customer Report 1,926,995
20% 20.0% New Order 1,280,919 1,545
Payment 1,280,919
Order Status 128,092
Delivery 128,090
Stock Level 128,091
Customer Report 1,280,922
10% 10.1% New Order 643,634 1,545
Payment 643,633
Order Status 64,364
Delivery 64,364
Stock Level 64,362
Customer Report 643,643
Active Idle New Order 0 1,545
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
