Lenovo Global Technology ThinkSystem SR950 ssj_ops@100% = 94,216
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,018
Calibration 2     94,629
Calibration 3     94,209
ssj_ops@calibrated=94,419
100% 99.8% 94,419 94,216
90% 89.6% 84,977 84,555
80% 80.4% 75,535 75,940
70% 69.9% 66,093 65,964
60% 59.7% 56,651 56,388
50% 49.8% 47,209 47,015
40% 39.9% 37,768 37,703
30% 30.4% 28,326 28,660
20% 19.4% 18,884 18,319
10% 9.7% 9,442 9,146
Active Idle   0 0

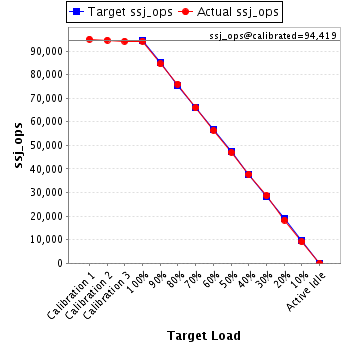

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR950
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,6,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 48 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-DC1; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W): 2 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 224 }
JVM Instances: 224
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: PSE121I
Management Firmware Version: PSI321C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,910,443 1,545
Payment 6,910,444
Order Status 691,045
Delivery 691,044
Stock Level 691,044
Customer Report 6,910,444
Calibration 2 New Order 6,882,119 1,545
Payment 6,882,119
Order Status 688,211
Delivery 688,212
Stock Level 688,212
Customer Report 6,882,120
Calibration 3 New Order 6,851,575 1,545
Payment 6,851,572
Order Status 685,157
Delivery 685,158
Stock Level 685,158
Customer Report 6,851,576
100% 99.8% New Order 6,852,112 1,545
Payment 6,852,111
Order Status 685,212
Delivery 685,212
Stock Level 685,211
Customer Report 6,852,110
90% 89.6% New Order 6,149,450 1,545
Payment 6,149,450
Order Status 614,944
Delivery 614,945
Stock Level 614,945
Customer Report 6,149,447
80% 80.4% New Order 5,522,891 1,545
Payment 5,522,889
Order Status 552,289
Delivery 552,290
Stock Level 552,288
Customer Report 5,522,896
70% 69.9% New Order 4,797,401 1,545
Payment 4,797,398
Order Status 479,740
Delivery 479,738
Stock Level 479,741
Customer Report 4,797,400
60% 59.7% New Order 4,100,977 1,545
Payment 4,100,982
Order Status 410,100
Delivery 410,098
Stock Level 410,098
Customer Report 4,100,978
50% 49.8% New Order 3,419,246 1,545
Payment 3,419,251
Order Status 341,924
Delivery 341,926
Stock Level 341,924
Customer Report 3,419,247
40% 39.9% New Order 2,742,071 1,545
Payment 2,742,070
Order Status 274,206
Delivery 274,209
Stock Level 274,207
Customer Report 2,742,071
30% 30.4% New Order 2,084,387 1,545
Payment 2,084,388
Order Status 208,439
Delivery 208,439
Stock Level 208,439
Customer Report 2,084,388
20% 19.4% New Order 1,332,322 1,545
Payment 1,332,321
Order Status 133,233
Delivery 133,230
Stock Level 133,231
Customer Report 1,332,318
10% 9.7% New Order 665,154 1,545
Payment 665,154
Order Status 66,514
Delivery 66,515
Stock Level 66,515
Customer Report 665,148
Active Idle New Order 0 1,545
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
