Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,762 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,466 22.9
Calibration 2 3,475 23.2
Calibration 3 3,483 23.2
100% 3,472 23.2
90% 3,145 23.1
80% 2,751 23.0
70% 2,341 22.9
60% 2,058 22.9
50% 1,808 22.9
40% 1,579 22.8
30% 1,364 22.8
20% 1,167 22.8
10% 990 22.9
Active Idle 535 22.8

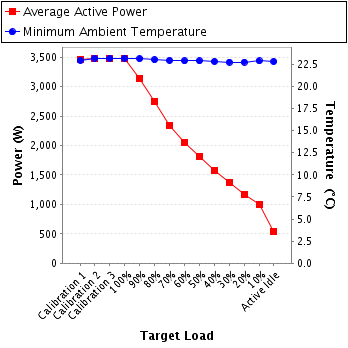

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 3.88 5.0 0.992 823 0.4%
Calibration 2 214 300.0 3.87 5.0 0.992 823 0.4%
Calibration 3 214 300.0 3.90 5.0 0.992 829 0.4%
100% 214 300.0 3.91 5.0 0.992 831 0.4%
90% 214 300.0 3.55 5.0 0.990 754 0.4%
80% 214 300.0 3.15 5.0 0.988 669 0.4%
70% 215 300.0 2.73 5.0 0.984 576 0.4%
60% 215 300.0 2.41 5.0 0.980 507 0.5%
50% 215 300.0 2.09 5.0 0.973 437 0.5%
40% 215 300.0 1.78 5.0 0.963 368 0.6%
30% 215 300.0 1.49 2.0 0.948 304 0.4%
20% 215 300.0 1.24 2.0 0.922 246 0.5%
10% 216 300.0 1.05 2.0 0.876 198 0.6%
Active Idle 216 300.0 0.689 1.0 0.750 111 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 8.43 10.0 0.995 1,788 0.3%
Calibration 2 213 300.0 8.46 10.0 0.995 1,797 0.3%
Calibration 3 214 300.0 8.49 10.0 0.995 1,803 0.3%
100% 213 300.0 8.45 10.0 0.995 1,795 0.3%
90% 214 300.0 7.58 10.0 0.993 1,609 0.4%
80% 214 300.0 6.64 10.0 0.992 1,407 0.4%
70% 214 300.0 5.67 10.0 0.989 1,199 0.4%
60% 214 300.0 5.00 10.0 0.985 1,055 0.5%
50% 214 300.0 4.43 5.0 0.981 932 0.4%
40% 215 300.0 3.93 5.0 0.975 823 0.4%
30% 215 300.0 3.46 5.0 0.968 718 0.4%
20% 215 300.0 3.04 5.0 0.959 626 0.4%
10% 215 300.0 2.76 5.0 0.949 563 0.5%
Active Idle 216 300.0 1.62 2.0 0.840 293 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 4.08 5.0 0.992 855 0.4%
Calibration 2 212 300.0 4.07 5.0 0.992 856 0.4%
Calibration 3 212 300.0 4.05 5.0 0.992 850 0.4%
100% 212 300.0 4.03 5.0 0.992 847 0.4%
90% 212 300.0 3.73 5.0 0.990 782 0.4%
80% 212 300.0 3.23 5.0 0.987 675 0.4%
70% 212 300.0 2.72 5.0 0.982 566 0.5%
60% 212 300.0 2.40 5.0 0.977 497 0.5%
50% 212 300.0 2.13 5.0 0.970 438 0.5%
40% 212 300.0 1.90 5.0 0.963 388 0.6%
30% 212 300.0 1.69 2.0 0.954 342 0.4%
20% 213 300.0 1.48 2.0 0.940 295 0.4%
10% 213 300.0 1.19 2.0 0.902 229 0.5%
Active Idle 213 300.0 0.780 1.0 0.785 130 0.5%

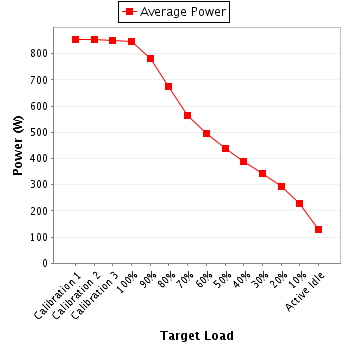

Power details for pwr3
