Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,957,554
ssj_ops@100% per JVM = 1,489,388
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,988,912
Calibration 2     5,973,658
Calibration 3     5,976,499
ssj_ops@calibrated=5,975,079
100% 99.7% 5,975,079 5,957,554
90% 90.0% 5,377,571 5,375,035
80% 80.0% 4,780,063 4,780,398
70% 69.8% 4,182,555 4,172,131
60% 59.9% 3,585,047 3,581,078
50% 50.0% 2,987,539 2,986,572
40% 40.0% 2,390,031 2,391,704
30% 30.1% 1,792,524 1,797,478
20% 20.0% 1,195,016 1,197,001
10% 10.0% 597,508 596,482
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY480-01.001 1,486,341
SY480-01.002 1,485,761
SY480-01.003 1,482,218
SY480-01.004 1,503,233
ssj_ops@100% 5,957,554
ssj_ops@100% per JVM 1,489,388

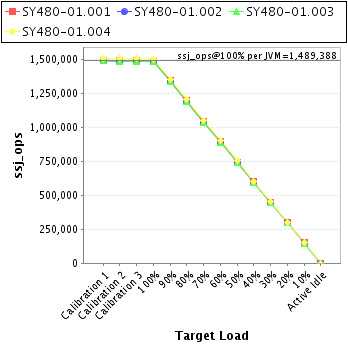

Graph of per-instance results
JVM 'SY480-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,496,162
Calibration 2     1,494,125
Calibration 3     1,494,541
ssj_ops@calibrated=1,494,333
100% 99.5% 1,494,333 1,486,341
90% 89.9% 1,344,900 1,343,253
80% 80.0% 1,195,466 1,194,764
70% 70.0% 1,046,033 1,045,449
60% 60.0% 896,600 896,841
50% 49.8% 747,166 744,009
40% 40.1% 597,733 598,875
30% 30.2% 448,300 450,755
20% 20.1% 298,867 299,749
10% 10.0% 149,433 149,510
Active Idle   0 0
Graph of results
JVM 'SY480-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,493,871
Calibration 2     1,488,409
Calibration 3     1,489,321
ssj_ops@calibrated=1,488,865
100% 99.8% 1,488,865 1,485,761
90% 90.0% 1,339,979 1,339,464
80% 79.9% 1,191,092 1,190,035
70% 69.6% 1,042,206 1,036,319
60% 60.0% 893,319 893,162
50% 50.1% 744,433 745,326
40% 39.9% 595,546 594,632
30% 30.1% 446,660 447,563
20% 20.0% 297,773 297,550
10% 10.0% 148,887 148,145
Active Idle   0 0
Graph of results
JVM 'SY480-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,489,312
Calibration 2     1,485,354
Calibration 3     1,486,364
ssj_ops@calibrated=1,485,859
100% 99.8% 1,485,859 1,482,218
90% 90.0% 1,337,273 1,337,240
80% 79.9% 1,188,688 1,187,107
70% 69.8% 1,040,102 1,037,688
60% 59.9% 891,516 889,433
50% 50.0% 742,930 743,069
40% 40.1% 594,344 596,401
30% 30.0% 445,758 445,943
20% 20.1% 297,172 299,089
10% 9.9% 148,586 147,387
Active Idle   0 0
Graph of results
JVM 'SY480-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,509,567
Calibration 2     1,505,770
Calibration 3     1,506,273
ssj_ops@calibrated=1,506,021
100% 99.8% 1,506,021 1,503,233
90% 90.0% 1,355,419 1,355,079
80% 80.2% 1,204,817 1,208,491
70% 69.9% 1,054,215 1,052,676
60% 59.9% 903,613 901,642
50% 50.1% 753,011 754,168
40% 40.0% 602,409 601,795
30% 30.1% 451,806 453,218
20% 20.0% 301,204 300,612
10% 10.1% 150,602 151,439
Active Idle   0 0
Graph of results
