Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,017 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,407 22.8
Calibration 2 5,451 22.9
Calibration 3 5,457 23.0
100% 5,431 23.1
90% 4,910 23.1
80% 4,269 23.2
70% 3,638 23.2
60% 3,174 23.2
50% 2,770 23.2
40% 2,404 23.2
30% 2,059 23.2
20% 1,745 23.2
10% 1,464 23.2
Active Idle 756 23.3

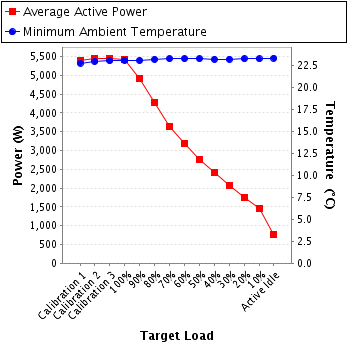

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 6.07 20.0 0.995 1,286 0.6%
Calibration 2 213 300.0 6.12 20.0 0.995 1,295 0.6%
Calibration 3 214 300.0 6.08 20.0 0.995 1,292 0.6%
100% 214 300.0 6.07 20.0 0.995 1,290 0.6%
90% 214 300.0 5.54 20.0 0.995 1,179 0.7%
80% 214 300.0 4.83 10.0 0.994 1,028 0.5%
70% 214 300.0 4.05 10.0 0.993 860 0.5%
60% 214 300.0 3.60 10.0 0.990 763 0.6%
50% 214 300.0 3.20 10.0 0.989 678 0.6%
40% 214 300.0 2.81 10.0 0.986 594 0.7%
30% 214 300.0 2.42 5.0 0.980 509 0.5%
20% 215 300.0 2.02 5.0 0.971 421 0.6%
10% 215 300.0 1.64 2.0 0.957 337 0.4%
Active Idle 215 300.0 0.926 1.0 0.826 164 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 13.2 20.0 0.997 2,777 0.4%
Calibration 2 211 300.0 13.3 20.0 0.997 2,794 0.4%
Calibration 3 212 300.0 13.3 20.0 0.997 2,805 0.4%
100% 212 300.0 13.2 20.0 0.997 2,792 0.4%
90% 213 300.0 11.9 20.0 0.996 2,513 0.4%
80% 213 300.0 10.3 10.0 0.996 2,187 0.3%
70% 213 300.0 8.89 10.0 0.995 1,884 0.3%
60% 213 300.0 7.63 10.0 0.994 1,616 0.4%
50% 213 300.0 6.66 10.0 0.992 1,410 0.4%
40% 214 300.0 5.81 10.0 0.989 1,228 0.4%
30% 214 300.0 4.99 5.0 0.985 1,052 0.3%
20% 214 300.0 4.28 5.0 0.980 899 0.4%
10% 214 300.0 3.67 5.0 0.972 764 0.4%
Active Idle 215 300.0 2.15 5.0 0.901 415 0.6%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 6.42 10.0 0.995 1,344 0.4%
Calibration 2 210 300.0 6.51 10.0 0.995 1,362 0.4%
Calibration 3 211 300.0 6.48 10.0 0.995 1,361 0.4%
100% 211 300.0 6.42 10.0 0.995 1,348 0.4%
90% 211 300.0 5.80 10.0 0.995 1,217 0.4%
80% 211 300.0 5.02 10.0 0.995 1,054 0.5%
70% 211 300.0 4.26 10.0 0.992 893 0.5%
60% 211 300.0 3.80 5.0 0.990 795 0.4%
50% 211 300.0 3.26 5.0 0.988 681 0.4%
40% 212 300.0 2.80 5.0 0.983 583 0.4%
30% 212 300.0 2.41 5.0 0.977 498 0.5%
20% 212 300.0 2.07 5.0 0.968 425 0.6%
10% 212 300.0 1.79 5.0 0.959 363 0.6%
Active Idle 212 300.0 0.997 2.0 0.836 177 0.6%
Power details for pwr3
