SPECpower_ssj2008

Hewlett Packard Enterprise ProLiant DL360 Gen10			SPECpower_ssj2008 = 11,637 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 11, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2018	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL360 Gen10
Form Factor:	1U
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	28 cores, 1 chip, 28 cores/chip
Hardware Threads:	56 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	48
# and size of DIMM:	6 x 8182 MB
Memory Details:	6 x 8GB 2Rx8 PC4-2666V-R; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply 96% (865438-B21)
Disk Drive:	1 x HPE 240GB SATA M.2 2280 SSD (875488-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	XFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	numactl --cpunodebind=[0-1] --localalloc
JVM Instances:	2
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	U32 v2.00 (02/02/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

See SUT Notes

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Power Analyzer pwr1
Hardware Vendor:	Yokogawa
Model:	WT310
Serial Number:	C2SF14001V
Connectivity:	Yokogawa-USB
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TRANSCAT
Calibration Label:	5-EP5YB-20-1
Date of Calibration:	08-Aug-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to SUT Power Supply 1

None

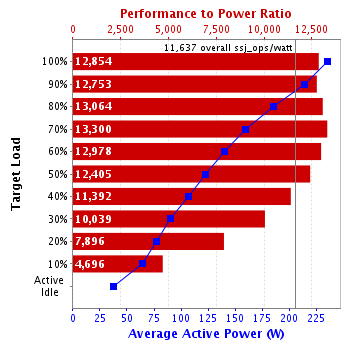

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	235	21.7
90%	214	21.7
80%	186	21.6
70%	160	21.6
60%	140	21.6
50%	122	21.5
40%	107	21.5
30%	90.5	21.5
20%	76.9	21.5
10%	64.3	21.5
Active Idle	37.3	21.4

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	21.4	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
