SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant ML350 Gen10 | SPECpower_ssj2008 = 11,611 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 11, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Mar-2018 | Publication: | Apr 2, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

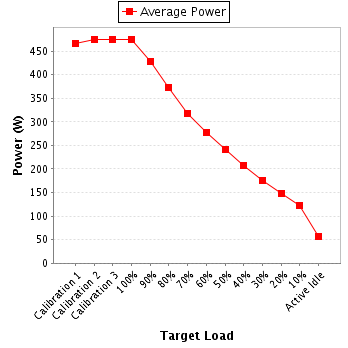

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 467 | 22.2 |
| Calibration 2 | 475 | 22.2 |
| Calibration 3 | 475 | 22.2 |
| 100% | 474 | 22.2 |
| 90% | 428 | 22.1 |
| 80% | 373 | 22.1 |
| 70% | 318 | 22.1 |
| 60% | 278 | 22.1 |
| 50% | 241 | 22.1 |
| 40% | 207 | 22.2 |
| 30% | 175 | 22.2 |
| 20% | 147 | 22.2 |
| 10% | 122 | 22.2 |
| Active Idle | 56.8 | 22.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47167 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-EL6R4-80-1 |
| Date of Calibration: | 05-Jun-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 215 | 300.0 | 2.21 | 2.0 | 0.983 | 467 | 0.4% |
| Calibration 2 | 215 | 300.0 | 2.25 | 2.0 | 0.984 | 475 | 0.4% |
| Calibration 3 | 215 | 300.0 | 2.24 | 2.0 | 0.983 | 475 | 0.4% |
| 100% | 215 | 300.0 | 2.24 | 2.0 | 0.984 | 474 | 0.4% |
| 90% | 215 | 300.0 | 2.03 | 2.0 | 0.980 | 428 | 0.3% |
| 80% | 215 | 300.0 | 1.78 | 2.0 | 0.975 | 373 | 0.4% |
| 70% | 215 | 300.0 | 1.53 | 2.0 | 0.967 | 318 | 0.4% |
| 60% | 215 | 300.0 | 1.35 | 2.0 | 0.959 | 278 | 0.4% |
| 50% | 215 | 300.0 | 1.18 | 2.0 | 0.949 | 241 | 0.5% |
| 40% | 215 | 300.0 | 1.03 | 2.0 | 0.936 | 207 | 0.5% |
| 30% | 214 | 300.0 | 0.894 | 2.0 | 0.916 | 175 | 0.6% |
| 20% | 214 | 300.0 | 0.773 | 1.0 | 0.888 | 147 | 0.5% |
| 10% | 215 | 300.0 | 0.668 | 1.0 | 0.848 | 122 | 0.5% |
| Active Idle | 215 | 300.0 | 0.436 | 0.5 | 0.607 | 56.8 | 0.7% |
