Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 10,349 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 11, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,026 21.8
Calibration 2 2,049 21.8
Calibration 3 2,050 21.9
100% 2,045 21.9
90% 1,859 21.9
80% 1,629 21.9
70% 1,394 21.9
60% 1,220 21.9
50% 1,077 21.9
40% 942 21.8
30% 821 21.8
20% 706 21.8
10% 604 21.8
Active Idle 330 21.8

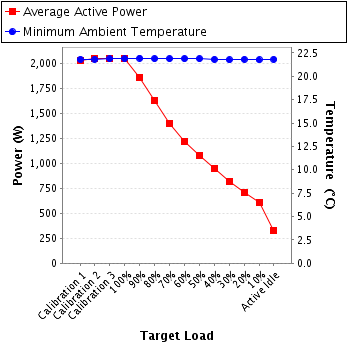

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 2.39 5.0 0.979 503 0.5%
Calibration 2 215 300.0 2.42 5.0 0.980 509 0.5%
Calibration 3 215 300.0 2.42 5.0 0.980 509 0.5%
100% 215 300.0 2.41 5.0 0.980 508 0.5%
90% 215 300.0 2.15 5.0 0.974 450 0.5%
80% 215 300.0 1.80 5.0 0.963 374 0.6%
70% 216 300.0 1.48 5.0 0.946 302 0.7%
60% 216 300.0 1.26 2.0 0.921 251 0.5%
50% 216 300.0 1.12 2.0 0.855 207 0.6%
40% 216 300.0 1.04 2.0 0.860 193 0.6%
30% 216 300.0 0.986 1.0 0.846 181 0.4%
20% 217 300.0 0.925 1.0 0.835 167 0.5%
10% 216 300.0 0.778 1.0 0.787 132 0.5%
Active Idle 216 300.0 0.542 0.5 0.483 56.7 0.8%

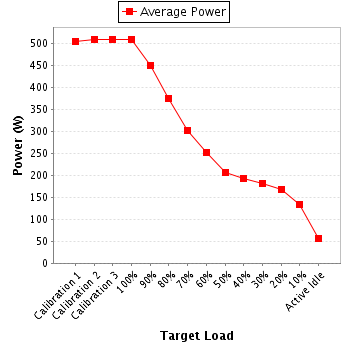

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 4.91 10.0 0.984 1,038 0.5%
Calibration 2 215 300.0 4.97 10.0 0.985 1,050 0.5%
Calibration 3 215 300.0 4.97 10.0 0.985 1,051 0.5%
100% 215 300.0 4.95 10.0 0.985 1,048 0.5%
90% 215 300.0 4.55 10.0 0.982 960 0.5%
80% 215 300.0 4.08 5.0 0.977 858 0.4%
70% 215 300.0 3.57 5.0 0.970 745 0.4%
60% 216 300.0 3.19 5.0 0.962 662 0.4%
50% 216 300.0 2.97 5.0 0.953 611 0.5%
40% 216 300.0 2.65 5.0 0.940 538 0.5%
30% 216 300.0 2.32 5.0 0.912 457 0.6%
20% 216 300.0 1.94 5.0 0.879 370 0.7%
10% 216 300.0 1.77 2.0 0.862 330 0.4%
Active Idle 216 300.0 1.29 2.0 0.737 205 0.6%

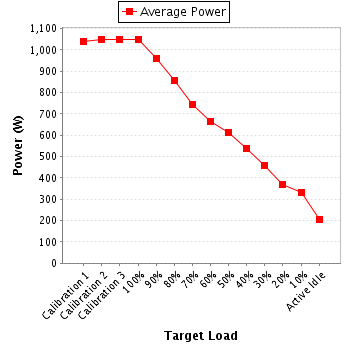

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 2.34 5.0 0.976 485 0.5%
Calibration 2 212 300.0 2.37 5.0 0.976 490 0.5%
Calibration 3 212 300.0 2.37 5.0 0.976 490 0.5%
100% 212 300.0 2.36 5.0 0.976 489 0.5%
90% 212 300.0 2.18 5.0 0.972 450 0.5%
80% 213 300.0 1.94 5.0 0.964 398 0.6%
70% 213 300.0 1.71 2.0 0.955 347 0.4%
60% 213 300.0 1.53 2.0 0.943 307 0.4%
50% 213 300.0 1.32 2.0 0.921 259 0.5%
40% 213 300.0 1.14 2.0 0.868 212 0.5%
30% 214 300.0 1.03 2.0 0.838 184 0.6%
20% 214 300.0 0.954 1.0 0.827 169 0.5%
10% 213 300.0 0.832 1.0 0.797 142 0.5%
Active Idle 213 300.0 0.563 1.0 0.570 68.5 0.9%

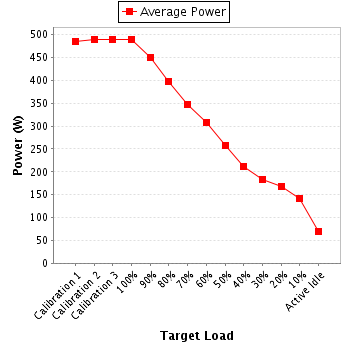

Power details for pwr3
