Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 35,391,846
ssj_ops@100% per Host = 11,797,282
ssj_ops@100% per JVM = 1,474,660
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     35,631,235
Calibration 2     35,479,209
Calibration 3     35,504,883
ssj_ops@calibrated=35,492,046
100% 99.7% 35,492,046 35,391,846
90% 89.9% 31,942,841 31,919,450
80% 80.1% 28,393,637 28,416,688
70% 70.0% 24,844,432 24,830,205
60% 60.0% 21,295,227 21,283,680
50% 50.0% 17,746,023 17,744,971
40% 40.0% 14,196,818 14,194,969
30% 30.0% 10,647,614 10,646,675
20% 20.0% 7,098,409 7,098,184
10% 10.0% 3,549,205 3,554,101
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
3 12 336 672 1,152 3 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 4 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1 x HP A5820X Series Switch (JG219A)
Network Switch Details: 10 Gb Fibre 24 ports
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v2.10 (01/18/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
SY660-01 11,810,345
SY660-02 11,801,079
SY660-03 11,780,422
ssj_ops@100% 35,391,846
ssj_ops@100% per Host 11,797,282
ssj_ops@100% per JVM 1,474,660

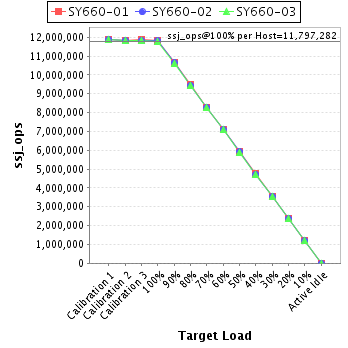

Graph of per-host results
Host 'SY660-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,897,416
Calibration 2     11,838,806
Calibration 3     11,854,190
ssj_ops@calibrated=11,846,498
100% 99.7% 11,846,498 11,810,345
90% 90.0% 10,661,848 10,657,166
80% 80.3% 9,477,198 9,509,217
70% 69.9% 8,292,549 8,285,526
60% 59.9% 7,107,899 7,101,586
50% 50.0% 5,923,249 5,920,011
40% 40.0% 4,738,599 4,739,473
30% 30.0% 3,553,949 3,548,382
20% 20.0% 2,369,300 2,368,801
10% 10.0% 1,184,650 1,183,755
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SY660-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,876,577
Calibration 2     11,829,781
Calibration 3     11,837,536
ssj_ops@calibrated=11,833,659
100% 99.7% 11,833,659 11,801,079
90% 89.9% 10,650,293 10,636,386
80% 79.9% 9,466,927 9,459,711
70% 70.0% 8,283,561 8,280,186
60% 60.0% 7,100,195 7,100,830
50% 50.1% 5,916,829 5,923,017
40% 40.0% 4,733,463 4,734,853
30% 30.0% 3,550,098 3,554,022
20% 20.0% 2,366,732 2,363,796
10% 10.0% 1,183,366 1,186,219
Active Idle   0 0

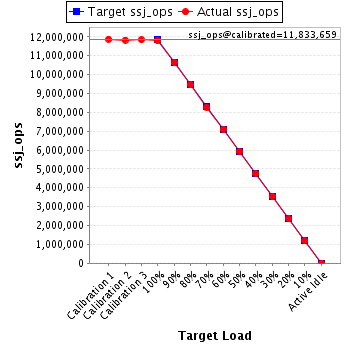

Graph of results
See the Host Performance Report for additional details.
Host 'SY660-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,857,242
Calibration 2     11,810,622
Calibration 3     11,813,156
ssj_ops@calibrated=11,811,889
100% 99.7% 11,811,889 11,780,422
90% 90.0% 10,630,700 10,625,898
80% 80.0% 9,449,511 9,447,760
70% 70.0% 8,268,322 8,264,494
60% 60.0% 7,087,133 7,081,263
50% 50.0% 5,905,945 5,901,943
40% 40.0% 4,724,756 4,720,643
30% 30.0% 3,543,567 3,544,271
20% 20.0% 2,362,378 2,365,587
10% 10.0% 1,181,189 1,184,127
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
