Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 47,321,609
ssj_ops@100% per Host = 11,830,402
ssj_ops@100% per JVM = 1,478,800
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     47,637,968
Calibration 2     47,484,255
Calibration 3     47,496,235
ssj_ops@calibrated=47,490,245
100% 99.6% 47,490,245 47,321,609
90% 90.0% 42,741,220 42,737,074
80% 80.0% 37,992,196 37,993,403
70% 70.0% 33,243,171 33,231,692
60% 60.0% 28,494,147 28,512,229
50% 50.0% 23,745,122 23,759,268
40% 40.0% 18,996,098 19,003,784
30% 30.0% 14,247,073 14,246,607
20% 20.0% 9,498,049 9,504,300
10% 10.0% 4,749,024 4,747,065
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 16 448 896 1,536 4 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 4 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1 x HP A5820X Series Switch (JG219A)
Network Switch Details: 10 Gb Fibre 24 ports
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v2.10 (01/18/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
SY660-01 11,871,889
SY660-02 11,847,107
SY660-03 11,821,897
SY660-04 11,780,716
ssj_ops@100% 47,321,609
ssj_ops@100% per Host 11,830,402
ssj_ops@100% per JVM 1,478,800

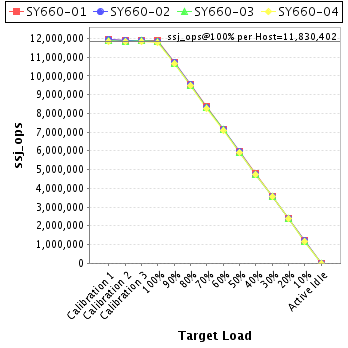

Graph of per-host results
Host 'SY660-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,956,346
Calibration 2     11,911,247
Calibration 3     11,911,762
ssj_ops@calibrated=11,911,504
100% 99.7% 11,911,504 11,871,889
90% 90.0% 10,720,354 10,723,997
80% 80.0% 9,529,204 9,532,490
70% 70.0% 8,338,053 8,337,969
60% 60.0% 7,146,903 7,149,110
50% 50.1% 5,955,752 5,961,747
40% 40.1% 4,764,602 4,770,644
30% 30.0% 3,573,451 3,573,330
20% 20.0% 2,382,301 2,384,169
10% 10.0% 1,191,150 1,191,411
Active Idle   0 0

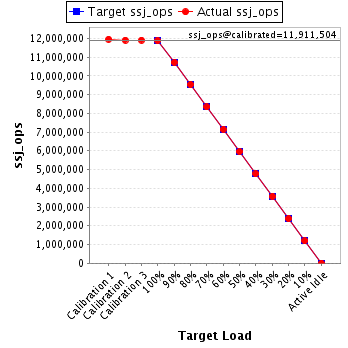

Graph of results
See the Host Performance Report for additional details.
Host 'SY660-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,923,281
Calibration 2     11,888,413
Calibration 3     11,895,034
ssj_ops@calibrated=11,891,724
100% 99.6% 11,891,724 11,847,107
90% 90.0% 10,702,551 10,700,219
80% 80.0% 9,513,379 9,516,439
70% 70.0% 8,324,207 8,318,912
60% 60.0% 7,135,034 7,136,620
50% 50.0% 5,945,862 5,951,310
40% 40.0% 4,756,689 4,755,416
30% 30.0% 3,567,517 3,570,705
20% 20.0% 2,378,345 2,383,024
10% 10.0% 1,189,172 1,190,467
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SY660-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,899,962
Calibration 2     11,856,241
Calibration 3     11,865,929
ssj_ops@calibrated=11,861,085
100% 99.7% 11,861,085 11,821,897
90% 90.0% 10,674,977 10,671,112
80% 79.9% 9,488,868 9,482,139
70% 70.0% 8,302,760 8,303,748
60% 60.1% 7,116,651 7,123,603
50% 50.0% 5,930,543 5,933,044
40% 40.0% 4,744,434 4,742,744
30% 30.0% 3,558,326 3,555,457
20% 20.0% 2,372,217 2,374,473
10% 10.0% 1,186,109 1,186,437
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SY660-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,858,379
Calibration 2     11,828,354
Calibration 3     11,823,509
ssj_ops@calibrated=11,825,932
100% 99.6% 11,825,932 11,780,716
90% 90.0% 10,643,338 10,641,746
80% 80.0% 9,460,745 9,462,336
70% 69.9% 8,278,152 8,271,063
60% 60.1% 7,095,559 7,102,896
50% 50.0% 5,912,966 5,913,166
40% 40.0% 4,730,373 4,734,980
30% 30.0% 3,547,779 3,547,115
20% 20.0% 2,365,186 2,362,634
10% 10.0% 1,182,593 1,178,749
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
