Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 11,007 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,947 22.9
Calibration 2 3,989 22.9
Calibration 3 3,993 23.1
100% 3,978 23.1
90% 3,602 22.9
80% 3,135 22.8
70% 2,655 22.6
60% 2,303 22.6
50% 2,003 22.6
40% 1,737 22.6
30% 1,490 22.6
20% 1,260 22.6
10% 1,053 22.6
Active Idle 500 22.7

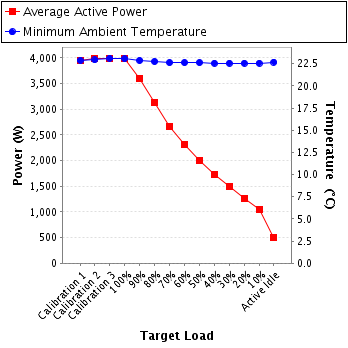

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 4.37 5.0 0.993 936 0.3%
Calibration 2 215 300.0 4.38 5.0 0.993 936 0.3%
Calibration 3 216 300.0 4.39 5.0 0.993 940 0.3%
100% 216 300.0 4.37 5.0 0.993 936 0.3%
90% 216 300.0 3.97 5.0 0.992 851 0.4%
80% 216 300.0 3.52 5.0 0.990 750 0.4%
70% 216 300.0 3.07 5.0 0.988 655 0.4%
60% 216 300.0 2.69 5.0 0.984 572 0.4%
50% 216 300.0 2.33 5.0 0.978 493 0.5%
40% 216 300.0 1.95 5.0 0.968 409 0.6%
30% 216 300.0 1.61 2.0 0.955 332 0.4%
20% 216 300.0 1.32 2.0 0.932 266 0.5%
10% 216 300.0 1.08 2.0 0.864 201 0.6%
Active Idle 216 300.0 0.660 1.0 0.709 101 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 9.58 20.0 0.996 2,049 0.5%
Calibration 2 215 300.0 9.71 20.0 0.996 2,076 0.5%
Calibration 3 215 300.0 9.71 20.0 0.996 2,076 0.5%
100% 215 300.0 9.69 20.0 0.996 2,072 0.5%
90% 215 300.0 8.73 20.0 0.995 1,866 0.5%
80% 215 300.0 7.52 10.0 0.993 1,605 0.4%
70% 215 300.0 6.33 10.0 0.991 1,350 0.4%
60% 215 300.0 5.53 10.0 0.988 1,177 0.4%
50% 216 300.0 4.84 10.0 0.984 1,026 0.5%
40% 216 300.0 4.28 10.0 0.979 905 0.5%
30% 216 300.0 3.76 5.0 0.973 790 0.4%
20% 216 300.0 3.24 5.0 0.964 675 0.4%
10% 216 300.0 2.92 5.0 0.953 600 0.5%
Active Idle 216 300.0 1.58 2.0 0.825 282 0.5%

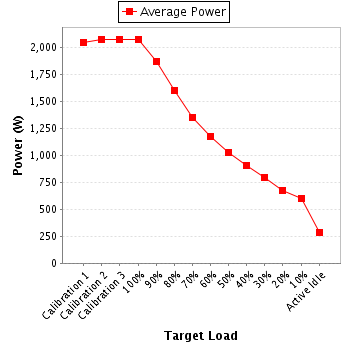

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 4.55 10.0 0.993 961 0.5%
Calibration 2 213 300.0 4.62 10.0 0.993 977 0.5%
Calibration 3 213 300.0 4.62 10.0 0.993 977 0.5%
100% 213 300.0 4.58 10.0 0.993 970 0.5%
90% 213 300.0 4.19 5.0 0.992 885 0.3%
80% 213 300.0 3.71 5.0 0.990 781 0.4%
70% 213 300.0 3.10 5.0 0.986 651 0.4%
60% 213 300.0 2.65 5.0 0.981 554 0.5%
50% 213 300.0 2.32 5.0 0.975 483 0.5%
40% 214 300.0 2.05 2.0 0.967 423 0.3%
30% 214 300.0 1.80 2.0 0.958 368 0.4%
20% 214 300.0 1.57 2.0 0.947 319 0.4%
10% 214 300.0 1.29 2.0 0.917 252 0.5%
Active Idle 214 300.0 0.729 1.0 0.751 117 0.6%

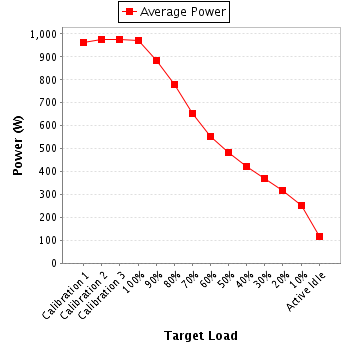

Power details for pwr3
