Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 11,799 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,585 22.3
Calibration 2 3,614 22.2
Calibration 3 3,618 22.2
100% 3,611 22.1
90% 3,207 22.2
80% 2,688 22.2
70% 2,334 22.2
60% 2,025 22.2
50% 1,761 22.1
40% 1,562 22.2
30% 1,393 22.2
20% 1,227 22.2
10% 1,051 22.2
Active Idle 570 22.2

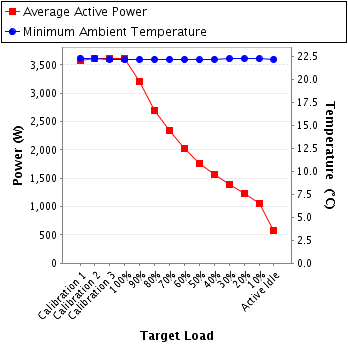

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 3.99 5.0 0.992 853 0.4%
Calibration 2 215 300.0 4.02 5.0 0.993 859 0.3%
Calibration 3 215 300.0 4.05 5.0 0.993 865 0.3%
100% 215 300.0 4.02 5.0 0.993 858 0.3%
90% 215 300.0 3.57 5.0 0.990 761 0.4%
80% 216 300.0 3.09 5.0 0.988 658 0.4%
70% 216 300.0 2.73 5.0 0.984 579 0.4%
60% 216 300.0 2.36 5.0 0.979 499 0.5%
50% 216 300.0 1.98 5.0 0.969 415 0.6%
40% 216 300.0 1.70 5.0 0.960 353 0.6%
30% 216 300.0 1.49 2.0 0.947 304 0.4%
20% 216 300.0 1.28 2.0 0.924 256 0.5%
10% 217 300.0 1.08 2.0 0.864 202 0.6%
Active Idle 217 300.0 0.743 1.0 0.762 123 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 8.70 20.0 0.995 1,855 0.5%
Calibration 2 214 300.0 8.79 20.0 0.995 1,875 0.5%
Calibration 3 214 300.0 8.79 20.0 0.995 1,874 0.5%
100% 214 300.0 8.77 20.0 0.995 1,870 0.5%
90% 215 300.0 7.69 20.0 0.994 1,639 0.5%
80% 215 300.0 6.42 10.0 0.991 1,368 0.4%
70% 215 300.0 5.60 10.0 0.988 1,192 0.4%
60% 215 300.0 4.89 10.0 0.984 1,037 0.5%
50% 216 300.0 4.34 10.0 0.980 917 0.5%
40% 216 300.0 3.93 10.0 0.976 827 0.6%
30% 216 300.0 3.56 5.0 0.970 745 0.4%
20% 216 300.0 3.19 5.0 0.962 662 0.4%
10% 216 300.0 2.91 5.0 0.952 599 0.5%
Active Idle 216 300.0 1.72 2.0 0.849 317 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 4.16 10.0 0.992 877 0.5%
Calibration 2 212 300.0 4.18 10.0 0.992 881 0.5%
Calibration 3 212 300.0 4.17 10.0 0.992 879 0.5%
100% 213 300.0 4.19 10.0 0.992 883 0.5%
90% 213 300.0 3.83 10.0 0.990 807 0.5%
80% 213 300.0 3.15 5.0 0.987 662 0.4%
70% 213 300.0 2.69 5.0 0.981 563 0.5%
60% 213 300.0 2.35 5.0 0.976 489 0.5%
50% 213 300.0 2.08 5.0 0.968 429 0.6%
40% 213 300.0 1.86 5.0 0.961 382 0.6%
30% 213 300.0 1.69 2.0 0.954 344 0.4%
20% 213 300.0 1.54 2.0 0.944 310 0.4%
10% 214 300.0 1.28 2.0 0.915 250 0.5%
Active Idle 214 300.0 0.795 1.0 0.768 130 0.5%
Power details for pwr3
