SPECpower_ssj2008 Host 'NODE04' Performance Report

SPECpower_ssj2008

Host 'NODE04' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,472,740 ssj_ops@100% per JVM = 1,434,092
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,518,337
Calibration 2			11,506,305
Calibration 3			11,514,556
ssj_ops@calibrated=11,510,431
100%	99.7%	11,510,431	11,472,740
90%	90.0%	10,359,388	10,360,188
80%	79.9%	9,208,344	9,196,217
70%	70.0%	8,057,301	8,054,359
60%	59.9%	6,906,258	6,892,343
50%	50.0%	5,755,215	5,751,320
40%	40.0%	4,604,172	4,600,104
30%	30.0%	3,453,129	3,449,770
20%	20.0%	2,302,086	2,305,435
10%	10.0%	1,151,043	1,147,585
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

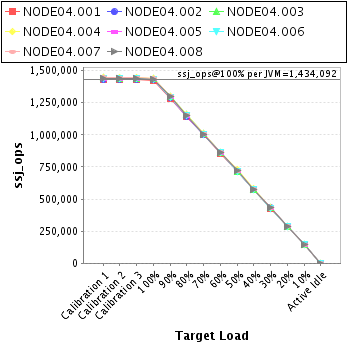

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE04.001	1,422,020
NODE04.002	1,428,896
NODE04.003	1,439,327
NODE04.004	1,442,187
NODE04.005	1,433,257
NODE04.006	1,433,164
NODE04.007	1,439,229
NODE04.008	1,434,660
ssj_ops@100%	11,472,740
ssj_ops@100% per JVM	1,434,092

JVM 'NODE04.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,429,601
Calibration 2			1,427,522
Calibration 3			1,427,447
ssj_ops@calibrated=1,427,484
100%	99.6%	1,427,484	1,422,020
90%	89.9%	1,284,736	1,283,555
80%	79.8%	1,141,987	1,139,484
70%	70.1%	999,239	1,001,077
60%	59.7%	856,490	852,129
50%	50.0%	713,742	713,795
40%	40.0%	570,994	570,623
30%	30.1%	428,245	429,712
20%	20.0%	285,497	284,902
10%	10.0%	142,748	142,311
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

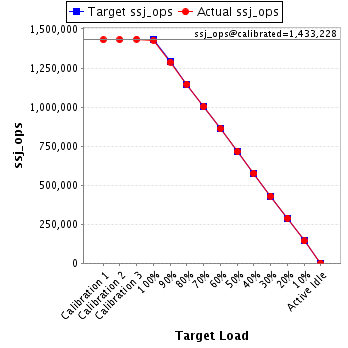

JVM 'NODE04.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,430,421
Calibration 2			1,431,626
Calibration 3			1,434,830
ssj_ops@calibrated=1,433,228
100%	99.7%	1,433,228	1,428,896
90%	89.9%	1,289,905	1,288,393
80%	79.9%	1,146,583	1,145,625
70%	70.0%	1,003,260	1,002,645
60%	60.0%	859,937	860,174
50%	49.9%	716,614	715,509
40%	40.1%	573,291	574,947
30%	30.0%	429,968	430,423
20%	20.2%	286,646	288,893
10%	10.0%	143,323	142,705
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,446,808
Calibration 2			1,442,042
Calibration 3			1,442,493
ssj_ops@calibrated=1,442,267
100%	99.8%	1,442,267	1,439,327
90%	90.1%	1,298,040	1,299,244
80%	80.1%	1,153,814	1,155,385
70%	70.3%	1,009,587	1,013,356
60%	60.0%	865,360	865,327
50%	49.7%	721,134	717,298
40%	40.0%	576,907	576,475
30%	29.9%	432,680	431,031
20%	20.1%	288,453	289,877
10%	10.0%	144,227	144,001
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,449,208
Calibration 2			1,447,018
Calibration 3			1,447,713
ssj_ops@calibrated=1,447,365
100%	99.6%	1,447,365	1,442,187
90%	89.8%	1,302,629	1,300,219
80%	79.8%	1,157,892	1,155,466
70%	70.0%	1,013,156	1,012,569
60%	59.8%	868,419	865,018
50%	50.2%	723,683	726,573
40%	40.0%	578,946	578,560
30%	29.9%	434,210	433,311
20%	20.0%	289,473	288,847
10%	9.9%	144,737	143,440
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,433,609
Calibration 2			1,436,514
Calibration 3			1,438,924
ssj_ops@calibrated=1,437,719
100%	99.7%	1,437,719	1,433,257
90%	89.9%	1,293,947	1,293,064
80%	79.7%	1,150,175	1,146,024
70%	69.8%	1,006,403	1,003,935
60%	59.9%	862,632	860,553
50%	50.0%	718,860	718,381
40%	40.0%	575,088	574,541
30%	30.0%	431,316	431,064
20%	20.1%	287,544	288,620
10%	10.0%	143,772	144,235
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,438,441
Calibration 2			1,436,107
Calibration 3			1,436,885
ssj_ops@calibrated=1,436,496
100%	99.8%	1,436,496	1,433,164
90%	90.1%	1,292,847	1,294,271
80%	79.9%	1,149,197	1,148,475
70%	69.9%	1,005,547	1,004,375
60%	59.8%	861,898	859,605
50%	49.9%	718,248	717,357
40%	40.0%	574,598	574,431
30%	29.8%	430,949	428,347
20%	19.9%	287,299	286,435
10%	10.0%	143,650	144,034
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,413
Calibration 2			1,444,575
Calibration 3			1,445,889
ssj_ops@calibrated=1,445,232
100%	99.6%	1,445,232	1,439,229
90%	90.1%	1,300,709	1,302,096
80%	79.9%	1,156,186	1,154,585
70%	69.9%	1,011,662	1,010,105
60%	59.9%	867,139	866,311
50%	49.9%	722,616	720,748
40%	39.8%	578,093	575,127
30%	29.9%	433,570	432,209
20%	20.1%	289,046	290,157
10%	9.9%	144,523	142,875
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

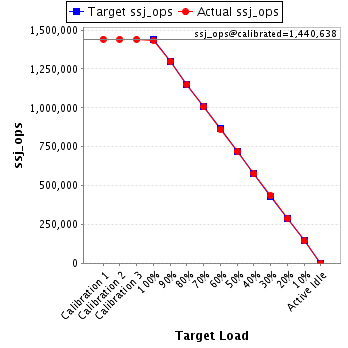

JVM 'NODE04.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,835
Calibration 2			1,440,901
Calibration 3			1,440,376
ssj_ops@calibrated=1,440,638
100%	99.6%	1,440,638	1,434,660
90%	90.2%	1,296,575	1,299,346
80%	79.9%	1,152,511	1,151,174
70%	69.9%	1,008,447	1,006,297
60%	59.9%	864,383	863,227
50%	50.1%	720,319	721,659
40%	39.9%	576,255	575,402
30%	30.1%	432,192	433,672
20%	20.0%	288,128	287,702
10%	10.0%	144,064	143,985
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
