SPECpower_ssj2008 Host 'NODE03' Performance Report

SPECpower_ssj2008

Host 'NODE03' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,460,530 ssj_ops@100% per JVM = 1,432,566
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,504,797
Calibration 2			11,485,736
Calibration 3			11,503,258
ssj_ops@calibrated=11,494,497
100%	99.7%	11,494,497	11,460,530
90%	90.0%	10,345,047	10,343,952
80%	80.1%	9,195,598	9,207,594
70%	69.9%	8,046,148	8,038,684
60%	60.0%	6,896,698	6,901,485
50%	50.0%	5,747,249	5,745,455
40%	40.0%	4,597,799	4,603,028
30%	30.0%	3,448,349	3,449,127
20%	20.0%	2,298,899	2,304,323
10%	10.0%	1,149,450	1,150,674
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

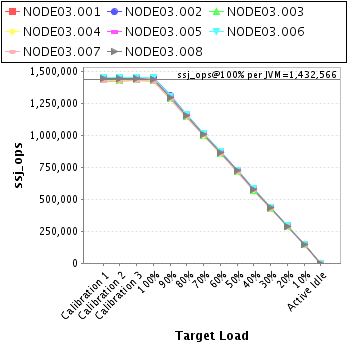

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE03.001	1,426,597
NODE03.002	1,447,183
NODE03.003	1,426,655
NODE03.004	1,426,827
NODE03.005	1,432,056
NODE03.006	1,446,570
NODE03.007	1,418,276
NODE03.008	1,436,367
ssj_ops@100%	11,460,530
ssj_ops@100% per JVM	1,432,566

JVM 'NODE03.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,430,737
Calibration 2			1,429,412
Calibration 3			1,431,673
ssj_ops@calibrated=1,430,542
100%	99.7%	1,430,542	1,426,597
90%	90.0%	1,287,488	1,287,381
80%	80.1%	1,144,434	1,145,693
70%	69.9%	1,001,380	999,369
60%	60.1%	858,325	860,206
50%	50.0%	715,271	714,844
40%	40.1%	572,217	573,175
30%	30.2%	429,163	431,591
20%	20.0%	286,108	286,806
10%	10.0%	143,054	143,082
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

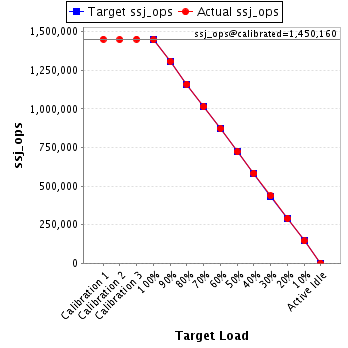

JVM 'NODE03.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,451,315
Calibration 2			1,448,647
Calibration 3			1,451,673
ssj_ops@calibrated=1,450,160
100%	99.8%	1,450,160	1,447,183
90%	90.2%	1,305,144	1,308,251
80%	80.0%	1,160,128	1,159,484
70%	70.0%	1,015,112	1,014,405
60%	60.1%	870,096	871,978
50%	49.8%	725,080	722,425
40%	40.2%	580,064	582,656
30%	30.1%	435,048	436,088
20%	20.1%	290,032	290,852
10%	10.0%	145,016	144,682
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,434,081
Calibration 2			1,429,650
Calibration 3			1,431,919
ssj_ops@calibrated=1,430,784
100%	99.7%	1,430,784	1,426,655
90%	89.9%	1,287,706	1,286,005
80%	80.3%	1,144,628	1,148,209
70%	69.8%	1,001,549	998,619
60%	59.9%	858,471	857,516
50%	49.9%	715,392	713,902
40%	39.9%	572,314	571,147
30%	30.0%	429,235	428,752
20%	20.1%	286,157	287,425
10%	10.0%	143,078	143,374
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,433,131
Calibration 2			1,430,001
Calibration 3			1,432,131
ssj_ops@calibrated=1,431,066
100%	99.7%	1,431,066	1,426,827
90%	90.1%	1,287,959	1,289,749
80%	80.0%	1,144,853	1,145,223
70%	69.8%	1,001,746	998,934
60%	59.9%	858,640	857,304
50%	50.0%	715,533	715,165
40%	40.0%	572,426	572,949
30%	30.1%	429,320	431,118
20%	20.1%	286,213	287,249
10%	10.0%	143,107	143,050
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,389
Calibration 2			1,439,126
Calibration 3			1,440,166
ssj_ops@calibrated=1,439,646
100%	99.5%	1,439,646	1,432,056
90%	89.9%	1,295,682	1,294,284
80%	80.2%	1,151,717	1,154,481
70%	70.0%	1,007,752	1,007,236
60%	60.1%	863,788	865,307
50%	49.9%	719,823	718,878
40%	40.1%	575,858	576,924
30%	30.0%	431,894	432,131
20%	20.0%	287,929	287,901
10%	10.0%	143,965	144,442
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,449,576
Calibration 2			1,448,960
Calibration 3			1,452,580
ssj_ops@calibrated=1,450,770
100%	99.7%	1,450,770	1,446,570
90%	90.0%	1,305,693	1,305,173
80%	80.1%	1,160,616	1,162,586
70%	69.9%	1,015,539	1,014,504
60%	60.1%	870,462	872,423
50%	50.0%	725,385	724,896
40%	40.1%	580,308	581,194
30%	29.9%	435,231	433,931
20%	20.1%	290,154	291,562
10%	10.0%	145,077	145,345
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,422,722
Calibration 2			1,421,410
Calibration 3			1,423,188
ssj_ops@calibrated=1,422,299
100%	99.7%	1,422,299	1,418,276
90%	89.9%	1,280,069	1,278,727
80%	80.1%	1,137,839	1,139,308
70%	70.1%	995,609	997,662
60%	60.1%	853,380	855,249
50%	50.0%	711,150	711,508
40%	40.0%	568,920	568,343
30%	29.8%	426,690	424,051
20%	20.0%	284,460	284,690
10%	10.0%	142,230	141,745
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

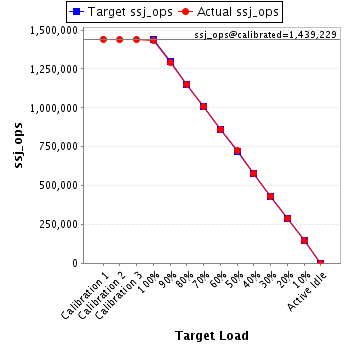

JVM 'NODE03.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,846
Calibration 2			1,438,530
Calibration 3			1,439,927
ssj_ops@calibrated=1,439,229
100%	99.8%	1,439,229	1,436,367
90%	89.9%	1,295,306	1,294,382
80%	80.1%	1,151,383	1,152,611
70%	70.0%	1,007,460	1,007,954
60%	59.9%	863,537	861,503
50%	50.3%	719,614	723,837
40%	40.1%	575,691	576,640
30%	30.0%	431,769	431,464
20%	20.0%	287,846	287,839
10%	10.1%	143,923	144,954
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
