SPECpower_ssj2008 Host 'NODE01' Performance Report

SPECpower_ssj2008

Host 'NODE01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,490,654 ssj_ops@100% per JVM = 1,436,332
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,519,232
Calibration 2			11,515,628
Calibration 3			11,521,845
ssj_ops@calibrated=11,518,736
100%	99.8%	11,518,736	11,490,654
90%	90.0%	10,366,863	10,364,625
80%	80.0%	9,214,989	9,219,368
70%	70.0%	8,063,115	8,066,462
60%	60.0%	6,911,242	6,914,262
50%	50.0%	5,759,368	5,758,362
40%	40.0%	4,607,494	4,612,852
30%	30.1%	3,455,621	3,472,733
20%	20.0%	2,303,747	2,300,749
10%	10.0%	1,151,874	1,148,781
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

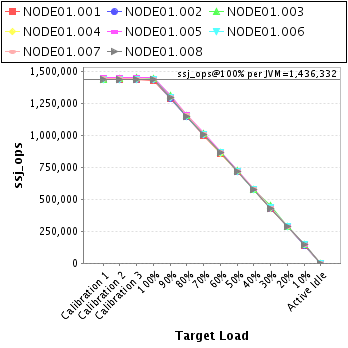

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE01.001	1,426,727
NODE01.002	1,432,842
NODE01.003	1,443,671
NODE01.004	1,432,659
NODE01.005	1,448,884
NODE01.006	1,432,673
NODE01.007	1,438,541
NODE01.008	1,434,659
ssj_ops@100%	11,490,654
ssj_ops@100% per JVM	1,436,332

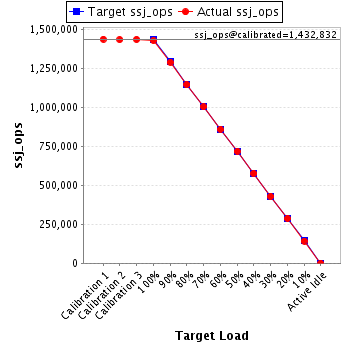

JVM 'NODE01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,435,040
Calibration 2			1,431,742
Calibration 3			1,433,923
ssj_ops@calibrated=1,432,832
100%	99.6%	1,432,832	1,426,727
90%	89.8%	1,289,549	1,286,905
80%	79.9%	1,146,266	1,144,285
70%	69.9%	1,002,983	1,001,354
60%	59.9%	859,699	858,776
50%	50.1%	716,416	717,526
40%	40.1%	573,133	574,998
30%	29.9%	429,850	428,179
20%	20.0%	286,566	286,617
10%	9.9%	143,283	142,321
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,438,667
Calibration 2			1,437,491
Calibration 3			1,437,548
ssj_ops@calibrated=1,437,519
100%	99.7%	1,437,519	1,432,842
90%	89.7%	1,293,768	1,290,129
80%	79.9%	1,150,016	1,148,211
70%	70.1%	1,006,264	1,007,295
60%	60.0%	862,512	862,192
50%	49.8%	718,760	715,351
40%	40.0%	575,008	575,398
30%	29.8%	431,256	427,789
20%	20.0%	287,504	286,977
10%	9.8%	143,752	141,249
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

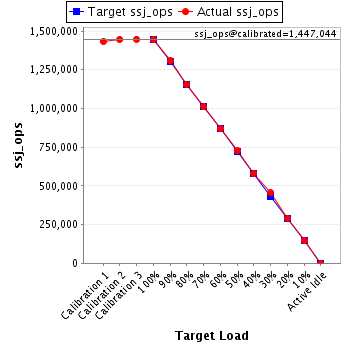

JVM 'NODE01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,433,162
Calibration 2			1,446,316
Calibration 3			1,447,771
ssj_ops@calibrated=1,447,044
100%	99.8%	1,447,044	1,443,671
90%	90.3%	1,302,339	1,306,967
80%	79.9%	1,157,635	1,155,545
70%	69.9%	1,012,930	1,011,121
60%	59.9%	868,226	867,433
50%	50.2%	723,522	727,002
40%	40.0%	578,817	578,974
30%	31.4%	434,113	454,759
20%	20.1%	289,409	290,969
10%	10.1%	144,704	145,505
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,438,599
Calibration 2			1,435,329
Calibration 3			1,433,110
ssj_ops@calibrated=1,434,220
100%	99.9%	1,434,220	1,432,659
90%	90.1%	1,290,798	1,292,738
80%	80.2%	1,147,376	1,150,725
70%	70.1%	1,003,954	1,005,690
60%	60.0%	860,532	860,788
50%	50.0%	717,110	717,558
40%	40.0%	573,688	573,473
30%	30.0%	430,266	429,684
20%	19.9%	286,844	285,124
10%	10.0%	143,422	142,947
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,453,378
Calibration 2			1,451,000
Calibration 3			1,452,145
ssj_ops@calibrated=1,451,572
100%	99.8%	1,451,572	1,448,884
90%	90.0%	1,306,415	1,306,611
80%	80.3%	1,161,258	1,165,049
70%	70.2%	1,016,101	1,018,316
60%	59.9%	870,943	870,006
50%	49.8%	725,786	722,319
40%	40.1%	580,629	582,695
30%	30.0%	435,472	435,895
20%	19.9%	290,314	288,268
10%	10.0%	145,157	144,816
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,204
Calibration 2			1,434,813
Calibration 3			1,437,766
ssj_ops@calibrated=1,436,289
100%	99.7%	1,436,289	1,432,673
90%	89.9%	1,292,660	1,290,971
80%	80.0%	1,149,032	1,148,776
70%	70.1%	1,005,403	1,006,593
60%	60.2%	861,774	865,007
50%	50.2%	718,145	720,445
40%	39.9%	574,516	572,574
30%	30.1%	430,887	432,029
20%	20.1%	287,258	288,495
10%	10.0%	143,629	143,761
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,444,948
Calibration 2			1,443,519
Calibration 3			1,442,762
ssj_ops@calibrated=1,443,140
100%	99.7%	1,443,140	1,438,541
90%	89.9%	1,298,826	1,297,671
80%	80.3%	1,154,512	1,158,986
70%	70.1%	1,010,198	1,011,800
60%	60.1%	865,884	867,712
50%	49.8%	721,570	719,162
40%	40.2%	577,256	580,710
30%	30.1%	432,942	433,883
20%	19.9%	288,628	286,830
10%	10.0%	144,314	143,621
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,438,234
Calibration 2			1,435,417
Calibration 3			1,436,821
ssj_ops@calibrated=1,436,119
100%	99.9%	1,436,119	1,434,659
90%	90.0%	1,292,507	1,292,633
80%	79.9%	1,148,895	1,147,791
70%	69.9%	1,005,283	1,004,292
60%	60.0%	861,671	862,348
50%	50.1%	718,060	718,999
40%	40.0%	574,448	574,031
30%	30.0%	430,836	430,514
20%	20.0%	287,224	287,470
10%	10.1%	143,612	144,562
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
