Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 11,942 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,467 22.4
Calibration 2 4,506 22.4
Calibration 3 4,517 22.5
100% 4,503 22.6
90% 3,997 22.8
80% 3,343 22.8
70% 2,893 22.9
60% 2,501 22.9
50% 2,169 22.4
40% 1,916 22.2
30% 1,703 22.1
20% 1,493 22.1
10% 1,274 22.1
Active Idle 675 22.1

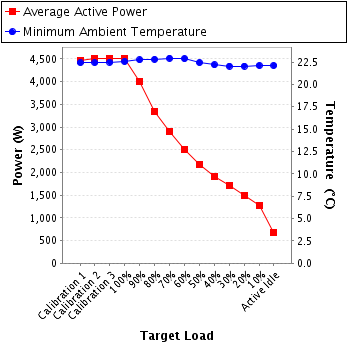

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 5.07 20.0 0.995 1,085 0.7%
Calibration 2 215 300.0 5.07 20.0 0.995 1,087 0.7%
Calibration 3 215 300.0 5.05 20.0 0.995 1,079 0.7%
100% 215 300.0 5.03 20.0 0.995 1,075 0.7%
90% 215 300.0 4.38 20.0 0.993 934 0.8%
80% 215 300.0 3.71 10.0 0.991 790 0.6%
70% 215 300.0 3.29 10.0 0.989 700 0.6%
60% 215 300.0 2.90 10.0 0.986 616 0.7%
50% 215 300.0 2.54 10.0 0.981 537 0.7%
40% 215 300.0 2.24 10.0 0.977 471 0.8%
30% 215 300.0 1.97 5.0 0.969 410 0.6%
20% 215 300.0 1.67 5.0 0.958 344 0.6%
10% 216 300.0 1.35 2.0 0.935 273 0.4%
Active Idle 216 300.0 0.862 1.0 0.812 151 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 10.7 20.0 0.996 2,278 0.4%
Calibration 2 215 300.0 10.8 20.0 0.996 2,301 0.4%
Calibration 3 214 300.0 10.8 20.0 0.996 2,311 0.4%
100% 214 300.0 10.8 20.0 0.996 2,307 0.4%
90% 214 300.0 9.76 20.0 0.996 2,080 0.5%
80% 214 300.0 8.06 10.0 0.994 1,718 0.3%
70% 215 300.0 6.94 10.0 0.992 1,477 0.4%
60% 215 300.0 6.00 10.0 0.990 1,276 0.4%
50% 215 300.0 5.22 10.0 0.986 1,108 0.5%
40% 215 300.0 4.65 10.0 0.983 983 0.5%
30% 215 300.0 4.19 5.0 0.978 882 0.4%
20% 215 300.0 3.73 5.0 0.973 782 0.4%
10% 215 300.0 3.27 5.0 0.964 678 0.4%
Active Idle 216 300.0 1.95 5.0 0.878 369 0.7%

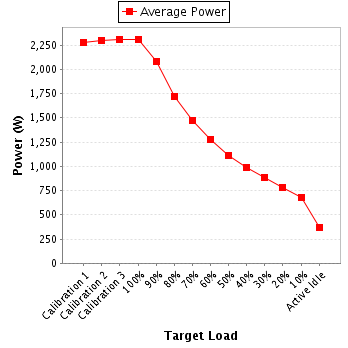

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 5.22 10.0 0.995 1,104 0.4%
Calibration 2 213 300.0 5.28 10.0 0.995 1,117 0.4%
Calibration 3 212 300.0 5.34 10.0 0.995 1,126 0.4%
100% 212 300.0 5.31 10.0 0.995 1,122 0.4%
90% 212 300.0 4.66 10.0 0.993 983 0.5%
80% 213 300.0 3.96 5.0 0.991 835 0.4%
70% 213 300.0 3.41 5.0 0.988 717 0.4%
60% 213 300.0 2.91 5.0 0.984 609 0.4%
50% 213 300.0 2.52 5.0 0.979 524 0.5%
40% 213 300.0 2.23 5.0 0.974 462 0.5%
30% 213 300.0 2.00 5.0 0.966 411 0.6%
20% 213 300.0 1.80 5.0 0.959 367 0.6%
10% 213 300.0 1.60 2.0 0.948 323 0.4%
Active Idle 213 300.0 0.900 2.0 0.806 155 0.7%

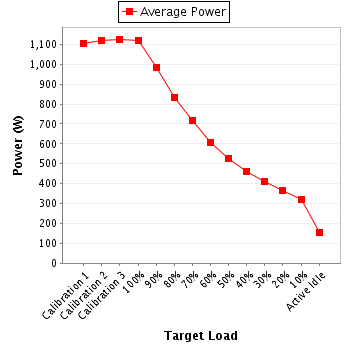

Power details for pwr3
