SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS720Q-E9-RS8 | SPECpower_ssj2008 = 11,935 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Multi Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Jan 10, 2019 |
| Hardware Availability: | Jan-2019 | Software Availability: | Aug-2018 | Publication: | May 10, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

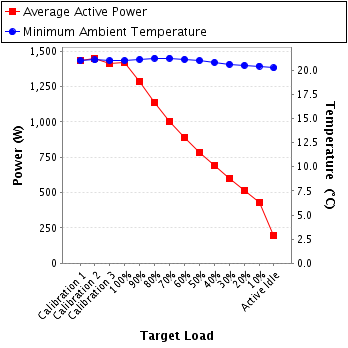

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,431 | 21.0 |
| Calibration 2 | 1,450 | 21.1 |
| Calibration 3 | 1,414 | 21.0 |
| 100% | 1,417 | 21.0 |
| 90% | 1,287 | 21.1 |
| 80% | 1,139 | 21.2 |
| 70% | 1,003 | 21.2 |
| 60% | 888 | 21.1 |
| 50% | 783 | 21.0 |
| 40% | 689 | 20.8 |
| 30% | 598 | 20.6 |
| 20% | 513 | 20.5 |
| 10% | 427 | 20.4 |
| Active Idle | 193 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Good Will Instrument Co., Ltd. |
| Model: | GPM-8212 |
| Serial Number: | GCR150073 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML |
| Accredited by: | Good Will Instrument Co., Ltd. |
| Calibration Label: | GCR150073 |
| Date of Calibration: | 30-Jan-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | RS-232 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 226 | 320.0 | 6.33 | 10.24 | 0.998 | 1,431 | 0.7% |
| Calibration 2 | 226 | 320.0 | 6.41 | 10.24 | 0.998 | 1,450 | 0.7% |
| Calibration 3 | 226 | 320.0 | 6.25 | 10.24 | 0.998 | 1,414 | 0.7% |
| 100% | 227 | 320.0 | 6.26 | 10.24 | 0.998 | 1,417 | 0.7% |
| 90% | 227 | 320.0 | 5.67 | 10.24 | 0.998 | 1,287 | 0.7% |
| 80% | 228 | 320.0 | 5.02 | 5.12 | 0.997 | 1,139 | 0.5% |
| 70% | 228 | 320.0 | 4.42 | 5.12 | 0.996 | 1,003 | 0.5% |
| 60% | 229 | 320.0 | 3.90 | 5.12 | 0.995 | 888 | 0.6% |
| 50% | 229 | 320.0 | 3.45 | 5.12 | 0.993 | 783 | 0.6% |
| 40% | 229 | 320.0 | 3.04 | 5.12 | 0.991 | 689 | 0.7% |
| 30% | 230 | 320.0 | 2.63 | 5.12 | 0.990 | 598 | 0.7% |
| 20% | 230 | 320.0 | 2.26 | 2.56 | 0.986 | 513 | 0.5% |
| 10% | 230 | 320.0 | 1.89 | 2.56 | 0.982 | 427 | 0.6% |
| Active Idle | 227 | 320.0 | 0.929 | 1.28 | 0.915 | 193 | 0.6% |
