SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7425 (AMD EPYC 7601 2.20 GHz) | SPECpower_ssj2008 = 11,867 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 6, 2019 |
| Hardware Availability: | Dec-2018 | Software Availability: | Apr-2015 | Publication: | Feb 27, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

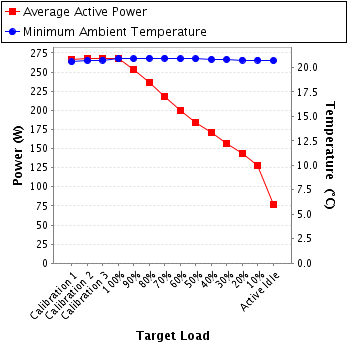

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 267 | 20.6 |
| Calibration 2 | 268 | 20.7 |
| Calibration 3 | 268 | 20.8 |
| 100% | 268 | 20.9 |
| 90% | 253 | 20.9 |
| 80% | 237 | 20.9 |
| 70% | 218 | 20.9 |
| 60% | 200 | 20.9 |
| 50% | 184 | 20.9 |
| 40% | 170 | 20.8 |
| 30% | 157 | 20.8 |
| 20% | 144 | 20.8 |
| 10% | 128 | 20.8 |
| Active Idle | 77.5 | 20.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91KA21979 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | 66762 |
| Date of Calibration: | 27-Feb-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

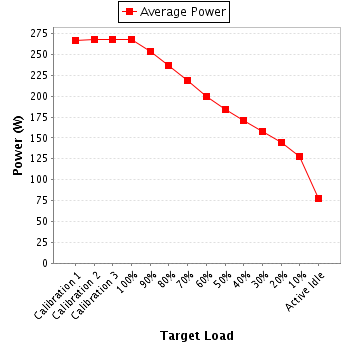

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.29 | 2.0 | 0.992 | 267 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.30 | 2.0 | 0.992 | 268 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.30 | 2.0 | 0.992 | 268 | 0.4% |
| 100% | 208 | 300.0 | 1.30 | 2.0 | 0.992 | 268 | 0.4% |
| 90% | 208 | 300.0 | 1.22 | 2.0 | 0.992 | 253 | 0.4% |
| 80% | 208 | 300.0 | 1.15 | 2.0 | 0.990 | 237 | 0.4% |
| 70% | 208 | 300.0 | 1.06 | 2.0 | 0.988 | 218 | 0.5% |
| 60% | 208 | 300.0 | 0.974 | 1.0 | 0.985 | 200 | 0.3% |
| 50% | 208 | 300.0 | 0.898 | 1.0 | 0.982 | 184 | 0.4% |
| 40% | 208 | 300.0 | 0.834 | 1.0 | 0.981 | 170 | 0.4% |
| 30% | 208 | 300.0 | 0.770 | 1.0 | 0.979 | 157 | 0.4% |
| 20% | 208 | 300.0 | 0.708 | 1.0 | 0.976 | 144 | 0.4% |
| 10% | 208 | 300.0 | 0.636 | 1.0 | 0.968 | 128 | 0.4% |
| Active Idle | 208 | 300.0 | 0.402 | 0.5 | 0.924 | 77.5 | 0.4% |
