ASUSTeK Computer Inc. RS720-E9/RS8 ssj_ops@100% = 5,386,401
ssj_ops@100% per JVM = 96,186
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan Test Date: Sep 26, 2018
Hardware Availability: Sep-2018 Software Availability: Mar-2018 Publication: Dec 6, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,549,172
Calibration 2     5,538,675
Calibration 3     5,428,263
ssj_ops@calibrated=5,483,469
100% 98.2% 5,483,469 5,386,401
90% 90.2% 4,935,122 4,943,361
80% 80.0% 4,386,775 4,389,486
70% 70.1% 3,838,428 3,843,150
60% 60.0% 3,290,081 3,289,702
50% 50.0% 2,741,734 2,740,492
40% 40.1% 2,193,388 2,196,364
30% 30.0% 1,645,041 1,642,466
20% 20.0% 1,096,694 1,097,528
10% 10.0% 548,347 547,494
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS720-E9-RS8'
Set Identifier: RS720-E9-RS8
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720-E9/RS8
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: 28-Core, 2.5 GHz, 38.5MB L3 Cache(Intel Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots DIMM_A1,DIMMM_B1,DIMMM_C1,DIMMM_D1,DIMMM_E1,DIMMM_F1,DIMMM_G1,DIMMM_H1,DIMMM_J1,DIMMM_K1,DIMMM_L1,DIMMM_M1
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: Delta DPS-850AB-3 Rev.C
Disk Drive: 1 x 480GB Intel 535 SATA 2.5 SSD
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParalleOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2,] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000]; start /NODE [1,3] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0905
Management Firmware Version: 1.12
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4088876
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-V6TOEUM1787.001 96,536
WIN-V6TOEUM1787.002 94,657
WIN-V6TOEUM1787.003 97,582
WIN-V6TOEUM1787.004 96,380
WIN-V6TOEUM1787.005 95,036
WIN-V6TOEUM1787.006 98,264
WIN-V6TOEUM1787.007 95,383
WIN-V6TOEUM1787.008 96,293
WIN-V6TOEUM1787.009 99,180
WIN-V6TOEUM1787.010 97,226
WIN-V6TOEUM1787.011 97,118
WIN-V6TOEUM1787.012 95,905
WIN-V6TOEUM1787.013 95,746
WIN-V6TOEUM1787.014 95,205
WIN-V6TOEUM1787.015 95,357
WIN-V6TOEUM1787.016 96,743
WIN-V6TOEUM1787.017 96,680
WIN-V6TOEUM1787.018 95,420
WIN-V6TOEUM1787.019 95,223
WIN-V6TOEUM1787.020 95,478
WIN-V6TOEUM1787.021 98,071
WIN-V6TOEUM1787.022 95,570
WIN-V6TOEUM1787.023 96,449
WIN-V6TOEUM1787.024 98,421
WIN-V6TOEUM1787.025 97,352
WIN-V6TOEUM1787.026 98,437
WIN-V6TOEUM1787.027 96,518
WIN-V6TOEUM1787.028 95,913
WIN-V6TOEUM1787.029 95,718
WIN-V6TOEUM1787.030 96,026
WIN-V6TOEUM1787.031 94,903
WIN-V6TOEUM1787.032 97,220
WIN-V6TOEUM1787.033 96,834
WIN-V6TOEUM1787.034 95,970
WIN-V6TOEUM1787.035 96,526
WIN-V6TOEUM1787.036 96,041
WIN-V6TOEUM1787.037 97,044
WIN-V6TOEUM1787.038 97,347
WIN-V6TOEUM1787.039 94,548
WIN-V6TOEUM1787.040 95,189
WIN-V6TOEUM1787.041 95,766
WIN-V6TOEUM1787.042 96,359
WIN-V6TOEUM1787.043 93,509
WIN-V6TOEUM1787.044 96,454
WIN-V6TOEUM1787.045 95,077
WIN-V6TOEUM1787.046 96,826
WIN-V6TOEUM1787.047 93,840
WIN-V6TOEUM1787.048 95,898
WIN-V6TOEUM1787.049 95,435
WIN-V6TOEUM1787.050 96,115
WIN-V6TOEUM1787.051 97,229
WIN-V6TOEUM1787.052 96,094
WIN-V6TOEUM1787.053 96,671
WIN-V6TOEUM1787.054 97,331
WIN-V6TOEUM1787.055 95,302
WIN-V6TOEUM1787.056 92,989
ssj_ops@100% 5,386,401
ssj_ops@100% per JVM 96,186

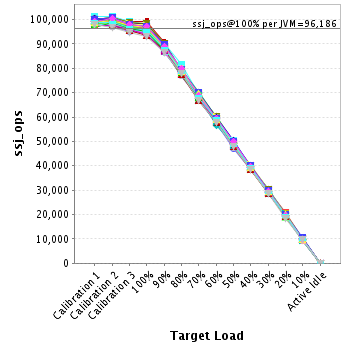

Graph of per-instance results
JVM 'WIN-V6TOEUM1787.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,859
Calibration 2     98,467
Calibration 3     96,920
ssj_ops@calibrated=97,694
100% 98.8% 97,694 96,536
90% 90.0% 87,924 87,887
80% 79.9% 78,155 78,072
70% 70.9% 68,386 69,310
60% 59.5% 58,616 58,084
50% 50.2% 48,847 49,004
40% 40.7% 39,077 39,756
30% 29.9% 29,308 29,246
20% 19.8% 19,539 19,319
10% 10.3% 9,769 10,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,004
Calibration 2     97,070
Calibration 3     95,162
ssj_ops@calibrated=96,116
100% 98.5% 96,116 94,657
90% 90.8% 86,504 87,244
80% 80.2% 76,893 77,111
70% 69.8% 67,281 67,083
60% 59.5% 57,669 57,209
50% 49.0% 48,058 47,104
40% 40.1% 38,446 38,566
30% 30.8% 28,835 29,638
20% 19.8% 19,223 19,016
10% 9.8% 9,612 9,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,730
Calibration 2     99,183
Calibration 3     97,850
ssj_ops@calibrated=98,517
100% 99.1% 98,517 97,582
90% 90.1% 88,665 88,721
80% 79.7% 78,813 78,508
70% 70.4% 68,962 69,343
60% 61.2% 59,110 60,326
50% 50.7% 49,258 49,906
40% 39.4% 39,407 38,862
30% 30.6% 29,555 30,186
20% 20.6% 19,703 20,300
10% 10.1% 9,852 9,992
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,233
Calibration 2     98,295
Calibration 3     96,486
ssj_ops@calibrated=97,391
100% 99.0% 97,391 96,380
90% 90.3% 87,652 87,936
80% 80.7% 77,912 78,554
70% 70.9% 68,173 69,004
60% 59.9% 58,434 58,329
50% 50.2% 48,695 48,885
40% 40.3% 38,956 39,224
30% 30.2% 29,217 29,453
20% 19.6% 19,478 19,128
10% 10.0% 9,739 9,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,979
Calibration 2     98,275
Calibration 3     96,150
ssj_ops@calibrated=97,212
100% 97.8% 97,212 95,036
90% 90.6% 87,491 88,039
80% 79.0% 77,770 76,776
70% 69.9% 68,049 67,929
60% 60.4% 58,327 58,760
50% 50.2% 48,606 48,790
40% 40.3% 38,885 39,143
30% 30.5% 29,164 29,604
20% 20.2% 19,442 19,591
10% 10.1% 9,721 9,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,476
Calibration 2     100,362
Calibration 3     98,541
ssj_ops@calibrated=99,452
100% 98.8% 99,452 98,264
90% 89.3% 89,507 88,840
80% 80.1% 79,561 79,649
70% 70.6% 69,616 70,215
60% 59.5% 59,671 59,207
50% 50.4% 49,726 50,162
40% 40.2% 39,781 39,937
30% 29.9% 29,836 29,742
20% 20.1% 19,890 19,980
10% 9.8% 9,945 9,788
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,341
Calibration 2     97,652
Calibration 3     96,143
ssj_ops@calibrated=96,897
100% 98.4% 96,897 95,383
90% 89.7% 87,208 86,934
80% 79.9% 77,518 77,446
70% 70.0% 67,828 67,814
60% 60.6% 58,138 58,674
50% 49.5% 48,449 47,980
40% 40.2% 38,759 38,977
30% 30.2% 29,069 29,222
20% 19.8% 19,379 19,189
10% 10.0% 9,690 9,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,498
Calibration 2     99,170
Calibration 3     97,426
ssj_ops@calibrated=98,298
100% 98.0% 98,298 96,293
90% 90.3% 88,468 88,746
80% 80.0% 78,639 78,611
70% 69.9% 68,809 68,724
60% 60.2% 58,979 59,206
50% 50.5% 49,149 49,628
40% 40.5% 39,319 39,762
30% 30.1% 29,489 29,568
20% 19.5% 19,660 19,202
10% 10.1% 9,830 9,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,103
Calibration 2     100,792
Calibration 3     99,273
ssj_ops@calibrated=100,032
100% 99.1% 100,032 99,180
90% 90.4% 90,029 90,412
80% 78.9% 80,026 78,967
70% 69.0% 70,023 69,060
60% 59.5% 60,019 59,508
50% 49.3% 50,016 49,309
40% 39.3% 40,013 39,264
30% 29.4% 30,010 29,422
20% 20.3% 20,006 20,278
10% 9.5% 10,003 9,531
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,283
Calibration 2     99,739
Calibration 3     97,544
ssj_ops@calibrated=98,641
100% 98.6% 98,641 97,226
90% 89.5% 88,777 88,243
80% 79.7% 78,913 78,575
70% 70.1% 69,049 69,109
60% 60.0% 59,185 59,141
50% 49.8% 49,321 49,155
40% 39.8% 39,457 39,291
30% 30.7% 29,592 30,291
20% 20.4% 19,728 20,137
10% 10.1% 9,864 9,992
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,366
Calibration 2     99,525
Calibration 3     96,917
ssj_ops@calibrated=98,221
100% 98.9% 98,221 97,118
90% 89.9% 88,399 88,320
80% 81.0% 78,577 79,574
70% 70.7% 68,755 69,409
60% 59.3% 58,932 58,231
50% 50.2% 49,110 49,335
40% 40.2% 39,288 39,475
30% 29.8% 29,466 29,279
20% 20.2% 19,644 19,854
10% 9.9% 9,822 9,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,082
Calibration 2     98,259
Calibration 3     96,457
ssj_ops@calibrated=97,358
100% 98.5% 97,358 95,905
90% 91.0% 87,622 88,608
80% 80.4% 77,886 78,316
70% 70.7% 68,150 68,801
60% 59.2% 58,415 57,620
50% 49.9% 48,679 48,569
40% 39.9% 38,943 38,816
30% 29.6% 29,207 28,830
20% 20.2% 19,472 19,621
10% 10.3% 9,736 10,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,440
Calibration 2     97,544
Calibration 3     96,719
ssj_ops@calibrated=97,131
100% 98.6% 97,131 95,746
90% 89.5% 87,418 86,899
80% 79.6% 77,705 77,361
70% 70.1% 67,992 68,080
60% 60.2% 58,279 58,503
50% 49.7% 48,566 48,312
40% 40.3% 38,853 39,166
30% 29.9% 29,139 29,025
20% 20.2% 19,426 19,586
10% 10.2% 9,713 9,931
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,132
Calibration 2     97,302
Calibration 3     95,805
ssj_ops@calibrated=96,554
100% 98.6% 96,554 95,205
90% 89.5% 86,898 86,391
80% 80.3% 77,243 77,499
70% 70.8% 67,588 68,324
60% 58.6% 57,932 56,578
50% 50.4% 48,277 48,620
40% 39.7% 38,621 38,316
30% 30.2% 28,966 29,125
20% 20.1% 19,311 19,386
10% 9.7% 9,655 9,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,281
Calibration 2     97,775
Calibration 3     95,870
ssj_ops@calibrated=96,822
100% 98.5% 96,822 95,357
90% 90.3% 87,140 87,435
80% 79.3% 77,458 76,742
70% 70.6% 67,776 68,321
60% 61.1% 58,093 59,127
50% 49.6% 48,411 48,019
40% 39.8% 38,729 38,563
30% 30.0% 29,047 29,087
20% 20.3% 19,364 19,650
10% 10.1% 9,682 9,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,859
Calibration 2     99,351
Calibration 3     97,522
ssj_ops@calibrated=98,436
100% 98.3% 98,436 96,743
90% 90.3% 88,593 88,913
80% 79.5% 78,749 78,284
70% 69.6% 68,905 68,522
60% 60.4% 59,062 59,419
50% 49.3% 49,218 48,506
40% 39.0% 39,375 38,398
30% 30.3% 29,531 29,777
20% 21.2% 19,687 20,861
10% 10.4% 9,844 10,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,238
Calibration 2     99,119
Calibration 3     96,882
ssj_ops@calibrated=98,001
100% 98.7% 98,001 96,680
90% 91.6% 88,201 89,753
80% 80.6% 78,400 79,020
70% 70.1% 68,600 68,719
60% 59.8% 58,800 58,602
50% 50.0% 49,000 49,033
40% 39.7% 39,200 38,910
30% 30.4% 29,400 29,805
20% 20.1% 19,600 19,741
10% 9.8% 9,800 9,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,784
Calibration 2     97,568
Calibration 3     96,405
ssj_ops@calibrated=96,986
100% 98.4% 96,986 95,420
90% 89.8% 87,288 87,103
80% 80.4% 77,589 78,025
70% 69.3% 67,890 67,169
60% 59.6% 58,192 57,832
50% 50.8% 48,493 49,236
40% 39.8% 38,795 38,625
30% 29.4% 29,096 28,481
20% 20.2% 19,397 19,616
10% 10.0% 9,699 9,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,678
Calibration 2     97,941
Calibration 3     96,053
ssj_ops@calibrated=96,997
100% 98.2% 96,997 95,223
90% 90.3% 87,297 87,611
80% 80.4% 77,598 77,950
70% 70.3% 67,898 68,194
60% 60.8% 58,198 59,011
50% 50.2% 48,498 48,676
40% 39.7% 38,799 38,517
30% 30.3% 29,099 29,404
20% 20.3% 19,399 19,702
10% 9.8% 9,700 9,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,823
Calibration 2     98,589
Calibration 3     95,438
ssj_ops@calibrated=97,014
100% 98.4% 97,014 95,478
90% 88.9% 87,312 86,270
80% 80.6% 77,611 78,168
70% 70.6% 67,910 68,486
60% 59.5% 58,208 57,753
50% 50.4% 48,507 48,883
40% 39.5% 38,805 38,329
30% 30.4% 29,104 29,478
20% 19.7% 19,403 19,142
10% 10.3% 9,701 10,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,305
Calibration 2     101,055
Calibration 3     99,081
ssj_ops@calibrated=100,068
100% 98.0% 100,068 98,071
90% 90.0% 90,061 90,066
80% 81.6% 80,055 81,640
70% 69.5% 70,048 69,504
60% 59.8% 60,041 59,806
50% 49.4% 50,034 49,468
40% 39.9% 40,027 39,884
30% 30.3% 30,020 30,294
20% 20.0% 20,014 20,010
10% 9.8% 10,007 9,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,251
Calibration 2     97,019
Calibration 3     95,318
ssj_ops@calibrated=96,168
100% 99.4% 96,168 95,570
90% 90.4% 86,551 86,951
80% 80.1% 76,935 77,016
70% 70.2% 67,318 67,536
60% 60.0% 57,701 57,696
50% 49.3% 48,084 47,389
40% 40.2% 38,467 38,618
30% 29.7% 28,850 28,517
20% 20.1% 19,234 19,306
10% 9.6% 9,617 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,672
Calibration 2     98,548
Calibration 3     96,417
ssj_ops@calibrated=97,483
100% 98.9% 97,483 96,449
90% 91.1% 87,735 88,777
80% 79.8% 77,986 77,766
70% 70.5% 68,238 68,685
60% 59.1% 58,490 57,607
50% 50.1% 48,741 48,883
40% 40.4% 38,993 39,403
30% 29.6% 29,245 28,891
20% 19.4% 19,497 18,895
10% 10.0% 9,748 9,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

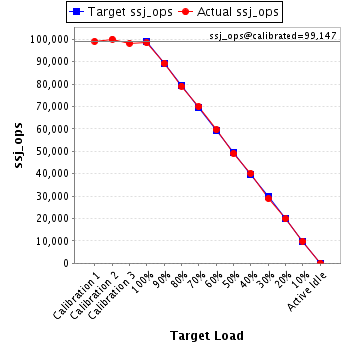

JVM 'WIN-V6TOEUM1787.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,103
Calibration 2     100,067
Calibration 3     98,226
ssj_ops@calibrated=99,147
100% 99.3% 99,147 98,421
90% 90.0% 89,232 89,279
80% 79.8% 79,317 79,075
70% 70.5% 69,403 69,930
60% 60.2% 59,488 59,657
50% 49.4% 49,573 49,019
40% 40.5% 39,659 40,111
30% 29.1% 29,744 28,896
20% 20.0% 19,829 19,796
10% 9.9% 9,915 9,828
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,348
Calibration 2     99,273
Calibration 3     97,367
ssj_ops@calibrated=98,320
100% 99.0% 98,320 97,352
90% 90.1% 88,488 88,547
80% 80.2% 78,656 78,899
70% 70.5% 68,824 69,294
60% 60.1% 58,992 59,104
50% 50.0% 49,160 49,145
40% 40.2% 39,328 39,478
30% 30.3% 29,496 29,798
20% 20.0% 19,664 19,638
10% 9.8% 9,832 9,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,118
Calibration 2     100,734
Calibration 3     98,615
ssj_ops@calibrated=99,674
100% 98.8% 99,674 98,437
90% 90.3% 89,707 89,993
80% 79.0% 79,739 78,747
70% 69.3% 69,772 69,104
60% 60.3% 59,804 60,118
50% 49.1% 49,837 48,930
40% 40.3% 39,870 40,142
30% 30.3% 29,902 30,203
20% 19.7% 19,935 19,623
10% 10.0% 9,967 9,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,837
Calibration 2     98,697
Calibration 3     96,938
ssj_ops@calibrated=97,817
100% 98.7% 97,817 96,518
90% 90.6% 88,036 88,586
80% 79.7% 78,254 77,988
70% 69.6% 68,472 68,099
60% 59.2% 58,690 57,931
50% 50.2% 48,909 49,083
40% 39.8% 39,127 38,898
30% 30.0% 29,345 29,343
20% 19.8% 19,563 19,408
10% 10.0% 9,782 9,750
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,710
Calibration 2     98,129
Calibration 3     96,043
ssj_ops@calibrated=97,086
100% 98.8% 97,086 95,913
90% 90.4% 87,377 87,789
80% 80.6% 77,669 78,289
70% 68.7% 67,960 66,670
60% 59.5% 58,252 57,758
50% 50.5% 48,543 49,013
40% 40.2% 38,834 39,048
30% 29.6% 29,126 28,718
20% 20.2% 19,417 19,597
10% 9.9% 9,709 9,577
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,841
Calibration 2     98,092
Calibration 3     96,818
ssj_ops@calibrated=97,455
100% 98.2% 97,455 95,718
90% 90.2% 87,710 87,907
80% 79.5% 77,964 77,488
70% 70.0% 68,219 68,242
60% 59.7% 58,473 58,139
50% 49.5% 48,728 48,214
40% 39.7% 38,982 38,738
30% 29.7% 29,237 28,975
20% 20.0% 19,491 19,500
10% 10.2% 9,746 9,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,469
Calibration 2     99,505
Calibration 3     97,161
ssj_ops@calibrated=98,333
100% 97.7% 98,333 96,026
90% 90.6% 88,500 89,076
80% 79.0% 78,666 77,684
70% 68.9% 68,833 67,786
60% 60.0% 59,000 58,997
50% 50.1% 49,166 49,237
40% 40.1% 39,333 39,446
30% 29.8% 29,500 29,314
20% 19.9% 19,667 19,564
10% 10.2% 9,833 10,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

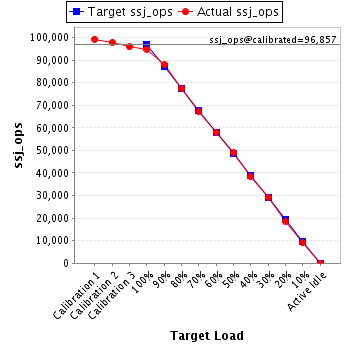

JVM 'WIN-V6TOEUM1787.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,301
Calibration 2     97,802
Calibration 3     95,911
ssj_ops@calibrated=96,857
100% 98.0% 96,857 94,903
90% 90.8% 87,171 87,987
80% 79.9% 77,485 77,407
70% 69.6% 67,800 67,435
60% 59.9% 58,114 57,997
50% 50.5% 48,428 48,958
40% 39.8% 38,743 38,514
30% 30.2% 29,057 29,222
20% 19.3% 19,371 18,658
10% 9.6% 9,686 9,280
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,276
Calibration 2     100,157
Calibration 3     98,004
ssj_ops@calibrated=99,080
100% 98.1% 99,080 97,220
90% 90.0% 89,172 89,179
80% 80.6% 79,264 79,898
70% 70.4% 69,356 69,736
60% 60.4% 59,448 59,837
50% 50.0% 49,540 49,578
40% 40.3% 39,632 39,932
30% 29.6% 29,724 29,371
20% 20.0% 19,816 19,829
10% 9.8% 9,908 9,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,534
Calibration 2     99,407
Calibration 3     97,617
ssj_ops@calibrated=98,512
100% 98.3% 98,512 96,834
90% 89.9% 88,661 88,530
80% 79.6% 78,810 78,433
70% 70.3% 68,959 69,298
60% 58.9% 59,107 58,008
50% 50.0% 49,256 49,213
40% 40.3% 39,405 39,713
30% 29.6% 29,554 29,118
20% 20.0% 19,702 19,671
10% 10.0% 9,851 9,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

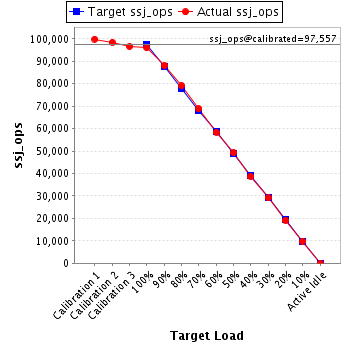

JVM 'WIN-V6TOEUM1787.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,852
Calibration 2     98,416
Calibration 3     96,698
ssj_ops@calibrated=97,557
100% 98.4% 97,557 95,970
90% 90.3% 87,801 88,097
80% 81.1% 78,046 79,143
70% 70.5% 68,290 68,799
60% 59.9% 58,534 58,404
50% 50.4% 48,779 49,207
40% 39.7% 39,023 38,702
30% 29.8% 29,267 29,108
20% 19.6% 19,511 19,158
10% 10.1% 9,756 9,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,163
Calibration 2     99,811
Calibration 3     97,003
ssj_ops@calibrated=98,407
100% 98.1% 98,407 96,526
90% 89.6% 88,567 88,128
80% 78.6% 78,726 77,344
70% 70.3% 68,885 69,220
60% 60.0% 59,044 58,997
50% 50.2% 49,204 49,400
40% 39.5% 39,363 38,847
30% 29.5% 29,522 29,055
20% 20.4% 19,681 20,112
10% 10.0% 9,841 9,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,824
Calibration 2     99,274
Calibration 3     97,090
ssj_ops@calibrated=98,182
100% 97.8% 98,182 96,041
90% 89.9% 88,364 88,256
80% 79.3% 78,546 77,899
70% 70.1% 68,728 68,789
60% 60.2% 58,909 59,089
50% 50.5% 49,091 49,624
40% 40.3% 39,273 39,563
30% 30.1% 29,455 29,563
20% 19.8% 19,636 19,479
10% 10.1% 9,818 9,911
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

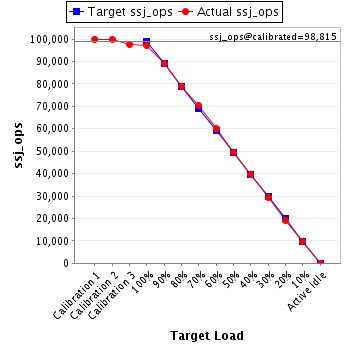

JVM 'WIN-V6TOEUM1787.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,986
Calibration 2     99,962
Calibration 3     97,668
ssj_ops@calibrated=98,815
100% 98.2% 98,815 97,044
90% 90.1% 88,934 89,074
80% 79.8% 79,052 78,895
70% 71.3% 69,171 70,462
60% 60.7% 59,289 59,960
50% 50.2% 49,408 49,589
40% 40.1% 39,526 39,610
30% 29.8% 29,645 29,487
20% 19.4% 19,763 19,172
10% 10.0% 9,882 9,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,349
Calibration 2     100,328
Calibration 3     98,493
ssj_ops@calibrated=99,410
100% 97.9% 99,410 97,347
90% 90.0% 89,469 89,501
80% 78.3% 79,528 77,817
70% 69.3% 69,587 68,876
60% 60.5% 59,646 60,098
50% 49.5% 49,705 49,237
40% 40.6% 39,764 40,388
30% 30.0% 29,823 29,790
20% 20.0% 19,882 19,850
10% 10.0% 9,941 9,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,791
Calibration 2     98,075
Calibration 3     95,614
ssj_ops@calibrated=96,844
100% 97.6% 96,844 94,548
90% 90.4% 87,160 87,537
80% 80.0% 77,475 77,441
70% 70.2% 67,791 67,950
60% 59.9% 58,107 57,983
50% 49.9% 48,422 48,285
40% 40.7% 38,738 39,408
30% 30.5% 29,053 29,546
20% 19.9% 19,369 19,273
10% 9.6% 9,684 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,378
Calibration 2     97,384
Calibration 3     95,880
ssj_ops@calibrated=96,632
100% 98.5% 96,632 95,189
90% 89.9% 86,968 86,908
80% 80.6% 77,305 77,890
70% 70.1% 67,642 67,741
60% 60.2% 57,979 58,192
50% 50.2% 48,316 48,490
40% 39.8% 38,653 38,457
30% 30.3% 28,989 29,322
20% 19.9% 19,326 19,197
10% 9.8% 9,663 9,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,209
Calibration 2     98,603
Calibration 3     97,003
ssj_ops@calibrated=97,803
100% 97.9% 97,803 95,766
90% 90.6% 88,023 88,641
80% 80.1% 78,242 78,296
70% 69.7% 68,462 68,174
60% 59.7% 58,682 58,342
50% 50.4% 48,901 49,332
40% 40.1% 39,121 39,209
30% 30.1% 29,341 29,393
20% 19.7% 19,561 19,252
10% 9.5% 9,780 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,428
Calibration 2     99,632
Calibration 3     97,150
ssj_ops@calibrated=98,391
100% 97.9% 98,391 96,359
90% 89.3% 88,552 87,900
80% 80.6% 78,713 79,301
70% 69.9% 68,874 68,810
60% 60.3% 59,035 59,375
50% 49.7% 49,195 48,887
40% 40.6% 39,356 39,985
30% 29.8% 29,517 29,311
20% 20.6% 19,678 20,272
10% 10.2% 9,839 10,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,565
Calibration 2     97,535
Calibration 3     95,313
ssj_ops@calibrated=96,424
100% 97.0% 96,424 93,509
90% 90.3% 86,782 87,098
80% 80.5% 77,139 77,603
70% 69.1% 67,497 66,592
60% 60.2% 57,854 58,036
50% 49.6% 48,212 47,815
40% 40.1% 38,570 38,626
30% 29.7% 28,927 28,640
20% 19.9% 19,285 19,150
10% 10.0% 9,642 9,661
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,391
Calibration 2     99,453
Calibration 3     97,759
ssj_ops@calibrated=98,606
100% 97.8% 98,606 96,454
90% 90.5% 88,745 89,269
80% 79.9% 78,885 78,762
70% 71.0% 69,024 69,994
60% 60.6% 59,164 59,781
50% 51.0% 49,303 50,295
40% 40.1% 39,442 39,532
30% 29.1% 29,582 28,657
20% 20.0% 19,721 19,712
10% 10.1% 9,861 9,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,907
Calibration 2     98,640
Calibration 3     96,442
ssj_ops@calibrated=97,541
100% 97.5% 97,541 95,077
90% 89.7% 87,787 87,484
80% 79.4% 78,033 77,468
70% 69.2% 68,279 67,481
60% 61.2% 58,525 59,676
50% 50.1% 48,771 48,906
40% 40.3% 39,016 39,348
30% 30.3% 29,262 29,600
20% 20.2% 19,508 19,670
10% 10.0% 9,754 9,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,517
Calibration 2     100,182
Calibration 3     97,838
ssj_ops@calibrated=99,010
100% 97.8% 99,010 96,826
90% 89.9% 89,109 89,017
80% 80.3% 79,208 79,467
70% 70.3% 69,307 69,637
60% 59.9% 59,406 59,296
50% 49.6% 49,505 49,131
40% 39.3% 39,604 38,927
30% 29.5% 29,703 29,202
20% 20.5% 19,802 20,300
10% 10.2% 9,901 10,074
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,745
Calibration 2     97,721
Calibration 3     95,785
ssj_ops@calibrated=96,753
100% 97.0% 96,753 93,840
90% 89.4% 87,078 86,532
80% 81.3% 77,402 78,672
70% 70.3% 67,727 68,065
60% 60.2% 58,052 58,293
50% 50.6% 48,376 48,955
40% 39.9% 38,701 38,558
30% 30.3% 29,026 29,306
20% 19.9% 19,351 19,218
10% 10.2% 9,675 9,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

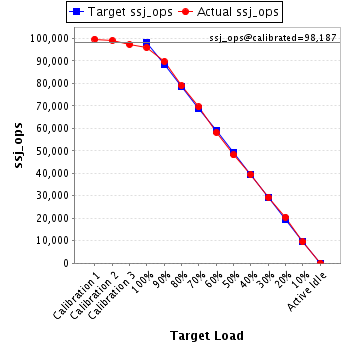

JVM 'WIN-V6TOEUM1787.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,672
Calibration 2     99,082
Calibration 3     97,293
ssj_ops@calibrated=98,187
100% 97.7% 98,187 95,898
90% 91.4% 88,368 89,729
80% 80.4% 78,550 78,950
70% 70.8% 68,731 69,516
60% 59.2% 58,912 58,167
50% 49.0% 49,094 48,155
40% 40.1% 39,275 39,348
30% 29.8% 29,456 29,290
20% 20.9% 19,637 20,546
10% 9.7% 9,819 9,540
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,923
Calibration 2     98,570
Calibration 3     97,011
ssj_ops@calibrated=97,790
100% 97.6% 97,790 95,435
90% 90.8% 88,011 88,746
80% 80.4% 78,232 78,595
70% 70.4% 68,453 68,846
60% 60.4% 58,674 59,098
50% 49.7% 48,895 48,583
40% 40.5% 39,116 39,612
30% 30.0% 29,337 29,298
20% 19.9% 19,558 19,450
10% 10.1% 9,779 9,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,931
Calibration 2     99,623
Calibration 3     97,023
ssj_ops@calibrated=98,323
100% 97.8% 98,323 96,115
90% 89.5% 88,491 87,982
80% 79.6% 78,658 78,313
70% 69.6% 68,826 68,406
60% 60.2% 58,994 59,194
50% 49.7% 49,161 48,850
40% 40.9% 39,329 40,241
30% 29.7% 29,497 29,174
20% 20.4% 19,665 20,075
10% 10.0% 9,832 9,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,866
Calibration 2     100,846
Calibration 3     98,162
ssj_ops@calibrated=99,504
100% 97.7% 99,504 97,229
90% 90.3% 89,553 89,881
80% 80.0% 79,603 79,570
70% 70.6% 69,653 70,264
60% 59.8% 59,702 59,455
50% 50.0% 49,752 49,799
40% 40.4% 39,801 40,242
30% 30.0% 29,851 29,805
20% 20.1% 19,901 19,967
10% 10.6% 9,950 10,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

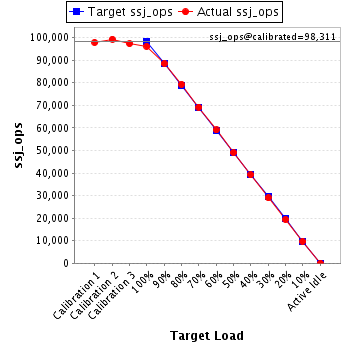

JVM 'WIN-V6TOEUM1787.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,840
Calibration 2     99,314
Calibration 3     97,308
ssj_ops@calibrated=98,311
100% 97.7% 98,311 96,094
90% 90.0% 88,480 88,485
80% 80.7% 78,649 79,334
70% 70.4% 68,818 69,174
60% 60.1% 58,986 59,064
50% 49.9% 49,155 49,008
40% 39.8% 39,324 39,130
30% 29.5% 29,493 28,955
20% 19.7% 19,662 19,368
10% 9.9% 9,831 9,710
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,711
Calibration 2     99,798
Calibration 3     97,349
ssj_ops@calibrated=98,573
100% 98.1% 98,573 96,671
90% 90.0% 88,716 88,677
80% 79.8% 78,859 78,643
70% 70.7% 69,001 69,663
60% 60.0% 59,144 59,174
50% 49.9% 49,287 49,176
40% 39.8% 39,429 39,262
30% 29.9% 29,572 29,469
20% 20.3% 19,715 19,963
10% 9.7% 9,857 9,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,331
Calibration 2     100,413
Calibration 3     97,905
ssj_ops@calibrated=99,159
100% 98.2% 99,159 97,331
90% 89.7% 89,243 88,923
80% 80.7% 79,327 79,997
70% 69.6% 69,411 69,020
60% 60.0% 59,496 59,468
50% 50.2% 49,580 49,753
40% 40.0% 39,664 39,671
30% 29.8% 29,748 29,584
20% 19.8% 19,832 19,666
10% 9.9% 9,916 9,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,851
Calibration 2     98,710
Calibration 3     96,527
ssj_ops@calibrated=97,619
100% 97.6% 97,619 95,302
90% 90.1% 87,857 87,917
80% 80.4% 78,095 78,485
70% 69.8% 68,333 68,162
60% 60.5% 58,571 59,091
50% 49.9% 48,809 48,687
40% 40.3% 39,047 39,354
30% 29.8% 29,286 29,062
20% 19.9% 19,524 19,425
10% 10.1% 9,762 9,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V6TOEUM1787.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,987
Calibration 2     96,840
Calibration 3     94,873
ssj_ops@calibrated=95,856
100% 97.0% 95,856 92,989
90% 90.3% 86,271 86,605
80% 81.4% 76,685 78,061
70% 69.5% 67,100 66,576
60% 60.2% 57,514 57,694
50% 50.2% 47,928 48,085
40% 40.2% 38,343 38,523
30% 29.8% 28,757 28,525
20% 19.3% 19,171 18,458
10% 10.0% 9,586 9,622
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
