ASUSTeK Computer Inc. RS720-E9/RS8 SPECpower_ssj2008 = 12,727 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan Test Date: Sep 26, 2018
Hardware Availability: Sep-2018 Software Availability: Mar-2018 Publication: Dec 6, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 417 20.9
Calibration 2 421 21.0
Calibration 3 392 21.0
100% 385 21.0
90% 347 21.0
80% 306 21.0
70% 269 21.0
60% 235 21.0
50% 205 21.0
40% 179 21.0
30% 154 21.0
20% 129 21.0
10% 106 21.0
Active Idle 48.2 20.9

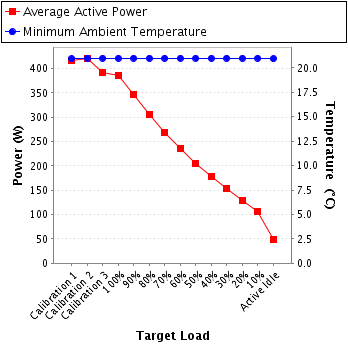

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: Tai Yi Electronics,TAIWAN
Accredited by: Tai Yi Electronics,TAIWAN
Calibration Label: T2807170601
Date of Calibration: 19-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: RS-232
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 300.0 1.85 5.0 0.992 417 0.5%
Calibration 2 227 300.0 1.87 5.0 0.992 421 0.5%
Calibration 3 228 300.0 1.74 5.0 0.991 392 0.6%
100% 228 300.0 1.71 5.0 0.991 385 0.6%
90% 227 300.0 1.55 5.0 0.989 347 0.6%
80% 228 300.0 1.36 2.0 0.985 306 0.4%
70% 228 300.0 1.20 2.0 0.981 269 0.4%
60% 227 300.0 1.06 2.0 0.978 235 0.4%
50% 227 300.0 0.929 2.0 0.972 205 0.5%
40% 226 300.0 0.814 2.0 0.970 179 0.5%
30% 226 300.0 0.709 2.0 0.960 154 0.6%
20% 227 300.0 0.602 1.0 0.947 129 0.4%
10% 226 300.0 0.505 1.0 0.930 106 0.5%
Active Idle 226 300.0 0.279 0.5 0.764 48.2 0.6%

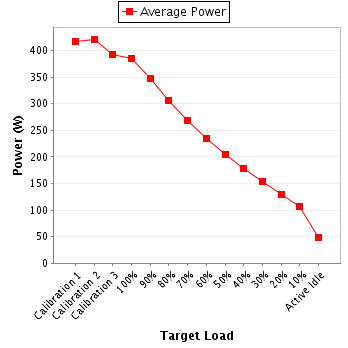

Power details for pwr1
