GIGA-BYTE TECHNOLOGY CO., LTD. R181-Z90 ssj_ops@100% = 72,481
Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE TECHNOLOGY CO., LTD. Test Location: XinTien ,Taipei Test Date: Sep 18, 2018
Hardware Availability: May-2018 Software Availability: Mar-2018 Publication: Oct 17, 2018
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,136
Calibration 2     72,723
Calibration 3     72,515
ssj_ops@calibrated=72,619
100% 99.8% 72,619 72,481
90% 89.5% 65,357 64,987
80% 79.5% 58,096 57,737
70% 70.0% 50,834 50,851
60% 60.2% 43,572 43,746
50% 51.0% 36,310 37,017
40% 40.2% 29,048 29,198
30% 29.9% 21,786 21,719
20% 20.1% 14,524 14,629
10% 9.7% 7,262 7,062
Active Idle   0 0

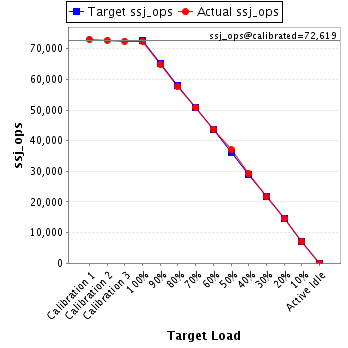

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R181-Z90
Form Factor: 1U
CPU Name: AMD EPYC 7601
CPU Characteristics: 32-Core, 2.2GHz, 64MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 64 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8 GB
Memory Details: 8GB 1Rx8 PC4-2666V-R; Crucial CT8G4RFS8266.9FD1, slots CPU0_DIMM[A-H]0, CPU1_DIMM[I-P]0 populated
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: DELTA DPS-850AB-3 A
Disk Drive: 1 x ADATA ASP610SS-256GM SATA 6Gb/s SSD
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: AMD Naples Balanced V3 (see SUT notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options: -server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 64
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: F03
Management Firmware Version: 1.61
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,319,464 1,548
Payment 5,319,467
Order Status 531,946
Delivery 531,946
Stock Level 531,947
Customer Report 5,319,462
Calibration 2 New Order 5,288,990 1,548
Payment 5,288,989
Order Status 528,899
Delivery 528,899
Stock Level 528,899
Customer Report 5,288,989
Calibration 3 New Order 5,273,874 1,548
Payment 5,273,874
Order Status 527,388
Delivery 527,386
Stock Level 527,388
Customer Report 5,273,873
100% 99.8% New Order 5,271,692 1,548
Payment 5,271,690
Order Status 527,169
Delivery 527,170
Stock Level 527,170
Customer Report 5,271,692
90% 89.5% New Order 4,726,774 1,548
Payment 4,726,778
Order Status 472,678
Delivery 472,677
Stock Level 472,677
Customer Report 4,726,778
80% 79.5% New Order 4,199,291 1,548
Payment 4,199,294
Order Status 419,929
Delivery 419,930
Stock Level 419,929
Customer Report 4,199,293
70% 70.0% New Order 3,698,475 1,548
Payment 3,698,474
Order Status 369,848
Delivery 369,848
Stock Level 369,847
Customer Report 3,698,472
60% 60.2% New Order 3,181,518 1,548
Payment 3,181,515
Order Status 318,151
Delivery 318,151
Stock Level 318,151
Customer Report 3,181,514
50% 51.0% New Order 2,692,145 1,548
Payment 2,692,147
Order Status 269,214
Delivery 269,214
Stock Level 269,215
Customer Report 2,692,146
40% 40.2% New Order 2,123,574 1,548
Payment 2,123,581
Order Status 212,357
Delivery 212,358
Stock Level 212,357
Customer Report 2,123,573
30% 29.9% New Order 1,579,618 1,548
Payment 1,579,614
Order Status 157,962
Delivery 157,962
Stock Level 157,962
Customer Report 1,579,617
20% 20.1% New Order 1,063,941 1,548
Payment 1,063,938
Order Status 106,394
Delivery 106,394
Stock Level 106,394
Customer Report 1,063,939
10% 9.7% New Order 513,636 1,548
Payment 513,638
Order Status 51,363
Delivery 51,363
Stock Level 51,364
Customer Report 513,636
Active Idle New Order 0 1,548
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
