GIGA-BYTE TECHNOLOGY CO., LTD. R181-Z90 ssj_ops@100% = 70,568
Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE TECHNOLOGY CO., LTD. Test Location: XinTien ,Taipei Test Date: Sep 18, 2018
Hardware Availability: May-2018 Software Availability: Mar-2018 Publication: Oct 17, 2018
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,836
Calibration 2     70,241
Calibration 3     70,786
ssj_ops@calibrated=70,514
100% 100.1% 70,514 70,568
90% 90.6% 63,462 63,896
80% 80.8% 56,411 56,996
70% 68.9% 49,360 48,595
60% 59.8% 42,308 42,151
50% 49.3% 35,257 34,767
40% 40.2% 28,205 28,354
30% 30.4% 21,154 21,433
20% 19.9% 14,103 14,027
10% 9.8% 7,051 6,921
Active Idle   0 0

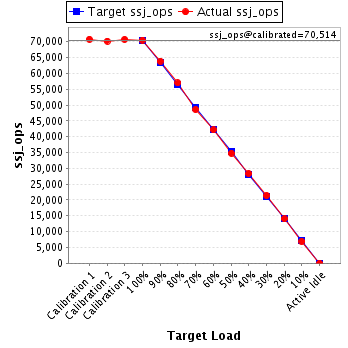

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R181-Z90
Form Factor: 1U
CPU Name: AMD EPYC 7601
CPU Characteristics: 32-Core, 2.2GHz, 64MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 64 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8 GB
Memory Details: 8GB 1Rx8 PC4-2666V-R; Crucial CT8G4RFS8266.9FD1, slots CPU0_DIMM[A-H]0, CPU1_DIMM[I-P]0 populated
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: DELTA DPS-850AB-3 A
Disk Drive: 1 x ADATA ASP610SS-256GM SATA 6Gb/s SSD
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: AMD Naples Balanced V3 (see SUT notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options: -server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 64
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: F03
Management Firmware Version: 1.61
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,151,786 1,548
Payment 5,151,787
Order Status 515,179
Delivery 515,178
Stock Level 515,179
Customer Report 5,151,790
Calibration 2 New Order 5,108,471 1,548
Payment 5,108,473
Order Status 510,848
Delivery 510,848
Stock Level 510,848
Customer Report 5,108,471
Calibration 3 New Order 5,148,401 1,548
Payment 5,148,402
Order Status 514,840
Delivery 514,840
Stock Level 514,840
Customer Report 5,148,400
100% 100.1% New Order 5,132,483 1,548
Payment 5,132,483
Order Status 513,249
Delivery 513,249
Stock Level 513,249
Customer Report 5,132,485
90% 90.6% New Order 4,647,251 1,548
Payment 4,647,250
Order Status 464,725
Delivery 464,725
Stock Level 464,725
Customer Report 4,647,249
80% 80.8% New Order 4,145,152 1,548
Payment 4,145,152
Order Status 414,514
Delivery 414,515
Stock Level 414,515
Customer Report 4,145,152
70% 68.9% New Order 3,534,203 1,548
Payment 3,534,201
Order Status 353,420
Delivery 353,421
Stock Level 353,420
Customer Report 3,534,202
60% 59.8% New Order 3,065,747 1,548
Payment 3,065,752
Order Status 306,574
Delivery 306,575
Stock Level 306,576
Customer Report 3,065,750
50% 49.3% New Order 2,528,654 1,548
Payment 2,528,654
Order Status 252,865
Delivery 252,865
Stock Level 252,866
Customer Report 2,528,654
40% 40.2% New Order 2,062,232 1,548
Payment 2,062,231
Order Status 206,223
Delivery 206,224
Stock Level 206,224
Customer Report 2,062,232
30% 30.4% New Order 1,558,788 1,548
Payment 1,558,790
Order Status 155,880
Delivery 155,878
Stock Level 155,879
Customer Report 1,558,791
20% 19.9% New Order 1,020,187 1,548
Payment 1,020,186
Order Status 102,018
Delivery 102,018
Stock Level 102,018
Customer Report 1,020,190
10% 9.8% New Order 503,333 1,548
Payment 503,335
Order Status 50,334
Delivery 50,334
Stock Level 50,333
Customer Report 503,331
Active Idle New Order 0 1,548
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
