GIGA-BYTE TECHNOLOGY CO., LTD. R181-Z90 ssj_ops@100% = 69,308
Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE TECHNOLOGY CO., LTD. Test Location: XinTien ,Taipei Test Date: Sep 18, 2018
Hardware Availability: May-2018 Software Availability: Mar-2018 Publication: Oct 17, 2018
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,075
Calibration 2     69,817
Calibration 3     70,127
ssj_ops@calibrated=69,972
100% 99.1% 69,972 69,308
90% 90.6% 62,975 63,421
80% 80.1% 55,977 56,022
70% 70.9% 48,980 49,605
60% 59.0% 41,983 41,279
50% 49.7% 34,986 34,804
40% 39.9% 27,989 27,933
30% 30.6% 20,992 21,399
20% 20.3% 13,994 14,170
10% 10.2% 6,997 7,133
Active Idle   0 0

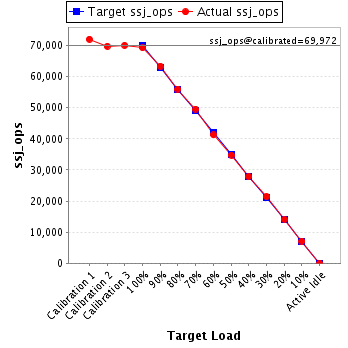

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R181-Z90
Form Factor: 1U
CPU Name: AMD EPYC 7601
CPU Characteristics: 32-Core, 2.2GHz, 64MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 64 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8 GB
Memory Details: 8GB 1Rx8 PC4-2666V-R; Crucial CT8G4RFS8266.9FD1, slots CPU0_DIMM[A-H]0, CPU1_DIMM[I-P]0 populated
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: DELTA DPS-850AB-3 A
Disk Drive: 1 x ADATA ASP610SS-256GM SATA 6Gb/s SSD
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: AMD Naples Balanced V3 (see SUT notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options: -server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 64
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: F03
Management Firmware Version: 1.61
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,241,941 1,548
Payment 5,241,940
Order Status 524,195
Delivery 524,193
Stock Level 524,194
Customer Report 5,241,942
Calibration 2 New Order 5,077,635 1,548
Payment 5,077,637
Order Status 507,763
Delivery 507,763
Stock Level 507,763
Customer Report 5,077,635
Calibration 3 New Order 5,100,392 1,548
Payment 5,100,391
Order Status 510,039
Delivery 510,040
Stock Level 510,039
Customer Report 5,100,391
100% 99.1% New Order 5,040,850 1,548
Payment 5,040,847
Order Status 504,085
Delivery 504,085
Stock Level 504,085
Customer Report 5,040,847
90% 90.6% New Order 4,612,730 1,548
Payment 4,612,734
Order Status 461,273
Delivery 461,274
Stock Level 461,272
Customer Report 4,612,734
80% 80.1% New Order 4,074,330 1,548
Payment 4,074,327
Order Status 407,432
Delivery 407,432
Stock Level 407,433
Customer Report 4,074,331
70% 70.9% New Order 3,607,646 1,548
Payment 3,607,643
Order Status 360,765
Delivery 360,765
Stock Level 360,764
Customer Report 3,607,643
60% 59.0% New Order 3,002,121 1,548
Payment 3,002,124
Order Status 300,212
Delivery 300,212
Stock Level 300,212
Customer Report 3,002,119
50% 49.7% New Order 2,531,212 1,548
Payment 2,531,213
Order Status 253,121
Delivery 253,121
Stock Level 253,121
Customer Report 2,531,212
40% 39.9% New Order 2,031,516 1,548
Payment 2,031,514
Order Status 203,150
Delivery 203,152
Stock Level 203,152
Customer Report 2,031,516
30% 30.6% New Order 1,556,316 1,548
Payment 1,556,318
Order Status 155,632
Delivery 155,631
Stock Level 155,632
Customer Report 1,556,318
20% 20.3% New Order 1,030,607 1,548
Payment 1,030,604
Order Status 103,060
Delivery 103,061
Stock Level 103,060
Customer Report 1,030,608
10% 10.2% New Order 518,789 1,548
Payment 518,788
Order Status 51,879
Delivery 51,878
Stock Level 51,879
Customer Report 518,787
Active Idle New Order 0 1,548
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
