GIGA-BYTE TECHNOLOGY CO., LTD. R181-Z90 ssj_ops@100% = 70,388
Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE TECHNOLOGY CO., LTD. Test Location: XinTien ,Taipei Test Date: Sep 18, 2018
Hardware Availability: May-2018 Software Availability: Mar-2018 Publication: Oct 17, 2018
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,342
Calibration 2     69,927
Calibration 3     70,844
ssj_ops@calibrated=70,386
100% 100.0% 70,386 70,388
90% 90.0% 63,347 63,366
80% 80.2% 56,309 56,443
70% 71.0% 49,270 49,958
60% 58.8% 42,231 41,369
50% 48.9% 35,193 34,406
40% 40.7% 28,154 28,633
30% 30.0% 21,116 21,145
20% 19.3% 14,077 13,550
10% 9.3% 7,039 6,574
Active Idle   0 0

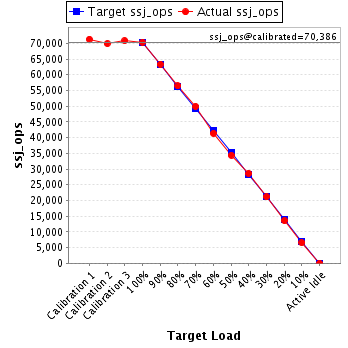

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R181-Z90
Form Factor: 1U
CPU Name: AMD EPYC 7601
CPU Characteristics: 32-Core, 2.2GHz, 64MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 64 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8 GB
Memory Details: 8GB 1Rx8 PC4-2666V-R; Crucial CT8G4RFS8266.9FD1, slots CPU0_DIMM[A-H]0, CPU1_DIMM[I-P]0 populated
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: DELTA DPS-850AB-3 A
Disk Drive: 1 x ADATA ASP610SS-256GM SATA 6Gb/s SSD
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: AMD Naples Balanced V3 (see SUT notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options: -server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 64
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: F03
Management Firmware Version: 1.61
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,188,776 1,548
Payment 5,188,776
Order Status 518,878
Delivery 518,878
Stock Level 518,877
Customer Report 5,188,777
Calibration 2 New Order 5,085,936 1,548
Payment 5,085,932
Order Status 508,593
Delivery 508,594
Stock Level 508,593
Customer Report 5,085,932
Calibration 3 New Order 5,152,333 1,548
Payment 5,152,331
Order Status 515,233
Delivery 515,234
Stock Level 515,235
Customer Report 5,152,334
100% 100.0% New Order 5,119,163 1,548
Payment 5,119,166
Order Status 511,917
Delivery 511,915
Stock Level 511,916
Customer Report 5,119,164
90% 90.0% New Order 4,608,703 1,548
Payment 4,608,705
Order Status 460,870
Delivery 460,871
Stock Level 460,871
Customer Report 4,608,709
80% 80.2% New Order 4,104,975 1,548
Payment 4,104,973
Order Status 410,497
Delivery 410,497
Stock Level 410,497
Customer Report 4,104,976
70% 71.0% New Order 3,633,334 1,548
Payment 3,633,335
Order Status 363,333
Delivery 363,333
Stock Level 363,334
Customer Report 3,633,331
60% 58.8% New Order 3,008,844 1,548
Payment 3,008,844
Order Status 300,884
Delivery 300,883
Stock Level 300,885
Customer Report 3,008,843
50% 48.9% New Order 2,502,554 1,548
Payment 2,502,559
Order Status 250,257
Delivery 250,255
Stock Level 250,256
Customer Report 2,502,557
40% 40.7% New Order 2,082,426 1,548
Payment 2,082,423
Order Status 208,243
Delivery 208,243
Stock Level 208,242
Customer Report 2,082,423
30% 30.0% New Order 1,537,815 1,548
Payment 1,537,819
Order Status 153,782
Delivery 153,781
Stock Level 153,781
Customer Report 1,537,814
20% 19.3% New Order 985,488 1,548
Payment 985,485
Order Status 98,549
Delivery 98,550
Stock Level 98,550
Customer Report 985,491
10% 9.3% New Order 478,151 1,548
Payment 478,148
Order Status 47,815
Delivery 47,814
Stock Level 47,814
Customer Report 478,152
Active Idle New Order 0 1,548
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
