SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2018 Standard Performance Evaluation Corporation
| GIGA-BYTE TECHNOLOGY CO., LTD. R181-Z90 | SPECpower_ssj2008 = 11,207 overall ssj_ops/watt | ||||
| Test Sponsor: | GIGA-BYTE TECHNOLOGY CO., LTD. | SPEC License #: | 9082 | Test Method: | Single Node |
| Tested By: | GIGA-BYTE TECHNOLOGY CO., LTD. | Test Location: | XinTien ,Taipei | Test Date: | Sep 18, 2018 |
| Hardware Availability: | May-2018 | Software Availability: | Mar-2018 | Publication: | Oct 17, 2018 |
| System Source: | Parts Built | System Designation: | Server | Power Provisioning: | Line-powered |

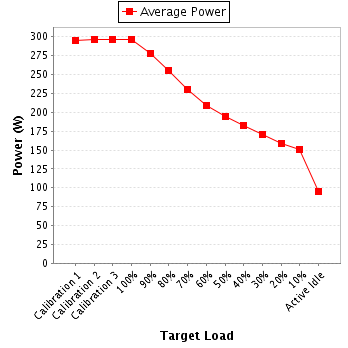

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 296 | 20.5 |
| Calibration 2 | 297 | 20.6 |
| Calibration 3 | 297 | 20.6 |
| 100% | 296 | 20.6 |
| 90% | 277 | 20.6 |
| 80% | 256 | 20.6 |
| 70% | 230 | 20.5 |
| 60% | 209 | 20.5 |
| 50% | 195 | 20.4 |
| 40% | 182 | 20.4 |
| 30% | 171 | 20.4 |
| 20% | 159 | 20.4 |
| 10% | 150 | 20.3 |
| Active Idle | 95.5 | 20.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa. |
| Model: | WT210 |
| Serial Number: | 91GC17356 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | TAF |
| Accredited by: | Chroma ATE Inc. Calibration Lab |
| Calibration Label: | RE1070705596 |
| Date of Calibration: | 18-Jul-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connect to SUT PSU directly |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | TEMPERATURE@LERT. |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 1.42 | 2.0 | 0.984 | 296 | 0.4% |
| Calibration 2 | 211 | 300.0 | 1.43 | 2.0 | 0.984 | 297 | 0.4% |
| Calibration 3 | 211 | 300.0 | 1.43 | 2.0 | 0.984 | 297 | 0.4% |
| 100% | 211 | 300.0 | 1.43 | 2.0 | 0.984 | 296 | 0.4% |
| 90% | 211 | 300.0 | 1.34 | 2.0 | 0.980 | 277 | 0.4% |
| 80% | 211 | 300.0 | 1.24 | 2.0 | 0.975 | 256 | 0.4% |
| 70% | 212 | 300.0 | 1.12 | 2.0 | 0.970 | 230 | 0.5% |
| 60% | 212 | 300.0 | 1.02 | 1.0 | 0.967 | 209 | 0.3% |
| 50% | 212 | 300.0 | 0.952 | 1.0 | 0.964 | 195 | 0.4% |
| 40% | 212 | 300.0 | 0.894 | 1.0 | 0.962 | 182 | 0.4% |
| 30% | 212 | 300.0 | 0.836 | 1.0 | 0.963 | 171 | 0.4% |
| 20% | 212 | 300.0 | 0.780 | 1.0 | 0.959 | 159 | 0.4% |
| 10% | 212 | 300.0 | 0.741 | 1.0 | 0.956 | 150 | 0.4% |
| Active Idle | 212 | 300.0 | 0.497 | 1.0 | 0.909 | 95.5 | 0.6% |
