Hewlett Packard Enterprise ProLiant ML350 Gen10 SPECpower_ssj2008 = 10,916 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 28, 2018
Hardware Availability: Jun-2018 Software Availability: Jul-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 5,653,296 471 11,994
90% 90.0% 5,095,429 428 11,898
80% 80.0% 4,532,419 370 12,244
70% 69.9% 3,960,040 314 12,613
60% 60.0% 3,399,113 279 12,201
50% 50.0% 2,830,783 246 11,523
40% 40.0% 2,264,764 215 10,550
30% 30.0% 1,700,228 185 9,173
20% 20.0% 1,135,194 156 7,254
10% 10.0% 565,772 129 4,399
Active Idle 0 59.4 0
∑ssj_ops / ∑power = 10,916

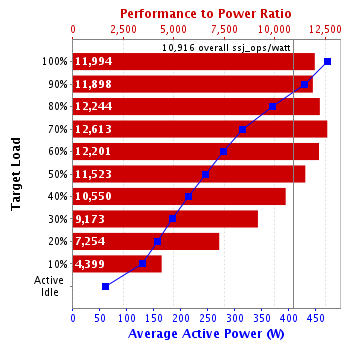

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML350 Gen10
Form Factor: Tower
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titatinum Hot Plug Low Halogen Power Supply Kit (865438-B21) 96%
Disk Drive: HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 369i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: none
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: Kernel 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode) version 1.7.0_80
JVM Command-line Options: -server -Xmn23000m -Xms26000m -Xmx26000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=14 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --physcpubind=<node [0-3] cpu-list> --membind=[0-3]
JVM Instances: 4
JVM Initial Heap (MB): 26000
JVM Maximum Heap (MB): 26000
JVM Address Bits: 64
Boot Firmware Version: U41 v1.42 (06/20/2018)
Management Firmware Version: 1.30 May 31 2018
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_161-b12 (build 25.161-b12, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K218964
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EJ4KB-80-1
Date of Calibration: 20-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 471 22.1
90% 428 22.1
80% 370 22.1
70% 314 22.1
60% 279 22.1
50% 246 22.2
40% 215 22.2
30% 185 22.4
20% 156 22.4
10% 129 22.4
Active Idle 59.4 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,657,391
Calibration 2     5,659,140
Calibration 3     5,667,839
ssj_ops@calibrated=5,663,490
100% 99.8% 5,663,490 5,653,296
90% 90.0% 5,097,141 5,095,429
80% 80.0% 4,530,792 4,532,419
70% 69.9% 3,964,443 3,960,040
60% 60.0% 3,398,094 3,399,113
50% 50.0% 2,831,745 2,830,783
40% 40.0% 2,265,396 2,264,764
30% 30.0% 1,699,047 1,700,228
20% 20.0% 1,132,698 1,135,194
10% 10.0% 566,349 565,772
Active Idle   0 0

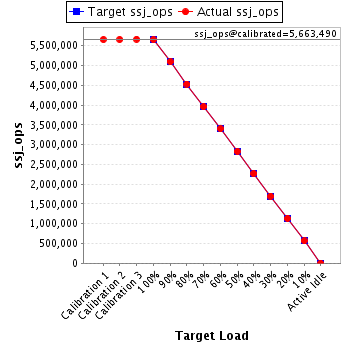

Graph of results
See the Host Performance Report for additional details.
