SPECpower_ssj2008

Huawei Technologies Co., Ltd Fusion Server 2288H V5			SPECpower_ssj2008 = 13,478 overall ssj_ops/watt
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Aug 21, 2018
Hardware Availability:	Jul-2018	Software Availability:	Jul-2018	Publication:	Sep 27, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	Fusion Server 2288H V5
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8180
CPU Characteristics:	28-Core, 2.5GHz, 38.5MB L3 Cache (Intel Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	12 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM040, DIMM050, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, and DIMM150 populated
Power Supply Quantity and Rating (W):	1 x 550
Power Supply Details:	Huawei P/N 02131255
Disk Drive:	1 x 480GB SSD 2.5" SATA Huawei P/N 02312DXS
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced (recommended) Mode enabled in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3.9600.18969
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000];
JVM Instances:	56
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	0.80
Management Firmware Version:	3.00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4056898,KB4338824

440W User Defined Power Capping Policy

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to two logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Enable protection against speculative execution side-channel vulnerabilities according to Microsoft guidance: https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Aug 15, 2018) .
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91M412342
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	B18008105-0029
Date of Calibration:	4-Aug-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

.

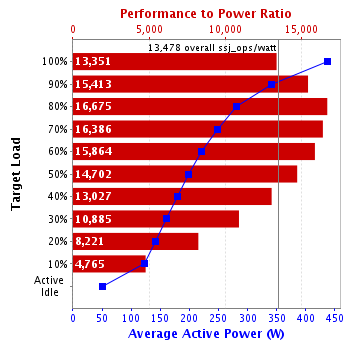

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	437	21.4
90%	341	22.0
80%	280	21.8
70%	249	21.4
60%	220	21.4
50%	198	21.8
40%	180	21.7
30%	161	21.5
20%	142	21.6
10%	123	21.6
Active Idle	50.3	21.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.4	101

See the Power/Temperature Details Report for additional details.

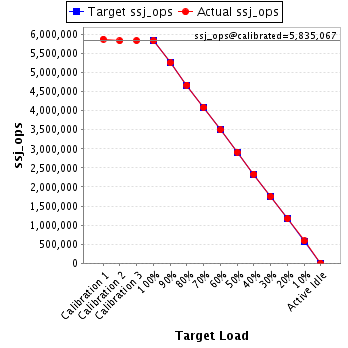

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
