Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,237 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 29, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,474 22.7
Calibration 2 2,496 22.6
Calibration 3 2,499 22.4
100% 2,495 22.5
90% 2,266 22.6
80% 1,920 22.8
70% 1,658 22.8
60% 1,456 22.8
50% 1,281 22.6
40% 1,144 22.6
30% 1,024 22.6
20% 905 22.7
10% 782 22.8
Active Idle 466 22.8

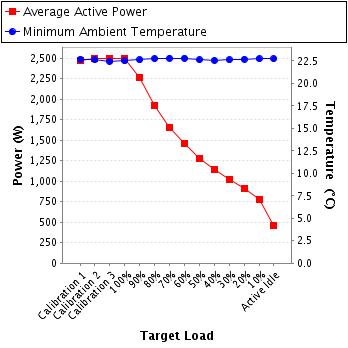

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 5.86 10.0 0.989 1,231 0.4%
Calibration 2 213 300.0 5.90 10.0 0.990 1,242 0.4%
Calibration 3 213 300.0 5.91 10.0 0.990 1,243 0.4%
100% 213 300.0 5.90 10.0 0.990 1,242 0.4%
90% 213 300.0 5.37 10.0 0.988 1,130 0.4%
80% 213 300.0 4.57 10.0 0.983 957 0.5%
70% 213 300.0 3.97 10.0 0.977 827 0.6%
60% 213 300.0 3.45 5.0 0.970 714 0.4%
50% 214 300.0 3.04 5.0 0.962 625 0.4%
40% 214 300.0 2.73 5.0 0.951 555 0.5%
30% 214 300.0 2.47 5.0 0.934 494 0.5%
20% 215 300.0 2.29 5.0 0.918 451 0.6%
10% 215 300.0 1.99 5.0 0.865 369 0.7%
Active Idle 215 300.0 1.30 2.0 0.768 214 0.6%

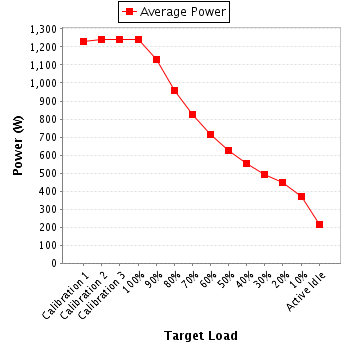

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 5.91 10.0 0.992 1,243 0.4%
Calibration 2 212 300.0 5.96 10.0 0.992 1,254 0.4%
Calibration 3 212 300.0 5.96 10.0 0.992 1,256 0.4%
100% 212 300.0 5.94 10.0 0.992 1,253 0.4%
90% 213 300.0 5.40 10.0 0.990 1,136 0.4%
80% 213 300.0 4.59 10.0 0.987 963 0.5%
70% 213 300.0 3.97 10.0 0.982 831 0.5%
60% 213 300.0 3.56 5.0 0.978 741 0.4%
50% 213 300.0 3.17 5.0 0.973 657 0.4%
40% 214 300.0 2.85 5.0 0.966 589 0.5%
30% 214 300.0 2.60 5.0 0.953 530 0.5%
20% 214 300.0 2.28 5.0 0.933 455 0.6%
10% 214 300.0 2.13 5.0 0.903 413 0.6%
Active Idle 215 300.0 1.39 2.0 0.846 252 0.5%

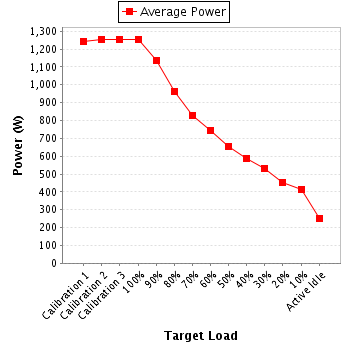

Power details for pwr2
