Lenovo Global Technology ThinkSystem SR950 | ssj_ops@100% = 20,352,398 ssj_ops@100% per JVM = 90,859 |
||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, Beijing, China | Test Date: | Aug 26, 2018 |
Hardware Availability: | Jul-2018 | Software Availability: | Jan-2018 | Publication: | Sep 27, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 20,815,860 | ||
Calibration 2 | 20,465,946 | ||
Calibration 3 | 20,420,563 | ||
ssj_ops@calibrated=20,443,255 | |||
100% | 99.6% | 20,443,255 | 20,352,398 |
90% | 90.0% | 18,398,929 | 18,394,543 |
80% | 79.9% | 16,354,604 | 16,344,107 |
70% | 70.0% | 14,310,278 | 14,317,693 |
60% | 59.9% | 12,265,953 | 12,255,068 |
50% | 50.0% | 10,221,627 | 10,221,477 |
40% | 40.0% | 8,177,302 | 8,174,467 |
30% | 30.0% | 6,132,976 | 6,127,088 |
20% | 20.0% | 4,088,651 | 4,089,923 |
10% | 10.0% | 2,044,325 | 2,044,497 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | 'SUT' |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | ThinkSystem SR950 |
Form Factor: | 4U |
CPU Name: | Intel Xeon Platinum 8176 |
CPU Characteristics: | 28 Core, 2.10GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2100 |
CPU(s) Enabled: | 224 cores, 8 chips, 28 cores/chip |
Hardware Threads: | 448 (2 / core) |
CPU(s) Orderable: | 2,4,8 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 768 |
# and size of DIMM: | 48 x 16 GB |
Memory Details: | 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated |
Power Supply Quantity and Rating (W): | 1 x 1600 |
Power Supply Details: | Lenovo LN SP50L09210 |
Disk Drive: | 1 x 32GB M.2 SSD (Lenovo P/N 7N47A00129) |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom NetXtreme Gigabit Ethernet |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 DataCenter |
OS Version: | Version 6.3.9600 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE[0,2,4,6,8,10,12,14] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3,5,7,9,11,13,15] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000] |
JVM Instances: | 224 |
JVM Initial Heap (MB): | 1550 |
JVM Maximum Heap (MB): | 1550 |
JVM Address Bits: | 64 |
Boot Firmware Version: | PSE113P |
Management Firmware Version: | PSI313Q |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4056898 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,736 | ||
Calibration 2 | 91,363 | ||
Calibration 3 | 91,030 | ||
ssj_ops@calibrated=91,196 | |||
100% | 99.6% | 91,196 | 90,843 |
90% | 90.0% | 82,077 | 82,100 |
80% | 79.6% | 72,957 | 72,596 |
70% | 70.0% | 63,837 | 63,832 |
60% | 59.6% | 54,718 | 54,354 |
50% | 49.4% | 45,598 | 45,059 |
40% | 40.2% | 36,478 | 36,672 |
30% | 30.3% | 27,359 | 27,623 |
20% | 19.5% | 18,239 | 17,799 |
10% | 9.7% | 9,120 | 8,858 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,572 | ||
Calibration 2 | 91,280 | ||
Calibration 3 | 91,349 | ||
ssj_ops@calibrated=91,315 | |||
100% | 99.5% | 91,315 | 90,880 |
90% | 90.1% | 82,183 | 82,254 |
80% | 79.2% | 73,052 | 72,316 |
70% | 70.0% | 63,920 | 63,907 |
60% | 59.5% | 54,789 | 54,332 |
50% | 50.3% | 45,657 | 45,952 |
40% | 40.0% | 36,526 | 36,483 |
30% | 29.6% | 27,394 | 27,009 |
20% | 20.4% | 18,263 | 18,665 |
10% | 10.6% | 9,131 | 9,687 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,302 | ||
Calibration 2 | 91,785 | ||
Calibration 3 | 91,145 | ||
ssj_ops@calibrated=91,465 | |||
100% | 99.7% | 91,465 | 91,203 |
90% | 90.2% | 82,318 | 82,545 |
80% | 80.2% | 73,172 | 73,395 |
70% | 69.1% | 64,025 | 63,183 |
60% | 59.3% | 54,879 | 54,256 |
50% | 49.4% | 45,732 | 45,160 |
40% | 39.7% | 36,586 | 36,350 |
30% | 29.3% | 27,439 | 26,810 |
20% | 20.4% | 18,293 | 18,653 |
10% | 10.0% | 9,146 | 9,137 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,906 | ||
Calibration 2 | 91,757 | ||
Calibration 3 | 90,866 | ||
ssj_ops@calibrated=91,312 | |||
100% | 99.3% | 91,312 | 90,691 |
90% | 89.9% | 82,181 | 82,129 |
80% | 80.3% | 73,049 | 73,284 |
70% | 69.9% | 63,918 | 63,803 |
60% | 59.7% | 54,787 | 54,534 |
50% | 49.9% | 45,656 | 45,571 |
40% | 39.3% | 36,525 | 35,885 |
30% | 29.7% | 27,394 | 27,093 |
20% | 19.9% | 18,262 | 18,142 |
10% | 10.2% | 9,131 | 9,304 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,408 | ||
Calibration 2 | 91,884 | ||
Calibration 3 | 92,272 | ||
ssj_ops@calibrated=92,078 | |||
100% | 100.0% | 92,078 | 92,066 |
90% | 90.3% | 82,870 | 83,119 |
80% | 80.5% | 73,662 | 74,081 |
70% | 70.1% | 64,454 | 64,538 |
60% | 60.0% | 55,247 | 55,272 |
50% | 50.5% | 46,039 | 46,458 |
40% | 40.1% | 36,831 | 36,923 |
30% | 29.7% | 27,623 | 27,304 |
20% | 20.3% | 18,416 | 18,679 |
10% | 10.5% | 9,208 | 9,637 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,579 | ||
Calibration 2 | 90,503 | ||
Calibration 3 | 90,978 | ||
ssj_ops@calibrated=90,741 | |||
100% | 99.2% | 90,741 | 89,979 |
90% | 89.6% | 81,667 | 81,267 |
80% | 79.3% | 72,592 | 71,973 |
70% | 69.9% | 63,518 | 63,463 |
60% | 59.8% | 54,444 | 54,272 |
50% | 50.1% | 45,370 | 45,496 |
40% | 40.3% | 36,296 | 36,572 |
30% | 29.8% | 27,222 | 27,037 |
20% | 19.9% | 18,148 | 18,042 |
10% | 9.8% | 9,074 | 8,920 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,879 | ||
Calibration 2 | 91,750 | ||
Calibration 3 | 91,269 | ||
ssj_ops@calibrated=91,510 | |||
100% | 99.7% | 91,510 | 91,204 |
90% | 90.4% | 82,359 | 82,763 |
80% | 79.1% | 73,208 | 72,370 |
70% | 71.1% | 64,057 | 65,103 |
60% | 59.6% | 54,906 | 54,497 |
50% | 50.4% | 45,755 | 46,154 |
40% | 39.5% | 36,604 | 36,106 |
30% | 30.6% | 27,453 | 28,030 |
20% | 19.8% | 18,302 | 18,125 |
10% | 9.7% | 9,151 | 8,867 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,029 | ||
Calibration 2 | 91,608 | ||
Calibration 3 | 91,509 | ||
ssj_ops@calibrated=91,559 | |||
100% | 99.0% | 91,559 | 90,622 |
90% | 90.2% | 82,403 | 82,614 |
80% | 80.4% | 73,247 | 73,592 |
70% | 69.7% | 64,091 | 63,844 |
60% | 60.1% | 54,935 | 55,070 |
50% | 50.2% | 45,779 | 45,992 |
40% | 40.4% | 36,624 | 37,014 |
30% | 29.7% | 27,468 | 27,153 |
20% | 19.4% | 18,312 | 17,774 |
10% | 9.7% | 9,156 | 8,867 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,838 | ||
Calibration 2 | 92,143 | ||
Calibration 3 | 91,291 | ||
ssj_ops@calibrated=91,717 | |||
100% | 100.0% | 91,717 | 91,699 |
90% | 89.3% | 82,545 | 81,895 |
80% | 81.7% | 73,373 | 74,943 |
70% | 70.6% | 64,202 | 64,734 |
60% | 60.7% | 55,030 | 55,641 |
50% | 50.5% | 45,858 | 46,290 |
40% | 40.8% | 36,687 | 37,451 |
30% | 29.8% | 27,515 | 27,296 |
20% | 20.1% | 18,343 | 18,449 |
10% | 10.2% | 9,172 | 9,315 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,658 | ||
Calibration 2 | 90,859 | ||
Calibration 3 | 90,889 | ||
ssj_ops@calibrated=90,874 | |||
100% | 100.1% | 90,874 | 90,931 |
90% | 89.6% | 81,786 | 81,459 |
80% | 80.1% | 72,699 | 72,799 |
70% | 70.0% | 63,611 | 63,620 |
60% | 59.3% | 54,524 | 53,902 |
50% | 50.3% | 45,437 | 45,669 |
40% | 40.6% | 36,349 | 36,877 |
30% | 30.4% | 27,262 | 27,617 |
20% | 19.5% | 18,175 | 17,728 |
10% | 10.0% | 9,087 | 9,079 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,273 | ||
Calibration 2 | 90,832 | ||
Calibration 3 | 89,915 | ||
ssj_ops@calibrated=90,373 | |||
100% | 98.8% | 90,373 | 89,328 |
90% | 91.3% | 81,336 | 82,550 |
80% | 80.0% | 72,299 | 72,305 |
70% | 69.8% | 63,261 | 63,041 |
60% | 58.9% | 54,224 | 53,270 |
50% | 49.8% | 45,187 | 45,048 |
40% | 39.9% | 36,149 | 36,070 |
30% | 30.6% | 27,112 | 27,636 |
20% | 20.2% | 18,075 | 18,279 |
10% | 10.0% | 9,037 | 9,041 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,179 | ||
Calibration 2 | 91,459 | ||
Calibration 3 | 90,783 | ||
ssj_ops@calibrated=91,121 | |||
100% | 99.2% | 91,121 | 90,414 |
90% | 90.7% | 82,009 | 82,680 |
80% | 80.2% | 72,897 | 73,038 |
70% | 69.7% | 63,785 | 63,480 |
60% | 59.8% | 54,673 | 54,521 |
50% | 49.2% | 45,561 | 44,863 |
40% | 40.4% | 36,448 | 36,812 |
30% | 30.0% | 27,336 | 27,313 |
20% | 20.6% | 18,224 | 18,762 |
10% | 9.8% | 9,112 | 8,967 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,628 | ||
Calibration 2 | 91,525 | ||
Calibration 3 | 91,125 | ||

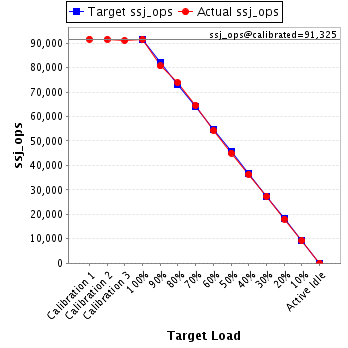

ssj_ops@calibrated=91,325 | |||
100% | 100.3% | 91,325 | 91,612 |
90% | 88.3% | 82,193 | 80,678 |
80% | 80.8% | 73,060 | 73,814 |
70% | 70.7% | 63,928 | 64,610 |
60% | 59.5% | 54,795 | 54,315 |
50% | 49.3% | 45,663 | 45,066 |
40% | 39.8% | 36,530 | 36,320 |
30% | 30.0% | 27,398 | 27,370 |
20% | 19.8% | 18,265 | 18,090 |
10% | 10.1% | 9,133 | 9,248 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,463 | ||
Calibration 2 | 91,741 | ||
Calibration 3 | 91,329 | ||
ssj_ops@calibrated=91,535 | |||
100% | 99.5% | 91,535 | 91,056 |
90% | 90.2% | 82,381 | 82,537 |
80% | 80.5% | 73,228 | 73,674 |
70% | 70.3% | 64,074 | 64,308 |
60% | 60.4% | 54,921 | 55,264 |
50% | 49.5% | 45,767 | 45,326 |
40% | 40.1% | 36,614 | 36,680 |
30% | 30.3% | 27,460 | 27,727 |
20% | 20.2% | 18,307 | 18,445 |
10% | 9.9% | 9,153 | 9,054 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,267 | ||
Calibration 2 | 90,488 | ||
Calibration 3 | 89,898 | ||
ssj_ops@calibrated=90,193 | |||
100% | 99.9% | 90,193 | 90,094 |
90% | 90.6% | 81,174 | 81,673 |
80% | 80.0% | 72,154 | 72,157 |
70% | 71.0% | 63,135 | 64,028 |
60% | 59.8% | 54,116 | 53,892 |
50% | 49.1% | 45,096 | 44,298 |
40% | 40.3% | 36,077 | 36,352 |
30% | 30.6% | 27,058 | 27,619 |
20% | 20.2% | 18,039 | 18,219 |
10% | 10.2% | 9,019 | 9,158 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,184 | ||
Calibration 2 | 91,815 | ||
Calibration 3 | 92,058 | ||
ssj_ops@calibrated=91,937 | |||
100% | 99.5% | 91,937 | 91,432 |
90% | 89.5% | 82,743 | 82,246 |
80% | 80.2% | 73,549 | 73,689 |
70% | 70.8% | 64,356 | 65,065 |
60% | 60.3% | 55,162 | 55,467 |
50% | 50.6% | 45,968 | 46,518 |
40% | 39.8% | 36,775 | 36,582 |
30% | 30.4% | 27,581 | 27,992 |
20% | 20.0% | 18,387 | 18,414 |
10% | 9.9% | 9,194 | 9,091 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,765 | ||
Calibration 2 | 92,650 | ||
Calibration 3 | 92,509 | ||
ssj_ops@calibrated=92,580 | |||
100% | 98.8% | 92,580 | 91,434 |
90% | 89.7% | 83,322 | 83,001 |
80% | 80.8% | 74,064 | 74,785 |
70% | 70.4% | 64,806 | 65,151 |
60% | 59.9% | 55,548 | 55,409 |
50% | 49.5% | 46,290 | 45,822 |
40% | 40.2% | 37,032 | 37,199 |
30% | 30.2% | 27,774 | 27,946 |
20% | 19.4% | 18,516 | 17,981 |
10% | 9.9% | 9,258 | 9,164 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,221 | ||
Calibration 2 | 91,054 | ||
Calibration 3 | 90,652 | ||
ssj_ops@calibrated=90,853 | |||
100% | 100.1% | 90,853 | 90,908 |
90% | 90.2% | 81,767 | 81,972 |
80% | 79.7% | 72,682 | 72,401 |
70% | 69.0% | 63,597 | 62,654 |
60% | 61.0% | 54,512 | 55,423 |
50% | 49.9% | 45,426 | 45,338 |
40% | 39.4% | 36,341 | 35,816 |
30% | 29.4% | 27,256 | 26,754 |
20% | 20.2% | 18,171 | 18,310 |
10% | 9.7% | 9,085 | 8,837 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,718 | ||
Calibration 2 | 89,583 | ||
Calibration 3 | 89,323 | ||
ssj_ops@calibrated=89,453 | |||
100% | 100.2% | 89,453 | 89,653 |
90% | 90.4% | 80,508 | 80,826 |
80% | 80.2% | 71,562 | 71,728 |
70% | 69.9% | 62,617 | 62,567 |
60% | 61.2% | 53,672 | 54,775 |
50% | 50.2% | 44,727 | 44,891 |
40% | 40.1% | 35,781 | 35,906 |
30% | 30.2% | 26,836 | 27,054 |
20% | 19.7% | 17,891 | 17,612 |
10% | 10.0% | 8,945 | 8,958 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,680 | ||
Calibration 2 | 94,514 | ||
Calibration 3 | 94,563 | ||
ssj_ops@calibrated=94,539 | |||
100% | 99.8% | 94,539 | 94,349 |
90% | 90.7% | 85,085 | 85,709 |
80% | 79.5% | 75,631 | 75,129 |
70% | 69.7% | 66,177 | 65,861 |
60% | 60.5% | 56,723 | 57,186 |
50% | 50.1% | 47,269 | 47,408 |
40% | 39.8% | 37,815 | 37,621 |
30% | 30.1% | 28,362 | 28,500 |
20% | 19.5% | 18,908 | 18,458 |
10% | 9.9% | 9,454 | 9,395 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,787 | ||
Calibration 2 | 91,743 | ||
Calibration 3 | 91,871 | ||
ssj_ops@calibrated=91,807 | |||
100% | 99.2% | 91,807 | 91,035 |
90% | 90.8% | 82,626 | 83,355 |
80% | 78.6% | 73,446 | 72,175 |
70% | 69.4% | 64,265 | 63,712 |
60% | 59.6% | 55,084 | 54,740 |
50% | 50.6% | 45,903 | 46,486 |
40% | 40.3% | 36,723 | 36,981 |
30% | 30.2% | 27,542 | 27,757 |
20% | 19.9% | 18,361 | 18,260 |
10% | 10.0% | 9,181 | 9,192 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,575 | ||
Calibration 2 | 90,963 | ||
Calibration 3 | 90,679 | ||
ssj_ops@calibrated=90,821 | |||
100% | 99.4% | 90,821 | 90,258 |
90% | 90.8% | 81,739 | 82,460 |
80% | 80.2% | 72,657 | 72,826 |
70% | 70.7% | 63,575 | 64,169 |
60% | 58.0% | 54,493 | 52,716 |
50% | 49.7% | 45,411 | 45,176 |
40% | 40.0% | 36,328 | 36,310 |
30% | 29.4% | 27,246 | 26,679 |
20% | 19.8% | 18,164 | 17,983 |
10% | 10.2% | 9,082 | 9,220 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,226 | ||
Calibration 2 | 92,354 | ||
Calibration 3 | 91,936 | ||
ssj_ops@calibrated=92,145 | |||
100% | 99.8% | 92,145 | 91,998 |
90% | 91.4% | 82,930 | 84,209 |
80% | 78.9% | 73,716 | 72,747 |
70% | 69.3% | 64,501 | 63,836 |
60% | 60.1% | 55,287 | 55,378 |
50% | 50.3% | 46,072 | 46,341 |
40% | 39.5% | 36,858 | 36,421 |
30% | 29.7% | 27,643 | 27,396 |
20% | 19.8% | 18,429 | 18,271 |
10% | 10.1% | 9,214 | 9,345 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,275 | ||
Calibration 2 | 91,645 | ||
Calibration 3 | 91,428 | ||
ssj_ops@calibrated=91,536 | |||
100% | 99.2% | 91,536 | 90,832 |
90% | 89.2% | 82,383 | 81,677 |
80% | 79.5% | 73,229 | 72,802 |
70% | 70.8% | 64,075 | 64,796 |
60% | 60.7% | 54,922 | 55,579 |
50% | 49.8% | 45,768 | 45,552 |
40% | 40.4% | 36,614 | 37,019 |
30% | 29.3% | 27,461 | 26,790 |
20% | 20.3% | 18,307 | 18,552 |
10% | 9.8% | 9,154 | 8,995 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,879 | ||
Calibration 2 | 92,102 | ||
Calibration 3 | 91,195 | ||
ssj_ops@calibrated=91,648 | |||
100% | 99.5% | 91,648 | 91,161 |
90% | 90.0% | 82,483 | 82,493 |
80% | 80.0% | 73,318 | 73,351 |
70% | 69.9% | 64,154 | 64,083 |
60% | 60.1% | 54,989 | 55,096 |
50% | 50.5% | 45,824 | 46,301 |
40% | 40.3% | 36,659 | 36,950 |
30% | 30.8% | 27,494 | 28,217 |
20% | 19.8% | 18,330 | 18,141 |
10% | 9.7% | 9,165 | 8,927 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,601 | ||
Calibration 2 | 91,460 | ||
Calibration 3 | 91,207 | ||
ssj_ops@calibrated=91,334 | |||
100% | 100.1% | 91,334 | 91,384 |
90% | 89.6% | 82,200 | 81,876 |
80% | 79.8% | 73,067 | 72,867 |
70% | 69.4% | 63,934 | 63,399 |
60% | 59.8% | 54,800 | 54,590 |
50% | 49.6% | 45,667 | 45,270 |
40% | 40.4% | 36,533 | 36,872 |
30% | 30.2% | 27,400 | 27,600 |
20% | 19.7% | 18,267 | 18,017 |
10% | 9.9% | 9,133 | 9,058 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,266 | ||
Calibration 2 | 89,814 | ||
Calibration 3 | 90,082 | ||
ssj_ops@calibrated=89,948 | |||
100% | 99.4% | 89,948 | 89,364 |
90% | 90.7% | 80,953 | 81,586 |
80% | 79.3% | 71,958 | 71,339 |
70% | 69.9% | 62,964 | 62,844 |
60% | 59.0% | 53,969 | 53,084 |
50% | 50.2% | 44,974 | 45,193 |
40% | 39.7% | 35,979 | 35,715 |
30% | 29.8% | 26,984 | 26,778 |
20% | 20.3% | 17,990 | 18,272 |
10% | 10.2% | 8,995 | 9,208 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,512 | ||
Calibration 2 | 91,044 | ||
Calibration 3 | 90,887 | ||
ssj_ops@calibrated=90,966 | |||
100% | 99.5% | 90,966 | 90,532 |
90% | 90.0% | 81,869 | 81,878 |
80% | 80.8% | 72,772 | 73,507 |
70% | 71.1% | 63,676 | 64,634 |
60% | 59.4% | 54,579 | 54,052 |
50% | 50.0% | 45,483 | 45,459 |
40% | 40.2% | 36,386 | 36,523 |
30% | 30.1% | 27,290 | 27,360 |
20% | 20.1% | 18,193 | 18,328 |
10% | 9.9% | 9,097 | 8,987 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,172 | ||
Calibration 2 | 90,176 | ||
Calibration 3 | 89,292 | ||
ssj_ops@calibrated=89,734 | |||
100% | 99.6% | 89,734 | 89,369 |
90% | 89.8% | 80,761 | 80,540 |
80% | 80.4% | 71,787 | 72,111 |
70% | 70.0% | 62,814 | 62,782 |
60% | 60.6% | 53,840 | 54,334 |
50% | 49.7% | 44,867 | 44,621 |
40% | 40.2% | 35,894 | 36,033 |
30% | 30.0% | 26,920 | 26,962 |
20% | 20.3% | 17,947 | 18,203 |
10% | 9.7% | 8,973 | 8,724 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,994 | ||
Calibration 2 | 91,284 | ||
Calibration 3 | 90,656 | ||
ssj_ops@calibrated=90,970 | |||
100% | 99.9% | 90,970 | 90,859 |
90% | 88.9% | 81,873 | 80,887 |
80% | 80.9% | 72,776 | 73,613 |
70% | 70.9% | 63,679 | 64,494 |
60% | 60.4% | 54,582 | 54,989 |
50% | 49.9% | 45,485 | 45,352 |
40% | 39.7% | 36,388 | 36,083 |
30% | 29.4% | 27,291 | 26,789 |
20% | 20.4% | 18,194 | 18,564 |
10% | 9.8% | 9,097 | 8,929 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,260 | ||
Calibration 2 | 90,423 | ||
Calibration 3 | 90,117 | ||
ssj_ops@calibrated=90,270 | |||
100% | 99.2% | 90,270 | 89,568 |
90% | 89.7% | 81,243 | 81,012 |
80% | 80.2% | 72,216 | 72,358 |
70% | 70.9% | 63,189 | 63,988 |
60% | 59.4% | 54,162 | 53,610 |
50% | 50.2% | 45,135 | 45,309 |
40% | 39.8% | 36,108 | 35,901 |
30% | 29.6% | 27,081 | 26,760 |
20% | 20.5% | 18,054 | 18,537 |
10% | 10.0% | 9,027 | 8,991 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,092 | ||
Calibration 2 | 91,189 | ||
Calibration 3 | 91,407 | ||
ssj_ops@calibrated=91,298 | |||
100% | 99.2% | 91,298 | 90,557 |
90% | 90.0% | 82,168 | 82,194 |
80% | 80.4% | 73,038 | 73,409 |
70% | 69.7% | 63,908 | 63,617 |
60% | 60.7% | 54,779 | 55,434 |
50% | 50.3% | 45,649 | 45,906 |
40% | 39.9% | 36,519 | 36,389 |
30% | 29.4% | 27,389 | 26,828 |
20% | 19.5% | 18,260 | 17,774 |
10% | 10.0% | 9,130 | 9,116 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,576 | ||
Calibration 2 | 90,948 | ||
Calibration 3 | 91,040 | ||
ssj_ops@calibrated=90,994 | |||
100% | 99.0% | 90,994 | 90,089 |
90% | 91.6% | 81,895 | 83,327 |
80% | 79.6% | 72,795 | 72,417 |
70% | 69.6% | 63,696 | 63,349 |
60% | 58.8% | 54,597 | 53,550 |
50% | 50.2% | 45,497 | 45,667 |
40% | 39.4% | 36,398 | 35,881 |
30% | 30.1% | 27,298 | 27,370 |
20% | 20.1% | 18,199 | 18,272 |
10% | 10.1% | 9,099 | 9,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,944 | ||
Calibration 2 | 91,488 | ||
Calibration 3 | 91,793 | ||
ssj_ops@calibrated=91,641 | |||
100% | 100.5% | 91,641 | 92,099 |
90% | 89.4% | 82,477 | 81,913 |
80% | 80.5% | 73,312 | 73,813 |
70% | 69.7% | 64,148 | 63,869 |
60% | 60.8% | 54,984 | 55,700 |
50% | 49.1% | 45,820 | 45,034 |
40% | 40.1% | 36,656 | 36,703 |
30% | 29.9% | 27,492 | 27,404 |
20% | 19.7% | 18,328 | 18,031 |
10% | 10.2% | 9,164 | 9,378 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,423 | ||
Calibration 2 | 92,713 | ||
Calibration 3 | 92,003 | ||
ssj_ops@calibrated=92,358 | |||
100% | 99.7% | 92,358 | 92,103 |
90% | 90.7% | 83,122 | 83,768 |
80% | 80.1% | 73,887 | 73,960 |
70% | 71.1% | 64,651 | 65,644 |
60% | 60.4% | 55,415 | 55,772 |
50% | 49.9% | 46,179 | 46,051 |
40% | 40.1% | 36,943 | 37,010 |
30% | 29.5% | 27,707 | 27,257 |
20% | 19.8% | 18,472 | 18,299 |
10% | 10.2% | 9,236 | 9,404 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,311 | ||
Calibration 2 | 91,316 | ||
Calibration 3 | 91,391 | ||
ssj_ops@calibrated=91,353 | |||
100% | 100.4% | 91,353 | 91,718 |
90% | 91.2% | 82,218 | 83,282 |
80% | 80.7% | 73,083 | 73,747 |
70% | 69.4% | 63,947 | 63,409 |
60% | 59.8% | 54,812 | 54,589 |
50% | 50.3% | 45,677 | 45,963 |
40% | 39.4% | 36,541 | 35,966 |
30% | 29.7% | 27,406 | 27,090 |
20% | 20.8% | 18,271 | 18,978 |
10% | 10.2% | 9,135 | 9,299 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,089 | ||
Calibration 2 | 92,379 | ||
Calibration 3 | 92,116 | ||
ssj_ops@calibrated=92,248 | |||
100% | 100.2% | 92,248 | 92,424 |
90% | 88.6% | 83,023 | 81,764 |
80% | 80.2% | 73,798 | 73,963 |
70% | 69.8% | 64,573 | 64,360 |
60% | 59.1% | 55,349 | 54,511 |
50% | 49.4% | 46,124 | 45,579 |
40% | 40.6% | 36,899 | 37,427 |
30% | 30.4% | 27,674 | 28,069 |
20% | 19.8% | 18,450 | 18,232 |
10% | 10.0% | 9,225 | 9,258 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,446 | ||
Calibration 2 | 91,243 | ||
Calibration 3 | 91,608 | ||
ssj_ops@calibrated=91,425 | |||
100% | 99.6% | 91,425 | 91,039 |
90% | 89.4% | 82,283 | 81,712 |
80% | 80.5% | 73,140 | 73,584 |
70% | 70.6% | 63,998 | 64,591 |
60% | 60.9% | 54,855 | 55,723 |
50% | 49.7% | 45,713 | 45,437 |
40% | 40.0% | 36,570 | 36,566 |
30% | 30.3% | 27,428 | 27,679 |
20% | 19.9% | 18,285 | 18,204 |
10% | 10.1% | 9,143 | 9,275 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,589 | ||
Calibration 2 | 91,026 | ||
Calibration 3 | 90,308 | ||
ssj_ops@calibrated=90,667 | |||
100% | 99.6% | 90,667 | 90,297 |
90% | 89.4% | 81,600 | 81,046 |
80% | 80.1% | 72,534 | 72,608 |
70% | 71.0% | 63,467 | 64,397 |
60% | 60.3% | 54,400 | 54,711 |
50% | 50.6% | 45,334 | 45,856 |
40% | 40.0% | 36,267 | 36,254 |
30% | 30.7% | 27,200 | 27,798 |
20% | 19.8% | 18,133 | 17,956 |
10% | 10.3% | 9,067 | 9,340 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,318 | ||
Calibration 2 | 93,024 | ||
Calibration 3 | 93,420 | ||
ssj_ops@calibrated=93,222 | |||
100% | 100.0% | 93,222 | 93,221 |
90% | 89.5% | 83,900 | 83,440 |
80% | 79.6% | 74,578 | 74,221 |
70% | 69.5% | 65,255 | 64,834 |
60% | 59.8% | 55,933 | 55,730 |
50% | 49.9% | 46,611 | 46,554 |
40% | 40.4% | 37,289 | 37,690 |
30% | 30.1% | 27,967 | 28,087 |
20% | 19.7% | 18,644 | 18,379 |
10% | 9.8% | 9,322 | 9,179 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,204 | ||
Calibration 2 | 93,581 | ||
Calibration 3 | 92,421 | ||
ssj_ops@calibrated=93,001 | |||
100% | 99.1% | 93,001 | 92,168 |
90% | 89.4% | 83,701 | 83,121 |
80% | 80.8% | 74,401 | 75,157 |
70% | 70.5% | 65,101 | 65,524 |
60% | 59.9% | 55,800 | 55,727 |
50% | 49.5% | 46,500 | 46,048 |
40% | 39.4% | 37,200 | 36,657 |
30% | 29.5% | 27,900 | 27,416 |
20% | 19.7% | 18,600 | 18,361 |
10% | 10.0% | 9,300 | 9,270 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,534 | ||
Calibration 2 | 90,392 | ||
Calibration 3 | 89,083 | ||
ssj_ops@calibrated=89,738 | |||
100% | 99.8% | 89,738 | 89,579 |
90% | 89.9% | 80,764 | 80,682 |
80% | 80.2% | 71,790 | 72,004 |
70% | 69.9% | 62,816 | 62,752 |
60% | 59.5% | 53,843 | 53,393 |
50% | 50.5% | 44,869 | 45,341 |
40% | 39.9% | 35,895 | 35,832 |
30% | 29.7% | 26,921 | 26,689 |
20% | 19.9% | 17,948 | 17,900 |
10% | 9.7% | 8,974 | 8,679 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,775 | ||
Calibration 2 | 90,329 | ||
Calibration 3 | 90,780 | ||
ssj_ops@calibrated=90,554 | |||
100% | 99.6% | 90,554 | 90,163 |
90% | 90.2% | 81,499 | 81,682 |
80% | 79.7% | 72,443 | 72,172 |
70% | 71.3% | 63,388 | 64,531 |
60% | 60.2% | 54,332 | 54,508 |
50% | 49.8% | 45,277 | 45,089 |
40% | 39.9% | 36,222 | 36,144 |
30% | 30.2% | 27,166 | 27,342 |
20% | 20.3% | 18,111 | 18,349 |
10% | 10.3% | 9,055 | 9,354 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,723 | ||
Calibration 2 | 91,264 | ||
Calibration 3 | 92,349 | ||

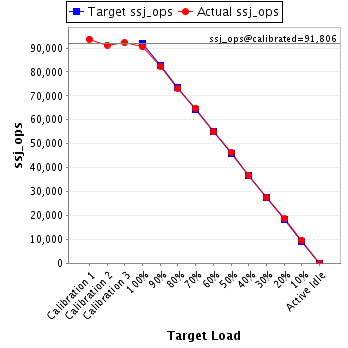

ssj_ops@calibrated=91,806 | |||
100% | 98.5% | 91,806 | 90,458 |
90% | 89.8% | 82,626 | 82,466 |
80% | 79.8% | 73,445 | 73,250 |
70% | 70.6% | 64,264 | 64,807 |
60% | 59.8% | 55,084 | 54,941 |
50% | 50.5% | 45,903 | 46,367 |
40% | 40.0% | 36,723 | 36,699 |
30% | 30.0% | 27,542 | 27,568 |
20% | 20.2% | 18,361 | 18,541 |
10% | 10.5% | 9,181 | 9,625 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,369 | ||
Calibration 2 | 90,770 | ||
Calibration 3 | 90,885 | ||
ssj_ops@calibrated=90,828 | |||
100% | 99.6% | 90,828 | 90,457 |
90% | 89.8% | 81,745 | 81,529 |
80% | 80.6% | 72,662 | 73,193 |
70% | 70.8% | 63,579 | 64,327 |
60% | 60.5% | 54,497 | 54,912 |
50% | 50.1% | 45,414 | 45,475 |
40% | 40.2% | 36,331 | 36,481 |
30% | 29.6% | 27,248 | 26,848 |
20% | 19.9% | 18,166 | 18,035 |
10% | 9.9% | 9,083 | 8,996 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,047 | ||
Calibration 2 | 90,729 | ||
Calibration 3 | 90,772 | ||
ssj_ops@calibrated=90,750 | |||
100% | 100.0% | 90,750 | 90,794 |
90% | 91.2% | 81,675 | 82,795 |
80% | 79.8% | 72,600 | 72,381 |
70% | 69.8% | 63,525 | 63,351 |
60% | 59.9% | 54,450 | 54,346 |
50% | 49.9% | 45,375 | 45,298 |
40% | 39.9% | 36,300 | 36,199 |
30% | 29.7% | 27,225 | 26,986 |
20% | 20.3% | 18,150 | 18,383 |
10% | 10.1% | 9,075 | 9,158 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,214 | ||
Calibration 2 | 90,181 | ||
Calibration 3 | 90,358 | ||
ssj_ops@calibrated=90,270 | |||
100% | 99.6% | 90,270 | 89,874 |
90% | 90.3% | 81,243 | 81,509 |
80% | 79.4% | 72,216 | 71,699 |
70% | 70.9% | 63,189 | 64,036 |
60% | 59.8% | 54,162 | 54,013 |
50% | 50.4% | 45,135 | 45,477 |
40% | 39.9% | 36,108 | 36,057 |
30% | 29.6% | 27,081 | 26,736 |
20% | 20.3% | 18,054 | 18,286 |
10% | 9.7% | 9,027 | 8,754 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,707 | ||
Calibration 2 | 91,854 | ||
Calibration 3 | 92,111 | ||
ssj_ops@calibrated=91,982 | |||
100% | 98.5% | 91,982 | 90,640 |
90% | 89.7% | 82,784 | 82,543 |
80% | 80.6% | 73,586 | 74,099 |
70% | 71.1% | 64,388 | 65,420 |
60% | 60.0% | 55,189 | 55,197 |
50% | 51.0% | 45,991 | 46,933 |
40% | 40.2% | 36,793 | 36,933 |
30% | 30.2% | 27,595 | 27,786 |
20% | 20.4% | 18,396 | 18,783 |
10% | 10.1% | 9,198 | 9,287 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,535 | ||
Calibration 2 | 92,535 | ||
Calibration 3 | 93,015 | ||
ssj_ops@calibrated=92,775 | |||
100% | 99.5% | 92,775 | 92,301 |
90% | 90.8% | 83,497 | 84,227 |
80% | 79.9% | 74,220 | 74,160 |
70% | 70.4% | 64,942 | 65,359 |
60% | 60.1% | 55,665 | 55,755 |
50% | 49.8% | 46,387 | 46,204 |
40% | 39.4% | 37,110 | 36,510 |
30% | 29.6% | 27,832 | 27,481 |
20% | 20.3% | 18,555 | 18,853 |
10% | 10.3% | 9,277 | 9,598 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,133 | ||
Calibration 2 | 93,087 | ||
Calibration 3 | 92,936 | ||
ssj_ops@calibrated=93,011 | |||
100% | 99.5% | 93,011 | 92,585 |
90% | 89.9% | 83,710 | 83,580 |
80% | 79.5% | 74,409 | 73,916 |
70% | 70.2% | 65,108 | 65,255 |
60% | 59.5% | 55,807 | 55,350 |
50% | 50.9% | 46,506 | 47,300 |
40% | 40.3% | 37,205 | 37,490 |
30% | 29.6% | 27,903 | 27,498 |
20% | 20.0% | 18,602 | 18,589 |
10% | 10.5% | 9,301 | 9,766 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,597 | ||
Calibration 2 | 91,872 | ||
Calibration 3 | 92,135 | ||
ssj_ops@calibrated=92,004 | |||
100% | 100.4% | 92,004 | 92,384 |
90% | 89.3% | 82,803 | 82,177 |
80% | 79.4% | 73,603 | 73,085 |
70% | 70.4% | 64,402 | 64,742 |
60% | 59.8% | 55,202 | 55,017 |
50% | 51.0% | 46,002 | 46,965 |
40% | 40.4% | 36,801 | 37,187 |
30% | 30.2% | 27,601 | 27,827 |
20% | 20.1% | 18,401 | 18,537 |
10% | 10.0% | 9,200 | 9,240 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,250 | ||
Calibration 2 | 91,614 | ||
Calibration 3 | 91,520 | ||
ssj_ops@calibrated=91,567 | |||
100% | 98.6% | 91,567 | 90,253 |
90% | 90.1% | 82,410 | 82,495 |
80% | 79.5% | 73,254 | 72,815 |
70% | 69.8% | 64,097 | 63,887 |
60% | 59.1% | 54,940 | 54,136 |
50% | 49.3% | 45,784 | 45,145 |
40% | 39.6% | 36,627 | 36,253 |
30% | 30.7% | 27,470 | 28,102 |
20% | 20.1% | 18,313 | 18,439 |
10% | 10.2% | 9,157 | 9,325 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,656 | ||
Calibration 2 | 91,188 | ||
Calibration 3 | 91,161 | ||
ssj_ops@calibrated=91,174 | |||
100% | 99.1% | 91,174 | 90,324 |
90% | 89.8% | 82,057 | 81,900 |
80% | 80.0% | 72,940 | 72,966 |
70% | 70.3% | 63,822 | 64,092 |
60% | 60.5% | 54,705 | 55,119 |
50% | 49.8% | 45,587 | 45,448 |
40% | 39.6% | 36,470 | 36,071 |
30% | 30.0% | 27,352 | 27,360 |
20% | 20.3% | 18,235 | 18,514 |
10% | 10.1% | 9,117 | 9,223 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,355 | ||
Calibration 2 | 91,202 | ||
Calibration 3 | 91,215 | ||
ssj_ops@calibrated=91,208 | |||
100% | 98.5% | 91,208 | 89,866 |
90% | 89.5% | 82,087 | 81,609 |
80% | 80.3% | 72,967 | 73,244 |
70% | 70.6% | 63,846 | 64,364 |
60% | 60.2% | 54,725 | 54,904 |
50% | 50.1% | 45,604 | 45,677 |
40% | 40.5% | 36,483 | 36,962 |
30% | 30.9% | 27,362 | 28,197 |
20% | 19.7% | 18,242 | 17,977 |
10% | 9.8% | 9,121 | 8,958 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,019 | ||
Calibration 2 | 92,334 | ||
Calibration 3 | 91,736 | ||
ssj_ops@calibrated=92,035 | |||
100% | 99.4% | 92,035 | 91,483 |
90% | 90.0% | 82,831 | 82,850 |
80% | 79.8% | 73,628 | 73,472 |
70% | 69.6% | 64,424 | 64,086 |
60% | 60.3% | 55,221 | 55,478 |
50% | 48.9% | 46,017 | 44,998 |
40% | 39.5% | 36,814 | 36,336 |
30% | 29.4% | 27,610 | 27,037 |
20% | 20.4% | 18,407 | 18,809 |
10% | 10.2% | 9,203 | 9,369 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,443 | ||
Calibration 2 | 92,079 | ||
Calibration 3 | 92,067 | ||
ssj_ops@calibrated=92,073 | |||
100% | 99.9% | 92,073 | 91,984 |
90% | 90.2% | 82,866 | 83,053 |
80% | 80.2% | 73,659 | 73,871 |
70% | 70.7% | 64,451 | 65,093 |
60% | 60.4% | 55,244 | 55,602 |
50% | 50.0% | 46,037 | 46,014 |
40% | 39.9% | 36,829 | 36,702 |
30% | 29.6% | 27,622 | 27,279 |
20% | 19.9% | 18,415 | 18,346 |
10% | 9.9% | 9,207 | 9,079 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,872 | ||
Calibration 2 | 89,802 | ||
Calibration 3 | 90,077 | ||

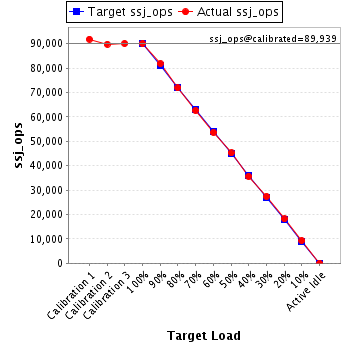

ssj_ops@calibrated=89,939 | |||
100% | 100.2% | 89,939 | 90,108 |
90% | 91.0% | 80,946 | 81,836 |
80% | 79.9% | 71,952 | 71,878 |
70% | 69.6% | 62,958 | 62,620 |
60% | 59.6% | 53,964 | 53,643 |
50% | 50.3% | 44,970 | 45,214 |
40% | 39.6% | 35,976 | 35,597 |
30% | 30.5% | 26,982 | 27,413 |
20% | 20.2% | 17,988 | 18,166 |
10% | 10.3% | 8,994 | 9,308 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,098 | ||
Calibration 2 | 90,541 | ||
Calibration 3 | 90,543 | ||
ssj_ops@calibrated=90,542 | |||
100% | 100.1% | 90,542 | 90,594 |
90% | 89.0% | 81,488 | 80,547 |
80% | 79.5% | 72,434 | 71,937 |
70% | 69.8% | 63,380 | 63,211 |
60% | 60.2% | 54,325 | 54,521 |
50% | 49.6% | 45,271 | 44,893 |
40% | 39.3% | 36,217 | 35,538 |
30% | 30.5% | 27,163 | 27,637 |
20% | 19.7% | 18,108 | 17,875 |
10% | 10.1% | 9,054 | 9,100 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,572 | ||
Calibration 2 | 90,860 | ||
Calibration 3 | 91,136 | ||
ssj_ops@calibrated=90,998 | |||
100% | 100.2% | 90,998 | 91,199 |
90% | 90.3% | 81,898 | 82,176 |
80% | 78.7% | 72,799 | 71,657 |
70% | 69.8% | 63,699 | 63,477 |
60% | 60.3% | 54,599 | 54,879 |
50% | 50.2% | 45,499 | 45,661 |
40% | 39.4% | 36,399 | 35,879 |
30% | 29.9% | 27,299 | 27,212 |
20% | 20.1% | 18,200 | 18,285 |
10% | 10.2% | 9,100 | 9,237 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,438 | ||
Calibration 2 | 91,326 | ||
Calibration 3 | 91,511 | ||
ssj_ops@calibrated=91,419 | |||
100% | 98.9% | 91,419 | 90,402 |
90% | 90.9% | 82,277 | 83,078 |
80% | 79.9% | 73,135 | 73,006 |
70% | 69.4% | 63,993 | 63,417 |
60% | 59.9% | 54,851 | 54,750 |
50% | 50.3% | 45,709 | 45,984 |
40% | 39.8% | 36,568 | 36,375 |
30% | 29.9% | 27,426 | 27,303 |
20% | 20.1% | 18,284 | 18,360 |
10% | 10.0% | 9,142 | 9,175 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,109 | ||
Calibration 2 | 91,632 | ||
Calibration 3 | 91,464 | ||
ssj_ops@calibrated=91,548 | |||
100% | 100.7% | 91,548 | 92,194 |
90% | 89.9% | 82,393 | 82,311 |
80% | 80.2% | 73,239 | 73,396 |
70% | 69.5% | 64,084 | 63,640 |
60% | 59.8% | 54,929 | 54,751 |
50% | 50.2% | 45,774 | 45,959 |
40% | 39.7% | 36,619 | 36,337 |
30% | 30.7% | 27,464 | 28,112 |
20% | 20.0% | 18,310 | 18,323 |
10% | 10.1% | 9,155 | 9,292 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,200 | ||
Calibration 2 | 92,746 | ||
Calibration 3 | 92,590 | ||
ssj_ops@calibrated=92,668 | |||
100% | 100.0% | 92,668 | 92,626 |
90% | 89.7% | 83,401 | 83,104 |
80% | 78.9% | 74,134 | 73,129 |
70% | 69.5% | 64,868 | 64,402 |
60% | 59.6% | 55,601 | 55,201 |
50% | 49.7% | 46,334 | 46,014 |
40% | 39.8% | 37,067 | 36,900 |
30% | 30.2% | 27,800 | 28,020 |
20% | 19.8% | 18,534 | 18,303 |
10% | 9.9% | 9,267 | 9,181 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,102 | ||
Calibration 2 | 92,764 | ||
Calibration 3 | 92,267 | ||
ssj_ops@calibrated=92,516 | |||
100% | 99.2% | 92,516 | 91,760 |
90% | 90.0% | 83,264 | 83,234 |
80% | 79.5% | 74,013 | 73,565 |
70% | 70.1% | 64,761 | 64,825 |
60% | 60.3% | 55,510 | 55,803 |
50% | 49.3% | 46,258 | 45,606 |
40% | 40.7% | 37,006 | 37,610 |
30% | 30.3% | 27,755 | 28,074 |
20% | 19.7% | 18,503 | 18,254 |
10% | 10.0% | 9,252 | 9,282 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,162 | ||
Calibration 2 | 90,394 | ||
Calibration 3 | 90,194 | ||
ssj_ops@calibrated=90,294 | |||
100% | 98.5% | 90,294 | 88,982 |
90% | 89.7% | 81,265 | 80,977 |
80% | 80.2% | 72,235 | 72,400 |
70% | 70.9% | 63,206 | 64,052 |
60% | 59.6% | 54,176 | 53,773 |
50% | 50.7% | 45,147 | 45,763 |
40% | 39.9% | 36,118 | 36,067 |
30% | 29.7% | 27,088 | 26,779 |
20% | 19.7% | 18,059 | 17,816 |
10% | 10.4% | 9,029 | 9,357 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,405 | ||
Calibration 2 | 91,640 | ||
Calibration 3 | 92,020 | ||
ssj_ops@calibrated=91,830 | |||
100% | 99.3% | 91,830 | 91,156 |
90% | 90.2% | 82,647 | 82,818 |
80% | 78.7% | 73,464 | 72,295 |
70% | 70.3% | 64,281 | 64,575 |
60% | 59.6% | 55,098 | 54,738 |
50% | 49.5% | 45,915 | 45,462 |
40% | 39.7% | 36,732 | 36,462 |
30% | 29.5% | 27,549 | 27,120 |
20% | 20.2% | 18,366 | 18,572 |
10% | 9.9% | 9,183 | 9,108 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,362 | ||
Calibration 2 | 90,358 | ||
Calibration 3 | 90,778 | ||
ssj_ops@calibrated=90,568 | |||
100% | 99.3% | 90,568 | 89,933 |
90% | 90.3% | 81,511 | 81,811 |
80% | 79.9% | 72,454 | 72,401 |
70% | 69.5% | 63,398 | 62,977 |
60% | 59.4% | 54,341 | 53,819 |
50% | 49.5% | 45,284 | 44,811 |
40% | 40.6% | 36,227 | 36,811 |
30% | 30.3% | 27,170 | 27,417 |
20% | 20.6% | 18,114 | 18,678 |
10% | 9.7% | 9,057 | 8,787 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,138 | ||
Calibration 2 | 90,805 | ||
Calibration 3 | 90,815 | ||
ssj_ops@calibrated=90,810 | |||
100% | 99.3% | 90,810 | 90,155 |
90% | 91.3% | 81,729 | 82,933 |
80% | 80.2% | 72,648 | 72,864 |
70% | 70.0% | 63,567 | 63,602 |
60% | 60.2% | 54,486 | 54,649 |
50% | 49.1% | 45,405 | 44,619 |
40% | 39.3% | 36,324 | 35,654 |
30% | 30.2% | 27,243 | 27,424 |
20% | 19.8% | 18,162 | 17,935 |
10% | 9.9% | 9,081 | 9,004 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,708 | ||
Calibration 2 | 91,391 | ||
Calibration 3 | 91,206 | ||
ssj_ops@calibrated=91,298 | |||
100% | 99.1% | 91,298 | 90,448 |
90% | 89.4% | 82,168 | 81,621 |
80% | 80.0% | 73,039 | 73,082 |
70% | 71.4% | 63,909 | 65,157 |
60% | 59.8% | 54,779 | 54,620 |
50% | 49.7% | 45,649 | 45,404 |
40% | 39.8% | 36,519 | 36,328 |
30% | 30.5% | 27,389 | 27,870 |
20% | 20.5% | 18,260 | 18,698 |
10% | 9.7% | 9,130 | 8,862 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,379 | ||
Calibration 2 | 92,184 | ||
Calibration 3 | 91,909 | ||
ssj_ops@calibrated=92,047 | |||
100% | 99.9% | 92,047 | 91,934 |
90% | 90.0% | 82,842 | 82,803 |
80% | 80.4% | 73,637 | 74,017 |
70% | 69.0% | 64,433 | 63,502 |
60% | 60.2% | 55,228 | 55,385 |
50% | 49.9% | 46,023 | 45,933 |
40% | 40.0% | 36,819 | 36,852 |
30% | 29.9% | 27,614 | 27,536 |
20% | 19.8% | 18,409 | 18,206 |
10% | 10.3% | 9,205 | 9,462 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,555 | ||
Calibration 2 | 90,955 | ||
Calibration 3 | 90,875 | ||
ssj_ops@calibrated=90,915 | |||
100% | 99.9% | 90,915 | 90,792 |
90% | 88.8% | 81,824 | 80,701 |
80% | 79.3% | 72,732 | 72,114 |
70% | 69.4% | 63,641 | 63,091 |
60% | 60.3% | 54,549 | 54,859 |
50% | 50.3% | 45,458 | 45,705 |
40% | 40.5% | 36,366 | 36,843 |
30% | 29.3% | 27,275 | 26,663 |
20% | 20.2% | 18,183 | 18,396 |
10% | 9.9% | 9,092 | 9,025 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,856 | ||
Calibration 2 | 92,393 | ||
Calibration 3 | 92,329 | ||
ssj_ops@calibrated=92,361 | |||
100% | 98.8% | 92,361 | 91,272 |
90% | 89.2% | 83,125 | 82,348 |
80% | 79.8% | 73,889 | 73,690 |
70% | 69.3% | 64,653 | 63,968 |
60% | 59.8% | 55,417 | 55,260 |
50% | 48.9% | 46,181 | 45,146 |
40% | 39.9% | 36,945 | 36,815 |
30% | 29.9% | 27,708 | 27,654 |
20% | 19.9% | 18,472 | 18,345 |
10% | 9.8% | 9,236 | 9,054 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,484 | ||
Calibration 2 | 91,649 | ||
Calibration 3 | 90,594 | ||
ssj_ops@calibrated=91,122 | |||
100% | 99.4% | 91,122 | 90,577 |
90% | 90.5% | 82,010 | 82,462 |
80% | 80.3% | 72,897 | 73,163 |
70% | 70.3% | 63,785 | 64,061 |
60% | 59.8% | 54,673 | 54,501 |
50% | 50.4% | 45,561 | 45,927 |
40% | 39.8% | 36,449 | 36,311 |
30% | 30.3% | 27,337 | 27,639 |
20% | 20.6% | 18,224 | 18,729 |
10% | 10.1% | 9,112 | 9,212 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,764 | ||
Calibration 2 | 91,579 | ||
Calibration 3 | 90,991 | ||
ssj_ops@calibrated=91,285 | |||
100% | 99.1% | 91,285 | 90,447 |
90% | 89.5% | 82,157 | 81,677 |
80% | 81.9% | 73,028 | 74,795 |
70% | 70.2% | 63,900 | 64,039 |
60% | 59.6% | 54,771 | 54,400 |
50% | 49.4% | 45,643 | 45,117 |
40% | 40.0% | 36,514 | 36,490 |
30% | 29.3% | 27,386 | 26,729 |
20% | 20.3% | 18,257 | 18,508 |
10% | 10.4% | 9,129 | 9,466 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,211 | ||
Calibration 2 | 92,287 | ||
Calibration 3 | 92,058 | ||

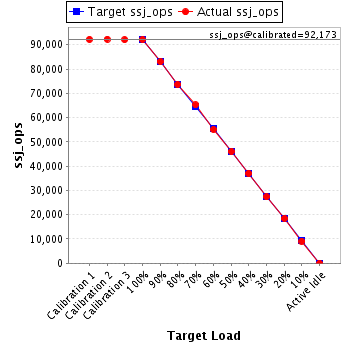

ssj_ops@calibrated=92,173 | |||
100% | 99.9% | 92,173 | 92,097 |
90% | 90.1% | 82,955 | 83,020 |
80% | 79.9% | 73,738 | 73,627 |
70% | 70.8% | 64,521 | 65,246 |
60% | 59.8% | 55,304 | 55,105 |
50% | 49.9% | 46,086 | 46,036 |
40% | 40.2% | 36,869 | 37,015 |
30% | 29.6% | 27,652 | 27,329 |
20% | 20.1% | 18,435 | 18,502 |
10% | 9.8% | 9,217 | 9,042 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,114 | ||
Calibration 2 | 92,736 | ||
Calibration 3 | 92,390 | ||
ssj_ops@calibrated=92,563 | |||
100% | 99.5% | 92,563 | 92,071 |
90% | 89.4% | 83,307 | 82,748 |
80% | 80.0% | 74,050 | 74,077 |
70% | 70.6% | 64,794 | 65,375 |
60% | 59.9% | 55,538 | 55,411 |
50% | 49.8% | 46,281 | 46,092 |
40% | 39.9% | 37,025 | 36,968 |
30% | 30.0% | 27,769 | 27,791 |
20% | 19.6% | 18,513 | 18,146 |
10% | 9.8% | 9,256 | 9,089 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,147 | ||
Calibration 2 | 91,378 | ||
Calibration 3 | 91,187 | ||
ssj_ops@calibrated=91,283 | |||
100% | 99.6% | 91,283 | 90,950 |
90% | 89.7% | 82,154 | 81,864 |
80% | 80.5% | 73,026 | 73,483 |
70% | 70.0% | 63,898 | 63,905 |
60% | 60.5% | 54,770 | 55,199 |
50% | 50.4% | 45,641 | 45,998 |
40% | 40.1% | 36,513 | 36,576 |
30% | 29.7% | 27,385 | 27,101 |
20% | 20.1% | 18,257 | 18,390 |
10% | 10.2% | 9,128 | 9,283 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,317 | ||
Calibration 2 | 90,160 | ||
Calibration 3 | 90,130 | ||
ssj_ops@calibrated=90,145 | |||
100% | 99.1% | 90,145 | 89,377 |
90% | 89.0% | 81,131 | 80,219 |
80% | 79.4% | 72,116 | 71,537 |
70% | 69.6% | 63,102 | 62,701 |
60% | 59.8% | 54,087 | 53,880 |
50% | 50.1% | 45,073 | 45,173 |
40% | 40.9% | 36,058 | 36,826 |
30% | 30.2% | 27,044 | 27,186 |
20% | 19.9% | 18,029 | 17,917 |
10% | 9.7% | 9,015 | 8,778 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,933 | ||
Calibration 2 | 90,242 | ||
Calibration 3 | 89,720 | ||
ssj_ops@calibrated=89,981 | |||
100% | 99.5% | 89,981 | 89,498 |
90% | 89.5% | 80,983 | 80,543 |
80% | 80.6% | 71,985 | 72,482 |
70% | 68.9% | 62,987 | 61,990 |
60% | 60.3% | 53,989 | 54,257 |
50% | 50.0% | 44,990 | 45,016 |
40% | 39.8% | 35,992 | 35,855 |
30% | 29.8% | 26,994 | 26,803 |
20% | 19.7% | 17,996 | 17,768 |
10% | 10.1% | 8,998 | 9,062 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,367 | ||
Calibration 2 | 91,644 | ||
Calibration 3 | 90,266 | ||
ssj_ops@calibrated=90,955 | |||
100% | 99.7% | 90,955 | 90,691 |
90% | 90.1% | 81,859 | 81,988 |
80% | 79.8% | 72,764 | 72,590 |
70% | 70.5% | 63,668 | 64,128 |
60% | 60.2% | 54,573 | 54,716 |
50% | 50.1% | 45,477 | 45,589 |
40% | 41.3% | 36,382 | 37,561 |
30% | 29.7% | 27,286 | 27,022 |
20% | 20.5% | 18,191 | 18,633 |
10% | 9.9% | 9,095 | 8,986 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,846 | ||
Calibration 2 | 91,273 | ||
Calibration 3 | 92,042 | ||
ssj_ops@calibrated=91,658 | |||
100% | 99.8% | 91,658 | 91,494 |
90% | 90.0% | 82,492 | 82,514 |
80% | 79.5% | 73,326 | 72,904 |
70% | 70.2% | 64,160 | 64,326 |
60% | 59.4% | 54,995 | 54,448 |
50% | 49.7% | 45,829 | 45,571 |
40% | 40.3% | 36,663 | 36,947 |
30% | 29.5% | 27,497 | 27,050 |
20% | 20.0% | 18,332 | 18,332 |
10% | 9.9% | 9,166 | 9,032 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,666 | ||
Calibration 2 | 90,012 | ||
Calibration 3 | 90,414 | ||
ssj_ops@calibrated=90,213 | |||
100% | 99.1% | 90,213 | 89,436 |
90% | 89.1% | 81,192 | 80,396 |
80% | 80.0% | 72,170 | 72,164 |
70% | 70.1% | 63,149 | 63,272 |
60% | 60.5% | 54,128 | 54,597 |
50% | 49.8% | 45,106 | 44,920 |
40% | 39.9% | 36,085 | 35,985 |
30% | 30.4% | 27,064 | 27,452 |
20% | 20.1% | 18,043 | 18,111 |
10% | 10.5% | 9,021 | 9,433 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,032 | ||
Calibration 2 | 91,455 | ||
Calibration 3 | 91,467 | ||
ssj_ops@calibrated=91,461 | |||
100% | 100.0% | 91,461 | 91,451 |
90% | 90.1% | 82,315 | 82,390 |
80% | 80.0% | 73,169 | 73,204 |
70% | 69.4% | 64,023 | 63,443 |
60% | 59.8% | 54,877 | 54,722 |
50% | 50.1% | 45,731 | 45,846 |
40% | 39.5% | 36,584 | 36,117 |
30% | 29.4% | 27,438 | 26,925 |
20% | 20.5% | 18,292 | 18,737 |
10% | 9.5% | 9,146 | 8,691 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,784 | ||
Calibration 2 | 91,792 | ||
Calibration 3 | 91,765 | ||
ssj_ops@calibrated=91,779 | |||
100% | 99.8% | 91,779 | 91,613 |
90% | 90.2% | 82,601 | 82,812 |
80% | 78.7% | 73,423 | 72,224 |
70% | 69.3% | 64,245 | 63,646 |
60% | 59.5% | 55,067 | 54,646 |
50% | 49.9% | 45,889 | 45,816 |
40% | 40.3% | 36,711 | 37,018 |
30% | 29.8% | 27,534 | 27,333 |
20% | 20.4% | 18,356 | 18,755 |
10% | 10.2% | 9,178 | 9,366 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,729 | ||
Calibration 2 | 90,112 | ||
Calibration 3 | 90,177 | ||
ssj_ops@calibrated=90,144 | |||
100% | 100.0% | 90,144 | 90,105 |
90% | 90.5% | 81,130 | 81,600 |
80% | 79.5% | 72,115 | 71,654 |
70% | 70.5% | 63,101 | 63,531 |
60% | 59.8% | 54,086 | 53,866 |
50% | 50.6% | 45,072 | 45,610 |
40% | 40.3% | 36,058 | 36,306 |
30% | 30.0% | 27,043 | 27,036 |
20% | 20.3% | 18,029 | 18,320 |
10% | 9.6% | 9,014 | 8,658 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,457 | ||
Calibration 2 | 91,095 | ||
Calibration 3 | 91,254 | ||
ssj_ops@calibrated=91,175 | |||
100% | 99.9% | 91,175 | 91,116 |
90% | 90.7% | 82,057 | 82,662 |
80% | 79.2% | 72,940 | 72,223 |
70% | 70.2% | 63,822 | 64,035 |
60% | 59.9% | 54,705 | 54,616 |
50% | 49.7% | 45,587 | 45,311 |
40% | 40.1% | 36,470 | 36,549 |
30% | 30.2% | 27,352 | 27,521 |
20% | 20.0% | 18,235 | 18,238 |
10% | 9.9% | 9,117 | 9,029 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,866 | ||
Calibration 2 | 90,109 | ||
Calibration 3 | 90,098 | ||
ssj_ops@calibrated=90,103 | |||
100% | 100.2% | 90,103 | 90,255 |
90% | 89.5% | 81,093 | 80,682 |
80% | 80.4% | 72,083 | 72,465 |
70% | 70.7% | 63,072 | 63,741 |
60% | 59.9% | 54,062 | 53,984 |
50% | 49.9% | 45,052 | 44,969 |
40% | 40.4% | 36,041 | 36,428 |
30% | 29.9% | 27,031 | 26,957 |
20% | 20.2% | 18,021 | 18,156 |
10% | 10.1% | 9,010 | 9,066 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,441 | ||
Calibration 2 | 90,661 | ||
Calibration 3 | 90,678 | ||
ssj_ops@calibrated=90,670 | |||
100% | 98.8% | 90,670 | 89,551 |
90% | 90.3% | 81,603 | 81,866 |
80% | 79.5% | 72,536 | 72,059 |
70% | 70.5% | 63,469 | 63,964 |
60% | 60.0% | 54,402 | 54,377 |
50% | 49.3% | 45,335 | 44,744 |
40% | 40.2% | 36,268 | 36,404 |
30% | 28.9% | 27,201 | 26,225 |
20% | 20.0% | 18,134 | 18,166 |
10% | 9.9% | 9,067 | 8,961 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,347 | ||
Calibration 2 | 90,574 | ||
Calibration 3 | 89,951 | ||
ssj_ops@calibrated=90,262 | |||
100% | 99.7% | 90,262 | 90,017 |
90% | 89.9% | 81,236 | 81,171 |
80% | 80.5% | 72,210 | 72,706 |
70% | 70.2% | 63,184 | 63,406 |
60% | 60.4% | 54,157 | 54,548 |
50% | 50.4% | 45,131 | 45,506 |
40% | 40.2% | 36,105 | 36,272 |
30% | 29.8% | 27,079 | 26,881 |
20% | 19.6% | 18,052 | 17,711 |
10% | 10.0% | 9,026 | 9,037 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,827 | ||
Calibration 2 | 90,592 | ||
Calibration 3 | 90,188 | ||
ssj_ops@calibrated=90,390 | |||
100% | 100.0% | 90,390 | 90,347 |
90% | 90.6% | 81,351 | 81,895 |
80% | 79.6% | 72,312 | 71,928 |
70% | 70.4% | 63,273 | 63,651 |
60% | 59.4% | 54,234 | 53,700 |
50% | 50.8% | 45,195 | 45,912 |
40% | 39.9% | 36,156 | 36,056 |
30% | 29.6% | 27,117 | 26,795 |
20% | 20.1% | 18,078 | 18,144 |
10% | 9.8% | 9,039 | 8,846 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,391 | ||
Calibration 2 | 91,192 | ||
Calibration 3 | 91,142 | ||
ssj_ops@calibrated=91,167 | |||
100% | 100.3% | 91,167 | 91,466 |
90% | 89.4% | 82,050 | 81,506 |
80% | 78.8% | 72,933 | 71,867 |
70% | 69.7% | 63,817 | 63,545 |
60% | 59.6% | 54,700 | 54,380 |
50% | 49.9% | 45,583 | 45,523 |
40% | 39.7% | 36,467 | 36,208 |
30% | 30.3% | 27,350 | 27,599 |
20% | 20.2% | 18,233 | 18,449 |
10% | 9.9% | 9,117 | 9,034 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,944 | ||
Calibration 2 | 91,701 | ||
Calibration 3 | 91,783 | ||
ssj_ops@calibrated=91,742 | |||
100% | 99.5% | 91,742 | 91,280 |
90% | 90.7% | 82,568 | 83,181 |
80% | 79.0% | 73,394 | 72,508 |
70% | 70.4% | 64,219 | 64,578 |
60% | 59.9% | 55,045 | 54,928 |
50% | 50.0% | 45,871 | 45,839 |
40% | 40.2% | 36,697 | 36,917 |
30% | 30.5% | 27,523 | 27,970 |
20% | 20.1% | 18,348 | 18,474 |
10% | 10.7% | 9,174 | 9,804 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,790 | ||
Calibration 2 | 91,220 | ||
Calibration 3 | 90,678 | ||
ssj_ops@calibrated=90,949 | |||
100% | 99.9% | 90,949 | 90,850 |
90% | 90.4% | 81,854 | 82,254 |
80% | 80.2% | 72,759 | 72,987 |
70% | 70.2% | 63,664 | 63,833 |
60% | 59.4% | 54,569 | 54,062 |
50% | 50.1% | 45,475 | 45,598 |
40% | 40.6% | 36,380 | 36,966 |
30% | 29.3% | 27,285 | 26,667 |
20% | 20.0% | 18,190 | 18,150 |
10% | 9.9% | 9,095 | 9,012 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,418 | ||
Calibration 2 | 92,738 | ||
Calibration 3 | 91,731 | ||
ssj_ops@calibrated=92,235 | |||
100% | 100.8% | 92,235 | 92,941 |
90% | 89.4% | 83,011 | 82,475 |
80% | 80.0% | 73,788 | 73,792 |
70% | 70.4% | 64,564 | 64,955 |
60% | 60.4% | 55,341 | 55,718 |
50% | 49.9% | 46,117 | 45,990 |
40% | 39.9% | 36,894 | 36,805 |
30% | 30.5% | 27,670 | 28,087 |
20% | 19.4% | 18,447 | 17,936 |
10% | 10.2% | 9,223 | 9,370 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,185 | ||
Calibration 2 | 89,799 | ||
Calibration 3 | 89,833 | ||
ssj_ops@calibrated=89,816 | |||
100% | 99.9% | 89,816 | 89,715 |
90% | 90.7% | 80,834 | 81,500 |
80% | 80.5% | 71,853 | 72,267 |
70% | 69.8% | 62,871 | 62,736 |
60% | 60.3% | 53,890 | 54,136 |
50% | 50.0% | 44,908 | 44,932 |
40% | 40.2% | 35,926 | 36,093 |
30% | 29.1% | 26,945 | 26,103 |
20% | 19.9% | 17,963 | 17,879 |
10% | 10.3% | 8,982 | 9,212 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,344 | ||
Calibration 2 | 89,736 | ||
Calibration 3 | 88,864 | ||
ssj_ops@calibrated=89,300 | |||
100% | 99.6% | 89,300 | 88,930 |
90% | 89.1% | 80,370 | 79,566 |
80% | 80.4% | 71,440 | 71,803 |
70% | 70.1% | 62,510 | 62,628 |
60% | 59.7% | 53,580 | 53,348 |
50% | 49.9% | 44,650 | 44,536 |
40% | 40.1% | 35,720 | 35,799 |
30% | 30.0% | 26,790 | 26,751 |
20% | 20.4% | 17,860 | 18,192 |
10% | 9.6% | 8,930 | 8,608 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,481 | ||
Calibration 2 | 91,003 | ||
Calibration 3 | 90,130 | ||
ssj_ops@calibrated=90,566 | |||
100% | 100.6% | 90,566 | 91,101 |
90% | 90.8% | 81,509 | 82,203 |
80% | 80.5% | 72,453 | 72,873 |
70% | 69.9% | 63,396 | 63,297 |
60% | 60.4% | 54,340 | 54,687 |
50% | 49.2% | 45,283 | 44,581 |
40% | 40.8% | 36,226 | 36,981 |
30% | 30.3% | 27,170 | 27,461 |
20% | 20.0% | 18,113 | 18,152 |
10% | 10.2% | 9,057 | 9,204 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,313 | ||
Calibration 2 | 91,601 | ||
Calibration 3 | 91,034 | ||
ssj_ops@calibrated=91,317 | |||
100% | 99.7% | 91,317 | 91,035 |
90% | 90.1% | 82,186 | 82,273 |
80% | 80.7% | 73,054 | 73,692 |
70% | 69.6% | 63,922 | 63,593 |
60% | 60.2% | 54,790 | 54,931 |
50% | 49.8% | 45,659 | 45,461 |
40% | 39.7% | 36,527 | 36,285 |
30% | 30.1% | 27,395 | 27,471 |
20% | 19.4% | 18,263 | 17,744 |
10% | 9.7% | 9,132 | 8,876 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,588 | ||
Calibration 2 | 90,616 | ||
Calibration 3 | 90,597 | ||
ssj_ops@calibrated=90,607 | |||
100% | 99.4% | 90,607 | 90,027 |
90% | 90.9% | 81,546 | 82,382 |
80% | 79.4% | 72,485 | 71,952 |
70% | 69.2% | 63,425 | 62,724 |
60% | 60.0% | 54,364 | 54,383 |
50% | 50.0% | 45,303 | 45,300 |
40% | 40.0% | 36,243 | 36,201 |
30% | 29.8% | 27,182 | 26,968 |
20% | 20.2% | 18,121 | 18,295 |
10% | 9.8% | 9,061 | 8,916 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,676 | ||
Calibration 2 | 91,774 | ||
Calibration 3 | 91,781 | ||
ssj_ops@calibrated=91,778 | |||
100% | 99.2% | 91,778 | 91,058 |
90% | 90.4% | 82,600 | 82,922 |
80% | 79.3% | 73,422 | 72,808 |
70% | 69.1% | 64,244 | 63,459 |
60% | 59.7% | 55,067 | 54,750 |
50% | 50.0% | 45,889 | 45,934 |
40% | 39.3% | 36,711 | 36,048 |
30% | 29.9% | 27,533 | 27,416 |
20% | 19.7% | 18,356 | 18,070 |
10% | 10.3% | 9,178 | 9,417 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,292 | ||
Calibration 2 | 89,210 | ||
Calibration 3 | 90,731 | ||
ssj_ops@calibrated=89,970 | |||
100% | 100.8% | 89,970 | 90,696 |
90% | 90.0% | 80,973 | 80,967 |
80% | 79.8% | 71,976 | 71,759 |
70% | 69.9% | 62,979 | 62,870 |
60% | 59.1% | 53,982 | 53,186 |
50% | 49.3% | 44,985 | 44,370 |
40% | 39.9% | 35,988 | 35,888 |
30% | 29.6% | 26,991 | 26,656 |
20% | 20.2% | 17,994 | 18,130 |
10% | 10.2% | 8,997 | 9,169 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,687 | ||
Calibration 2 | 91,458 | ||
Calibration 3 | 91,035 | ||
ssj_ops@calibrated=91,247 | |||
100% | 99.5% | 91,247 | 90,812 |
90% | 88.6% | 82,122 | 80,831 |
80% | 79.5% | 72,997 | 72,527 |
70% | 69.4% | 63,873 | 63,292 |
60% | 60.4% | 54,748 | 55,099 |
50% | 49.7% | 45,623 | 45,306 |
40% | 39.9% | 36,499 | 36,401 |
30% | 29.9% | 27,374 | 27,315 |
20% | 19.8% | 18,249 | 18,029 |
10% | 10.0% | 9,125 | 9,133 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,489 | ||
Calibration 2 | 90,189 | ||
Calibration 3 | 89,925 | ||
ssj_ops@calibrated=90,057 | |||
100% | 99.7% | 90,057 | 89,775 |
90% | 90.4% | 81,051 | 81,398 |
80% | 78.7% | 72,045 | 70,888 |
70% | 69.5% | 63,040 | 62,605 |
60% | 59.9% | 54,034 | 53,987 |
50% | 49.5% | 45,028 | 44,603 |
40% | 40.2% | 36,023 | 36,210 |
30% | 30.3% | 27,017 | 27,253 |
20% | 20.1% | 18,011 | 18,138 |
10% | 10.1% | 9,006 | 9,066 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,990 | ||
Calibration 2 | 89,203 | ||
Calibration 3 | 89,183 | ||
ssj_ops@calibrated=89,193 | |||
100% | 99.4% | 89,193 | 88,613 |
90% | 90.9% | 80,274 | 81,061 |
80% | 80.3% | 71,354 | 71,610 |
70% | 70.1% | 62,435 | 62,561 |
60% | 60.4% | 53,516 | 53,854 |
50% | 49.5% | 44,596 | 44,117 |
40% | 40.5% | 35,677 | 36,116 |
30% | 30.1% | 26,758 | 26,839 |
20% | 19.8% | 17,839 | 17,701 |
10% | 10.1% | 8,919 | 8,975 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,663 | ||
Calibration 2 | 90,560 | ||
Calibration 3 | 90,470 | ||
ssj_ops@calibrated=90,515 | |||
100% | 100.6% | 90,515 | 91,077 |
90% | 90.5% | 81,463 | 81,890 |
80% | 80.3% | 72,412 | 72,708 |
70% | 69.6% | 63,360 | 62,954 |
60% | 60.0% | 54,309 | 54,312 |
50% | 49.9% | 45,257 | 45,152 |
40% | 40.0% | 36,206 | 36,199 |
30% | 29.6% | 27,154 | 26,828 |
20% | 20.4% | 18,103 | 18,487 |
10% | 10.0% | 9,051 | 9,041 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,132 | ||
Calibration 2 | 91,595 | ||
Calibration 3 | 91,811 | ||
ssj_ops@calibrated=91,703 | |||
100% | 100.1% | 91,703 | 91,825 |
90% | 90.3% | 82,533 | 82,819 |
80% | 80.7% | 73,363 | 73,983 |
70% | 69.7% | 64,192 | 63,956 |
60% | 59.8% | 55,022 | 54,880 |
50% | 50.1% | 45,852 | 45,989 |
40% | 40.2% | 36,681 | 36,887 |
30% | 30.0% | 27,511 | 27,505 |
20% | 20.4% | 18,341 | 18,662 |
10% | 9.8% | 9,170 | 8,958 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,811 | ||
Calibration 2 | 90,223 | ||
Calibration 3 | 89,963 | ||
ssj_ops@calibrated=90,093 | |||
100% | 99.2% | 90,093 | 89,374 |
90% | 90.0% | 81,083 | 81,078 |
80% | 79.5% | 72,074 | 71,645 |
70% | 69.9% | 63,065 | 62,990 |
60% | 59.6% | 54,056 | 53,699 |
50% | 49.8% | 45,046 | 44,832 |
40% | 39.6% | 36,037 | 35,635 |
30% | 30.3% | 27,028 | 27,272 |
20% | 20.4% | 18,019 | 18,419 |
10% | 10.1% | 9,009 | 9,116 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,399 | ||
Calibration 2 | 91,795 | ||
Calibration 3 | 91,307 | ||
ssj_ops@calibrated=91,551 | |||
100% | 100.1% | 91,551 | 91,661 |
90% | 89.0% | 82,396 | 81,463 |
80% | 80.7% | 73,241 | 73,865 |
70% | 69.9% | 64,086 | 63,973 |
60% | 60.3% | 54,931 | 55,237 |
50% | 49.4% | 45,776 | 45,242 |
40% | 39.6% | 36,620 | 36,278 |
30% | 30.0% | 27,465 | 27,487 |
20% | 19.6% | 18,310 | 17,974 |
10% | 9.9% | 9,155 | 9,062 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,212 | ||
Calibration 2 | 91,083 | ||
Calibration 3 | 90,838 | ||
ssj_ops@calibrated=90,961 | |||
100% | 99.2% | 90,961 | 90,277 |
90% | 88.6% | 81,864 | 80,608 |
80% | 79.8% | 72,768 | 72,610 |
70% | 70.0% | 63,672 | 63,653 |
60% | 59.8% | 54,576 | 54,355 |
50% | 50.0% | 45,480 | 45,497 |
40% | 40.4% | 36,384 | 36,715 |
30% | 30.1% | 27,288 | 27,416 |
20% | 19.4% | 18,192 | 17,691 |
10% | 10.2% | 9,096 | 9,261 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,674 | ||
Calibration 2 | 91,270 | ||
Calibration 3 | 90,919 | ||
ssj_ops@calibrated=91,094 | |||
100% | 100.1% | 91,094 | 91,206 |
90% | 90.3% | 81,985 | 82,251 |
80% | 79.5% | 72,875 | 72,382 |
70% | 70.5% | 63,766 | 64,216 |
60% | 59.5% | 54,656 | 54,168 |
50% | 49.6% | 45,547 | 45,188 |
40% | 39.2% | 36,438 | 35,687 |
30% | 29.9% | 27,328 | 27,211 |
20% | 20.4% | 18,219 | 18,565 |
10% | 9.8% | 9,109 | 8,908 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,144 | ||
Calibration 2 | 91,429 | ||
Calibration 3 | 90,972 | ||
ssj_ops@calibrated=91,200 | |||
100% | 99.9% | 91,200 | 91,113 |
90% | 89.3% | 82,080 | 81,419 |
80% | 80.8% | 72,960 | 73,647 |
70% | 70.3% | 63,840 | 64,127 |
60% | 59.2% | 54,720 | 53,995 |
50% | 49.8% | 45,600 | 45,440 |
40% | 39.9% | 36,480 | 36,375 |
30% | 30.7% | 27,360 | 27,971 |
20% | 20.4% | 18,240 | 18,647 |
10% | 9.8% | 9,120 | 8,941 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,326 | ||
Calibration 2 | 90,017 | ||
Calibration 3 | 90,159 | ||
ssj_ops@calibrated=90,088 | |||
100% | 99.7% | 90,088 | 89,780 |
90% | 90.6% | 81,079 | 81,620 |
80% | 79.3% | 72,070 | 71,453 |
70% | 69.4% | 63,062 | 62,508 |
60% | 59.8% | 54,053 | 53,899 |
50% | 50.4% | 45,044 | 45,429 |
40% | 39.7% | 36,035 | 35,799 |
30% | 30.0% | 27,026 | 27,027 |
20% | 20.5% | 18,018 | 18,436 |
10% | 9.6% | 9,009 | 8,648 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,605 | ||
Calibration 2 | 91,036 | ||
Calibration 3 | 90,892 | ||
ssj_ops@calibrated=90,964 | |||
100% | 99.4% | 90,964 | 90,399 |
90% | 90.9% | 81,868 | 82,683 |
80% | 80.3% | 72,771 | 73,082 |
70% | 69.9% | 63,675 | 63,580 |
60% | 60.0% | 54,579 | 54,554 |
50% | 49.5% | 45,482 | 45,039 |
40% | 40.1% | 36,386 | 36,516 |
30% | 30.4% | 27,289 | 27,660 |
20% | 19.1% | 18,193 | 17,417 |
10% | 10.5% | 9,096 | 9,546 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,031 | ||
Calibration 2 | 92,540 | ||
Calibration 3 | 92,656 | ||
ssj_ops@calibrated=92,598 | |||
100% | 99.9% | 92,598 | 92,515 |
90% | 90.0% | 83,338 | 83,341 |
80% | 80.5% | 74,079 | 74,524 |
70% | 70.8% | 64,819 | 65,549 |
60% | 60.4% | 55,559 | 55,913 |
50% | 49.9% | 46,299 | 46,251 |
40% | 40.0% | 37,039 | 37,012 |
30% | 29.9% | 27,779 | 27,709 |
20% | 19.5% | 18,520 | 18,033 |
10% | 10.2% | 9,260 | 9,425 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,207 | ||
Calibration 2 | 93,165 | ||
Calibration 3 | 92,941 | ||
ssj_ops@calibrated=93,053 | |||
100% | 99.3% | 93,053 | 92,382 |
90% | 90.4% | 83,748 | 84,096 |
80% | 79.5% | 74,442 | 74,019 |
70% | 70.6% | 65,137 | 65,697 |
60% | 60.0% | 55,832 | 55,843 |
50% | 50.3% | 46,527 | 46,824 |
40% | 39.9% | 37,221 | 37,102 |
30% | 30.2% | 27,916 | 28,109 |
20% | 20.2% | 18,611 | 18,766 |
10% | 9.7% | 9,305 | 9,046 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,729 | ||
Calibration 2 | 92,065 | ||
Calibration 3 | 91,771 | ||
ssj_ops@calibrated=91,918 | |||
100% | 99.7% | 91,918 | 91,683 |
90% | 90.1% | 82,726 | 82,777 |
80% | 80.3% | 73,535 | 73,810 |
70% | 70.2% | 64,343 | 64,484 |
60% | 59.8% | 55,151 | 54,989 |
50% | 49.8% | 45,959 | 45,759 |
40% | 40.5% | 36,767 | 37,199 |
30% | 29.5% | 27,575 | 27,157 |
20% | 18.8% | 18,384 | 17,283 |
10% | 9.8% | 9,192 | 9,012 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,643 | ||
Calibration 2 | 93,686 | ||
Calibration 3 | 93,275 | ||
ssj_ops@calibrated=93,481 | |||
100% | 99.9% | 93,481 | 93,391 |
90% | 90.5% | 84,133 | 84,614 |
80% | 80.9% | 74,785 | 75,613 |
70% | 70.1% | 65,437 | 65,526 |
60% | 59.1% | 56,088 | 55,257 |
50% | 49.6% | 46,740 | 46,389 |
40% | 39.8% | 37,392 | 37,249 |
30% | 29.5% | 28,044 | 27,599 |
20% | 20.0% | 18,696 | 18,703 |
10% | 10.0% | 9,348 | 9,358 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,299 | ||
Calibration 2 | 90,330 | ||
Calibration 3 | 90,091 | ||
ssj_ops@calibrated=90,211 | |||
100% | 100.1% | 90,211 | 90,275 |
90% | 90.3% | 81,190 | 81,483 |
80% | 79.9% | 72,169 | 72,106 |
70% | 69.1% | 63,148 | 62,317 |
60% | 60.2% | 54,127 | 54,329 |
50% | 50.2% | 45,105 | 45,248 |
40% | 40.3% | 36,084 | 36,341 |
30% | 30.6% | 27,063 | 27,609 |
20% | 19.5% | 18,042 | 17,633 |
10% | 10.2% | 9,021 | 9,216 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,217 | ||
Calibration 2 | 91,773 | ||
Calibration 3 | 91,325 | ||
ssj_ops@calibrated=91,549 | |||
100% | 99.9% | 91,549 | 91,481 |
90% | 90.7% | 82,394 | 82,991 |
80% | 79.9% | 73,239 | 73,124 |
70% | 69.6% | 64,084 | 63,750 |
60% | 60.2% | 54,930 | 55,113 |
50% | 50.3% | 45,775 | 46,084 |
40% | 39.8% | 36,620 | 36,479 |
30% | 30.8% | 27,465 | 28,213 |
20% | 19.9% | 18,310 | 18,204 |
10% | 9.9% | 9,155 | 9,054 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,609 | ||
Calibration 2 | 91,418 | ||
Calibration 3 | 91,017 | ||
ssj_ops@calibrated=91,218 | |||
100% | 99.6% | 91,218 | 90,812 |
90% | 90.4% | 82,096 | 82,494 |
80% | 81.1% | 72,974 | 73,970 |
70% | 69.9% | 63,852 | 63,772 |
60% | 59.8% | 54,731 | 54,569 |
50% | 50.1% | 45,609 | 45,729 |
40% | 40.0% | 36,487 | 36,469 |
30% | 29.9% | 27,365 | 27,273 |
20% | 20.2% | 18,244 | 18,448 |
10% | 10.1% | 9,122 | 9,201 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,714 | ||
Calibration 2 | 91,492 | ||
Calibration 3 | 91,034 | ||
ssj_ops@calibrated=91,263 | |||
100% | 99.2% | 91,263 | 90,523 |
90% | 89.9% | 82,137 | 82,059 |
80% | 79.4% | 73,011 | 72,438 |
70% | 70.5% | 63,884 | 64,332 |
60% | 59.5% | 54,758 | 54,293 |
50% | 50.4% | 45,632 | 45,965 |
40% | 39.6% | 36,505 | 36,096 |
30% | 30.5% | 27,379 | 27,845 |
20% | 19.8% | 18,253 | 18,054 |
10% | 10.4% | 9,126 | 9,529 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,669 | ||
Calibration 2 | 92,197 | ||
Calibration 3 | 91,582 | ||
ssj_ops@calibrated=91,889 | |||
100% | 100.6% | 91,889 | 92,435 |
90% | 89.0% | 82,701 | 81,787 |
80% | 80.3% | 73,512 | 73,762 |
70% | 69.9% | 64,323 | 64,229 |
60% | 59.0% | 55,134 | 54,245 |
50% | 49.8% | 45,945 | 45,717 |
40% | 40.1% | 36,756 | 36,823 |
30% | 29.8% | 27,567 | 27,368 |
20% | 20.2% | 18,378 | 18,583 |
10% | 10.0% | 9,189 | 9,189 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,696 | ||
Calibration 2 | 89,671 | ||
Calibration 3 | 89,222 | ||
ssj_ops@calibrated=89,446 | |||
100% | 100.1% | 89,446 | 89,545 |
90% | 89.6% | 80,502 | 80,180 |
80% | 79.8% | 71,557 | 71,358 |
70% | 70.4% | 62,612 | 62,953 |
60% | 59.1% | 53,668 | 52,879 |
50% | 49.6% | 44,723 | 44,371 |
40% | 40.9% | 35,779 | 36,572 |
30% | 29.8% | 26,834 | 26,662 |
20% | 19.8% | 17,889 | 17,741 |
10% | 10.0% | 8,945 | 8,975 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,789 | ||
Calibration 2 | 91,294 | ||
Calibration 3 | 90,777 | ||
ssj_ops@calibrated=91,036 | |||
100% | 100.0% | 91,036 | 90,997 |
90% | 89.7% | 81,932 | 81,669 |
80% | 80.9% | 72,829 | 73,616 |
70% | 70.3% | 63,725 | 64,000 |
60% | 59.2% | 54,621 | 53,881 |
50% | 49.9% | 45,518 | 45,431 |
40% | 40.0% | 36,414 | 36,424 |
30% | 30.2% | 27,311 | 27,475 |
20% | 19.7% | 18,207 | 17,967 |
10% | 9.7% | 9,104 | 8,829 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,070 | ||
Calibration 2 | 90,363 | ||
Calibration 3 | 90,257 | ||
ssj_ops@calibrated=90,310 | |||
100% | 99.7% | 90,310 | 90,034 |
90% | 91.0% | 81,279 | 82,186 |
80% | 79.8% | 72,248 | 72,056 |
70% | 70.4% | 63,217 | 63,612 |
60% | 59.6% | 54,186 | 53,870 |
50% | 50.3% | 45,155 | 45,390 |
40% | 39.8% | 36,124 | 35,943 |
30% | 30.2% | 27,093 | 27,267 |
20% | 19.3% | 18,062 | 17,424 |
10% | 9.9% | 9,031 | 8,914 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,514 | ||
Calibration 2 | 91,251 | ||
Calibration 3 | 90,986 | ||
ssj_ops@calibrated=91,119 | |||
100% | 98.6% | 91,119 | 89,861 |
90% | 89.9% | 82,007 | 81,943 |
80% | 80.1% | 72,895 | 73,008 |
70% | 70.0% | 63,783 | 63,824 |
60% | 59.7% | 54,671 | 54,414 |
50% | 50.0% | 45,559 | 45,550 |
40% | 40.0% | 36,447 | 36,441 |
30% | 29.8% | 27,336 | 27,164 |
20% | 19.7% | 18,224 | 17,947 |
10% | 9.9% | 9,112 | 8,992 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,220 | ||
Calibration 2 | 91,342 | ||
Calibration 3 | 91,418 | ||
ssj_ops@calibrated=91,380 | |||
100% | 98.9% | 91,380 | 90,402 |
90% | 89.8% | 82,242 | 82,035 |
80% | 79.5% | 73,104 | 72,685 |
70% | 70.4% | 63,966 | 64,334 |
60% | 59.8% | 54,828 | 54,645 |
50% | 50.1% | 45,690 | 45,768 |
40% | 40.6% | 36,552 | 37,064 |
30% | 30.0% | 27,414 | 27,378 |
20% | 19.7% | 18,276 | 17,988 |
10% | 10.3% | 9,138 | 9,375 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,491 | ||
Calibration 2 | 91,012 | ||
Calibration 3 | 90,999 | ||
ssj_ops@calibrated=91,006 | |||
100% | 99.6% | 91,006 | 90,604 |
90% | 89.8% | 81,905 | 81,688 |
80% | 79.2% | 72,805 | 72,110 |
70% | 70.1% | 63,704 | 63,786 |
60% | 59.6% | 54,603 | 54,278 |
50% | 51.0% | 45,503 | 46,416 |
40% | 39.7% | 36,402 | 36,109 |
30% | 29.8% | 27,302 | 27,145 |
20% | 19.9% | 18,201 | 18,138 |
10% | 9.8% | 9,101 | 8,882 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,262 | ||
Calibration 2 | 93,357 | ||
Calibration 3 | 92,871 | ||
ssj_ops@calibrated=93,114 | |||
100% | 99.6% | 93,114 | 92,721 |
90% | 89.1% | 83,802 | 83,003 |
80% | 78.9% | 74,491 | 73,462 |
70% | 70.4% | 65,180 | 65,536 |
60% | 59.2% | 55,868 | 55,138 |
50% | 50.1% | 46,557 | 46,617 |
40% | 39.0% | 37,246 | 36,344 |
30% | 29.6% | 27,934 | 27,607 |
20% | 20.1% | 18,623 | 18,694 |
10% | 9.5% | 9,311 | 8,861 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,299 | ||
Calibration 2 | 92,002 | ||
Calibration 3 | 91,364 | ||
ssj_ops@calibrated=91,683 | |||
100% | 98.9% | 91,683 | 90,708 |
90% | 90.2% | 82,515 | 82,669 |
80% | 80.0% | 73,346 | 73,347 |
70% | 69.6% | 64,178 | 63,776 |
60% | 59.6% | 55,010 | 54,629 |
50% | 49.7% | 45,841 | 45,582 |
40% | 39.9% | 36,673 | 36,572 |
30% | 30.2% | 27,505 | 27,680 |
20% | 20.4% | 18,337 | 18,687 |
10% | 10.0% | 9,168 | 9,142 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,503 | ||
Calibration 2 | 91,314 | ||
Calibration 3 | 89,861 | ||
ssj_ops@calibrated=90,588 | |||
100% | 99.0% | 90,588 | 89,686 |
90% | 89.4% | 81,529 | 81,020 |
80% | 80.1% | 72,470 | 72,563 |
70% | 70.4% | 63,411 | 63,776 |
60% | 60.4% | 54,353 | 54,757 |
50% | 50.3% | 45,294 | 45,549 |
40% | 39.4% | 36,235 | 35,662 |
30% | 28.9% | 27,176 | 26,136 |
20% | 19.9% | 18,118 | 18,004 |
10% | 10.1% | 9,059 | 9,129 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,291 | ||
Calibration 2 | 90,497 | ||
Calibration 3 | 90,862 | ||
ssj_ops@calibrated=90,680 | |||
100% | 99.9% | 90,680 | 90,569 |
90% | 90.4% | 81,612 | 82,019 |
80% | 80.5% | 72,544 | 73,041 |
70% | 69.5% | 63,476 | 63,028 |
60% | 60.7% | 54,408 | 55,045 |
50% | 50.4% | 45,340 | 45,688 |
40% | 39.9% | 36,272 | 36,157 |
30% | 29.9% | 27,204 | 27,078 |
20% | 20.1% | 18,136 | 18,252 |
10% | 9.9% | 9,068 | 8,992 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,895 | ||
Calibration 2 | 92,158 | ||
Calibration 3 | 91,985 | ||
ssj_ops@calibrated=92,071 | |||
100% | 99.1% | 92,071 | 91,283 |
90% | 89.4% | 82,864 | 82,279 |
80% | 79.7% | 73,657 | 73,385 |
70% | 69.6% | 64,450 | 64,037 |
60% | 59.9% | 55,243 | 55,107 |
50% | 51.2% | 46,036 | 47,142 |
40% | 39.8% | 36,828 | 36,626 |
30% | 29.9% | 27,621 | 27,503 |
20% | 20.4% | 18,414 | 18,753 |
10% | 9.8% | 9,207 | 9,025 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,808 | ||
Calibration 2 | 91,143 | ||
Calibration 3 | 91,189 | ||
ssj_ops@calibrated=91,166 | |||
100% | 99.7% | 91,166 | 90,915 |
90% | 89.6% | 82,049 | 81,726 |
80% | 79.1% | 72,933 | 72,082 |
70% | 70.4% | 63,816 | 64,148 |
60% | 60.5% | 54,700 | 55,110 |
50% | 49.8% | 45,583 | 45,440 |
40% | 40.1% | 36,466 | 36,602 |
30% | 29.9% | 27,350 | 27,265 |
20% | 19.7% | 18,233 | 17,968 |
10% | 10.3% | 9,117 | 9,366 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,764 | ||
Calibration 2 | 89,617 | ||
Calibration 3 | 89,913 | ||
ssj_ops@calibrated=89,765 | |||
100% | 99.4% | 89,765 | 89,257 |
90% | 91.2% | 80,788 | 81,830 |
80% | 79.3% | 71,812 | 71,173 |
70% | 70.2% | 62,835 | 63,054 |
60% | 59.3% | 53,859 | 53,193 |
50% | 49.8% | 44,882 | 44,745 |
40% | 40.3% | 35,906 | 36,157 |
30% | 30.4% | 26,929 | 27,325 |
20% | 19.9% | 17,953 | 17,850 |
10% | 10.1% | 8,976 | 9,062 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,087 | ||
Calibration 2 | 92,767 | ||
Calibration 3 | 92,523 | ||
ssj_ops@calibrated=92,645 | |||
100% | 100.1% | 92,645 | 92,773 |
90% | 90.0% | 83,381 | 83,414 |
80% | 79.7% | 74,116 | 73,827 |
70% | 70.7% | 64,852 | 65,528 |
60% | 59.4% | 55,587 | 55,016 |
50% | 49.0% | 46,323 | 45,441 |
40% | 40.4% | 37,058 | 37,425 |
30% | 30.3% | 27,794 | 28,045 |
20% | 19.6% | 18,529 | 18,184 |
10% | 10.0% | 9,265 | 9,250 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,735 | ||
Calibration 2 | 90,654 | ||
Calibration 3 | 90,030 | ||
ssj_ops@calibrated=90,342 | |||
100% | 99.4% | 90,342 | 89,777 |
90% | 89.8% | 81,308 | 81,136 |
80% | 78.8% | 72,274 | 71,178 |
70% | 69.7% | 63,240 | 62,984 |
60% | 61.0% | 54,205 | 55,146 |
50% | 50.5% | 45,171 | 45,630 |
40% | 40.3% | 36,137 | 36,373 |
30% | 29.6% | 27,103 | 26,732 |
20% | 20.5% | 18,068 | 18,504 |
10% | 9.9% | 9,034 | 8,946 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,770 | ||
Calibration 2 | 90,501 | ||
Calibration 3 | 90,083 | ||
ssj_ops@calibrated=90,292 | |||
100% | 100.0% | 90,292 | 90,336 |
90% | 89.8% | 81,263 | 81,123 |
80% | 81.0% | 72,233 | 73,151 |
70% | 70.1% | 63,204 | 63,257 |
60% | 59.3% | 54,175 | 53,582 |
50% | 50.8% | 45,146 | 45,875 |
40% | 40.0% | 36,117 | 36,115 |
30% | 30.5% | 27,088 | 27,543 |
20% | 19.7% | 18,058 | 17,778 |
10% | 10.2% | 9,029 | 9,250 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,279 | ||
Calibration 2 | 90,134 | ||
Calibration 3 | 89,924 | ||
ssj_ops@calibrated=90,029 | |||
100% | 99.9% | 90,029 | 89,904 |
90% | 89.9% | 81,026 | 80,947 |
80% | 79.1% | 72,023 | 71,195 |
70% | 69.6% | 63,020 | 62,632 |
60% | 60.4% | 54,017 | 54,379 |
50% | 50.3% | 45,014 | 45,327 |
40% | 40.2% | 36,011 | 36,198 |
30% | 29.2% | 27,009 | 26,322 |
20% | 20.0% | 18,006 | 17,981 |
10% | 9.9% | 9,003 | 8,900 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,464 | ||
Calibration 2 | 91,008 | ||
Calibration 3 | 90,736 | ||
ssj_ops@calibrated=90,872 | |||
100% | 99.8% | 90,872 | 90,670 |
90% | 89.2% | 81,785 | 81,099 |
80% | 79.6% | 72,698 | 72,345 |
70% | 69.6% | 63,611 | 63,223 |
60% | 59.2% | 54,523 | 53,824 |
50% | 50.1% | 45,436 | 45,549 |
40% | 41.0% | 36,349 | 37,253 |
30% | 29.9% | 27,262 | 27,143 |
20% | 20.7% | 18,174 | 18,837 |
10% | 10.1% | 9,087 | 9,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,105 | ||
Calibration 2 | 89,746 | ||
Calibration 3 | 89,843 | ||
ssj_ops@calibrated=89,795 | |||
100% | 99.7% | 89,795 | 89,491 |
90% | 89.9% | 80,815 | 80,752 |
80% | 80.2% | 71,836 | 72,042 |
70% | 70.5% | 62,856 | 63,306 |
60% | 59.7% | 53,877 | 53,629 |
50% | 50.9% | 44,897 | 45,688 |
40% | 40.2% | 35,918 | 36,102 |
30% | 29.9% | 26,938 | 26,875 |
20% | 19.8% | 17,959 | 17,787 |
10% | 9.8% | 8,979 | 8,841 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,812 | ||
Calibration 2 | 91,011 | ||
Calibration 3 | 91,146 | ||
ssj_ops@calibrated=91,078 | |||
100% | 99.5% | 91,078 | 90,647 |
90% | 89.2% | 81,971 | 81,199 |
80% | 80.3% | 72,863 | 73,124 |
70% | 70.1% | 63,755 | 63,878 |
60% | 60.5% | 54,647 | 55,114 |
50% | 50.0% | 45,539 | 45,519 |
40% | 40.1% | 36,431 | 36,534 |
30% | 29.3% | 27,324 | 26,651 |
20% | 20.4% | 18,216 | 18,621 |
10% | 10.1% | 9,108 | 9,233 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,289 | ||
Calibration 2 | 90,521 | ||
Calibration 3 | 90,225 | ||
ssj_ops@calibrated=90,373 | |||
100% | 98.4% | 90,373 | 88,919 |
90% | 91.1% | 81,336 | 82,359 |
80% | 79.6% | 72,298 | 71,925 |
70% | 70.2% | 63,261 | 63,484 |
60% | 60.8% | 54,224 | 54,978 |
50% | 49.9% | 45,186 | 45,123 |
40% | 39.6% | 36,149 | 35,783 |
30% | 30.1% | 27,112 | 27,219 |
20% | 20.0% | 18,075 | 18,075 |
10% | 10.1% | 9,037 | 9,142 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,818 | ||
Calibration 2 | 90,756 | ||
Calibration 3 | 90,698 | ||
ssj_ops@calibrated=90,727 | |||
100% | 98.2% | 90,727 | 89,117 |
90% | 90.3% | 81,654 | 81,904 |
80% | 80.3% | 72,581 | 72,881 |
70% | 69.6% | 63,509 | 63,170 |
60% | 60.1% | 54,436 | 54,531 |
50% | 49.8% | 45,363 | 45,209 |
40% | 40.1% | 36,291 | 36,370 |
30% | 30.1% | 27,218 | 27,330 |
20% | 20.3% | 18,145 | 18,436 |
10% | 10.3% | 9,073 | 9,362 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,585 | ||
Calibration 2 | 90,996 | ||
Calibration 3 | 90,575 | ||
ssj_ops@calibrated=90,785 | |||
100% | 100.0% | 90,785 | 90,753 |
90% | 89.9% | 81,707 | 81,600 |
80% | 80.5% | 72,628 | 73,047 |
70% | 69.8% | 63,550 | 63,363 |
60% | 60.1% | 54,471 | 54,601 |
50% | 50.4% | 45,393 | 45,786 |
40% | 40.3% | 36,314 | 36,605 |
30% | 30.5% | 27,236 | 27,687 |
20% | 20.1% | 18,157 | 18,285 |
10% | 9.8% | 9,079 | 8,923 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,521 | ||
Calibration 2 | 90,374 | ||
Calibration 3 | 90,630 | ||
ssj_ops@calibrated=90,502 | |||
100% | 99.3% | 90,502 | 89,912 |
90% | 89.6% | 81,452 | 81,058 |
80% | 79.3% | 72,402 | 71,811 |
70% | 70.7% | 63,351 | 63,968 |
60% | 60.9% | 54,301 | 55,105 |
50% | 50.7% | 45,251 | 45,879 |
40% | 40.1% | 36,201 | 36,287 |
30% | 29.5% | 27,151 | 26,739 |
20% | 20.2% | 18,100 | 18,266 |
10% | 10.0% | 9,050 | 9,012 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,529 | ||
Calibration 2 | 90,854 | ||
Calibration 3 | 90,786 | ||
ssj_ops@calibrated=90,820 | |||
100% | 100.2% | 90,820 | 91,004 |
90% | 88.9% | 81,738 | 80,701 |
80% | 79.6% | 72,656 | 72,258 |
70% | 69.8% | 63,574 | 63,367 |
60% | 60.4% | 54,492 | 54,825 |
50% | 49.5% | 45,410 | 44,925 |
40% | 40.4% | 36,328 | 36,723 |
30% | 30.6% | 27,246 | 27,752 |
20% | 20.1% | 18,164 | 18,218 |
10% | 10.0% | 9,082 | 9,097 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,899 | ||
Calibration 2 | 90,723 | ||
Calibration 3 | 90,286 | ||
ssj_ops@calibrated=90,504 | |||
100% | 100.0% | 90,504 | 90,466 |
90% | 90.5% | 81,454 | 81,930 |
80% | 79.8% | 72,404 | 72,258 |
70% | 69.3% | 63,353 | 62,734 |
60% | 60.0% | 54,303 | 54,268 |
50% | 49.5% | 45,252 | 44,837 |
40% | 39.7% | 36,202 | 35,947 |
30% | 29.6% | 27,151 | 26,810 |
20% | 20.6% | 18,101 | 18,650 |
10% | 10.1% | 9,050 | 9,141 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,185 | ||
Calibration 2 | 93,507 | ||
Calibration 3 | 93,586 | ||
ssj_ops@calibrated=93,547 | |||
100% | 100.0% | 93,547 | 93,568 |
90% | 90.4% | 84,192 | 84,598 |
80% | 80.2% | 74,837 | 74,998 |
70% | 69.9% | 65,483 | 65,387 |
60% | 60.1% | 56,128 | 56,193 |
50% | 49.8% | 46,773 | 46,545 |
40% | 40.9% | 37,419 | 38,247 |
30% | 29.6% | 28,064 | 27,691 |
20% | 20.0% | 18,709 | 18,752 |
10% | 10.0% | 9,355 | 9,350 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,601 | ||
Calibration 2 | 92,192 | ||
Calibration 3 | 92,089 | ||
ssj_ops@calibrated=92,140 | |||
100% | 99.4% | 92,140 | 91,614 |
90% | 89.2% | 82,926 | 82,212 |
80% | 79.7% | 73,712 | 73,463 |
70% | 71.0% | 64,498 | 65,421 |
60% | 59.7% | 55,284 | 55,006 |
50% | 50.7% | 46,070 | 46,726 |
40% | 39.5% | 36,856 | 36,439 |
30% | 30.2% | 27,642 | 27,826 |
20% | 19.5% | 18,428 | 18,012 |
10% | 10.3% | 9,214 | 9,504 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,950 | ||
Calibration 2 | 92,000 | ||
Calibration 3 | 91,454 | ||
ssj_ops@calibrated=91,727 | |||
100% | 99.7% | 91,727 | 91,474 |
90% | 89.6% | 82,554 | 82,221 |
80% | 79.8% | 73,382 | 73,163 |
70% | 70.2% | 64,209 | 64,352 |
60% | 59.6% | 55,036 | 54,643 |
50% | 49.9% | 45,864 | 45,802 |
40% | 39.3% | 36,691 | 36,060 |
30% | 29.4% | 27,518 | 26,958 |
20% | 19.5% | 18,345 | 17,850 |
10% | 9.9% | 9,173 | 9,056 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,663 | ||
Calibration 2 | 89,816 | ||
Calibration 3 | 89,905 | ||
ssj_ops@calibrated=89,861 | |||
100% | 98.5% | 89,861 | 88,543 |
90% | 90.1% | 80,875 | 80,971 |
80% | 79.7% | 71,888 | 71,621 |
70% | 69.3% | 62,902 | 62,294 |
60% | 59.6% | 53,916 | 53,562 |
50% | 49.9% | 44,930 | 44,817 |
40% | 40.1% | 35,944 | 36,073 |
30% | 30.2% | 26,958 | 27,101 |
20% | 20.5% | 17,972 | 18,399 |
10% | 10.3% | 8,986 | 9,226 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,806 | ||
Calibration 2 | 90,876 | ||
Calibration 3 | 90,523 | ||
ssj_ops@calibrated=90,699 | |||
100% | 100.2% | 90,699 | 90,848 |
90% | 89.9% | 81,629 | 81,525 |
80% | 80.6% | 72,559 | 73,136 |
70% | 69.6% | 63,489 | 63,115 |
60% | 60.7% | 54,420 | 55,062 |
50% | 50.3% | 45,350 | 45,661 |
40% | 39.6% | 36,280 | 35,957 |
30% | 30.1% | 27,210 | 27,263 |
20% | 20.2% | 18,140 | 18,362 |
10% | 9.5% | 9,070 | 8,658 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,949 | ||
Calibration 2 | 91,495 | ||
Calibration 3 | 90,801 | ||
ssj_ops@calibrated=91,148 | |||
100% | 99.7% | 91,148 | 90,878 |
90% | 89.4% | 82,033 | 81,479 |
80% | 79.9% | 72,918 | 72,824 |
70% | 70.2% | 63,804 | 64,031 |
60% | 59.6% | 54,689 | 54,345 |
50% | 50.5% | 45,574 | 46,045 |
40% | 40.6% | 36,459 | 36,970 |
30% | 30.1% | 27,344 | 27,441 |
20% | 20.3% | 18,230 | 18,478 |
10% | 10.0% | 9,115 | 9,154 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,814 | ||
Calibration 2 | 90,756 | ||
Calibration 3 | 90,301 | ||
ssj_ops@calibrated=90,529 | |||
100% | 99.6% | 90,529 | 90,181 |
90% | 90.8% | 81,476 | 82,223 |
80% | 81.1% | 72,423 | 73,390 |
70% | 70.2% | 63,370 | 63,535 |
60% | 60.2% | 54,317 | 54,472 |
50% | 49.9% | 45,264 | 45,172 |
40% | 39.9% | 36,212 | 36,091 |
30% | 29.7% | 27,159 | 26,845 |
20% | 20.3% | 18,106 | 18,339 |
10% | 9.8% | 9,053 | 8,899 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,994 | ||
Calibration 2 | 91,640 | ||
Calibration 3 | 91,414 | ||
ssj_ops@calibrated=91,527 | |||
100% | 99.7% | 91,527 | 91,284 |
90% | 90.6% | 82,375 | 82,964 |
80% | 80.4% | 73,222 | 73,583 |
70% | 69.1% | 64,069 | 63,265 |
60% | 59.6% | 54,916 | 54,538 |
50% | 49.6% | 45,764 | 45,430 |
40% | 40.2% | 36,611 | 36,777 |
30% | 29.3% | 27,458 | 26,853 |
20% | 19.8% | 18,305 | 18,163 |
10% | 10.1% | 9,153 | 9,264 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,418 | ||
Calibration 2 | 92,135 | ||
Calibration 3 | 92,020 | ||
ssj_ops@calibrated=92,077 | |||
100% | 99.5% | 92,077 | 91,613 |
90% | 89.0% | 82,869 | 81,954 |
80% | 79.9% | 73,662 | 73,615 |
70% | 69.9% | 64,454 | 64,373 |
60% | 60.5% | 55,246 | 55,719 |
50% | 50.4% | 46,039 | 46,388 |
40% | 40.1% | 36,831 | 36,957 |
30% | 29.9% | 27,623 | 27,562 |
20% | 20.0% | 18,415 | 18,394 |
10% | 10.0% | 9,208 | 9,187 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,220 | ||
Calibration 2 | 91,367 | ||
Calibration 3 | 91,249 | ||
ssj_ops@calibrated=91,308 | |||
100% | 99.5% | 91,308 | 90,847 |
90% | 89.7% | 82,177 | 81,900 |
80% | 80.3% | 73,047 | 73,341 |
70% | 69.1% | 63,916 | 63,088 |
60% | 59.9% | 54,785 | 54,687 |
50% | 50.3% | 45,654 | 45,906 |
40% | 40.2% | 36,523 | 36,700 |
30% | 29.6% | 27,392 | 26,987 |
20% | 20.2% | 18,262 | 18,458 |
10% | 10.1% | 9,131 | 9,186 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,854 | ||
Calibration 2 | 90,353 | ||
Calibration 3 | 90,680 | ||
ssj_ops@calibrated=90,517 | |||
100% | 100.0% | 90,517 | 90,473 |
90% | 90.2% | 81,465 | 81,655 |
80% | 79.6% | 72,413 | 72,090 |
70% | 69.6% | 63,362 | 63,019 |
60% | 60.2% | 54,310 | 54,479 |
50% | 50.1% | 45,258 | 45,349 |
40% | 39.2% | 36,207 | 35,515 |
30% | 29.5% | 27,155 | 26,658 |
20% | 19.5% | 18,103 | 17,637 |
10% | 9.7% | 9,052 | 8,800 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,194 | ||
Calibration 2 | 90,800 | ||
Calibration 3 | 91,052 | ||
ssj_ops@calibrated=90,926 | |||
100% | 99.6% | 90,926 | 90,559 |
90% | 89.8% | 81,833 | 81,671 |
80% | 79.5% | 72,741 | 72,302 |
70% | 70.2% | 63,648 | 63,798 |
60% | 60.0% | 54,556 | 54,578 |
50% | 49.9% | 45,463 | 45,376 |
40% | 39.5% | 36,370 | 35,920 |
30% | 30.1% | 27,278 | 27,345 |
20% | 20.3% | 18,185 | 18,482 |
10% | 10.2% | 9,093 | 9,296 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,495 | ||
Calibration 2 | 91,264 | ||
Calibration 3 | 91,215 | ||
ssj_ops@calibrated=91,239 | |||
100% | 99.8% | 91,239 | 91,096 |
90% | 89.3% | 82,115 | 81,505 |
80% | 79.7% | 72,991 | 72,729 |
70% | 70.6% | 63,867 | 64,390 |
60% | 59.8% | 54,743 | 54,557 |
50% | 49.8% | 45,620 | 45,442 |
40% | 40.4% | 36,496 | 36,844 |
30% | 29.4% | 27,372 | 26,796 |
20% | 20.2% | 18,248 | 18,454 |
10% | 10.1% | 9,124 | 9,187 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,904 | ||
Calibration 2 | 90,704 | ||
Calibration 3 | 90,712 | ||
ssj_ops@calibrated=90,708 | |||
100% | 99.0% | 90,708 | 89,842 |
90% | 89.2% | 81,637 | 80,956 |
80% | 81.4% | 72,566 | 73,836 |
70% | 69.6% | 63,496 | 63,166 |
60% | 59.0% | 54,425 | 53,483 |
50% | 50.2% | 45,354 | 45,504 |
40% | 40.3% | 36,283 | 36,594 |
30% | 29.5% | 27,212 | 26,747 |
20% | 20.1% | 18,142 | 18,200 |
10% | 10.3% | 9,071 | 9,341 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,709 | ||
Calibration 2 | 90,933 | ||
Calibration 3 | 91,069 | ||
ssj_ops@calibrated=91,001 | |||
100% | 99.9% | 91,001 | 90,891 |
90% | 90.3% | 81,901 | 82,193 |
80% | 79.1% | 72,801 | 71,981 |
70% | 70.1% | 63,701 | 63,760 |
60% | 59.7% | 54,601 | 54,301 |
50% | 50.1% | 45,501 | 45,583 |
40% | 38.8% | 36,400 | 35,296 |
30% | 29.9% | 27,300 | 27,250 |
20% | 19.8% | 18,200 | 17,982 |
10% | 9.5% | 9,100 | 8,642 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,820 | ||
Calibration 2 | 91,227 | ||
Calibration 3 | 91,232 | ||
ssj_ops@calibrated=91,230 | |||
100% | 99.7% | 91,230 | 90,981 |
90% | 89.9% | 82,107 | 81,970 |
80% | 79.7% | 72,984 | 72,668 |
70% | 70.1% | 63,861 | 63,953 |
60% | 60.0% | 54,738 | 54,721 |
50% | 49.7% | 45,615 | 45,360 |
40% | 40.4% | 36,492 | 36,861 |
30% | 29.9% | 27,369 | 27,319 |
20% | 20.1% | 18,246 | 18,350 |
10% | 9.7% | 9,123 | 8,871 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,165 | ||
Calibration 2 | 90,833 | ||
Calibration 3 | 91,168 | ||
ssj_ops@calibrated=91,001 | |||
100% | 100.1% | 91,001 | 91,095 |
90% | 89.7% | 81,901 | 81,594 |
80% | 80.0% | 72,801 | 72,809 |
70% | 70.6% | 63,700 | 64,233 |
60% | 59.9% | 54,600 | 54,525 |
50% | 49.7% | 45,500 | 45,193 |
40% | 39.8% | 36,400 | 36,213 |
30% | 30.6% | 27,300 | 27,878 |
20% | 19.6% | 18,200 | 17,791 |
10% | 10.0% | 9,100 | 9,091 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,751 | ||
Calibration 2 | 90,044 | ||
Calibration 3 | 90,326 | ||
ssj_ops@calibrated=90,185 | |||
100% | 99.2% | 90,185 | 89,492 |
90% | 89.9% | 81,167 | 81,113 |
80% | 79.7% | 72,148 | 71,840 |
70% | 70.2% | 63,130 | 63,276 |
60% | 60.3% | 54,111 | 54,384 |
50% | 50.4% | 45,093 | 45,414 |
40% | 40.1% | 36,074 | 36,200 |
30% | 29.7% | 27,056 | 26,787 |
20% | 20.1% | 18,037 | 18,118 |
10% | 9.8% | 9,019 | 8,878 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,343 | ||
Calibration 2 | 93,811 | ||
Calibration 3 | 93,707 | ||
ssj_ops@calibrated=93,759 | |||
100% | 99.3% | 93,759 | 93,147 |
90% | 90.1% | 84,383 | 84,475 |
80% | 80.3% | 75,007 | 75,266 |
70% | 69.2% | 65,631 | 64,895 |
60% | 59.1% | 56,255 | 55,387 |
50% | 50.3% | 46,880 | 47,201 |
40% | 39.9% | 37,504 | 37,402 |
30% | 30.0% | 28,128 | 28,163 |
20% | 20.2% | 18,752 | 18,971 |
10% | 9.8% | 9,376 | 9,224 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,097 | ||
Calibration 2 | 90,652 | ||
Calibration 3 | 90,265 | ||
ssj_ops@calibrated=90,459 | |||
100% | 99.3% | 90,459 | 89,858 |
90% | 90.0% | 81,413 | 81,416 |
80% | 79.8% | 72,367 | 72,222 |
70% | 71.1% | 63,321 | 64,274 |
60% | 59.7% | 54,275 | 54,025 |
50% | 50.2% | 45,229 | 45,419 |
40% | 41.1% | 36,183 | 37,216 |
30% | 30.1% | 27,138 | 27,190 |
20% | 19.3% | 18,092 | 17,450 |
10% | 10.1% | 9,046 | 9,157 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,244 | ||
Calibration 2 | 90,868 | ||
Calibration 3 | 90,578 | ||
ssj_ops@calibrated=90,723 | |||
100% | 99.7% | 90,723 | 90,488 |
90% | 88.6% | 81,651 | 80,392 |
80% | 79.3% | 72,578 | 71,931 |
70% | 69.4% | 63,506 | 62,972 |
60% | 59.7% | 54,434 | 54,156 |
50% | 50.0% | 45,361 | 45,318 |
40% | 39.3% | 36,289 | 35,655 |
30% | 30.5% | 27,217 | 27,710 |
20% | 19.8% | 18,145 | 18,008 |
10% | 10.2% | 9,072 | 9,250 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,591 | ||
Calibration 2 | 91,746 | ||
Calibration 3 | 91,738 | ||
ssj_ops@calibrated=91,742 | |||
100% | 99.3% | 91,742 | 91,056 |
90% | 90.0% | 82,568 | 82,611 |
80% | 79.9% | 73,393 | 73,312 |
70% | 71.1% | 64,219 | 65,214 |
60% | 60.2% | 55,045 | 55,209 |
50% | 49.7% | 45,871 | 45,628 |
40% | 40.1% | 36,697 | 36,809 |
30% | 30.0% | 27,523 | 27,491 |
20% | 20.6% | 18,348 | 18,883 |
10% | 9.9% | 9,174 | 9,117 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,786 | ||
Calibration 2 | 92,599 | ||
Calibration 3 | 92,171 | ||
ssj_ops@calibrated=92,385 | |||
100% | 99.7% | 92,385 | 92,106 |
90% | 91.0% | 83,146 | 84,094 |
80% | 81.4% | 73,908 | 75,156 |
70% | 70.4% | 64,669 | 65,010 |
60% | 59.7% | 55,431 | 55,148 |
50% | 49.0% | 46,192 | 45,235 |
40% | 40.7% | 36,954 | 37,634 |
30% | 30.0% | 27,715 | 27,746 |
20% | 20.3% | 18,477 | 18,767 |
10% | 9.9% | 9,238 | 9,175 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,033 | ||
Calibration 2 | 92,174 | ||
Calibration 3 | 91,275 | ||
ssj_ops@calibrated=91,725 | |||
100% | 99.2% | 91,725 | 90,960 |
90% | 88.8% | 82,552 | 81,475 |
80% | 79.7% | 73,380 | 73,119 |
70% | 69.9% | 64,207 | 64,107 |
60% | 60.3% | 55,035 | 55,311 |
50% | 49.9% | 45,862 | 45,766 |
40% | 40.0% | 36,690 | 36,664 |
30% | 30.1% | 27,517 | 27,591 |
20% | 20.1% | 18,345 | 18,482 |
10% | 9.9% | 9,172 | 9,125 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,690 | ||
Calibration 2 | 91,522 | ||
Calibration 3 | 90,990 | ||
ssj_ops@calibrated=91,256 | |||
100% | 99.6% | 91,256 | 90,931 |
90% | 90.1% | 82,131 | 82,226 |
80% | 80.3% | 73,005 | 73,299 |
70% | 70.2% | 63,879 | 64,052 |
60% | 60.4% | 54,754 | 55,160 |
50% | 49.7% | 45,628 | 45,364 |
40% | 39.8% | 36,503 | 36,288 |
30% | 29.7% | 27,377 | 27,071 |
20% | 20.1% | 18,251 | 18,299 |
10% | 10.1% | 9,126 | 9,181 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,001 | ||
Calibration 2 | 92,422 | ||
Calibration 3 | 92,669 | ||
ssj_ops@calibrated=92,545 | |||
100% | 98.9% | 92,545 | 91,548 |
90% | 90.9% | 83,291 | 84,103 |
80% | 80.2% | 74,036 | 74,190 |
70% | 69.6% | 64,782 | 64,457 |
60% | 60.4% | 55,527 | 55,866 |
50% | 49.7% | 46,273 | 45,984 |
40% | 39.8% | 37,018 | 36,833 |
30% | 29.7% | 27,764 | 27,486 |
20% | 20.0% | 18,509 | 18,500 |
10% | 9.6% | 9,255 | 8,887 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,970 | ||
Calibration 2 | 92,102 | ||
Calibration 3 | 92,276 | ||
ssj_ops@calibrated=92,189 | |||
100% | 99.3% | 92,189 | 91,530 |
90% | 89.5% | 82,970 | 82,487 |
80% | 80.0% | 73,751 | 73,714 |
70% | 71.0% | 64,532 | 65,485 |
60% | 60.1% | 55,313 | 55,416 |
50% | 50.3% | 46,095 | 46,328 |
40% | 40.0% | 36,876 | 36,885 |
30% | 29.8% | 27,657 | 27,512 |
20% | 20.8% | 18,438 | 19,137 |
10% | 9.9% | 9,219 | 9,148 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,297 | ||
Calibration 2 | 90,689 | ||
Calibration 3 | 90,767 | ||
ssj_ops@calibrated=90,728 | |||
100% | 99.6% | 90,728 | 90,391 |
90% | 91.0% | 81,655 | 82,607 |
80% | 79.1% | 72,582 | 71,770 |
70% | 69.4% | 63,509 | 62,955 |
60% | 60.5% | 54,437 | 54,926 |
50% | 49.9% | 45,364 | 45,279 |
40% | 40.2% | 36,291 | 36,448 |
30% | 30.2% | 27,218 | 27,366 |
20% | 19.9% | 18,146 | 18,064 |
10% | 10.1% | 9,073 | 9,208 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,496 | ||
Calibration 2 | 92,338 | ||
Calibration 3 | 91,841 | ||
ssj_ops@calibrated=92,089 | |||
100% | 99.4% | 92,089 | 91,500 |
90% | 90.4% | 82,880 | 83,243 |
80% | 78.1% | 73,672 | 71,902 |
70% | 69.6% | 64,463 | 64,091 |
60% | 60.3% | 55,254 | 55,489 |
50% | 50.6% | 46,045 | 46,639 |
40% | 39.7% | 36,836 | 36,552 |
30% | 30.6% | 27,627 | 28,225 |
20% | 19.8% | 18,418 | 18,265 |
10% | 10.0% | 9,209 | 9,229 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,124 | ||
Calibration 2 | 92,444 | ||
Calibration 3 | 92,142 | ||
ssj_ops@calibrated=92,293 | |||
100% | 98.3% | 92,293 | 90,697 |
90% | 90.9% | 83,064 | 83,885 |
80% | 81.5% | 73,834 | 75,176 |
70% | 70.5% | 64,605 | 65,110 |
60% | 60.2% | 55,376 | 55,535 |
50% | 51.2% | 46,147 | 47,291 |
40% | 39.5% | 36,917 | 36,410 |
30% | 30.5% | 27,688 | 28,123 |
20% | 20.2% | 18,459 | 18,686 |
10% | 10.2% | 9,229 | 9,387 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,865 | ||
Calibration 2 | 89,729 | ||
Calibration 3 | 90,150 | ||
ssj_ops@calibrated=89,939 | |||
100% | 99.4% | 89,939 | 89,431 |
90% | 90.4% | 80,945 | 81,265 |
80% | 80.3% | 71,951 | 72,194 |
70% | 69.8% | 62,957 | 62,763 |
60% | 59.1% | 53,964 | 53,174 |
50% | 50.1% | 44,970 | 45,058 |
40% | 39.4% | 35,976 | 35,477 |
30% | 30.4% | 26,982 | 27,302 |
20% | 19.8% | 17,988 | 17,837 |
10% | 10.1% | 8,994 | 9,108 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,694 | ||
Calibration 2 | 91,108 | ||
Calibration 3 | 91,507 | ||
ssj_ops@calibrated=91,307 | |||
100% | 99.9% | 91,307 | 91,247 |
90% | 90.1% | 82,176 | 82,307 |
80% | 79.8% | 73,046 | 72,842 |
70% | 70.2% | 63,915 | 64,138 |
60% | 59.8% | 54,784 | 54,572 |
50% | 50.6% | 45,654 | 46,196 |
40% | 40.2% | 36,523 | 36,709 |
30% | 30.1% | 27,392 | 27,453 |
20% | 19.2% | 18,261 | 17,487 |
10% | 9.8% | 9,131 | 8,974 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,666 | ||
Calibration 2 | 91,785 | ||
Calibration 3 | 91,476 | ||
ssj_ops@calibrated=91,631 | |||
100% | 98.9% | 91,631 | 90,649 |
90% | 88.7% | 82,468 | 81,282 |
80% | 80.4% | 73,304 | 73,675 |
70% | 69.5% | 64,141 | 63,661 |
60% | 59.7% | 54,978 | 54,664 |
50% | 50.5% | 45,815 | 46,233 |
40% | 39.9% | 36,652 | 36,552 |
30% | 29.9% | 27,489 | 27,381 |
20% | 20.3% | 18,326 | 18,575 |
10% | 10.1% | 9,163 | 9,287 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,170 | ||
Calibration 2 | 90,726 | ||
Calibration 3 | 91,010 | ||
ssj_ops@calibrated=90,868 | |||
100% | 99.6% | 90,868 | 90,527 |
90% | 89.5% | 81,781 | 81,305 |
80% | 79.7% | 72,695 | 72,403 |
70% | 70.3% | 63,608 | 63,863 |
60% | 60.1% | 54,521 | 54,632 |
50% | 50.2% | 45,434 | 45,652 |
40% | 39.5% | 36,347 | 35,880 |
30% | 30.3% | 27,260 | 27,578 |
20% | 19.8% | 18,174 | 17,978 |
10% | 10.0% | 9,087 | 9,078 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,660 | ||
Calibration 2 | 92,316 | ||
Calibration 3 | 92,422 | ||
ssj_ops@calibrated=92,369 | |||
100% | 99.9% | 92,369 | 92,312 |
90% | 89.3% | 83,132 | 82,483 |
80% | 80.2% | 73,895 | 74,055 |
70% | 69.5% | 64,658 | 64,241 |
60% | 60.4% | 55,421 | 55,758 |
50% | 49.8% | 46,184 | 45,968 |
40% | 40.0% | 36,948 | 36,919 |
30% | 29.6% | 27,711 | 27,302 |
20% | 20.3% | 18,474 | 18,720 |
10% | 9.9% | 9,237 | 9,162 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,043 | ||
Calibration 2 | 92,283 | ||
Calibration 3 | 91,851 | ||
ssj_ops@calibrated=92,067 | |||
100% | 98.8% | 92,067 | 90,981 |
90% | 90.1% | 82,860 | 82,914 |
80% | 82.0% | 73,654 | 75,469 |
70% | 70.6% | 64,447 | 64,998 |
60% | 59.2% | 55,240 | 54,483 |
50% | 49.6% | 46,033 | 45,683 |
40% | 39.4% | 36,827 | 36,256 |
30% | 30.1% | 27,620 | 27,686 |
20% | 19.6% | 18,413 | 18,057 |
10% | 9.4% | 9,207 | 8,690 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,889 | ||
Calibration 2 | 91,227 | ||
Calibration 3 | 90,793 | ||
ssj_ops@calibrated=91,010 | |||
100% | 99.0% | 91,010 | 90,065 |
90% | 89.0% | 81,909 | 81,009 |
80% | 80.3% | 72,808 | 73,058 |
70% | 69.5% | 63,707 | 63,231 |
60% | 59.6% | 54,606 | 54,239 |
50% | 50.6% | 45,505 | 46,076 |
40% | 39.5% | 36,404 | 35,938 |
30% | 30.4% | 27,303 | 27,665 |
20% | 19.8% | 18,202 | 18,039 |
10% | 10.1% | 9,101 | 9,229 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,785 | ||
Calibration 2 | 90,202 | ||
Calibration 3 | 90,316 | ||
ssj_ops@calibrated=90,259 | |||
100% | 99.9% | 90,259 | 90,163 |
90% | 90.2% | 81,233 | 81,405 |
80% | 80.1% | 72,207 | 72,306 |
70% | 70.1% | 63,181 | 63,259 |
60% | 60.1% | 54,155 | 54,265 |
50% | 50.8% | 45,130 | 45,860 |
40% | 39.8% | 36,104 | 35,922 |
30% | 29.5% | 27,078 | 26,658 |
20% | 19.4% | 18,052 | 17,521 |
10% | 9.9% | 9,026 | 8,931 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,045 | ||
Calibration 2 | 90,745 | ||
Calibration 3 | 90,740 | ||
ssj_ops@calibrated=90,742 | |||
100% | 99.8% | 90,742 | 90,518 |
90% | 89.3% | 81,668 | 81,072 |
80% | 79.4% | 72,594 | 72,069 |
70% | 70.5% | 63,520 | 63,951 |
60% | 60.4% | 54,445 | 54,814 |
50% | 50.1% | 45,371 | 45,449 |
40% | 40.6% | 36,297 | 36,798 |
30% | 29.7% | 27,223 | 26,921 |
20% | 20.1% | 18,148 | 18,212 |
10% | 9.9% | 9,074 | 9,004 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,886 | ||
Calibration 2 | 91,835 | ||
Calibration 3 | 91,408 | ||
ssj_ops@calibrated=91,621 | |||
100% | 99.5% | 91,621 | 91,137 |
90% | 88.9% | 82,459 | 81,422 |
80% | 79.9% | 73,297 | 73,213 |
70% | 71.0% | 64,135 | 65,063 |
60% | 60.1% | 54,973 | 55,090 |
50% | 50.4% | 45,811 | 46,174 |
40% | 40.1% | 36,648 | 36,771 |
30% | 30.3% | 27,486 | 27,715 |
20% | 19.9% | 18,324 | 18,274 |
10% | 10.2% | 9,162 | 9,305 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,478 | ||
Calibration 2 | 92,227 | ||
Calibration 3 | 92,410 | ||
ssj_ops@calibrated=92,318 | |||
100% | 98.8% | 92,318 | 91,186 |
90% | 90.8% | 83,086 | 83,817 |
80% | 80.5% | 73,854 | 74,273 |
70% | 69.7% | 64,623 | 64,389 |
60% | 60.8% | 55,391 | 56,150 |
50% | 50.2% | 46,159 | 46,311 |
40% | 39.4% | 36,927 | 36,343 |
30% | 29.8% | 27,695 | 27,536 |
20% | 20.7% | 18,464 | 19,094 |
10% | 9.6% | 9,232 | 8,844 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,244 | ||
Calibration 2 | 92,339 | ||
Calibration 3 | 92,086 | ||
ssj_ops@calibrated=92,213 | |||
100% | 99.6% | 92,213 | 91,853 |
90% | 91.0% | 82,992 | 83,957 |
80% | 80.2% | 73,770 | 73,985 |
70% | 70.0% | 64,549 | 64,588 |
60% | 60.7% | 55,328 | 55,930 |
50% | 50.0% | 46,106 | 46,110 |
40% | 39.5% | 36,885 | 36,459 |
30% | 30.2% | 27,664 | 27,843 |
20% | 20.0% | 18,443 | 18,446 |
10% | 9.7% | 9,221 | 8,908 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,003 | ||
Calibration 2 | 92,949 | ||
Calibration 3 | 92,223 | ||
ssj_ops@calibrated=92,586 | |||
100% | 100.1% | 92,586 | 92,642 |
90% | 89.8% | 83,328 | 83,169 |
80% | 78.9% | 74,069 | 73,047 |
70% | 69.4% | 64,810 | 64,281 |
60% | 59.8% | 55,552 | 55,333 |
50% | 49.6% | 46,293 | 45,952 |
40% | 39.5% | 37,034 | 36,585 |
30% | 29.4% | 27,776 | 27,232 |
20% | 19.7% | 18,517 | 18,233 |
10% | 10.3% | 9,259 | 9,537 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,557 | ||
Calibration 2 | 91,349 | ||
Calibration 3 | 91,305 | ||
ssj_ops@calibrated=91,327 | |||
100% | 99.1% | 91,327 | 90,498 |
90% | 89.1% | 82,194 | 81,332 |
80% | 80.0% | 73,062 | 73,082 |
70% | 70.3% | 63,929 | 64,182 |
60% | 60.5% | 54,796 | 55,284 |
50% | 50.6% | 45,663 | 46,221 |
40% | 40.5% | 36,531 | 36,998 |
30% | 30.4% | 27,398 | 27,764 |
20% | 19.7% | 18,265 | 18,008 |
10% | 10.1% | 9,133 | 9,239 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,857 | ||
Calibration 2 | 90,715 | ||
Calibration 3 | 90,485 | ||
ssj_ops@calibrated=90,600 | |||
100% | 99.4% | 90,600 | 90,097 |
90% | 91.1% | 81,540 | 82,511 |
80% | 80.2% | 72,480 | 72,681 |
70% | 69.7% | 63,420 | 63,193 |
60% | 60.1% | 54,360 | 54,438 |
50% | 49.5% | 45,300 | 44,821 |
40% | 39.9% | 36,240 | 36,171 |
30% | 30.0% | 27,180 | 27,170 |
20% | 20.4% | 18,120 | 18,495 |
10% | 10.0% | 9,060 | 9,019 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,416 | ||
Calibration 2 | 92,643 | ||
Calibration 3 | 91,947 | ||
ssj_ops@calibrated=92,295 | |||
100% | 99.9% | 92,295 | 92,170 |
90% | 91.2% | 83,065 | 84,209 |
80% | 80.2% | 73,836 | 73,976 |
70% | 69.8% | 64,606 | 64,446 |
60% | 59.4% | 55,377 | 54,796 |
50% | 50.1% | 46,147 | 46,225 |
40% | 39.5% | 36,918 | 36,454 |
30% | 29.9% | 27,688 | 27,577 |
20% | 19.6% | 18,459 | 18,070 |
10% | 10.0% | 9,229 | 9,199 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,051 | ||
Calibration 2 | 91,110 | ||
Calibration 3 | 91,183 | ||
ssj_ops@calibrated=91,146 | |||
100% | 99.7% | 91,146 | 90,910 |
90% | 90.1% | 82,032 | 82,122 |
80% | 79.8% | 72,917 | 72,740 |
70% | 69.7% | 63,803 | 63,517 |
60% | 60.9% | 54,688 | 55,508 |
50% | 50.7% | 45,573 | 46,186 |
40% | 39.8% | 36,459 | 36,265 |
30% | 30.6% | 27,344 | 27,868 |
20% | 20.1% | 18,229 | 18,362 |
10% | 10.2% | 9,115 | 9,258 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,582 | ||
Calibration 2 | 91,090 | ||
Calibration 3 | 90,886 | ||
ssj_ops@calibrated=90,988 | |||
100% | 99.3% | 90,988 | 90,386 |
90% | 90.8% | 81,889 | 82,585 |
80% | 81.0% | 72,790 | 73,730 |
70% | 70.1% | 63,692 | 63,797 |
60% | 60.3% | 54,593 | 54,851 |
50% | 49.1% | 45,494 | 44,645 |
40% | 40.4% | 36,395 | 36,753 |
30% | 29.4% | 27,296 | 26,793 |
20% | 20.2% | 18,198 | 18,403 |
10% | 10.0% | 9,099 | 9,124 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,625 | ||
Calibration 2 | 92,466 | ||
Calibration 3 | 92,569 | ||
ssj_ops@calibrated=92,517 | |||
100% | 99.5% | 92,517 | 92,065 |
90% | 89.8% | 83,266 | 83,085 |
80% | 79.8% | 74,014 | 73,807 |
70% | 70.2% | 64,762 | 64,942 |
60% | 60.1% | 55,510 | 55,579 |
50% | 50.2% | 46,259 | 46,453 |
40% | 39.6% | 37,007 | 36,655 |
30% | 29.5% | 27,755 | 27,303 |
20% | 19.8% | 18,503 | 18,279 |
10% | 9.8% | 9,252 | 9,099 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,160 | ||
Calibration 2 | 91,663 | ||
Calibration 3 | 91,642 | ||
ssj_ops@calibrated=91,652 | |||
100% | 99.7% | 91,652 | 91,371 |
90% | 90.0% | 82,487 | 82,497 |
80% | 79.9% | 73,322 | 73,189 |
70% | 70.0% | 64,157 | 64,133 |
60% | 60.6% | 54,991 | 55,559 |
50% | 49.9% | 45,826 | 45,742 |
40% | 39.7% | 36,661 | 36,396 |
30% | 30.0% | 27,496 | 27,536 |
20% | 20.5% | 18,330 | 18,828 |
10% | 10.0% | 9,165 | 9,200 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,122 | ||
Calibration 2 | 91,565 | ||
Calibration 3 | 90,132 | ||
ssj_ops@calibrated=90,849 | |||
100% | 99.5% | 90,849 | 90,408 |
90% | 91.1% | 81,764 | 82,727 |
80% | 79.5% | 72,679 | 72,193 |
70% | 70.1% | 63,594 | 63,668 |
60% | 60.1% | 54,509 | 54,615 |
50% | 49.8% | 45,424 | 45,269 |
40% | 39.6% | 36,339 | 35,938 |
30% | 30.1% | 27,255 | 27,369 |
20% | 19.9% | 18,170 | 18,068 |
10% | 9.9% | 9,085 | 8,950 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,732 | ||
Calibration 2 | 90,367 | ||
Calibration 3 | 89,028 | ||
ssj_ops@calibrated=89,697 | |||
100% | 99.3% | 89,697 | 89,090 |
90% | 89.3% | 80,728 | 80,122 |
80% | 79.6% | 71,758 | 71,377 |
70% | 69.1% | 62,788 | 61,947 |
60% | 60.4% | 53,818 | 54,189 |
50% | 49.6% | 44,849 | 44,533 |
40% | 39.9% | 35,879 | 35,770 |
30% | 29.9% | 26,909 | 26,806 |
20% | 19.9% | 17,939 | 17,811 |
10% | 10.1% | 8,970 | 9,025 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,842 | ||
Calibration 2 | 91,698 | ||
Calibration 3 | 91,388 | ||
ssj_ops@calibrated=91,543 | |||
100% | 99.1% | 91,543 | 90,733 |
90% | 90.3% | 82,389 | 82,623 |
80% | 79.3% | 73,234 | 72,564 |
70% | 70.2% | 64,080 | 64,306 |
60% | 59.3% | 54,926 | 54,301 |
50% | 50.8% | 45,771 | 46,490 |
40% | 40.0% | 36,617 | 36,655 |
30% | 30.4% | 27,463 | 27,845 |
20% | 19.8% | 18,309 | 18,082 |
10% | 10.4% | 9,154 | 9,533 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,996 | ||
Calibration 2 | 91,249 | ||
Calibration 3 | 90,788 | ||
ssj_ops@calibrated=91,019 | |||
100% | 99.7% | 91,019 | 90,772 |
90% | 90.2% | 81,917 | 82,060 |
80% | 80.5% | 72,815 | 73,267 |
70% | 69.7% | 63,713 | 63,450 |
60% | 59.8% | 54,611 | 54,454 |
50% | 49.4% | 45,509 | 44,977 |
40% | 39.4% | 36,407 | 35,823 |
30% | 29.9% | 27,306 | 27,229 |
20% | 20.2% | 18,204 | 18,407 |
10% | 10.1% | 9,102 | 9,224 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,319 | ||
Calibration 2 | 91,565 | ||
Calibration 3 | 90,992 | ||
ssj_ops@calibrated=91,278 | |||
100% | 99.4% | 91,278 | 90,725 |
90% | 89.1% | 82,151 | 81,290 |
80% | 79.7% | 73,023 | 72,721 |
70% | 68.6% | 63,895 | 62,630 |
60% | 60.6% | 54,767 | 55,338 |
50% | 49.9% | 45,639 | 45,579 |
40% | 39.4% | 36,511 | 35,949 |
30% | 29.8% | 27,384 | 27,209 |
20% | 20.2% | 18,256 | 18,441 |
10% | 10.1% | 9,128 | 9,265 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,470 | ||
Calibration 2 | 92,406 | ||
Calibration 3 | 91,813 | ||
ssj_ops@calibrated=92,109 | |||
100% | 98.7% | 92,109 | 90,934 |
90% | 90.2% | 82,898 | 83,080 |
80% | 79.4% | 73,687 | 73,115 |
70% | 70.0% | 64,476 | 64,453 |
60% | 60.1% | 55,266 | 55,338 |
50% | 50.9% | 46,055 | 46,904 |
40% | 40.2% | 36,844 | 37,015 |
30% | 30.4% | 27,633 | 28,016 |
20% | 20.2% | 18,422 | 18,578 |
10% | 10.1% | 9,211 | 9,316 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,710 | ||
Calibration 2 | 91,328 | ||
Calibration 3 | 91,007 | ||
ssj_ops@calibrated=91,168 | |||
100% | 99.0% | 91,168 | 90,265 |
90% | 89.4% | 82,051 | 81,531 |
80% | 80.5% | 72,934 | 73,372 |
70% | 69.5% | 63,817 | 63,324 |
60% | 59.8% | 54,701 | 54,539 |
50% | 49.8% | 45,584 | 45,358 |
40% | 41.1% | 36,467 | 37,473 |
30% | 29.8% | 27,350 | 27,198 |
20% | 20.0% | 18,234 | 18,241 |
10% | 9.7% | 9,117 | 8,887 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,743 | ||
Calibration 2 | 92,569 | ||
Calibration 3 | 92,487 | ||
ssj_ops@calibrated=92,528 | |||
100% | 99.5% | 92,528 | 92,109 |
90% | 89.3% | 83,275 | 82,660 |
80% | 79.0% | 74,022 | 73,083 |
70% | 70.1% | 64,770 | 64,830 |
60% | 60.5% | 55,517 | 55,995 |
50% | 50.9% | 46,264 | 47,099 |
40% | 40.3% | 37,011 | 37,290 |
30% | 29.7% | 27,758 | 27,474 |
20% | 20.4% | 18,506 | 18,880 |
10% | 9.9% | 9,253 | 9,136 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,817 | ||
Calibration 2 | 90,920 | ||
Calibration 3 | 90,447 | ||
ssj_ops@calibrated=90,684 | |||
100% | 99.5% | 90,684 | 90,212 |
90% | 89.9% | 81,615 | 81,524 |
80% | 79.0% | 72,547 | 71,622 |
70% | 69.6% | 63,479 | 63,077 |
60% | 59.5% | 54,410 | 53,981 |
50% | 50.1% | 45,342 | 45,441 |
40% | 39.6% | 36,273 | 35,933 |
30% | 30.5% | 27,205 | 27,619 |
20% | 20.3% | 18,137 | 18,389 |
10% | 9.5% | 9,068 | 8,633 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,089 | ||
Calibration 2 | 91,089 | ||
Calibration 3 | 90,470 | ||
ssj_ops@calibrated=90,779 | |||
100% | 99.5% | 90,779 | 90,318 |
90% | 89.5% | 81,702 | 81,222 |
80% | 79.9% | 72,624 | 72,572 |
70% | 69.7% | 63,546 | 63,286 |
60% | 60.4% | 54,468 | 54,828 |
50% | 50.4% | 45,390 | 45,749 |
40% | 39.5% | 36,312 | 35,841 |
30% | 30.5% | 27,234 | 27,649 |
20% | 19.7% | 18,156 | 17,861 |
10% | 9.8% | 9,078 | 8,908 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,268 | ||
Calibration 2 | 93,665 | ||
Calibration 3 | 93,088 | ||
ssj_ops@calibrated=93,376 | |||
100% | 98.9% | 93,376 | 92,392 |
90% | 89.8% | 84,039 | 83,834 |
80% | 79.8% | 74,701 | 74,482 |
70% | 70.3% | 65,363 | 65,603 |
60% | 60.5% | 56,026 | 56,484 |
50% | 49.5% | 46,688 | 46,227 |
40% | 39.8% | 37,350 | 37,140 |
30% | 29.4% | 28,013 | 27,421 |
20% | 19.2% | 18,675 | 17,962 |
10% | 10.0% | 9,338 | 9,373 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,420 | ||
Calibration 2 | 92,417 | ||
Calibration 3 | 90,748 | ||
ssj_ops@calibrated=91,582 | |||
100% | 98.9% | 91,582 | 90,581 |
90% | 91.0% | 82,424 | 83,383 |
80% | 79.1% | 73,266 | 72,486 |
70% | 69.9% | 64,108 | 64,010 |
60% | 60.3% | 54,949 | 55,263 |
50% | 50.4% | 45,791 | 46,155 |
40% | 40.3% | 36,633 | 36,896 |
30% | 30.5% | 27,475 | 27,953 |
20% | 19.7% | 18,316 | 18,036 |
10% | 10.1% | 9,158 | 9,266 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,838 | ||
Calibration 2 | 91,617 | ||
Calibration 3 | 91,647 | ||
ssj_ops@calibrated=91,632 | |||
100% | 100.0% | 91,632 | 91,588 |
90% | 91.1% | 82,469 | 83,521 |
80% | 79.9% | 73,306 | 73,187 |
70% | 69.9% | 64,142 | 64,092 |
60% | 60.2% | 54,979 | 55,194 |
50% | 49.9% | 45,816 | 45,710 |
40% | 40.0% | 36,653 | 36,658 |
30% | 30.1% | 27,490 | 27,584 |
20% | 20.3% | 18,326 | 18,603 |
10% | 10.2% | 9,163 | 9,379 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,474 | ||
Calibration 2 | 91,934 | ||
Calibration 3 | 91,745 | ||
ssj_ops@calibrated=91,840 | |||
100% | 99.4% | 91,840 | 91,272 |
90% | 90.1% | 82,656 | 82,708 |
80% | 80.0% | 73,472 | 73,462 |
70% | 70.6% | 64,288 | 64,798 |
60% | 60.0% | 55,104 | 55,077 |
50% | 49.9% | 45,920 | 45,854 |
40% | 40.3% | 36,736 | 37,000 |
30% | 29.4% | 27,552 | 27,005 |
20% | 19.6% | 18,368 | 17,994 |
10% | 10.4% | 9,184 | 9,527 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,424 | ||
Calibration 2 | 92,244 | ||
Calibration 3 | 91,517 | ||
ssj_ops@calibrated=91,880 | |||
100% | 99.4% | 91,880 | 91,366 |
90% | 89.8% | 82,692 | 82,470 |
80% | 80.3% | 73,504 | 73,737 |
70% | 70.8% | 64,316 | 65,068 |
60% | 59.4% | 55,128 | 54,615 |
50% | 49.2% | 45,940 | 45,184 |
40% | 40.9% | 36,752 | 37,549 |
30% | 30.5% | 27,564 | 27,995 |
20% | 20.1% | 18,376 | 18,458 |
10% | 10.5% | 9,188 | 9,633 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,155 | ||
Calibration 2 | 92,549 | ||
Calibration 3 | 91,923 | ||
ssj_ops@calibrated=92,236 | |||
100% | 98.6% | 92,236 | 90,972 |
90% | 90.2% | 83,013 | 83,173 |
80% | 79.5% | 73,789 | 73,282 |
70% | 70.1% | 64,565 | 64,690 |
60% | 60.9% | 55,342 | 56,194 |
50% | 49.6% | 46,118 | 45,708 |
40% | 40.3% | 36,894 | 37,164 |
30% | 30.0% | 27,671 | 27,642 |
20% | 19.6% | 18,447 | 18,050 |
10% | 10.0% | 9,224 | 9,187 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,980 | ||
Calibration 2 | 90,328 | ||
Calibration 3 | 90,233 | ||
ssj_ops@calibrated=90,281 | |||
100% | 99.0% | 90,281 | 89,346 |
90% | 90.4% | 81,253 | 81,583 |
80% | 80.5% | 72,225 | 72,648 |
70% | 70.4% | 63,196 | 63,538 |
60% | 60.3% | 54,168 | 54,397 |
50% | 49.4% | 45,140 | 44,608 |
40% | 39.0% | 36,112 | 35,241 |
30% | 29.4% | 27,084 | 26,580 |
20% | 19.5% | 18,056 | 17,583 |
10% | 9.7% | 9,028 | 8,750 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,635 | ||
Calibration 2 | 90,071 | ||
Calibration 3 | 90,139 | ||
ssj_ops@calibrated=90,105 | |||
100% | 99.7% | 90,105 | 89,820 |
90% | 89.5% | 81,094 | 80,629 |
80% | 80.7% | 72,084 | 72,697 |
70% | 70.6% | 63,073 | 63,655 |
60% | 59.9% | 54,063 | 53,949 |
50% | 49.8% | 45,052 | 44,830 |
40% | 40.2% | 36,042 | 36,180 |
30% | 30.1% | 27,031 | 27,162 |
20% | 20.8% | 18,021 | 18,704 |
10% | 9.9% | 9,010 | 8,925 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,014 | ||
Calibration 2 | 92,162 | ||
Calibration 3 | 91,598 | ||
ssj_ops@calibrated=91,880 | |||
100% | 99.7% | 91,880 | 91,622 |
90% | 89.3% | 82,692 | 82,048 |
80% | 80.1% | 73,504 | 73,557 |
70% | 69.8% | 64,316 | 64,097 |
60% | 60.0% | 55,128 | 55,145 |
50% | 49.8% | 45,940 | 45,791 |
40% | 40.0% | 36,752 | 36,768 |
30% | 29.8% | 27,564 | 27,416 |
20% | 20.5% | 18,376 | 18,863 |
10% | 10.1% | 9,188 | 9,279 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,869 | ||
Calibration 2 | 92,367 | ||
Calibration 3 | 92,104 | ||
ssj_ops@calibrated=92,236 | |||
100% | 99.5% | 92,236 | 91,803 |
90% | 89.5% | 83,012 | 82,557 |
80% | 79.8% | 73,789 | 73,620 |
70% | 70.4% | 64,565 | 64,939 |
60% | 59.6% | 55,341 | 55,000 |
50% | 49.9% | 46,118 | 45,988 |
40% | 40.0% | 36,894 | 36,905 |
30% | 29.3% | 27,671 | 27,007 |
20% | 20.2% | 18,447 | 18,633 |
10% | 10.1% | 9,224 | 9,295 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,272 | ||
Calibration 2 | 92,226 | ||
Calibration 3 | 92,398 | ||
ssj_ops@calibrated=92,312 | |||
100% | 99.8% | 92,312 | 92,087 |
90% | 89.1% | 83,081 | 82,243 |
80% | 80.1% | 73,850 | 73,981 |
70% | 70.4% | 64,618 | 64,986 |
60% | 59.7% | 55,387 | 55,084 |
50% | 50.6% | 46,156 | 46,675 |
40% | 39.9% | 36,925 | 36,846 |
30% | 30.7% | 27,694 | 28,302 |
20% | 19.8% | 18,462 | 18,297 |
10% | 10.0% | 9,231 | 9,244 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,239 | ||
Calibration 2 | 93,044 | ||
Calibration 3 | 92,882 | ||
ssj_ops@calibrated=92,963 | |||
100% | 99.7% | 92,963 | 92,706 |
90% | 88.6% | 83,667 | 82,335 |
80% | 80.3% | 74,371 | 74,670 |
70% | 68.6% | 65,074 | 63,777 |
60% | 59.8% | 55,778 | 55,556 |
50% | 49.3% | 46,482 | 45,795 |
40% | 39.6% | 37,185 | 36,831 |
30% | 29.9% | 27,889 | 27,825 |
20% | 20.0% | 18,593 | 18,612 |
10% | 9.7% | 9,296 | 9,016 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,608 | ||
Calibration 2 | 92,513 | ||
Calibration 3 | 92,363 | ||
ssj_ops@calibrated=92,438 | |||
100% | 98.9% | 92,438 | 91,459 |
90% | 90.4% | 83,194 | 83,578 |
80% | 79.7% | 73,950 | 73,645 |
70% | 69.2% | 64,707 | 63,957 |
60% | 59.5% | 55,463 | 54,994 |
50% | 49.7% | 46,219 | 45,967 |
40% | 40.6% | 36,975 | 37,524 |
30% | 30.1% | 27,731 | 27,862 |
20% | 20.0% | 18,488 | 18,505 |
10% | 10.1% | 9,244 | 9,366 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,759 | ||
Calibration 2 | 90,884 | ||
Calibration 3 | 91,199 | ||
ssj_ops@calibrated=91,041 | |||
100% | 98.7% | 91,041 | 89,830 |
90% | 90.6% | 81,937 | 82,498 |
80% | 79.6% | 72,833 | 72,478 |
70% | 71.1% | 63,729 | 64,709 |
60% | 58.3% | 54,625 | 53,039 |
50% | 49.9% | 45,521 | 45,395 |
40% | 40.2% | 36,416 | 36,616 |
30% | 31.5% | 27,312 | 28,653 |
20% | 19.8% | 18,208 | 18,008 |
10% | 9.8% | 9,104 | 8,931 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,343 | ||
Calibration 2 | 90,837 | ||
Calibration 3 | 90,603 | ||
ssj_ops@calibrated=90,720 | |||
100% | 100.0% | 90,720 | 90,716 |
90% | 89.9% | 81,648 | 81,540 |
80% | 79.6% | 72,576 | 72,183 |
70% | 69.2% | 63,504 | 62,749 |
60% | 60.5% | 54,432 | 54,913 |
50% | 51.3% | 45,360 | 46,541 |
40% | 39.9% | 36,288 | 36,188 |
30% | 29.8% | 27,216 | 27,072 |
20% | 20.4% | 18,144 | 18,502 |
10% | 9.7% | 9,072 | 8,775 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,832 | ||
Calibration 2 | 90,511 | ||
Calibration 3 | 90,302 | ||
ssj_ops@calibrated=90,407 | |||
100% | 100.2% | 90,407 | 90,607 |
90% | 90.3% | 81,366 | 81,653 |
80% | 80.0% | 72,326 | 72,326 |
70% | 70.2% | 63,285 | 63,448 |
60% | 60.1% | 54,244 | 54,327 |
50% | 49.8% | 45,203 | 44,994 |
40% | 40.2% | 36,163 | 36,317 |
30% | 30.5% | 27,122 | 27,540 |
20% | 19.3% | 18,081 | 17,412 |
10% | 10.1% | 9,041 | 9,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,407 | ||
Calibration 2 | 88,752 | ||
Calibration 3 | 88,414 | ||
ssj_ops@calibrated=88,583 | |||
100% | 99.2% | 88,583 | 87,845 |
90% | 89.8% | 79,725 | 79,558 |
80% | 80.0% | 70,866 | 70,845 |
70% | 69.6% | 62,008 | 61,650 |
60% | 60.6% | 53,150 | 53,654 |
50% | 49.2% | 44,291 | 43,542 |
40% | 39.9% | 35,433 | 35,326 |
30% | 29.7% | 26,575 | 26,324 |
20% | 20.2% | 17,717 | 17,852 |
10% | 10.1% | 8,858 | 8,978 |
Active Idle | 0 | 0 |
