SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Lenovo Global Technology ThinkSystem SN850			ssj_ops@100% = 70,603,716 ssj_ops@100% per Host = 10,086,245 ssj_ops@100% per JVM = 90,056
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Multi Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, Beijing, China	Test Date:	Aug 29, 2018
Hardware Availability:	Jul-2018	Software Availability:	Jan-2018	Publication:	Sep 27, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			72,930,554
Calibration 2			72,094,973
Calibration 3			70,722,511
ssj_ops@calibrated=71,408,742
100%	98.9%	71,408,742	70,603,716
90%	89.8%	64,267,868	64,116,625
80%	80.0%	57,126,994	57,121,222
70%	69.7%	49,986,119	49,796,714
60%	60.0%	42,845,245	42,847,194
50%	50.0%	35,704,371	35,696,238
40%	40.0%	28,563,497	28,563,960
30%	30.0%	21,422,623	21,421,473
20%	20.0%	14,281,748	14,267,210
10%	10.0%	7,140,874	7,140,997
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
7	28	784	1,568	2,688	7	784

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	Lenovo Flex System Enterprise Chassis with CMM2 (00FJ669) standard (Model 8721)
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2500
Power Supply Details:	Flex System Enterprise Chassis 2500W Power Module (Lenovo P/N:43W9049)
Network Switch:	Extreme Summit X670V
Network Switch Details:	48-PORT Extreme Summit X670V
KVM Switch:	None
KVM Switch Details:	None
Other Hardware:	None
Comment:	Network switch did not measure for Power

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	7
Comment:	'SUT'

Hardware per Node
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SN850
Form Factor:	10U
CPU Name:	Intel Xeon Platinum 8176
CPU Characteristics:	28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	2,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22,24,25,27,29,32,34,36,37,39,41,44,46,48 for each processor
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 32GB M.2 SSD (Lenovo P/N 7N47A00129)
Disk Controller:	Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 DataCenter
OS Version:	Version 6.3.9600 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE[0,2,4,6] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3,5,7] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	112
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	IVE121D
Management Firmware Version:	TEI325P
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4056898

Boot Firmware Settings

Operating Mode: Custom Mode
Lenovo Power Plan V1.0 for Windows Server 2012 R2
Memory Power Management: Automatic
Memory Speed: Max Performance
Page Policy: Adaptive
Intel VT for Directed I/O(VT-d): Disable
Memory Data Scrambling: Disable
Execute Disable Bit: Disable
Turbo Mode: Disable
Hardware Prefetcher: Disable
Adjacent Cache Prefetch: Disable
DCU Streamer Prefetcher: Disable
Patrol Scrub: Disable

Management Firmware Settings

none

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Benchmark was started via Windows Remote Desktop Connection
Minimum Processor State: 0%
Maximum Processor State: 100%
Set "Turn off hard disk after = 1 Minute" in OS.
Enable protection against speculative execution side-channel vulnerabilities according to Microsoft guidance: https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Aug 15, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.

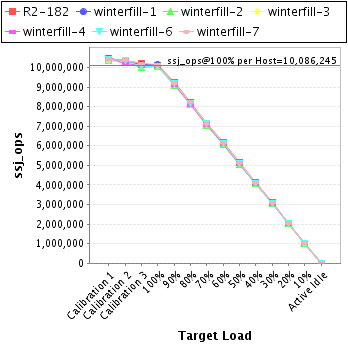

Host Instance Summary

Host	ssj_ops@100%
R2-182	10,107,508
winterfill-1	10,154,498
winterfill-2	10,030,043
winterfill-3	10,037,702
winterfill-4	10,079,208
winterfill-6	10,047,326
winterfill-7	10,147,430
ssj_ops@100%	70,603,716
ssj_ops@100% per Host	10,086,245
ssj_ops@100% per JVM	90,056

Host 'R2-182' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,475,368
Calibration 2			10,344,590
Calibration 3			10,198,033
ssj_ops@calibrated=10,271,312
100%	98.4%	10,271,312	10,107,508
90%	89.8%	9,244,180	9,219,047
80%	79.9%	8,217,049	8,207,772
70%	69.7%	7,189,918	7,160,940
60%	60.0%	6,162,787	6,159,246
50%	50.0%	5,135,656	5,131,433
40%	40.0%	4,108,525	4,107,340
30%	30.0%	3,081,393	3,079,956
20%	20.0%	2,054,262	2,049,877
10%	10.0%	1,027,131	1,027,329
Active Idle		0	0

See the Host Performance Report for additional details.

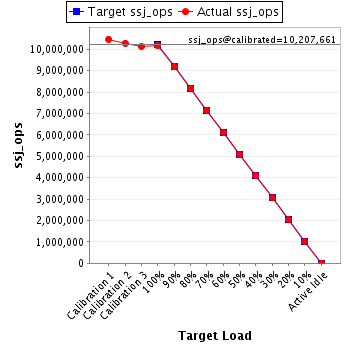

Host 'winterfill-1' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,469,635
Calibration 2			10,284,120
Calibration 3			10,131,202
ssj_ops@calibrated=10,207,661
100%	99.5%	10,207,661	10,154,498
90%	90.0%	9,186,895	9,183,489
80%	80.0%	8,166,129	8,163,454
70%	69.9%	7,145,363	7,130,621
60%	60.0%	6,124,597	6,119,626
50%	49.9%	5,103,831	5,096,691
40%	40.0%	4,083,064	4,084,898
30%	30.0%	3,062,298	3,059,069
20%	20.0%	2,041,532	2,041,438
10%	10.0%	1,020,766	1,022,495
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'winterfill-2' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,371,052
Calibration 2			10,276,494
Calibration 3			9,990,255
ssj_ops@calibrated=10,133,375
100%	99.0%	10,133,375	10,030,043
90%	89.7%	9,120,037	9,094,378
80%	80.0%	8,106,700	8,108,384
70%	69.7%	7,093,362	7,061,660
60%	60.1%	6,080,025	6,085,536
50%	50.0%	5,066,687	5,069,970
40%	40.0%	4,053,350	4,053,107
30%	30.0%	3,040,012	3,043,269
20%	20.0%	2,026,675	2,029,345
10%	10.0%	1,013,337	1,014,718
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'winterfill-3' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,355,480
Calibration 2			10,267,605
Calibration 3			10,063,792
ssj_ops@calibrated=10,165,699
100%	98.7%	10,165,699	10,037,702
90%	90.0%	9,149,129	9,149,951
80%	80.0%	8,132,559	8,129,915
70%	69.9%	7,115,989	7,106,836
60%	60.0%	6,099,419	6,102,938
50%	50.0%	5,082,849	5,085,104
40%	40.0%	4,066,280	4,063,649
30%	30.0%	3,049,710	3,051,382
20%	20.0%	2,033,140	2,031,527
10%	10.0%	1,016,570	1,018,065
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'winterfill-4' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,450,186
Calibration 2			10,183,091
Calibration 3			10,083,419
ssj_ops@calibrated=10,133,255
100%	99.5%	10,133,255	10,079,208
90%	90.0%	9,119,930	9,115,080
80%	80.0%	8,106,604	8,107,947
70%	69.9%	7,093,279	7,086,087
60%	60.1%	6,079,953	6,086,932
50%	50.0%	5,066,628	5,067,240
40%	40.0%	4,053,302	4,052,863
30%	30.0%	3,039,977	3,036,508
20%	20.0%	2,026,651	2,022,882
10%	10.0%	1,013,326	1,013,107
Active Idle		0	0

See the Host Performance Report for additional details.

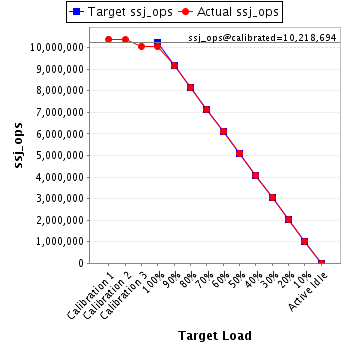

Host 'winterfill-6' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,395,344
Calibration 2			10,374,079
Calibration 3			10,063,309
ssj_ops@calibrated=10,218,694
100%	98.3%	10,218,694	10,047,326
90%	89.8%	9,196,824	9,171,967
80%	80.0%	8,174,955	8,171,939
70%	69.7%	7,153,086	7,119,029
60%	60.0%	6,131,216	6,135,296
50%	50.0%	5,109,347	5,111,052
40%	40.0%	4,087,478	4,091,952
30%	30.0%	3,065,608	3,063,109
20%	20.0%	2,043,739	2,039,250
10%	10.0%	1,021,869	1,018,619
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'winterfill-7' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,413,489
Calibration 2			10,364,993
Calibration 3			10,192,500
ssj_ops@calibrated=10,278,746
100%	98.7%	10,278,746	10,147,430
90%	89.3%	9,250,872	9,182,714
80%	80.1%	8,222,997	8,231,812
70%	69.4%	7,195,122	7,131,541
60%	59.9%	6,167,248	6,157,619
50%	50.0%	5,139,373	5,134,748
40%	40.0%	4,111,499	4,110,151
30%	30.0%	3,083,624	3,088,180
20%	20.0%	2,055,749	2,052,891
10%	10.0%	1,027,875	1,026,663
Active Idle		0	0

See the Host Performance Report for additional details.
