Hewlett Packard Enterprise ProLiant DL560 Gen10 SPECpower_ssj2008 = 11,463 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 27, 2018
Hardware Availability: Jun-2018 Software Availability: Jun-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 11,554,819 942 12,271
90% 90.0% 10,420,604 854 12,197
80% 80.0% 9,265,445 743 12,469
70% 70.0% 8,110,297 623 13,028
60% 59.9% 6,940,634 545 12,741
50% 50.0% 5,789,843 476 12,175
40% 40.0% 4,628,921 410 11,304
30% 30.0% 3,473,288 348 9,987
20% 20.0% 2,314,205 290 7,989
10% 10.0% 1,158,780 236 4,910
Active Idle 0 88.6 0
∑ssj_ops / ∑power = 11,463

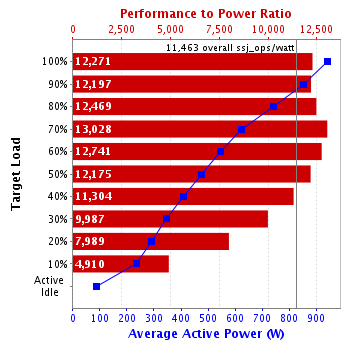

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen10
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated on each socket
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: HPE DPS-800AB-35 A 96% (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-7] --localalloc
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U34 v1.40 06/15/2018
Management Firmware Version: 1.30 May 31 2018
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2 - V6.3 9600
JVM Vendor: Oracle Corporation
JVM Version: 10.0.2 (build 10.0.2+13, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2QM2201V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 1-EM8E7-40-1
Date of Calibration: 16-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 942 24.4
90% 854 24.4
80% 743 24.4
70% 623 24.4
60% 545 24.4
50% 476 24.4
40% 410 24.3
30% 348 24.2
20% 290 24.2
10% 236 24.2
Active Idle 88.6 24.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 24.2 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,594,194
Calibration 2     11,579,926
Calibration 3     11,584,958
ssj_ops@calibrated=11,582,442
100% 99.8% 11,582,442 11,554,819
90% 90.0% 10,424,198 10,420,604
80% 80.0% 9,265,954 9,265,445
70% 70.0% 8,107,710 8,110,297
60% 59.9% 6,949,465 6,940,634
50% 50.0% 5,791,221 5,789,843
40% 40.0% 4,632,977 4,628,921
30% 30.0% 3,474,733 3,473,288
20% 20.0% 2,316,488 2,314,205
10% 10.0% 1,158,244 1,158,780
Active Idle   0 0

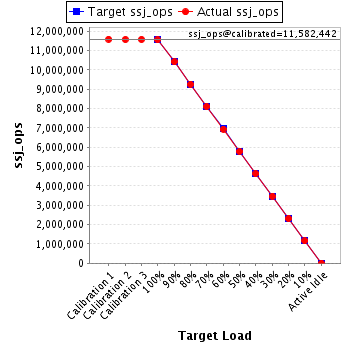

Graph of results
See the Host Performance Report for additional details.
