Hewlett Packard Enterprise ProLiant DL360 Gen10 SPECpower_ssj2008 = 11,709 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Jul-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 5,797,852 457 12,699
90% 90.0% 5,239,349 417 12,572
80% 80.0% 4,653,803 365 12,752
70% 70.0% 4,073,457 307 13,276
60% 60.0% 3,489,848 268 13,033
50% 50.0% 2,910,406 233 12,466
40% 40.0% 2,328,266 201 11,575
30% 30.0% 1,743,645 171 10,218
20% 20.0% 1,163,335 144 8,106
10% 10.0% 581,147 117 4,953
Active Idle 0 52.4 0
∑ssj_ops / ∑power = 11,709

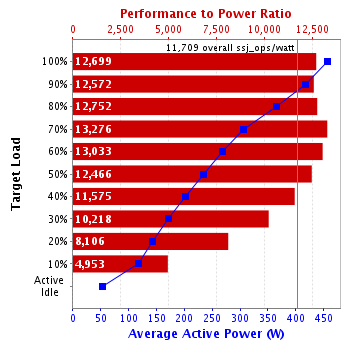

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8182 MB
Memory Details: 12 x 8GB 2Rx8 PC4-2666V-RE1-12 Samsung; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply 96% (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G SSD (875503-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: Kernel 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Djava.awt.headless=true -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.40 (06/15/2018)
Management Firmware Version: 1.30 pass 01 Dec 14 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_161-b12 (build 25.161-b12, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22004V
Connectivity: Yokogawa USB
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EL6R4-140-1
Date of Calibration: 05-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 457 23.4
90% 417 23.7
80% 365 23.8
70% 307 23.7
60% 268 23.8
50% 233 23.6
40% 201 23.4
30% 171 23.4
20% 144 23.3
10% 117 23.2
Active Idle 52.4 23.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,823,018
Calibration 2     5,823,485
Calibration 3     5,817,005
ssj_ops@calibrated=5,820,245
100% 99.6% 5,820,245 5,797,852
90% 90.0% 5,238,220 5,239,349
80% 80.0% 4,656,196 4,653,803
70% 70.0% 4,074,171 4,073,457
60% 60.0% 3,492,147 3,489,848
50% 50.0% 2,910,122 2,910,406
40% 40.0% 2,328,098 2,328,266
30% 30.0% 1,746,073 1,743,645
20% 20.0% 1,164,049 1,163,335
10% 10.0% 582,024 581,147
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
