SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2018 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module | SPECpower_ssj2008 = 10,323 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 28, 2018 |
| Hardware Availability: | Jun-2018 | Software Availability: | Mar-2018 | Publication: | Sep 12, 2018 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

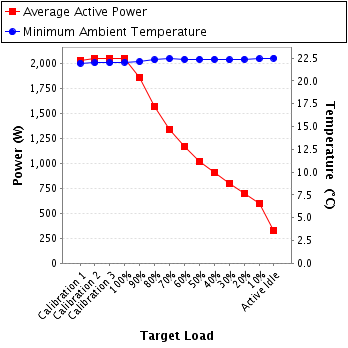

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 2,025 | 21.9 |
| Calibration 2 | 2,049 | 22.0 |
| Calibration 3 | 2,052 | 22.0 |
| 100% | 2,048 | 22.1 |
| 90% | 1,858 | 22.1 |
| 80% | 1,568 | 22.3 |
| 70% | 1,337 | 22.4 |
| 60% | 1,168 | 22.4 |
| 50% | 1,017 | 22.4 |
| 40% | 904 | 22.4 |
| 30% | 797 | 22.3 |
| 20% | 701 | 22.4 |
| 10% | 603 | 22.4 |
| Active Idle | 326 | 22.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB53024 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Transcat Metrology |
| Calibration Label: | 5-EM5Y4-80-1 |
| Date of Calibration: | 21-Jun-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supply 1, and 4 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

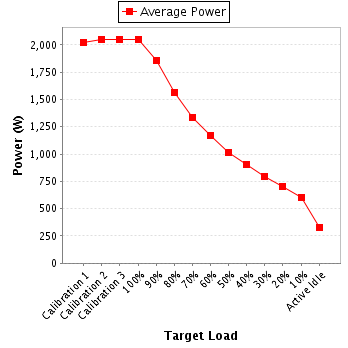

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 212 | 300.0 | 9.60 | 10.0 | 0.996 | 2,025 | 0.3% |
| Calibration 2 | 212 | 300.0 | 9.71 | 10.0 | 0.996 | 2,049 | 0.3% |
| Calibration 3 | 212 | 300.0 | 9.72 | 10.0 | 0.996 | 2,052 | 0.3% |
| 100% | 212 | 300.0 | 9.69 | 10.0 | 0.996 | 2,048 | 0.3% |
| 90% | 212 | 300.0 | 8.80 | 10.0 | 0.995 | 1,858 | 0.3% |
| 80% | 213 | 300.0 | 7.43 | 10.0 | 0.992 | 1,568 | 0.4% |
| 70% | 213 | 300.0 | 6.34 | 10.0 | 0.991 | 1,337 | 0.4% |
| 60% | 213 | 300.0 | 5.55 | 5.0 | 0.988 | 1,168 | 0.4% |
| 50% | 213 | 300.0 | 4.85 | 5.0 | 0.984 | 1,017 | 0.3% |
| 40% | 214 | 300.0 | 4.32 | 5.0 | 0.980 | 904 | 0.4% |
| 30% | 214 | 300.0 | 3.83 | 5.0 | 0.975 | 797 | 0.4% |
| 20% | 213 | 300.0 | 3.40 | 5.0 | 0.969 | 701 | 0.4% |
| 10% | 214 | 300.0 | 2.95 | 5.0 | 0.958 | 603 | 0.5% |
| Active Idle | 214 | 300.0 | 1.75 | 2.0 | 0.874 | 326 | 0.4% |
