SPECpower_ssj2008 Host 'Node03' Performance Report

SPECpower_ssj2008

Host 'Node03' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,497,048 ssj_ops@100% per JVM = 1,437,131
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Aug 27, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,536,967
Calibration 2			11,514,375
Calibration 3			11,526,953
ssj_ops@calibrated=11,520,664
100%	99.8%	11,520,664	11,497,048
90%	90.0%	10,368,597	10,373,981
80%	80.1%	9,216,531	9,223,085
70%	69.9%	8,064,465	8,047,305
60%	60.0%	6,912,398	6,910,584
50%	50.1%	5,760,332	5,766,337
40%	40.0%	4,608,266	4,611,946
30%	30.0%	3,456,199	3,452,881
20%	20.0%	2,304,133	2,305,939
10%	10.0%	1,152,066	1,147,004
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v1.32 (02/01/2018)
Management Firmware Version:	1.15 August 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 14, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

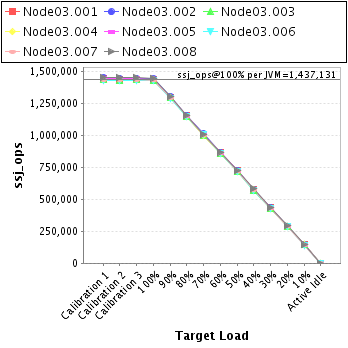

JVM Instance Summary

JVM Instance	ssj_ops@100%
Node03.001	1,438,205
Node03.002	1,441,701
Node03.003	1,432,217
Node03.004	1,436,710
Node03.005	1,438,287
Node03.006	1,428,576
Node03.007	1,432,418
Node03.008	1,448,934
ssj_ops@100%	11,497,048
ssj_ops@100% per JVM	1,437,131

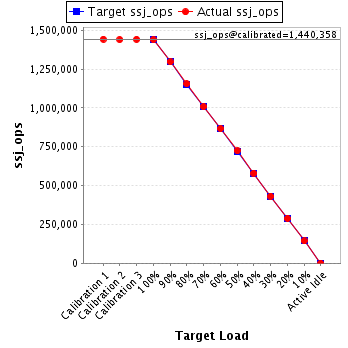

JVM 'Node03.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,442,210
Calibration 2			1,439,429
Calibration 3			1,441,287
ssj_ops@calibrated=1,440,358
100%	99.9%	1,440,358	1,438,205
90%	90.0%	1,296,322	1,296,074
80%	80.2%	1,152,287	1,155,301
70%	70.0%	1,008,251	1,007,771
60%	60.2%	864,215	866,644
50%	50.2%	720,179	723,529
40%	40.2%	576,143	579,643
30%	30.0%	432,107	432,439
20%	20.0%	288,072	288,562
10%	9.9%	144,036	143,300
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node03.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,449,200
Calibration 2			1,445,847
Calibration 3			1,446,954
ssj_ops@calibrated=1,446,401
100%	99.7%	1,446,401	1,441,701
90%	90.2%	1,301,760	1,304,189
80%	80.1%	1,157,120	1,158,108
70%	69.9%	1,012,480	1,011,567
60%	59.9%	867,840	866,004
50%	50.0%	723,200	722,801
40%	39.9%	578,560	577,591
30%	29.9%	433,920	432,846
20%	20.0%	289,280	288,860
10%	10.0%	144,640	144,145
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node03.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,439,534
Calibration 2			1,433,384
Calibration 3			1,434,838
ssj_ops@calibrated=1,434,111
100%	99.9%	1,434,111	1,432,217
90%	90.2%	1,290,700	1,293,562
80%	80.1%	1,147,289	1,148,663
70%	69.8%	1,003,878	1,000,365
60%	59.9%	860,466	859,100
50%	50.0%	717,055	717,255
40%	39.9%	573,644	572,283
30%	30.0%	430,233	429,846
20%	19.9%	286,822	285,547
10%	10.0%	143,411	143,668
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

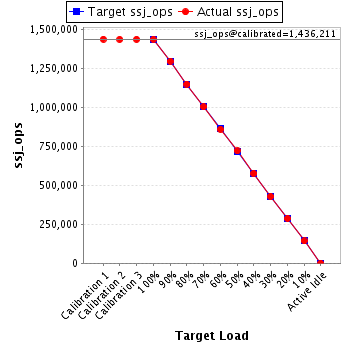

JVM 'Node03.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,422
Calibration 2			1,435,839
Calibration 3			1,436,583
ssj_ops@calibrated=1,436,211
100%	100.0%	1,436,211	1,436,710
90%	90.3%	1,292,590	1,296,248
80%	80.0%	1,148,969	1,149,380
70%	69.8%	1,005,348	1,002,745
60%	59.9%	861,727	859,698
50%	50.1%	718,105	720,185
40%	40.1%	574,484	575,433
30%	29.8%	430,863	428,441
20%	20.0%	287,242	287,376
10%	9.9%	143,621	142,883
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

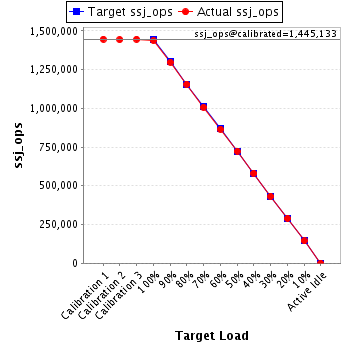

JVM 'Node03.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,446,688
Calibration 2			1,443,574
Calibration 3			1,446,692
ssj_ops@calibrated=1,445,133
100%	99.5%	1,445,133	1,438,287
90%	89.8%	1,300,620	1,297,634
80%	80.0%	1,156,106	1,155,739
70%	69.7%	1,011,593	1,007,839
60%	59.9%	867,080	866,054
50%	50.1%	722,566	724,039
40%	40.2%	578,053	580,479
30%	29.9%	433,540	432,803
20%	20.0%	289,027	289,466
10%	10.0%	144,513	144,429
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node03.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,430,412
Calibration 2			1,430,915
Calibration 3			1,433,211
ssj_ops@calibrated=1,432,063
100%	99.8%	1,432,063	1,428,576
90%	90.0%	1,288,857	1,288,626
80%	79.9%	1,145,650	1,144,195
70%	70.1%	1,002,444	1,004,458
60%	59.9%	859,238	858,496
50%	50.0%	716,031	716,079
40%	39.8%	572,825	569,794
30%	30.0%	429,619	429,695
20%	20.0%	286,413	286,313
10%	10.0%	143,206	142,618
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

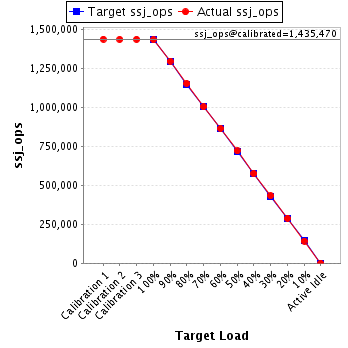

JVM 'Node03.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,053
Calibration 2			1,435,117
Calibration 3			1,435,823
ssj_ops@calibrated=1,435,470
100%	99.8%	1,435,470	1,432,418
90%	90.2%	1,291,923	1,295,233
80%	80.3%	1,148,376	1,152,444
70%	69.9%	1,004,829	1,002,742
60%	60.2%	861,282	864,535
50%	50.1%	717,735	719,692
40%	40.0%	574,188	574,366
30%	30.1%	430,641	432,132
20%	20.1%	287,094	288,235
10%	9.9%	143,547	142,417
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node03.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,455,449
Calibration 2			1,450,269
Calibration 3			1,451,566
ssj_ops@calibrated=1,450,918
100%	99.9%	1,450,918	1,448,934
90%	89.8%	1,305,826	1,302,416
80%	79.9%	1,160,734	1,159,254
70%	69.6%	1,015,642	1,009,820
60%	60.0%	870,551	870,054
50%	49.8%	725,459	722,756
40%	40.1%	580,367	582,357
30%	30.0%	435,275	434,679
20%	20.1%	290,184	291,579
10%	9.9%	145,092	143,544
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
