Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,203 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,971 22.6
Calibration 2 3,001 22.6
Calibration 3 3,003 22.5
100% 2,999 22.6
90% 2,724 22.7
80% 2,312 22.6
70% 1,999 22.5
60% 1,755 22.5
50% 1,541 22.5
40% 1,376 22.6
30% 1,233 22.6
20% 1,097 22.4
10% 946 22.4
Active Idle 553 22.6

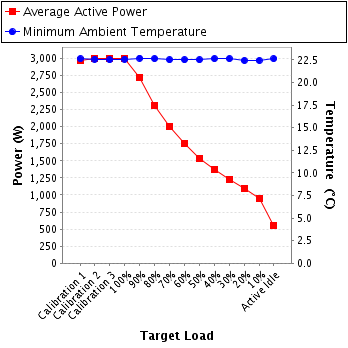

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 4.80 10.0 0.985 997 0.5%
Calibration 2 211 300.0 4.84 10.0 0.985 1,005 0.5%
Calibration 3 211 300.0 4.85 10.0 0.985 1,006 0.5%
100% 210 300.0 4.85 10.0 0.985 1,005 0.5%
90% 210 300.0 4.45 10.0 0.983 920 0.5%
80% 210 300.0 3.83 10.0 0.976 786 0.6%
70% 210 300.0 3.37 10.0 0.970 687 0.6%
60% 213 300.0 2.94 5.0 0.959 599 0.5%
50% 213 300.0 2.66 5.0 0.948 538 0.5%
40% 213 300.0 2.50 5.0 0.938 499 0.5%
30% 213 300.0 2.16 5.0 0.907 418 0.6%
20% 214 300.0 1.87 5.0 0.866 347 0.7%
10% 213 300.0 1.76 5.0 0.869 326 0.7%
Active Idle 214 300.0 1.20 2.0 0.720 184 0.7%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 4.75 10.0 0.986 988 0.5%
Calibration 2 211 300.0 4.80 10.0 0.986 1,000 0.5%
Calibration 3 211 300.0 4.81 10.0 0.986 1,001 0.5%
100% 211 300.0 4.81 10.0 0.986 999 0.5%
90% 211 300.0 4.35 10.0 0.983 902 0.5%
80% 211 300.0 3.68 10.0 0.976 756 0.6%
70% 211 300.0 3.16 10.0 0.968 646 0.7%
60% 213 300.0 2.82 5.0 0.959 577 0.5%
50% 214 300.0 2.48 5.0 0.943 500 0.5%
40% 214 300.0 2.11 5.0 0.907 409 0.6%
30% 214 300.0 2.04 5.0 0.892 388 0.6%
20% 214 300.0 1.93 5.0 0.876 361 0.7%
10% 214 300.0 1.63 5.0 0.857 299 0.8%
Active Idle 214 300.0 1.14 2.0 0.724 177 0.7%

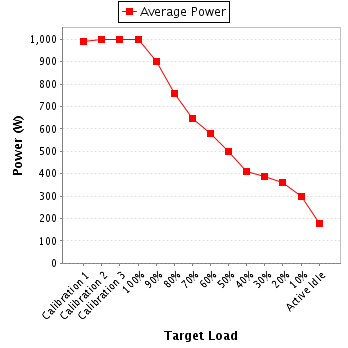

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 4.89 10.0 0.943 986 0.5%
Calibration 2 214 300.0 4.94 10.0 0.944 996 0.5%
Calibration 3 214 300.0 4.94 10.0 0.945 997 0.5%
100% 213 300.0 4.94 10.0 0.945 995 0.5%
90% 213 300.0 4.53 10.0 0.934 902 0.6%
80% 213 300.0 3.96 10.0 0.911 769 0.6%
70% 213 300.0 3.52 10.0 0.887 666 0.7%
60% 216 300.0 3.12 5.0 0.858 578 0.5%
50% 216 300.0 2.83 5.0 0.822 503 0.6%
40% 216 300.0 2.71 5.0 0.798 467 0.6%
30% 216 300.0 2.57 5.0 0.769 427 0.7%
20% 217 300.0 2.43 5.0 0.741 390 0.7%
10% 217 300.0 2.19 5.0 0.678 322 0.8%
Active Idle 217 300.0 1.81 2.0 0.487 192 0.8%
Power details for pwr3
