SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			ssj_ops@100% = 40,093,763 ssj_ops@100% per Host = 5,727,680 ssj_ops@100% per JVM = 1,431,920
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Aug 26, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			40,219,375
Calibration 2			40,178,197
Calibration 3			40,252,014
ssj_ops@calibrated=40,215,106
100%	99.7%	40,215,106	40,093,763
90%	90.0%	36,193,595	36,198,419
80%	80.0%	32,172,084	32,185,690
70%	70.0%	28,150,574	28,163,591
60%	60.0%	24,129,063	24,123,321
50%	50.0%	20,107,553	20,109,890
40%	40.0%	16,086,042	16,089,006
30%	30.0%	12,064,532	12,062,401
20%	20.0%	8,043,021	8,048,252
10%	10.0%	4,021,511	4,020,426
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
7	14	392	784	1,344	7	28

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP A5820X Series Switch JG219A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	7
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I42 v1.32 (02/01/2018)
Management Firmware Version:	1.15 Aug 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 14, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

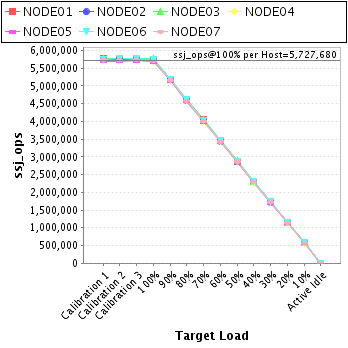

Host Instance Summary

Host	ssj_ops@100%
NODE01	5,744,003
NODE02	5,727,435
NODE03	5,762,662
NODE04	5,703,449
NODE05	5,689,156
NODE06	5,753,703
NODE07	5,713,355
ssj_ops@100%	40,093,763
ssj_ops@100% per Host	5,727,680
ssj_ops@100% per JVM	1,431,920

Host 'NODE01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,779,241
Calibration 2			5,754,757
Calibration 3			5,772,483
ssj_ops@calibrated=5,763,620
100%	99.7%	5,763,620	5,744,003
90%	90.0%	5,187,258	5,185,363
80%	80.1%	4,610,896	4,617,409
70%	70.1%	4,034,534	4,040,761
60%	59.9%	3,458,172	3,453,529
50%	49.9%	2,881,810	2,878,750
40%	40.0%	2,305,448	2,306,559
30%	30.0%	1,729,086	1,729,839
20%	20.1%	1,152,724	1,158,305
10%	10.0%	576,362	574,990
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,751,106
Calibration 2			5,735,499
Calibration 3			5,750,682
ssj_ops@calibrated=5,743,090
100%	99.7%	5,743,090	5,727,435
90%	90.0%	5,168,781	5,171,265
80%	80.1%	4,594,472	4,599,617
70%	70.1%	4,020,163	4,026,971
60%	60.0%	3,445,854	3,447,122
50%	50.0%	2,871,545	2,871,049
40%	40.1%	2,297,236	2,302,251
30%	29.9%	1,722,927	1,719,395
20%	20.0%	1,148,618	1,148,565
10%	10.0%	574,309	575,751
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,777,969
Calibration 2			5,773,560
Calibration 3			5,783,160
ssj_ops@calibrated=5,778,360
100%	99.7%	5,778,360	5,762,662
90%	89.9%	5,200,524	5,194,300
80%	80.1%	4,622,688	4,629,304
70%	70.0%	4,044,852	4,044,149
60%	60.0%	3,467,016	3,465,924
50%	50.1%	2,889,180	2,893,625
40%	40.0%	2,311,344	2,313,266
30%	30.0%	1,733,508	1,733,065
20%	19.9%	1,155,672	1,152,586
10%	10.0%	577,836	578,828
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,720,722
Calibration 2			5,719,573
Calibration 3			5,729,146
ssj_ops@calibrated=5,724,359
100%	99.6%	5,724,359	5,703,449
90%	90.1%	5,151,923	5,156,239
80%	80.0%	4,579,488	4,576,692
70%	70.0%	4,007,052	4,006,043
60%	60.0%	3,434,616	3,435,783
50%	50.0%	2,862,180	2,862,743
40%	40.0%	2,289,744	2,291,495
30%	30.1%	1,717,308	1,721,871
20%	20.0%	1,144,872	1,143,723
10%	10.0%	572,436	571,237
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,703,488
Calibration 2			5,703,471
Calibration 3			5,714,350
ssj_ops@calibrated=5,708,910
100%	99.7%	5,708,910	5,689,156
90%	90.1%	5,138,019	5,144,376
80%	80.0%	4,567,128	4,565,254
70%	70.0%	3,996,237	3,996,502
60%	59.9%	3,425,346	3,422,204
50%	50.0%	2,854,455	2,852,553
40%	39.9%	2,283,564	2,280,367
30%	30.0%	1,712,673	1,711,251
20%	20.0%	1,141,782	1,141,350
10%	10.0%	570,891	571,776
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,753,921
Calibration 2			5,768,013
Calibration 3			5,767,702
ssj_ops@calibrated=5,767,858
100%	99.8%	5,767,858	5,753,703
90%	90.0%	5,191,072	5,189,616
80%	80.0%	4,614,286	4,616,686
70%	70.0%	4,037,500	4,038,400
60%	60.1%	3,460,715	3,465,771
50%	50.0%	2,883,929	2,882,657
40%	40.0%	2,307,143	2,305,237
30%	30.0%	1,730,357	1,730,044
20%	20.0%	1,153,572	1,156,349
10%	10.0%	576,786	576,919
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE07' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,732,928
Calibration 2			5,723,325
Calibration 3			5,734,491
ssj_ops@calibrated=5,728,908
100%	99.7%	5,728,908	5,713,355
90%	90.0%	5,156,017	5,157,261
80%	80.0%	4,583,126	4,580,729
70%	70.0%	4,010,235	4,010,765
60%	59.9%	3,437,345	3,432,988
50%	50.1%	2,864,454	2,868,514
40%	40.0%	2,291,563	2,289,831
30%	30.0%	1,718,672	1,716,937
20%	20.0%	1,145,782	1,147,375
10%	10.0%	572,891	570,924
Active Idle		0	0

See the Host Performance Report for additional details.
