Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,721,337
ssj_ops@100% per JVM = 1,430,334
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,741,086
Calibration 2     5,731,413
Calibration 3     5,746,102
ssj_ops@calibrated=5,738,758
100% 99.7% 5,738,758 5,721,337
90% 89.9% 5,164,882 5,161,327
80% 79.9% 4,591,006 4,583,151
70% 70.1% 4,017,130 4,020,501
60% 59.9% 3,443,255 3,436,789
50% 50.0% 2,869,379 2,867,551
40% 40.0% 2,295,503 2,297,007
30% 30.0% 1,721,627 1,722,182
20% 20.0% 1,147,752 1,146,971
10% 10.0% 573,876 573,313
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE02.001 1,442,748
NODE02.002 1,429,697
NODE02.003 1,424,798
NODE02.004 1,424,095
ssj_ops@100% 5,721,337
ssj_ops@100% per JVM 1,430,334

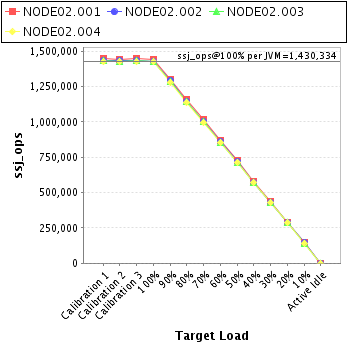

Graph of per-instance results
JVM 'NODE02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,447,834
Calibration 2     1,444,653
Calibration 3     1,450,673
ssj_ops@calibrated=1,447,663
100% 99.7% 1,447,663 1,442,748
90% 89.8% 1,302,896 1,300,422
80% 79.9% 1,158,130 1,156,127
70% 70.2% 1,013,364 1,016,650
60% 60.0% 868,598 868,294
50% 50.0% 723,831 723,547
40% 40.0% 579,065 579,561
30% 30.1% 434,299 436,288
20% 19.9% 289,533 288,795
10% 10.0% 144,766 144,580
Active Idle   0 0

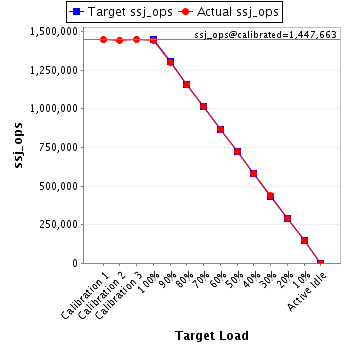

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,194
Calibration 2     1,432,637
Calibration 3     1,436,732
ssj_ops@calibrated=1,434,684
100% 99.7% 1,434,684 1,429,697
90% 90.2% 1,291,216 1,294,147
80% 79.8% 1,147,747 1,144,608
70% 70.0% 1,004,279 1,004,653
60% 59.8% 860,811 857,896
50% 50.0% 717,342 716,655
40% 39.8% 573,874 571,525
30% 30.1% 430,405 431,685
20% 20.0% 286,937 286,815
10% 10.0% 143,468 143,724
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,475
Calibration 2     1,429,006
Calibration 3     1,431,016
ssj_ops@calibrated=1,430,011
100% 99.6% 1,430,011 1,424,798
90% 89.9% 1,287,010 1,284,982
80% 79.9% 1,144,009 1,142,291
70% 70.1% 1,001,008 1,001,893
60% 59.8% 858,007 855,815
50% 49.8% 715,006 711,817
40% 40.1% 572,004 573,225
30% 29.8% 429,003 426,363
20% 20.0% 286,002 285,980
10% 10.0% 143,001 142,288
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,425,583
Calibration 2     1,425,118
Calibration 3     1,427,682
ssj_ops@calibrated=1,426,400
100% 99.8% 1,426,400 1,424,095
90% 89.9% 1,283,760 1,281,777
80% 79.9% 1,141,120 1,140,124
70% 69.9% 998,480 997,305
60% 59.9% 855,840 854,784
50% 50.2% 713,200 715,532
40% 40.1% 570,560 572,696
30% 30.0% 427,920 427,846
20% 20.0% 285,280 285,380
10% 10.0% 142,640 142,720
Active Idle   0 0

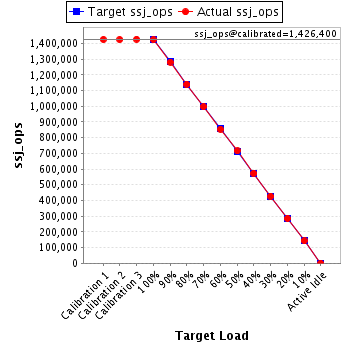

Graph of results
See the JVM Instance Performance Report for additional details.
