Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,732,798
ssj_ops@100% per JVM = 1,433,200
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,753,221
Calibration 2     5,752,410
Calibration 3     5,763,914
ssj_ops@calibrated=5,758,162
100% 99.6% 5,758,162 5,732,798
90% 90.1% 5,182,346 5,190,272
80% 80.2% 4,606,530 4,616,498
70% 69.7% 4,030,713 4,012,898
60% 59.9% 3,454,897 3,450,335
50% 50.0% 2,879,081 2,878,184
40% 40.1% 2,303,265 2,306,208
30% 30.1% 1,727,449 1,731,234
20% 19.9% 1,151,632 1,148,033
10% 10.0% 575,816 576,401
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE05.001 1,437,539
NODE05.002 1,424,339
NODE05.003 1,450,586
NODE05.004 1,420,333
ssj_ops@100% 5,732,798
ssj_ops@100% per JVM 1,433,200
Graph of per-instance results
JVM 'NODE05.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,841
Calibration 2     1,443,855
Calibration 3     1,444,919
ssj_ops@calibrated=1,444,387
100% 99.5% 1,444,387 1,437,539
90% 90.0% 1,299,948 1,300,442
80% 80.1% 1,155,510 1,157,244
70% 69.9% 1,011,071 1,009,016
60% 59.7% 866,632 862,840
50% 50.1% 722,193 723,811
40% 39.9% 577,755 576,441
30% 30.1% 433,316 435,109
20% 19.9% 288,877 287,429
10% 10.0% 144,439 143,992
Active Idle   0 0

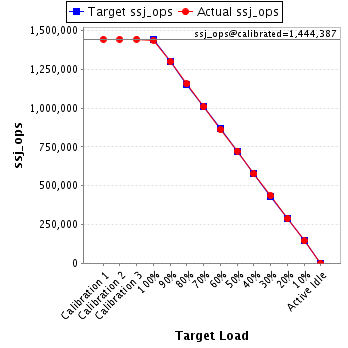

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,427,262
Calibration 2     1,426,054
Calibration 3     1,431,032
ssj_ops@calibrated=1,428,543
100% 99.7% 1,428,543 1,424,339
90% 90.2% 1,285,688 1,288,649
80% 80.2% 1,142,834 1,146,362
70% 69.8% 999,980 997,744
60% 60.0% 857,126 857,249
50% 50.0% 714,271 714,126
40% 40.1% 571,417 572,422
30% 30.1% 428,563 429,523
20% 20.0% 285,709 285,600
10% 10.0% 142,854 143,394
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,455,967
Calibration 2     1,455,294
Calibration 3     1,457,648
ssj_ops@calibrated=1,456,471
100% 99.6% 1,456,471 1,450,586
90% 90.3% 1,310,824 1,315,801
80% 80.0% 1,165,177 1,165,003
70% 69.7% 1,019,530 1,015,291
60% 60.1% 873,883 874,611
50% 49.8% 728,235 726,039
40% 40.2% 582,588 585,565
30% 30.0% 436,941 437,219
20% 19.9% 291,294 289,535
10% 10.1% 145,647 146,378
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,426,150
Calibration 2     1,427,207
Calibration 3     1,430,316
ssj_ops@calibrated=1,428,761
100% 99.4% 1,428,761 1,420,333
90% 90.0% 1,285,885 1,285,380
80% 80.3% 1,143,009 1,147,888
70% 69.4% 1,000,133 990,847
60% 59.9% 857,257 855,635
50% 50.0% 714,381 714,208
40% 40.0% 571,505 571,780
30% 30.1% 428,628 429,384
20% 20.0% 285,752 285,469
10% 10.0% 142,876 142,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
