Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,693,845
ssj_ops@100% per JVM = 1,423,461
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,730,161
Calibration 2     5,718,088
Calibration 3     5,726,396
ssj_ops@calibrated=5,722,242
100% 99.5% 5,722,242 5,693,845
90% 89.9% 5,150,017 5,144,588
80% 79.9% 4,577,793 4,574,348
70% 69.9% 4,005,569 4,000,836
60% 60.0% 3,433,345 3,435,253
50% 49.9% 2,861,121 2,855,373
40% 40.1% 2,288,897 2,294,091
30% 30.0% 1,716,672 1,715,428
20% 20.0% 1,144,448 1,144,669
10% 10.0% 572,224 573,085
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE04.001 1,421,252
NODE04.002 1,429,655
NODE04.003 1,414,599
NODE04.004 1,428,339
ssj_ops@100% 5,693,845
ssj_ops@100% per JVM 1,423,461
Graph of per-instance results
JVM 'NODE04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,012
Calibration 2     1,428,763
Calibration 3     1,430,091
ssj_ops@calibrated=1,429,427
100% 99.4% 1,429,427 1,421,252
90% 89.9% 1,286,484 1,284,843
80% 80.1% 1,143,542 1,145,078
70% 69.9% 1,000,599 999,165
60% 59.9% 857,656 856,641
50% 50.0% 714,714 714,018
40% 40.1% 571,771 573,303
30% 30.2% 428,828 432,294
20% 20.0% 285,885 285,552
10% 10.0% 142,943 143,054
Active Idle   0 0

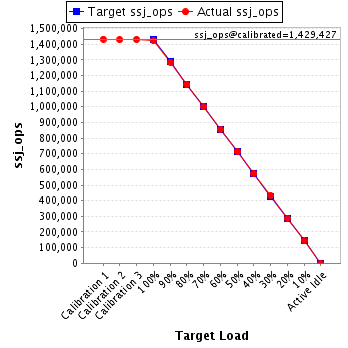

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,823
Calibration 2     1,436,277
Calibration 3     1,435,051
ssj_ops@calibrated=1,435,664
100% 99.6% 1,435,664 1,429,655
90% 90.0% 1,292,098 1,292,482
80% 79.9% 1,148,531 1,146,539
70% 69.8% 1,004,965 1,001,966
60% 60.2% 861,399 864,415
50% 50.0% 717,832 718,264
40% 40.1% 574,266 576,245
30% 29.9% 430,699 429,318
20% 19.9% 287,133 286,398
10% 10.0% 143,566 144,030
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,424,263
Calibration 2     1,419,700
Calibration 3     1,424,332
ssj_ops@calibrated=1,422,016
100% 99.5% 1,422,016 1,414,599
90% 90.0% 1,279,814 1,279,606
80% 79.8% 1,137,613 1,135,460
70% 69.9% 995,411 994,286
60% 60.0% 853,210 852,792
50% 49.8% 711,008 707,768
40% 40.0% 568,806 568,553
30% 29.9% 426,605 425,609
20% 20.1% 284,403 285,696
10% 10.0% 142,202 142,343
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,063
Calibration 2     1,433,347
Calibration 3     1,436,921
ssj_ops@calibrated=1,435,134
100% 99.5% 1,435,134 1,428,339
90% 89.7% 1,291,621 1,287,658
80% 79.9% 1,148,107 1,147,272
70% 70.1% 1,004,594 1,005,419
60% 60.0% 861,080 861,406
50% 49.8% 717,567 715,324
40% 40.1% 574,054 575,991
30% 29.8% 430,540 428,206
20% 20.0% 287,027 287,023
10% 10.0% 143,513 143,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
