Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,748,027
ssj_ops@100% per JVM = 1,437,007
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,771,383
Calibration 2     5,763,082
Calibration 3     5,773,467
ssj_ops@calibrated=5,768,275
100% 99.6% 5,768,275 5,748,027
90% 90.0% 5,191,447 5,189,782
80% 79.9% 4,614,620 4,610,561
70% 70.0% 4,037,792 4,036,481
60% 60.0% 3,460,965 3,459,777
50% 50.0% 2,884,137 2,883,737
40% 40.0% 2,307,310 2,307,384
30% 30.0% 1,730,482 1,731,949
20% 20.0% 1,153,655 1,151,740
10% 10.0% 576,827 575,780
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE03.001 1,425,258
NODE03.002 1,429,245
NODE03.003 1,442,385
NODE03.004 1,451,139
ssj_ops@100% 5,748,027
ssj_ops@100% per JVM 1,437,007

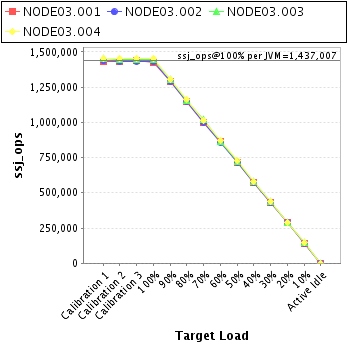

Graph of per-instance results

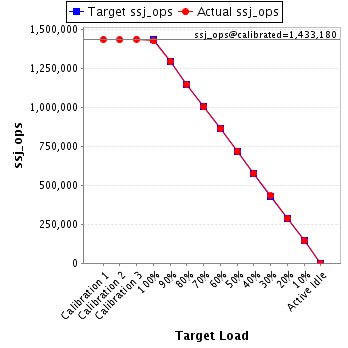

JVM 'NODE03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,405
Calibration 2     1,431,244
Calibration 3     1,435,117
ssj_ops@calibrated=1,433,180
100% 99.4% 1,433,180 1,425,258
90% 90.1% 1,289,862 1,291,365
80% 79.9% 1,146,544 1,145,358
70% 69.9% 1,003,226 1,001,105
60% 60.1% 859,908 861,670
50% 50.1% 716,590 717,714
40% 40.1% 573,272 574,093
30% 30.1% 429,954 430,781
20% 19.9% 286,636 285,833
10% 10.0% 143,318 143,734
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,913
Calibration 2     1,433,348
Calibration 3     1,434,648
ssj_ops@calibrated=1,433,998
100% 99.7% 1,433,998 1,429,245
90% 90.1% 1,290,598 1,292,098
80% 79.9% 1,147,198 1,145,528
70% 69.9% 1,003,799 1,002,211
60% 60.0% 860,399 860,111
50% 50.0% 716,999 717,634
40% 40.1% 573,599 574,641
30% 30.0% 430,199 429,870
20% 19.9% 286,800 285,663
10% 9.9% 143,400 142,318
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,449,611
Calibration 2     1,447,558
Calibration 3     1,448,661
ssj_ops@calibrated=1,448,109
100% 99.6% 1,448,109 1,442,385
90% 89.8% 1,303,298 1,300,402
80% 79.8% 1,158,487 1,155,979
70% 70.3% 1,013,677 1,018,192
60% 59.8% 868,866 865,548
50% 49.9% 724,055 722,733
40% 40.1% 579,244 580,397
30% 30.1% 434,433 435,900
20% 20.0% 289,622 289,805
10% 10.0% 144,811 145,059
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,451,453
Calibration 2     1,450,933
Calibration 3     1,455,041
ssj_ops@calibrated=1,452,987
100% 99.9% 1,452,987 1,451,139
90% 89.9% 1,307,688 1,305,916
80% 80.1% 1,162,389 1,163,696
70% 69.9% 1,017,091 1,014,973
60% 60.0% 871,792 872,448
50% 49.9% 726,493 725,656
40% 39.8% 581,195 578,254
30% 30.0% 435,896 435,398
20% 20.0% 290,597 290,439
10% 10.0% 145,299 144,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
