Supermicro Inc. SYS-1029U-TR4 ssj_ops@100% = 5,569,503
ssj_ops@100% per JVM = 99,455
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Jul 15, 2018
Hardware Availability: Nov-2017 Software Availability: Jul-2017 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,603,243
Calibration 2     5,598,438
Calibration 3     5,551,964
ssj_ops@calibrated=5,575,201
100% 99.9% 5,575,201 5,569,503
90% 89.6% 5,017,681 4,993,013
80% 80.0% 4,460,161 4,457,669
70% 69.8% 3,902,641 3,893,763
60% 59.9% 3,345,120 3,338,015
50% 50.0% 2,787,600 2,788,822
40% 40.0% 2,230,080 2,229,201
30% 29.9% 1,672,560 1,666,174
20% 20.0% 1,115,040 1,115,279
10% 10.1% 557,520 561,044
Active Idle   0 0

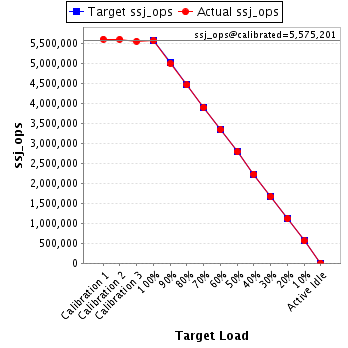

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro Inc.
Model: SYS-1029U-TR4
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 56 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666P,HMA82GR7AFR8N-VK; CPU1/2 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: PWS-751P-1R
Disk Drive: 1 x Seagate SATA III 240GB SSD, XF1230-1A0240.
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port RSC Intel I350 Gigabit Ethernet controller, AOC-UR-i4G.
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options: -server -Xmn1340m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: X11DPU8_614
Management Firmware Version: SMT_X11AST2500_152
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B0O552PGTK8.001 98,915
WIN-B0O552PGTK8.002 100,747
WIN-B0O552PGTK8.003 97,762
WIN-B0O552PGTK8.004 96,809
WIN-B0O552PGTK8.005 99,809
WIN-B0O552PGTK8.006 99,541
WIN-B0O552PGTK8.007 95,781
WIN-B0O552PGTK8.008 97,521
WIN-B0O552PGTK8.009 100,963
WIN-B0O552PGTK8.010 99,473
WIN-B0O552PGTK8.011 97,610
WIN-B0O552PGTK8.012 99,430
WIN-B0O552PGTK8.013 99,313
WIN-B0O552PGTK8.014 98,134
WIN-B0O552PGTK8.015 98,954
WIN-B0O552PGTK8.016 99,766
WIN-B0O552PGTK8.017 98,493
WIN-B0O552PGTK8.018 98,991
WIN-B0O552PGTK8.019 98,963
WIN-B0O552PGTK8.020 101,111
WIN-B0O552PGTK8.021 98,863
WIN-B0O552PGTK8.022 96,366
WIN-B0O552PGTK8.023 100,886
WIN-B0O552PGTK8.024 100,542
WIN-B0O552PGTK8.025 99,418
WIN-B0O552PGTK8.026 97,995
WIN-B0O552PGTK8.027 98,920
WIN-B0O552PGTK8.028 97,798
WIN-B0O552PGTK8.029 100,124
WIN-B0O552PGTK8.030 99,063
WIN-B0O552PGTK8.031 99,043
WIN-B0O552PGTK8.032 101,173
WIN-B0O552PGTK8.033 99,244
WIN-B0O552PGTK8.034 100,678
WIN-B0O552PGTK8.035 97,537
WIN-B0O552PGTK8.036 101,235
WIN-B0O552PGTK8.037 99,114
WIN-B0O552PGTK8.038 98,457
WIN-B0O552PGTK8.039 99,800
WIN-B0O552PGTK8.040 101,311
WIN-B0O552PGTK8.041 100,779
WIN-B0O552PGTK8.042 101,333
WIN-B0O552PGTK8.043 101,666
WIN-B0O552PGTK8.044 102,059
WIN-B0O552PGTK8.045 101,388
WIN-B0O552PGTK8.046 99,651
WIN-B0O552PGTK8.047 100,202
WIN-B0O552PGTK8.048 101,201
WIN-B0O552PGTK8.049 100,637
WIN-B0O552PGTK8.050 98,632
WIN-B0O552PGTK8.051 99,725
WIN-B0O552PGTK8.052 100,448
WIN-B0O552PGTK8.053 98,647
WIN-B0O552PGTK8.054 98,453
WIN-B0O552PGTK8.055 100,419
WIN-B0O552PGTK8.056 98,608
ssj_ops@100% 5,569,503
ssj_ops@100% per JVM 99,455
Graph of per-instance results
JVM 'WIN-B0O552PGTK8.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,564
Calibration 2     99,722
Calibration 3     99,297
ssj_ops@calibrated=99,509
100% 99.4% 99,509 98,915
90% 89.2% 89,558 88,762
80% 80.1% 79,608 79,676
70% 70.0% 69,657 69,634
60% 60.0% 59,706 59,696
50% 50.6% 49,755 50,340
40% 40.6% 39,804 40,372
30% 30.2% 29,853 30,004
20% 20.1% 19,902 20,028
10% 9.9% 9,951 9,820
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,933
Calibration 2     100,912
Calibration 3     99,856
ssj_ops@calibrated=100,384
100% 100.4% 100,384 100,747
90% 89.8% 90,346 90,140
80% 79.4% 80,307 79,656
70% 69.7% 70,269 69,971
60% 59.5% 60,230 59,778
50% 49.8% 50,192 49,975
40% 40.0% 40,154 40,202
30% 30.2% 30,115 30,318
20% 20.1% 20,077 20,133
10% 10.2% 10,038 10,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,183
Calibration 2     98,690
Calibration 3     97,311
ssj_ops@calibrated=98,001
100% 99.8% 98,001 97,762
90% 89.4% 88,201 87,608
80% 79.4% 78,400 77,851
70% 69.9% 68,600 68,459
60% 60.3% 58,800 59,066
50% 50.3% 49,000 49,292
40% 40.1% 39,200 39,346
30% 30.3% 29,400 29,742
20% 19.9% 19,600 19,462
10% 9.9% 9,800 9,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,001
Calibration 2     97,435
Calibration 3     96,337
ssj_ops@calibrated=96,886
100% 99.9% 96,886 96,809
90% 88.6% 87,197 85,852
80% 80.1% 77,509 77,601
70% 69.9% 67,820 67,727
60% 60.5% 58,132 58,658
50% 50.4% 48,443 48,787
40% 40.1% 38,754 38,835
30% 30.6% 29,066 29,648
20% 19.7% 19,377 19,133
10% 10.1% 9,689 9,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,238
Calibration 2     99,760
Calibration 3     99,358
ssj_ops@calibrated=99,559
100% 100.3% 99,559 99,809
90% 89.5% 89,603 89,145
80% 81.3% 79,648 80,957
70% 69.5% 69,692 69,240
60% 59.8% 59,736 59,545
50% 49.8% 49,780 49,623
40% 40.5% 39,824 40,339
30% 30.4% 29,868 30,264
20% 20.3% 19,912 20,233
10% 9.8% 9,956 9,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,207
Calibration 2     99,570
Calibration 3     98,148
ssj_ops@calibrated=98,859
100% 100.7% 98,859 99,541
90% 89.5% 88,973 88,487
80% 80.4% 79,087 79,532
70% 69.4% 69,201 68,633
60% 60.1% 59,316 59,384
50% 50.2% 49,430 49,611
40% 40.0% 39,544 39,531
30% 30.4% 29,658 30,024
20% 19.7% 19,772 19,500
10% 10.0% 9,886 9,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,202
Calibration 2     96,736
Calibration 3     97,039
ssj_ops@calibrated=96,888
100% 98.9% 96,888 95,781
90% 90.0% 87,199 87,220
80% 80.1% 77,510 77,566
70% 69.9% 67,821 67,752
60% 60.5% 58,133 58,643
50% 50.0% 48,444 48,471
40% 39.9% 38,755 38,692
30% 30.1% 29,066 29,138
20% 20.0% 19,378 19,332
10% 10.1% 9,689 9,794
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,450
Calibration 2     99,209
Calibration 3     98,281
ssj_ops@calibrated=98,745
100% 98.8% 98,745 97,521
90% 89.2% 88,871 88,054
80% 80.1% 78,996 79,144
70% 69.6% 69,122 68,694
60% 59.9% 59,247 59,166
50% 49.6% 49,373 48,951
40% 40.0% 39,498 39,502
30% 30.2% 29,624 29,869
20% 20.1% 19,749 19,806
10% 10.2% 9,875 10,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,528
Calibration 2     101,307
Calibration 3     100,860
ssj_ops@calibrated=101,083
100% 99.9% 101,083 100,963
90% 89.3% 90,975 90,309
80% 79.5% 80,867 80,316
70% 69.9% 70,758 70,658
60% 59.6% 60,650 60,229
50% 50.3% 50,542 50,873
40% 39.3% 40,433 39,727
30% 29.9% 30,325 30,204
20% 20.3% 20,217 20,529
10% 9.9% 10,108 10,019
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,775
Calibration 2     99,169
Calibration 3     98,406
ssj_ops@calibrated=98,788
100% 100.7% 98,788 99,473
90% 88.9% 88,909 87,824
80% 80.0% 79,030 79,042
70% 69.5% 69,151 68,672
60% 60.1% 59,273 59,378
50% 50.2% 49,394 49,626
40% 39.8% 39,515 39,324
30% 30.0% 29,636 29,656
20% 20.0% 19,758 19,775
10% 10.3% 9,879 10,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,050
Calibration 2     98,822
Calibration 3     97,368
ssj_ops@calibrated=98,095
100% 99.5% 98,095 97,610
90% 89.4% 88,286 87,655
80% 80.0% 78,476 78,447
70% 69.6% 68,667 68,260
60% 60.0% 58,857 58,865
50% 50.1% 49,048 49,179
40% 39.9% 39,238 39,172
30% 30.4% 29,429 29,802
20% 19.9% 19,619 19,534
10% 10.1% 9,810 9,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,868
Calibration 2     98,725
Calibration 3     97,865
ssj_ops@calibrated=98,295
100% 101.2% 98,295 99,430
90% 89.0% 88,465 87,463
80% 79.8% 78,636 78,405
70% 70.0% 68,806 68,855
60% 59.6% 58,977 58,628
50% 50.3% 49,147 49,454
40% 39.7% 39,318 38,985
30% 29.9% 29,488 29,420
20% 20.0% 19,659 19,637
10% 10.0% 9,829 9,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,562
Calibration 2     100,126
Calibration 3     99,040
ssj_ops@calibrated=99,583
100% 99.7% 99,583 99,313
90% 89.2% 89,625 88,857
80% 79.0% 79,666 78,715
70% 69.9% 69,708 69,603
60% 60.2% 59,750 59,901
50% 49.2% 49,791 49,033
40% 39.5% 39,833 39,382
30% 29.7% 29,875 29,581
20% 19.7% 19,917 19,662
10% 10.5% 9,958 10,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,637
Calibration 2     99,346
Calibration 3     97,881
ssj_ops@calibrated=98,614
100% 99.5% 98,614 98,134
90% 89.3% 88,752 88,108
80% 80.9% 78,891 79,791
70% 70.1% 69,030 69,100
60% 59.7% 59,168 58,884
50% 50.3% 49,307 49,611
40% 39.7% 39,446 39,186
30% 29.3% 29,584 28,917
20% 19.3% 19,723 19,071
10% 10.3% 9,861 10,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,603
Calibration 2     99,480
Calibration 3     98,678
ssj_ops@calibrated=99,079
100% 99.9% 99,079 98,954
90% 89.5% 89,171 88,638
80% 79.3% 79,263 78,609
70% 69.7% 69,355 69,041
60% 60.7% 59,447 60,144
50% 50.1% 49,539 49,621
40% 39.4% 39,632 39,006
30% 29.8% 29,724 29,536
20% 20.2% 19,816 20,008
10% 10.0% 9,908 9,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,818
Calibration 2     100,440
Calibration 3     99,470
ssj_ops@calibrated=99,955
100% 99.8% 99,955 99,766
90% 89.2% 89,960 89,193
80% 79.0% 79,964 78,943
70% 70.2% 69,969 70,191
60% 59.6% 59,973 59,530
50% 49.7% 49,978 49,709
40% 39.8% 39,982 39,764
30% 30.0% 29,987 29,958
20% 20.4% 19,991 20,407
10% 10.2% 9,996 10,172
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,364
Calibration 2     98,892
Calibration 3     97,879
ssj_ops@calibrated=98,386
100% 100.1% 98,386 98,493
90% 88.7% 88,547 87,311
80% 80.1% 78,709 78,843
70% 70.0% 68,870 68,827
60% 59.8% 59,031 58,845
50% 49.5% 49,193 48,714
40% 40.7% 39,354 40,017
30% 29.7% 29,516 29,225
20% 20.1% 19,677 19,770
10% 10.1% 9,839 9,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,455
Calibration 2     99,158
Calibration 3     97,674
ssj_ops@calibrated=98,416
100% 100.6% 98,416 98,991
90% 89.3% 88,574 87,910
80% 80.8% 78,732 79,473
70% 69.8% 68,891 68,664
60% 60.3% 59,049 59,384
50% 50.6% 49,208 49,805
40% 40.7% 39,366 40,047
30% 29.5% 29,525 29,025
20% 19.8% 19,683 19,516
10% 10.2% 9,842 10,061
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,886
Calibration 2     98,492
Calibration 3     97,428
ssj_ops@calibrated=97,960
100% 101.0% 97,960 98,963
90% 89.1% 88,164 87,284
80% 80.7% 78,368 79,015
70% 69.2% 68,572 67,785
60% 59.6% 58,776 58,365
50% 50.2% 48,980 49,209
40% 39.9% 39,184 39,079
30% 30.2% 29,388 29,551
20% 20.0% 19,592 19,582
10% 10.0% 9,796 9,817
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,457
Calibration 2     100,247
Calibration 3     99,510
ssj_ops@calibrated=99,879
100% 101.2% 99,879 101,111
90% 88.7% 89,891 88,573
80% 80.5% 79,903 80,379
70% 69.8% 69,915 69,704
60% 60.2% 59,927 60,126
50% 50.3% 49,939 50,287
40% 40.1% 39,952 40,085
30% 29.6% 29,964 29,612
20% 20.1% 19,976 20,059
10% 9.9% 9,988 9,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,852
Calibration 2     99,913
Calibration 3     98,971
ssj_ops@calibrated=99,442
100% 99.4% 99,442 98,863
90% 88.9% 89,498 88,360
80% 79.8% 79,554 79,348
70% 69.8% 69,610 69,380
60% 59.5% 59,665 59,193
50% 49.5% 49,721 49,223
40% 40.8% 39,777 40,533
30% 29.9% 29,833 29,749
20% 20.0% 19,888 19,919
10% 9.9% 9,944 9,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,005
Calibration 2     97,730
Calibration 3     96,527
ssj_ops@calibrated=97,129
100% 99.2% 97,129 96,366
90% 88.6% 87,416 86,026
80% 80.9% 77,703 78,596
70% 69.8% 67,990 67,764
60% 60.0% 58,277 58,250
50% 51.0% 48,564 49,576
40% 40.4% 38,852 39,218
30% 29.6% 29,139 28,711
20% 19.8% 19,426 19,224
10% 9.8% 9,713 9,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,636
Calibration 2     100,454
Calibration 3     99,759
ssj_ops@calibrated=100,107
100% 100.8% 100,107 100,886
90% 88.9% 90,096 88,991
80% 79.3% 80,085 79,375
70% 69.7% 70,075 69,815
60% 59.1% 60,064 59,127
50% 50.5% 50,053 50,596
40% 39.4% 40,043 39,476
30% 29.5% 30,032 29,559
20% 19.9% 20,021 19,882
10% 10.2% 10,011 10,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,329
Calibration 2     101,361
Calibration 3     99,858
ssj_ops@calibrated=100,610
100% 99.9% 100,610 100,542
90% 88.8% 90,549 89,387
80% 79.4% 80,488 79,860
70% 69.9% 70,427 70,307
60% 59.0% 60,366 59,398
50% 50.0% 50,305 50,343
40% 39.7% 40,244 39,976
30% 30.1% 30,183 30,272
20% 20.2% 20,122 20,323
10% 10.4% 10,061 10,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,881
Calibration 2     99,669
Calibration 3     99,191
ssj_ops@calibrated=99,430
100% 100.0% 99,430 99,418
90% 89.2% 89,487 88,659
80% 79.8% 79,544 79,383
70% 69.8% 69,601 69,440
60% 60.4% 59,658 60,084
50% 50.2% 49,715 49,962
40% 40.4% 39,772 40,120
30% 29.8% 29,829 29,644
20% 20.1% 19,886 19,955
10% 10.2% 9,943 10,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,803
Calibration 2     99,845
Calibration 3     98,454
ssj_ops@calibrated=99,149
100% 98.8% 99,149 97,995
90% 88.8% 89,234 88,010
80% 79.6% 79,319 78,957
70% 69.8% 69,404 69,194
60% 60.2% 59,490 59,730
50% 50.5% 49,575 50,120
40% 40.0% 39,660 39,696
30% 30.4% 29,745 30,154
20% 19.7% 19,830 19,527
10% 10.3% 9,915 10,187
Active Idle   0 0

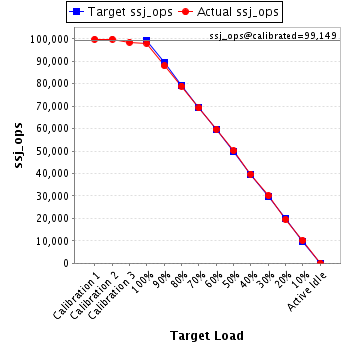

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,826
Calibration 2     100,188
Calibration 3     99,141
ssj_ops@calibrated=99,665
100% 99.3% 99,665 98,920
90% 88.1% 89,698 87,850
80% 80.6% 79,732 80,306
70% 69.5% 69,765 69,246
60% 60.1% 59,799 59,948
50% 50.5% 49,832 50,292
40% 40.1% 39,866 40,011
30% 30.0% 29,899 29,882
20% 20.1% 19,933 20,081
10% 10.4% 9,966 10,358
Active Idle   0 0

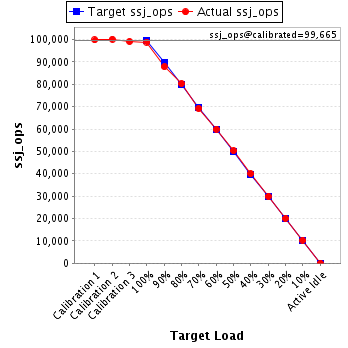

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,008
Calibration 2     98,188
Calibration 3     96,962
ssj_ops@calibrated=97,575
100% 100.2% 97,575 97,798
90% 89.3% 87,818 87,168
80% 79.7% 78,060 77,763
70% 69.8% 68,303 68,060
60% 60.2% 58,545 58,734
50% 49.3% 48,788 48,072
40% 40.2% 39,030 39,248
30% 30.3% 29,273 29,611
20% 19.6% 19,515 19,145
10% 9.5% 9,758 9,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,828
Calibration 2     100,611
Calibration 3     99,722
ssj_ops@calibrated=100,166
100% 100.0% 100,166 100,124
90% 90.2% 90,150 90,399
80% 80.5% 80,133 80,641
70% 69.9% 70,116 69,967
60% 60.0% 60,100 60,141
50% 50.2% 50,083 50,289
40% 40.2% 40,067 40,265
30% 29.2% 30,050 29,253
20% 20.4% 20,033 20,447
10% 9.6% 10,017 9,622
Active Idle   0 0

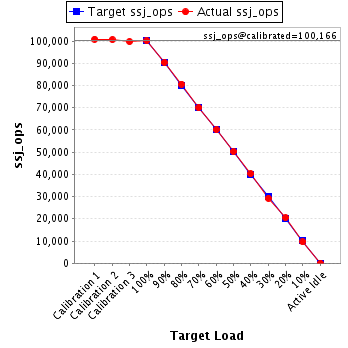

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,281
Calibration 2     100,182
Calibration 3     99,909
ssj_ops@calibrated=100,046
100% 99.0% 100,046 99,063
90% 90.3% 90,041 90,329
80% 79.7% 80,037 79,708
70% 70.1% 70,032 70,122
60% 60.2% 60,028 60,256
50% 48.8% 50,023 48,869
40% 39.6% 40,018 39,616
30% 30.3% 30,014 30,270
20% 20.1% 20,009 20,062
10% 10.0% 10,005 9,974
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,975
Calibration 2     100,602
Calibration 3     100,160
ssj_ops@calibrated=100,381
100% 98.7% 100,381 99,043
90% 90.4% 90,343 90,793
80% 79.2% 80,305 79,540
70% 69.8% 70,267 70,061
60% 59.9% 60,229 60,088
50% 49.5% 50,191 49,717
40% 40.5% 40,152 40,609
30% 29.8% 30,114 29,911
20% 19.6% 20,076 19,696
10% 9.9% 10,038 9,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,096
Calibration 2     100,896
Calibration 3     100,218
ssj_ops@calibrated=100,557
100% 100.6% 100,557 101,173
90% 89.8% 90,501 90,274
80% 80.2% 80,445 80,687
70% 69.8% 70,390 70,151
60% 59.7% 60,334 60,066
50% 49.6% 50,278 49,840
40% 39.8% 40,223 40,013
30% 29.7% 30,167 29,831
20% 20.3% 20,111 20,364
10% 10.0% 10,056 10,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,716
Calibration 2     99,604
Calibration 3     98,281
ssj_ops@calibrated=98,943
100% 100.3% 98,943 99,244
90% 90.1% 89,048 89,137
80% 79.5% 79,154 78,624
70% 70.0% 69,260 69,223
60% 59.6% 59,366 58,990
50% 50.0% 49,471 49,447
40% 39.7% 39,577 39,266
30% 29.9% 29,683 29,554
20% 19.2% 19,789 19,021
10% 9.8% 9,894 9,705
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,643
Calibration 2     102,741
Calibration 3     101,603
ssj_ops@calibrated=102,172
100% 98.5% 102,172 100,678
90% 89.9% 91,955 91,904
80% 80.4% 81,738 82,151
70% 69.9% 71,521 71,459
60% 60.1% 61,303 61,400
50% 50.5% 51,086 51,569
40% 39.4% 40,869 40,280
30% 28.9% 30,652 29,493
20% 19.7% 20,434 20,131
10% 10.3% 10,217 10,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,209
Calibration 2     98,927
Calibration 3     98,558
ssj_ops@calibrated=98,743
100% 98.8% 98,743 97,537
90% 89.6% 88,868 88,483
80% 79.1% 78,994 78,102
70% 69.9% 69,120 69,060
60% 59.7% 59,246 58,990
50% 49.6% 49,371 48,996
40% 40.2% 39,497 39,713
30% 30.2% 29,623 29,784
20% 20.2% 19,749 19,923
10% 10.1% 9,874 9,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,366
Calibration 2     100,772
Calibration 3     100,309
ssj_ops@calibrated=100,540
100% 100.7% 100,540 101,235
90% 90.3% 90,486 90,753
80% 79.4% 80,432 79,875
70% 69.9% 70,378 70,289
60% 60.4% 60,324 60,739
50% 50.4% 50,270 50,638
40% 39.2% 40,216 39,415
30% 30.1% 30,162 30,224
20% 20.5% 20,108 20,570
10% 10.0% 10,054 10,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,891
Calibration 2     100,295
Calibration 3     99,408
ssj_ops@calibrated=99,851
100% 99.3% 99,851 99,114
90% 89.5% 89,866 89,339
80% 79.2% 79,881 79,105
70% 70.5% 69,896 70,430
60% 60.0% 59,911 59,873
50% 50.4% 49,926 50,320
40% 39.9% 39,940 39,876
30% 30.2% 29,955 30,151
20% 20.1% 19,970 20,083
10% 10.3% 9,985 10,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,259
Calibration 2     98,538
Calibration 3     97,827
ssj_ops@calibrated=98,183
100% 100.3% 98,183 98,457
90% 89.7% 88,365 88,041
80% 80.4% 78,546 78,975
70% 70.0% 68,728 68,769
60% 59.8% 58,910 58,709
50% 50.8% 49,091 49,889
40% 40.2% 39,273 39,443
30% 30.0% 29,455 29,488
20% 20.3% 19,637 19,911
10% 10.2% 9,818 10,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,254
Calibration 2     100,336
Calibration 3     99,530
ssj_ops@calibrated=99,933
100% 99.9% 99,933 99,800
90% 90.5% 89,940 90,446
80% 80.3% 79,946 80,284
70% 70.1% 69,953 70,053
60% 59.7% 59,960 59,667
50% 49.5% 49,966 49,451
40% 39.9% 39,973 39,843
30% 29.7% 29,980 29,661
20% 20.3% 19,987 20,270
10% 9.5% 9,993 9,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,939
Calibration 2     100,652
Calibration 3     99,674
ssj_ops@calibrated=100,163
100% 101.1% 100,163 101,311
90% 88.8% 90,147 88,931
80% 80.2% 80,130 80,331
70% 70.0% 70,114 70,109
60% 60.3% 60,098 60,446
50% 50.0% 50,081 50,038
40% 39.1% 40,065 39,210
30% 29.5% 30,049 29,537
20% 20.1% 20,033 20,161
10% 10.2% 10,016 10,244
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,196
Calibration 2     101,711
Calibration 3     100,967
ssj_ops@calibrated=101,339
100% 99.4% 101,339 100,779
90% 90.2% 91,205 91,425
80% 79.6% 81,071 80,694
70% 70.1% 70,937 71,018
60% 59.8% 60,804 60,641
50% 50.0% 50,670 50,650
40% 39.7% 40,536 40,270
30% 29.9% 30,402 30,278
20% 19.8% 20,268 20,041
10% 9.9% 10,134 10,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,495
Calibration 2     100,477
Calibration 3     100,141
ssj_ops@calibrated=100,309
100% 101.0% 100,309 101,333
90% 89.9% 90,278 90,131
80% 79.0% 80,247 79,222
70% 70.1% 70,216 70,343
60% 59.4% 60,186 59,573
50% 49.4% 50,155 49,535
40% 40.8% 40,124 40,944
30% 29.8% 30,093 29,851
20% 19.9% 20,062 19,969
10% 9.9% 10,031 9,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,409
Calibration 2     101,595
Calibration 3     100,511
ssj_ops@calibrated=101,053
100% 100.6% 101,053 101,666
90% 90.4% 90,947 91,395
80% 80.3% 80,842 81,171
70% 69.5% 70,737 70,209
60% 59.5% 60,632 60,102
50% 50.1% 50,526 50,666
40% 40.1% 40,421 40,478
30% 29.7% 30,316 29,999
20% 19.7% 20,211 19,887
10% 10.2% 10,105 10,311
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,365
Calibration 2     102,667
Calibration 3     101,284
ssj_ops@calibrated=101,976
100% 100.1% 101,976 102,059
90% 89.9% 91,778 91,672
80% 80.0% 81,581 81,632
70% 70.1% 71,383 71,452
60% 60.3% 61,185 61,442
50% 50.3% 50,988 51,325
40% 40.4% 40,790 41,174
30% 29.3% 30,593 29,907
20% 19.9% 20,395 20,321
10% 10.5% 10,198 10,685
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,770
Calibration 2     101,483
Calibration 3     100,030
ssj_ops@calibrated=100,756
100% 100.6% 100,756 101,388
90% 90.3% 90,681 90,972
80% 80.0% 80,605 80,618
70% 69.9% 70,529 70,450
60% 59.8% 60,454 60,261
50% 49.2% 50,378 49,593
40% 40.3% 40,303 40,581
30% 29.8% 30,227 30,046
20% 20.3% 20,151 20,454
10% 10.0% 10,076 10,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,048
Calibration 2     100,040
Calibration 3     99,870
ssj_ops@calibrated=99,955
100% 99.7% 99,955 99,651
90% 89.8% 89,960 89,711
80% 79.3% 79,964 79,292
70% 69.6% 69,969 69,521
60% 59.9% 59,973 59,839
50% 50.0% 49,978 49,943
40% 40.3% 39,982 40,307
30% 29.9% 29,987 29,850
20% 19.8% 19,991 19,786
10% 10.3% 9,996 10,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,681
Calibration 2     100,664
Calibration 3     100,165
ssj_ops@calibrated=100,414
100% 99.8% 100,414 100,202
90% 89.9% 90,373 90,280
80% 80.7% 80,332 81,022
70% 69.2% 70,290 69,488
60% 59.3% 60,249 59,498
50% 49.7% 50,207 49,931
40% 41.0% 40,166 41,125
30% 29.6% 30,124 29,698
20% 19.9% 20,083 19,957
10% 10.4% 10,041 10,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,283
Calibration 2     102,516
Calibration 3     101,807
ssj_ops@calibrated=102,161
100% 99.1% 102,161 101,201
90% 89.5% 91,945 91,482
80% 79.1% 81,729 80,842
70% 69.4% 71,513 70,853
60% 59.2% 61,297 60,456
50% 50.2% 51,081 51,270
40% 40.1% 40,865 41,000
30% 29.7% 30,648 30,328
20% 20.1% 20,432 20,583
10% 10.3% 10,216 10,473
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,460
Calibration 2     101,525
Calibration 3     100,215
ssj_ops@calibrated=100,870
100% 99.8% 100,870 100,637
90% 89.6% 90,783 90,421
80% 80.2% 80,696 80,940
70% 70.2% 70,609 70,796
60% 58.9% 60,522 59,447
50% 49.7% 50,435 50,161
40% 39.4% 40,348 39,721
30% 30.0% 30,261 30,237
20% 20.1% 20,174 20,308
10% 10.2% 10,087 10,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,719
Calibration 2     98,942
Calibration 3     98,540
ssj_ops@calibrated=98,741
100% 99.9% 98,741 98,632
90% 90.2% 88,867 89,095
80% 79.6% 78,993 78,602
70% 69.9% 69,119 69,035
60% 60.0% 59,245 59,204
50% 50.4% 49,371 49,768
40% 39.4% 39,496 38,924
30% 30.0% 29,622 29,636
20% 20.4% 19,748 20,136
10% 9.8% 9,874 9,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,790
Calibration 2     99,308
Calibration 3     99,555
ssj_ops@calibrated=99,432
100% 100.3% 99,432 99,725
90% 90.7% 89,488 90,224
80% 80.6% 79,545 80,171
70% 70.7% 69,602 70,286
60% 60.1% 59,659 59,758
50% 49.5% 49,716 49,183
40% 41.0% 39,773 40,765
30% 29.9% 29,829 29,713
20% 19.8% 19,886 19,722
10% 10.0% 9,943 9,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,424
Calibration 2     101,336
Calibration 3     100,262
ssj_ops@calibrated=100,799
100% 99.7% 100,799 100,448
90% 89.6% 90,719 90,286
80% 79.5% 80,639 80,124
70% 69.7% 70,559 70,226
60% 59.4% 60,479 59,901
50% 49.7% 50,399 50,137
40% 38.8% 40,320 39,118
30% 29.8% 30,240 29,998
20% 20.0% 20,160 20,207
10% 10.0% 10,080 10,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,173
Calibration 2     100,009
Calibration 3     98,736
ssj_ops@calibrated=99,372
100% 99.3% 99,372 98,647
90% 90.3% 89,435 89,754
80% 80.6% 79,498 80,134
70% 69.6% 69,561 69,201
60% 59.4% 59,623 59,015
50% 50.7% 49,686 50,355
40% 39.3% 39,749 39,095
30% 30.0% 29,812 29,852
20% 20.0% 19,874 19,917
10% 10.0% 9,937 9,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,340
Calibration 2     98,413
Calibration 3     98,500
ssj_ops@calibrated=98,456
100% 100.0% 98,456 98,453
90% 90.3% 88,611 88,951
80% 79.5% 78,765 78,250
70% 70.3% 68,919 69,263
60% 59.6% 59,074 58,718
50% 49.6% 49,228 48,835
40% 40.0% 39,382 39,351
30% 29.9% 29,537 29,442
20% 20.3% 19,691 19,988
10% 9.7% 9,846 9,524
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,314
Calibration 2     101,154
Calibration 3     100,584
ssj_ops@calibrated=100,869
100% 99.6% 100,869 100,419
90% 89.9% 90,782 90,726
80% 81.3% 80,695 82,015
70% 69.6% 70,608 70,163
60% 60.3% 60,521 60,820
50% 50.0% 50,434 50,470
40% 39.5% 40,347 39,862
30% 29.8% 30,261 30,032
20% 20.2% 20,174 20,422
10% 10.1% 10,087 10,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B0O552PGTK8.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,199
Calibration 2     98,852
Calibration 3     99,049
ssj_ops@calibrated=98,951
100% 99.7% 98,951 98,608
90% 89.8% 89,056 88,815
80% 80.2% 79,160 79,368
70% 69.8% 69,265 69,093
60% 59.9% 59,370 59,295
50% 50.1% 49,475 49,577
40% 40.5% 39,580 40,064
30% 29.4% 29,685 29,074
20% 19.9% 19,790 19,710
10% 10.0% 9,895 9,869
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
