SPECpower_ssj2008

Sugon A620-G30(AMD EPYC 7351)			SPECpower_ssj2008 = 6,507 overall ssj_ops/watt
Test Sponsor:	Sugon	SPEC License #:	9046	Test Method:	Single Node
Tested By:	Sugon	Test Location:	Beijing, CHN	Test Date:	May 18, 2018
Hardware Availability:	Sep-2018	Software Availability:	Oct-2017	Publication:	Aug 8, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Sugon
Model:	A620-G30(AMD EPYC 7351)
Form Factor:	2U
CPU Name:	AMD EPYC 7351
CPU Characteristics:	16-Core, 2.2GHz, 64MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	32 cores, 2 chips, 16 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	64 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip, 8 MB Shared / 2cores
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	16 x 8 GB
Memory Details:	8GB 1Rx8 PC4-2666V-R(P/N:Sugon 50000408);slots CPU0_DIMM[A-H]0, CPU1_DIMM[A-H]0 populated
Power Supply Quantity and Rating (W):	1 x 550
Power Supply Details:	ARTESYN 550W PSU(P/N:CSU550AP-3-200)
Disk Drive:	1 x 128GB M.2 SATA SSD(P/N:SSDSCKKW128G8X1)
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x 1Gb Integrated onboard Ethernet with 2-port Adapter
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-XX:InlineSmallCode=800 -XX:FreqInlineSize=2000 - XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=1 - XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+UseAdaptiveSizePolicy -Xmx1024m -Xms1024m -Xmn900m
JVM Affinity:	start /node [0-7] /affinity [0x1,0x4,0x10,0x40]
JVM Instances:	32
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	V0.29
Management Firmware Version:	V0.81
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version.
Windows Power Options=Balanced Mode
Maximum Processor State=95%, Minimum Processor State=0%
No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Run initiated via Windows Remote Desktop Connection.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Chroma Inc.
Model:	Chroma66202
Serial Number:	662022006060
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	National Institute of Metrology
Accredited by:	Internal Calibration Laboratory
Calibration Label:	C1804051425
Date of Calibration:	5-Apr-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	SUT Power Supply 1

Temperature Sensor temp1
Hardware Vendor:	iButton Link Technology
Model:	iButton Link T-Sense/T-Probe
Driver Version:	2.12.24.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	10mm in front of SUT main airflow intake

None

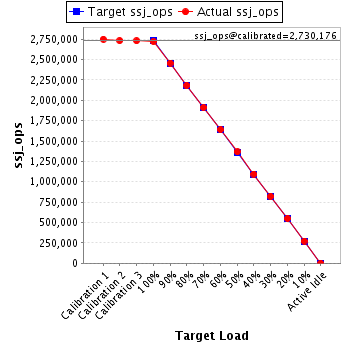

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	278	27.2
90%	265	27.1
80%	250	27.1
70%	238	27.0
60%	225	26.9
50%	213	26.9
40%	201	26.8
30%	190	26.8
20%	179	26.8
10%	166	26.8
Active Idle	103	26.8

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	26.8	50

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
