Sugon I620-G30 (Intel Xeon Gold 6140) SPECpower_ssj2008 = 9,230 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 26, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 342 27.6
Calibration 2 344 27.6
Calibration 3 344 27.6
100% 343 27.6
90% 318 27.7
80% 279 27.7
70% 228 27.7
60% 194 27.7
50% 173 27.7
40% 156 27.7
30% 142 27.7
20% 128 27.7
10% 113 27.6
Active Idle 52.4 27.6

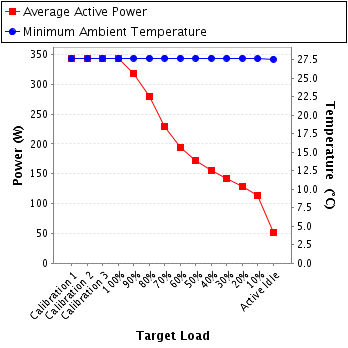

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Meters and Instruments Corporation
Model: WT310E
Serial Number: C3UB14026E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: National Institute of Metrology
Calibration Label: CSG06300180301-1145
Date of Calibration: 01-Mar-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connect to PSU1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 300.0 1.53 5.0 0.989 342 0.4%
Calibration 2 227 300.0 1.53 5.0 0.989 344 0.4%
Calibration 3 227 300.0 1.53 5.0 0.989 344 0.4%
100% 227 300.0 1.53 5.0 0.989 343 0.4%
90% 227 300.0 1.42 2.0 0.987 318 0.2%
80% 228 300.0 1.25 2.0 0.982 279 0.2%
70% 227 300.0 1.03 2.0 0.973 228 0.3%
60% 227 300.0 0.882 2.0 0.968 194 0.3%
50% 226 300.0 0.792 2.0 0.962 173 0.3%
40% 225 300.0 0.727 1.0 0.956 156 0.3%
30% 225 300.0 0.666 1.0 0.948 142 0.3%
20% 225 300.0 0.608 1.0 0.939 128 0.3%
10% 225 300.0 0.542 1.0 0.927 113 0.3%
Active Idle 225 300.0 0.301 0.5 0.771 52.4 0.4%

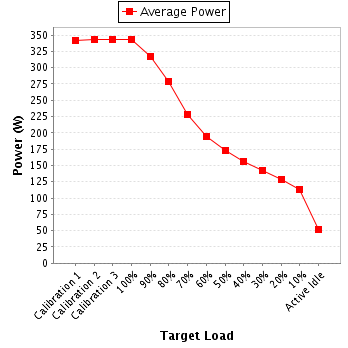

Power details for pwr1
