SPECpower_ssj2008

Dell Inc. PowerEdge R840 (Intel Xeon Platinum 8180 2.50 GHz)			SPECpower_ssj2008 = 11,872 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	55	Test Method:	Single Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Jun 18, 2018
Hardware Availability:	Jun-2018	Software Availability:	Nov-2016	Publication:	Jul 5, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge R840 (Intel Xeon Platinum 8180 2.50 GHz)
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8180 2.50 GHz
CPU Characteristics:	28 core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	2,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2666V; Dell SKU 370-ADND, Slots A1-6,B1-6,C1-6,D1-6 populated.
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	Dell SKU 450-AFMR
Disk Drive:	1 x 120 GB SATA SSD, Dell SKU 400-ASEG
Disk Controller:	Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed:	1 x quad-port Broadcom 5720, Dell SKU 540-BCEN
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3.9600.18969
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000]; start /NODE [1,3,5,7] /AFFINITY [0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0x30000000000,0xC0000000000,0x300000000000,0xC00000000000]
JVM Instances:	112
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	1.1.1
Management Firmware Version:	3.19.19.19 A00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	none

none

Each JVM instance was bound to 2 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Balanced Power Plan Minimum processor state set to 0%
Balanced Power Plan Maximum processor state set to 100%
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.8.0_121
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91KA21979
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	66762
Date of Calibration:	27-Feb-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

None

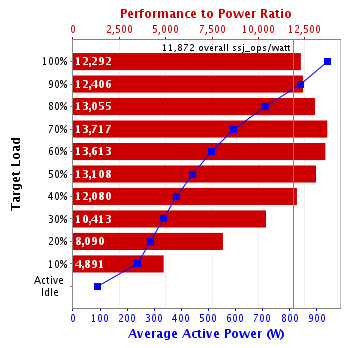

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	939	23.8
90%	839	24.6
80%	710	24.9
70%	592	24.6
60%	511	24.4
50%	442	24.1
40%	383	23.8
30%	333	23.3
20%	286	22.9
10%	237	22.6
Active Idle	89.8	22.3

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	22.3	255

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
