SPECpower_ssj2008

Inspur Corporation Inspur Yingxin NF8480M5			SPECpower_ssj2008 = 12,198 overall ssj_ops/watt
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Jun 5, 2018
Hardware Availability:	May-2018	Software Availability:	Jan-2015	Publication:	Aug 1, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur Yingxin NF8480M5
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8176
CPU Characteristics:	28-Core, 2.1GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0,CPU2_C0D0,CPU2_C1D0, CPU2_C2D0, CPU2_C3D0, CPU2_C4D0, CPU2_C5D0, CPU3_C0D0,CPU3_C1D0, CPU3_C2D0, CPU3_C3D0, CPU3_C4D0, CPU3_C5D0 populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	GW-CRPS1200 PN:V07LW020V000300F
Disk Drive:	Intel SSD DC S3700 Series 200G PN:ZMHD1000019
Disk Controller:	PCI-E Controller,RiserCard_Inspur_Santiago_PCIEx8_forRaid, PN: YZRI-00900-101,Raid_L_8R0_9460-8i_2GB_HDM12G PCIE3.0 PN:ZMCA1000201
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Balanced Power" power plan)
Operating System (OS):	Microsoft Windows Servers 2012 R2 Standard
OS Version:	Version 6.3.9600 Build 9600
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,5,7] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	112
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	3.0.5
Management Firmware Version:	1.15.7
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Software
Operating System (OS):	Windows 7
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11,mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310E
Serial Number:	C3TA11005E
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment(CNAS)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	QDCT170324337-28
Date of Calibration:	27-Jul-2017
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 0

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version

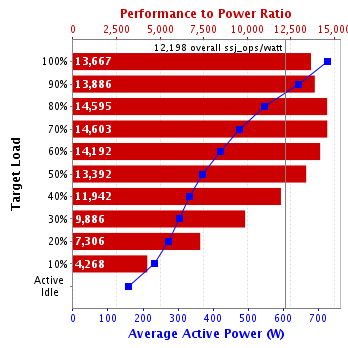

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	726	20.4
90%	645	20.3
80%	546	20.6
70%	477	20.6
60%	421	20.5
50%	371	20.4
40%	333	20.3
30%	303	20.5
20%	273	20.7
10%	233	20.7
Active Idle	158	20.7

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	20.3	57

See the Power/Temperature Details Report for additional details.

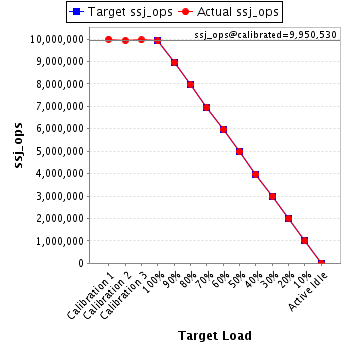

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
